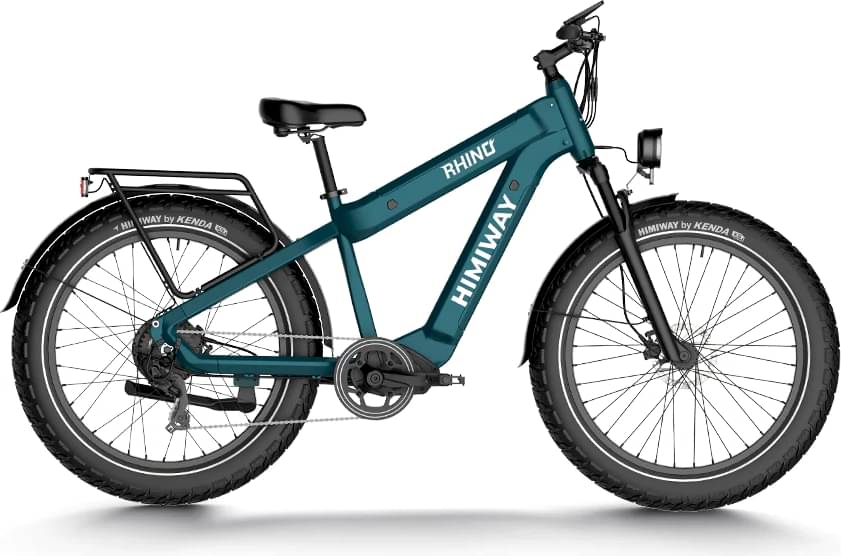

Himiway Rhino D5 Plus / D5 Ultra 2024
2024 E-bike
Estimate price |
3,199$
Weight | 44 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Groupset Deore -
Suspension Full -
Motor mid-drive -
Battery 48V 15Ah*2 -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Aluminum frame
Suspension Fork
TRAMA FAT34-PLS 26 Air Spring 100mm travel 15*150mm thru axle 1 D5 Plus: TRAMA FAT34-PLS 26 Coil Spring 100mm travel 15*150mm thru axle
Rear Shock
Alloy front suspension fork with lockout and adjustment
Drivetrain
Rear Derailleur
Shiminao deore 10 speed
Cassette
Shimano CS-HG500-10 11--34T 5 D5 Plus: Shimano CS-HG201-9 11-36T
Crank
Crank arm: Bafang 170mm | Chain ring: 44T 4 D5 Plus: Crank arm: EB-01-242A-S1 forged alloy 170mm | Chain ring: 44T
Chain
KMC E10S-EPT 124L 6 D5 Plus: KMC E9-S EPT 124L
Pedals
Aluminum pedal
Wheels
Rims
Front: Rim?MD242 26*12G*36 | Spoke?12G 256/257L | Hub?M104F-150 12G*150, Rear: Rim?MD242 26*12G*36 | Spoke?12G 256/257L | Hub?MB019R-190F-GM14
Tires
Kenda X Himiway K1277 26*4.5
Brakes
Brakes
Hydraulic
Cockpit
Stem
TDS-D704-8FOV/ISO-M 28.6*90*31.8
Handlebar
MTB-AL-312BT FOV/ISO-M/AL/BACK SWEEP:6° 31.8mm*22.2mm*700W
Headset
Neco H148 28.6"44*44*30mm
Seat
Saddle
Himwiay TTZ032X saddle
Seatpost
ALLOY 30.4*350mm
Motor & Battery
Motor
1000W mid-drive motor 2 D5 Plus: 1000W brushless gear motor
Battery
48V 15Ah*2
Charger
US standard 3.0 A smart charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | One Size |
|---|---|
| Wheels | 26" |
