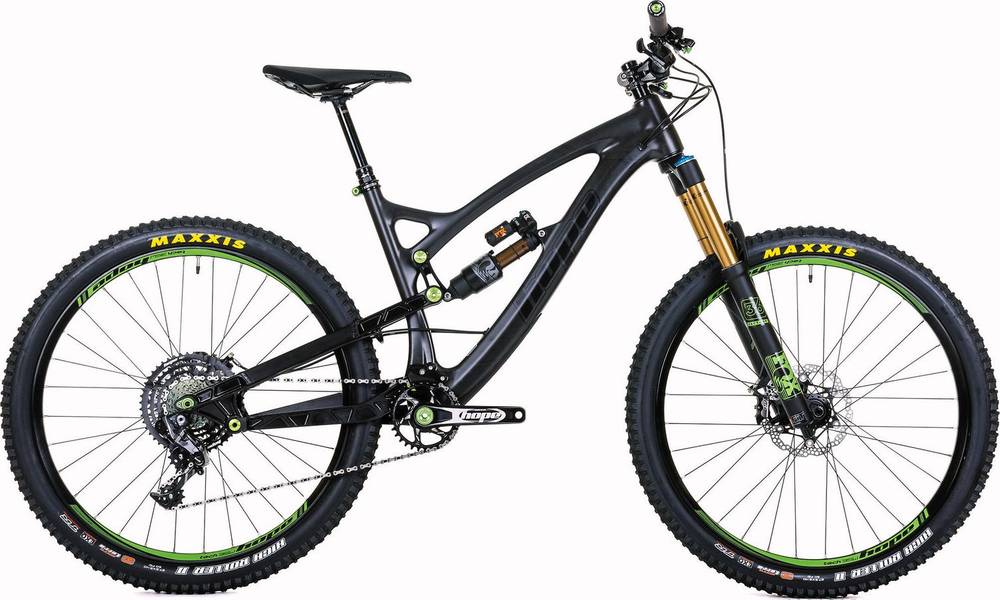

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Factory Float 36
-
Groupset XX1 -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX Factory 36 Float RC2, boost
Rear Shock
FOX Factory Float X2, 2-position lever
Drivetrain
Rear Derailleur
SRAM XX1, 11-speed
Front Derailleur
N/A
Shift Levers
SRAM XX1, 11-speed
Cassette
Hope 10-44 tooth, 11-speed
Crank
Hope
Bottom Bracket
Hope HB, 30mm
Chain Guide
Top guide, direct mount
Pedals
Hope F20
Wheels
Front Hub
Pro4 HB/110 boost
Rear Hub
Pro4 HB/110 boost
Rims
Tech 35 W, 35mm internal width
Spokes
Sapim Race
Tires
Maxxis High Roller II 3C EXO 2.4", tubeless
Brakes
Brakes
Tech 3 E4, radial mounted calipers, 180mm (160mm rear on Small)
Brake Levers
Tech 3 E4
Cockpit
Stem
Hope AM, 35mm
Handlebar
Hope Carbon, 780mm
Grips
Hope Lock-on
Headset
Hope 1.5" - 1-1/8"
Seat
Saddle
SDG Duster MTN, Ti alloy rails
Seatpost
RockShox Reverb, 125mm (S), 150mm (M-XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.45 mm | 1.4 mm | 1.32 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Stack | 606.5 mm | 611 mm | 620 mm | 624.7 mm |
| Reach | 402.5 mm | 421.2 mm | 443.6 mm | 474.3 mm |
| Top Tube Length | 575 mm | 595 mm | 620 mm | 652 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 405 mm | 440 mm | 475 mm | 510 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1153 mm | 1174 mm | 1200 mm | 1233 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
HB.160 belongs to the Hopetechnology Hb160 model. There is 1 bike that carries this model name.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Enduro bikes
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
HB.160 components
Fork
The Fox Factory Float 36 is included from the factory. It has a travel distance of 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the FOX Factory Float X2 rear shock model, which has a travel of 160mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The HB.160 2018 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Hope Technology HB.160 comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
