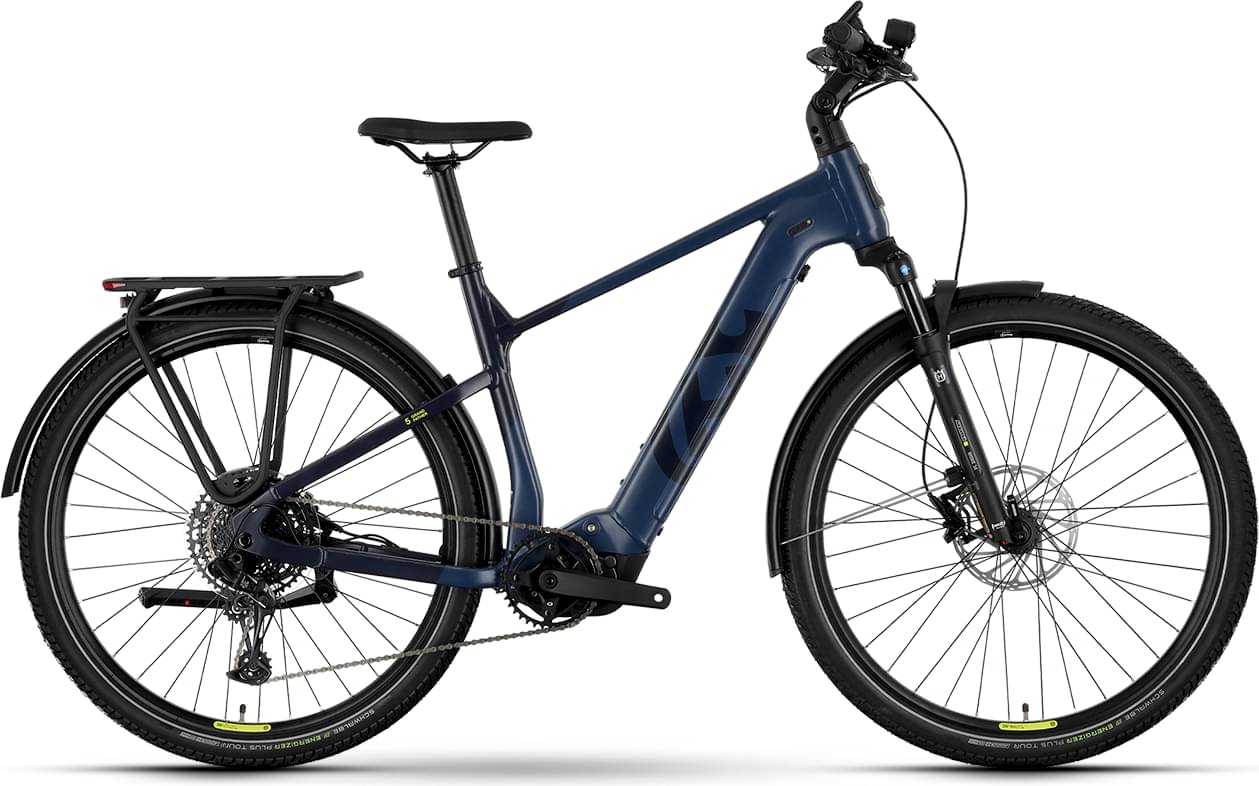

Husqvarna Grand Pather 5 2024
2024 E-bike
Estimate price |
5,234$
Weight | 25.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 80mm -
Fork Suntour MOBIE
-
Groupset NX Eagle, SX Eagle -
Suspension Hardtail -
Motor Yamaha 250W 85Nm mid-drive -
Battery Simplo, 720 Wh, 36 V -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29", Alloy 6061, Integrated battery
Suspension Fork
SR SUNTOUR Mobie34-D 2CR, Air, 80 mm
Drivetrain
Rear Derailleur
SRAM NX Eagle, 12-S
Shift Levers
SRAM SX Eagle, Single Click
Cassette
SRAM PG-1210, 11-50 T
Crank
SRAM X-Sync Eagle, 38 T
Chain
SRAM SX Eagle
Pedals
Husqvarna, aluminum
Wheels
Rims
Front: Rim: Mach 1 TRUCKY 30, With eyelets, Tubeless ready / Hub: Husqvarna DA210F, 6-hole, 15x110 mm, thru axle, Rear: Rim: Mach 1 TRUCKY 30, With eyelets, Tubeless ready / Hub: Husqvarna DA210R, 6-hole, 12x148 mm, thru axle
Tires
Schwalbe Energizer Plus, Performance, 55-622, 28x2.15,
Brakes
Brakes
Front: SRAM Level T, 2-piston, Hydraulic disc brake, Rear: SRAM Level T, 2-piston, Hydraulic disc brake
Cockpit
Stem
Husqvarna 31,8, Ahead, adjustable
Handlebar
Husqvarna Riser 31.8 mm, 700 mm, Sweep: 9 °, Rise: 15 mm
Grips
Husqvarna Ergo, Lock-on grips
Headset
Acros AZX-579 ZS56/ZS56
Seat
Saddle
Husqvarna Ergo
Seatpost
Husqvarna, 34.9 mm, 350 mm, Patent
Motor & Battery
Motor
Yamaha PW-X3, 250 W, 85 Nm
Battery
Simplo, 720 Wh, 36 V
Charger
Simplo rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.476 mm | 1.481 mm | 1.479 mm | 1.477 mm |
| Bottom Bracket Height | 290 mm | 290 mm | 290 mm | 290 mm |
| Front Center | 714 mm | 724 mm | 739 mm | 754 mm |
| Rake | 51 mm | 51 mm | 51 mm | 50 mm |
| Trail | 82 mm | 78 mm | 78 mm | 80 mm |
| Stack | 642 mm | 659 mm | 673 mm | 687 mm |
| Reach | 435 mm | 445 mm | 455 mm | 465 mm |
| Top Tube Length | 607 mm | 622 mm | 635 mm | 649 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm | 600 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 135 mm | 150 mm | 165 mm | 180 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1182 mm | 1192 mm | 1207 mm | 1222 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
