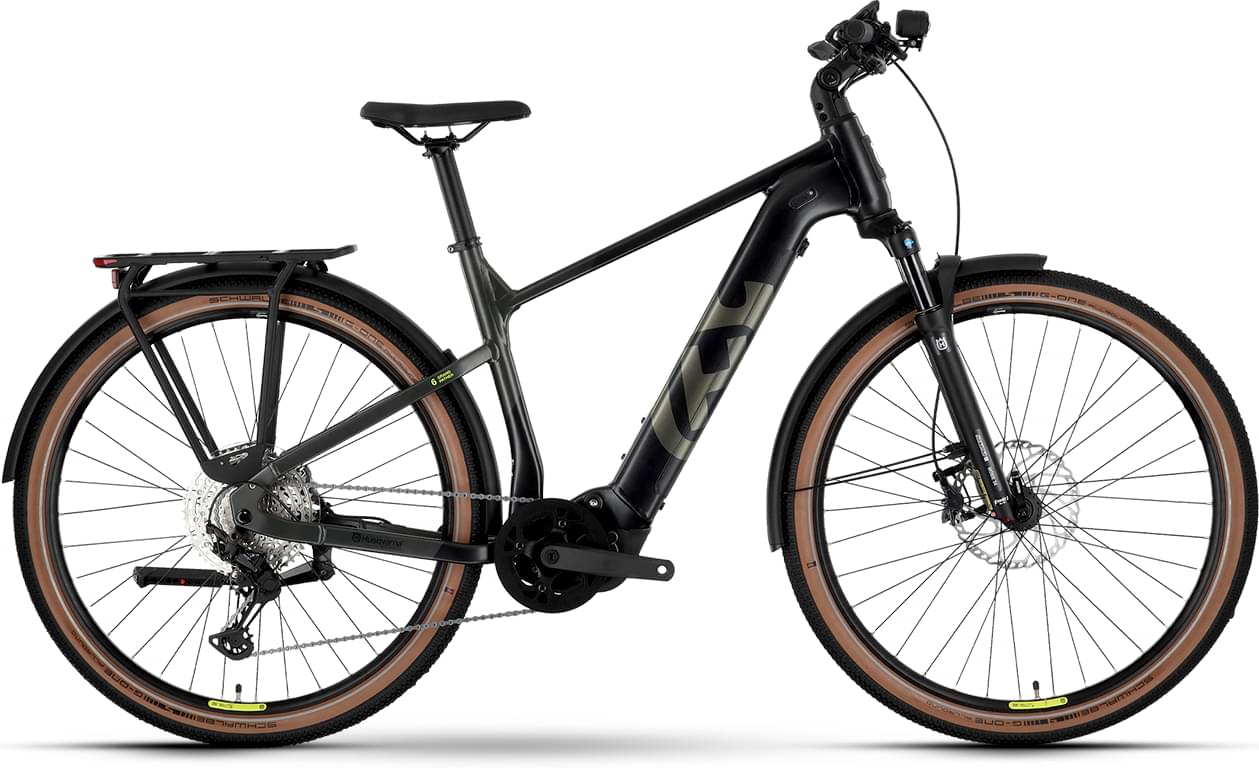

Husqvarna Grand Pather 6 2024
2024 E-bike
Estimate price |
5,816$
Weight | 25.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 80mm -
Fork Suntour MOBIE
-
Groupset XT -
Suspension Hardtail -
Motor Yamaha 250W 85Nm mid-drive -
Battery Simplo, 720 Wh, 36 V -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29", Alloy 6061, Integrated battery
Suspension Fork
SR SUNTOUR Mobie34 2CR, Air, 80 mm
Drivetrain
Rear Derailleur
Shimano Deore XT, RD-M8100, Shadow Plus, 12-S
Shift Levers
Shimano Deore XT, SL-M8100, Rapidfire Plus
Cassette
Shimano CS-M6100, 10-51 T
Crank
Husqvarna, Narrow Wide, 40 T
Chain
KMC e12S
Pedals
Husqvarna, aluminum
Wheels
Rims
Front: Rim: Mach 1 TRUCKY 30, With eyelets, Tubeless ready / Hub: Husqvarna DA210F, 6-hole, 15x110 mm, thru axle, Rear: Rim: Mach 1 TRUCKY 30, With eyelets, Tubeless ready / Hub: Husqvarna DA210R, 6-hole, 12x148 mm, thru axle
Tires
Schwalbe G-One Allround, 57-622, 29x2.25,
Brakes
Brakes
Front: Shimano BR-U8000, 2-piston, Hydraulic disc brake, Rear: Shimano BR-U8000, 2-piston, Hydraulic disc brake
Cockpit
Stem
Husqvarna 31,8, Ahead, adjustable
Handlebar
Husqvarna Riser 31.8 mm, 700 mm, Sweep: 9 °, Rise: 15 mm
Grips
Husqvarna Ergo, Lock-on grips
Headset
Acros AZX-579 ZS56/ZS56
Seat
Saddle
Husqvarna Ergo
Seatpost
Husqvarna, 34.9 mm, 350 mm, Patent
Motor & Battery
Motor
Yamaha PW-X3, 250 W, 85 Nm
Battery
Simplo, 720 Wh, 36 V
Charger
Simplo rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.476 mm | 1.481 mm | 1.479 mm | 1.477 mm |
| Bottom Bracket Height | 290 mm | 290 mm | 290 mm | 290 mm |
| Front Center | 714 mm | 724 mm | 739 mm | 754 mm |
| Rake | 51 mm | 51 mm | 51 mm | 50 mm |
| Trail | 82 mm | 78 mm | 78 mm | 80 mm |
| Stack | 642 mm | 659 mm | 673 mm | 687 mm |
| Reach | 435 mm | 445 mm | 455 mm | 465 mm |
| Top Tube Length | 607 mm | 622 mm | 635 mm | 649 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm | 600 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 135 mm | 150 mm | 165 mm | 180 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1182 mm | 1192 mm | 1207 mm | 1222 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
