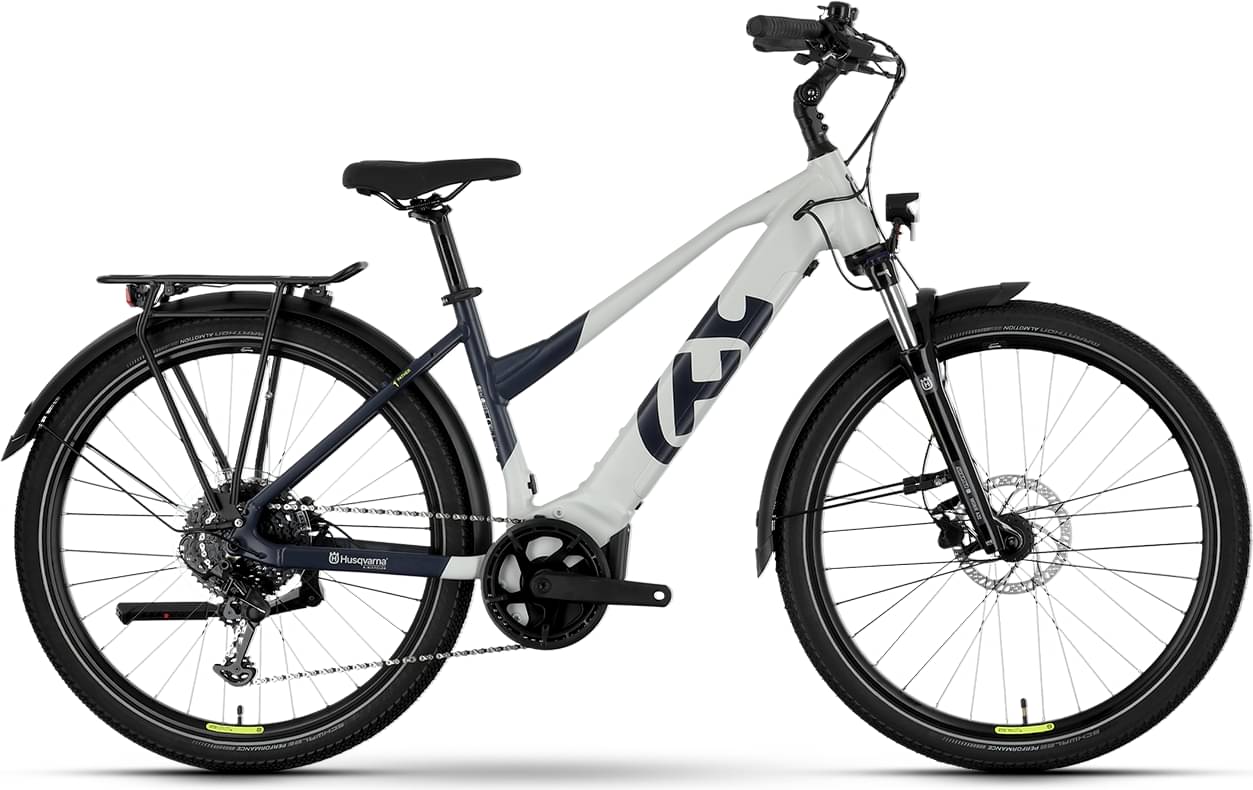

Husqvarna Pather 1 2024
2024 E-bike
Estimate price |
3,325$
Weight | 27.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 75mm -
Fork Suntour MOBIE
-
Groupset Tektro EDRIVE 9 -
Suspension Hardtail -
Motor Yamaha 250W 70Nm mid-drive -
Battery Simplo, 630 Wh, 36 V -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
27.5", Alloy 6061, Integrated battery, Boost
Suspension Fork
SR SUNTOUR Mobie-A32 NLO, Coil, 75 mm, tapered
Drivetrain
Rear Derailleur
Tektro RD-M350, 9-S
Shift Levers
Tektro SL-M350R
Cassette
Tektro CS-M350, 11-46 T
Crank
Husqvarna, 44 T
Chain
KMC e9S
Pedals
Husqvarna, aluminum
Wheels
Rims
Front: Rim: Mach 1 TRUCKY 30, With eyelets, Tubeless ready / Hub: Husqvarna DA210F, 6-hole, 15x100 mm, thru axle, Rear: Rim: Mach 1 TRUCKY 30, With eyelets, Tubeless ready / Hub: Husqvarna DA210R, 6-hole, 12x148 mm, thru axle
Tires
Schwalbe Marathon Almotion, 55-584, 27.5, 2.2
Brakes
Brakes
Front: Tektro HD-T280, 2-piston, Hydraulic disc brake, Rear: Tektro HD-T280, 2-piston, Hydraulic disc brake
Cockpit
Stem
Husqvarna 31,8, Ahead, adjustable
Handlebar
Husqvarna Riser 31.8 mm, 640 mm, Sweep: 35 °, Rise: 20 mm
Grips
Husqvarna Ergo, Lock-on grips
Headset
Husqvarna ZS44/ZS56
Seat
Saddle
Husqvarna Ergo
Seatpost
Husqvarna, 31.6 mm, 350 mm, Patent
Motor & Battery
Motor
Yamaha PW-ST, 250 W, 70 Nm
Battery
Simplo, 630 Wh, 36 V
Charger
Simplo rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Stack Reach Ratio | 1.529 mm | 1.557 mm |
| Front Center | 681 mm | 676 mm |
| Rake | 44 mm | 45 mm |
| Trail | 80 mm | 72 mm |
| Stack | 630 mm | 643 mm |
| Reach | 412 mm | 413 mm |
| Top Tube Length | 605 mm | 610 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 500 mm |
| Head Tube Angle | 69 ° | 70 ° |
| Head Tube Length | 150 mm | 160 mm |
| Chainstay Length | 460 mm | 460 mm |
| Wheelbase | 1134 mm | 1129 mm |
| Bottom Bracket Drop | 60 mm | 60 mm |
| Wheels | 650 | 650 |
