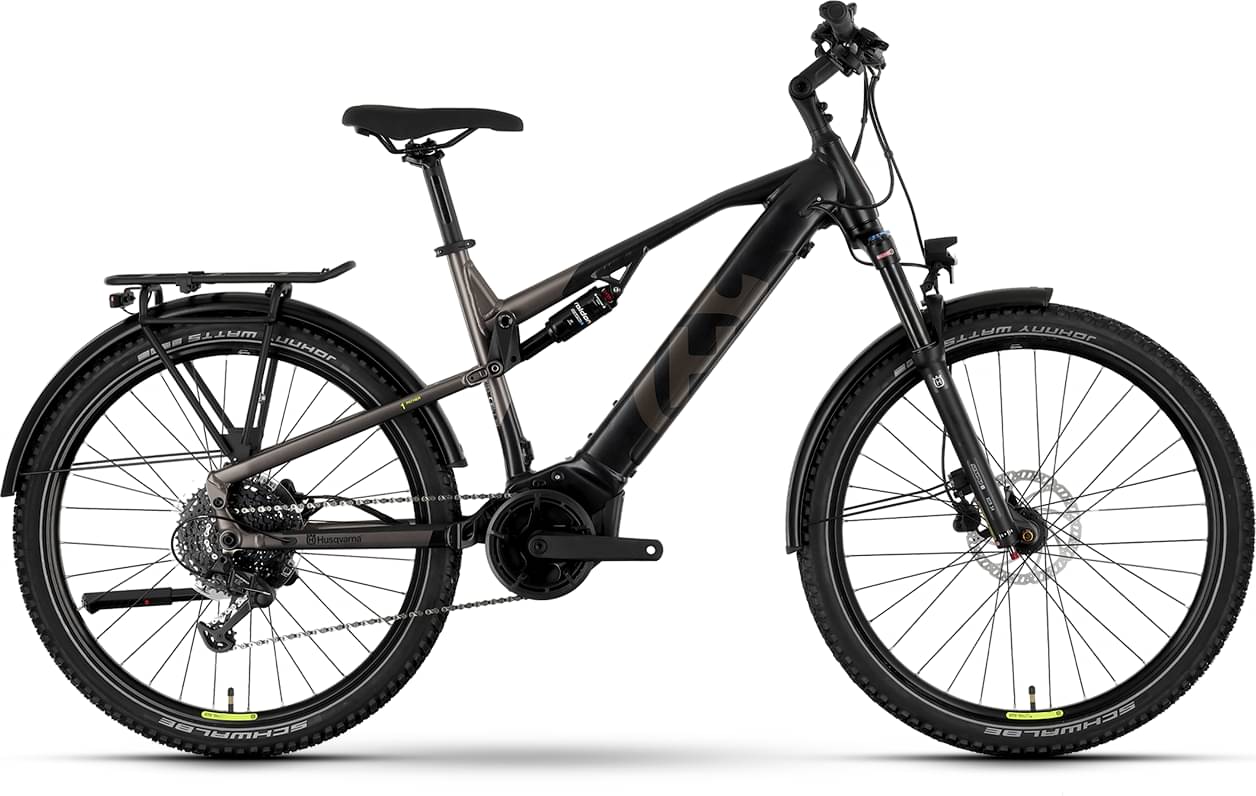

Husqvarna Pather 1 FS 2024
2024 E-bike
Estimate price |
4,071$
Weight | 27.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Travel Rear 120mm -
Fork Suntour XCR Air
-
Groupset Tektro EDRIVE 9 -
Suspension Full -
Motor Yamaha 250W 70Nm mid-drive -
Battery Simplo, 630 Wh, 36 V -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", Alloy 6061, Integrated battery, Boost, 120 mm
Suspension Fork
SR SUNTOUR XCR34 Boost LOR, Air, 120 mm, tapered
Rear Shock
SR SUNTOUR Raidon R, Air, 190x51 mm
Drivetrain
Rear Derailleur
Tektro RD-M350, 9-S
Shift Levers
Tektro SL-M350R
Cassette
Tektro CS-M350, 11-46 T
Crank
Husqvarna, 38 T
Chain
KMC e9S
Chain Guide
Direct Mount
Pedals
Husqvarna, aluminum
Wheels
Rims
Front: Rim: Mach 1 TRUCKY 30, With eyelets, Tubeless ready / Hub: Husqvarna DA210F, 6-hole, 15x110 mm, thru axle, Rear: Rim: Mach 1 TRUCKY 30, With eyelets, Tubeless ready / Hub: Husqvarna DA210R, 6-hole, 12x148 mm, thru axle
Tires
Schwalbe Johnny Watts, Performance, Reflex, 60-584, 27.5, 2.35
Brakes
Brakes
Front: Tektro HD-T280, 2-piston, Hydraulic disc brake, Rear: Tektro HD-T280, 2-piston, Hydraulic disc brake
Cockpit
Stem
Husqvarna 31,8, Ahead, adjustable
Handlebar
Husqvarna Riser 31.8 mm, 700 mm, Sweep: 9 °, Rise: 12 mm
Grips
Husqvarna Ergo, Lock-on grips
Headset
Husqvarna ZS44/ZS56
Seat
Saddle
Husqvarna Ergo
Seatpost
Husqvarna, 31.6 mm, 300 mm, Patent
Motor & Battery
Motor
Yamaha PW-ST, 250 W, 70 Nm
Battery
Simplo, 630 Wh, 36 V
Charger
Simplo rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Stack Reach Ratio | 1.363 mm | 1.318 mm |
| Front Center | 710 mm | 750 mm |
| Rake | 23 mm | 41 mm |
| Trail | 109 mm | 89 mm |
| Stack | 608 mm | 613 mm |
| Reach | 446 mm | 465 mm |
| Top Tube Length | 620 mm | 640 mm |
| Seat Tube Angle | 74 ° | 74 ° |
| Seat Tube Length | 480 mm | 520 mm |
| Head Tube Angle | 68 ° | 68 ° |
| Head Tube Length | 130 mm | 135 mm |
| Chainstay Length | 477 mm | 477 mm |
| Wheelbase | 1187 mm | 1227 mm |
| Bottom Bracket Drop | 16 mm | 16 mm |
| Wheels | 650 | 650 |
