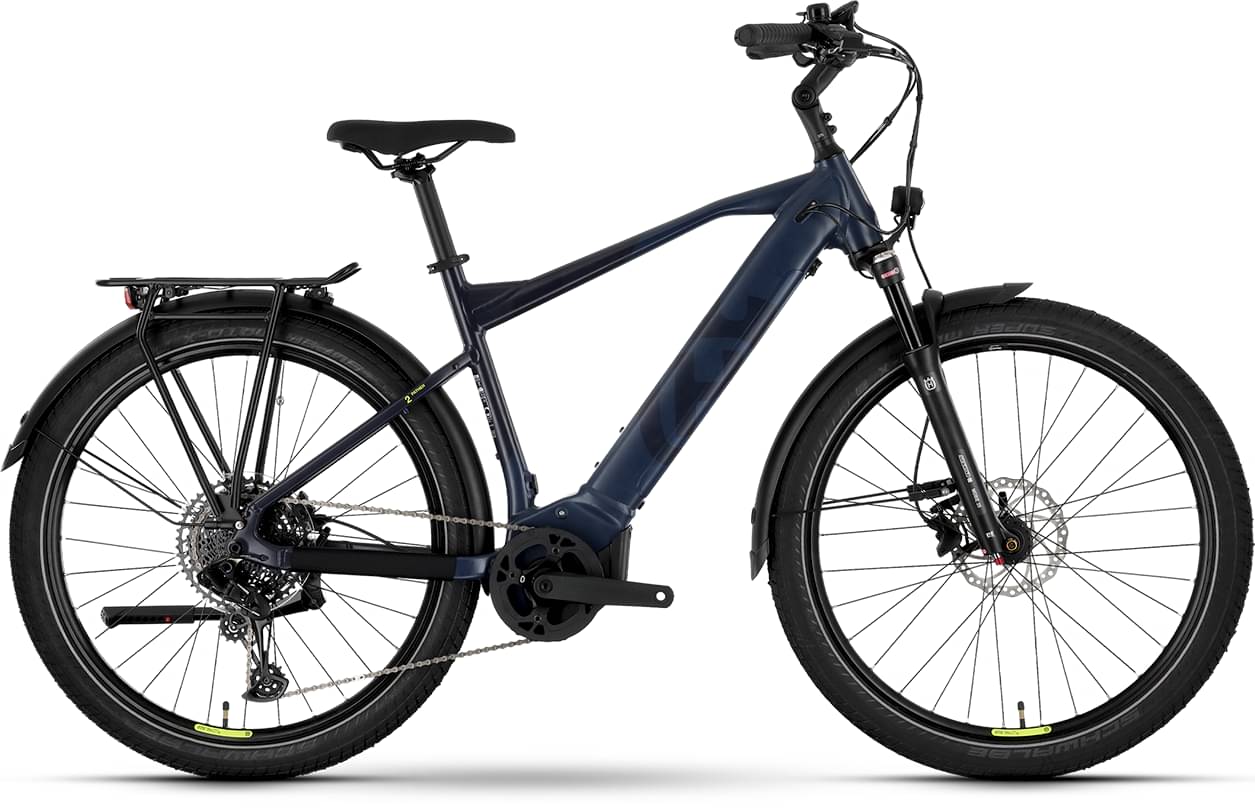

Husqvarna Pather 2 SE 2024
2024 E-bike
Estimate price |
3,838$
Weight | 25.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 75mm -
Fork Suntour MOBIE
-
Groupset SX Eagle -
Suspension Hardtail -
Motor Yamaha 250W 70Nm mid-drive -
Battery Simplo, 630 Wh, 36 V -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
27.5", Alloy 6061, Integrated battery, Boost
Suspension Fork
SR SUNTOUR Mobie25 LOR, Coil, 75 mm, tapered
Drivetrain
Rear Derailleur
SRAM SX Eagle, 12-S
Shift Levers
SRAM SX Eagle, Single Click
Cassette
SRAM PG-1210, 10-50 T
Crank
Husqvarna, Narrow Wide, 38 T
Chain
SRAM SX Eagle
Pedals
Husqvarna, aluminum
Wheels
Rims
Front: Rim: Mach 1 TRUCKY 30, With eyelets, Tubeless ready / Hub: Husqvarna DA210F, 6-hole, 15x100 mm, thru axle, Rear: Rim: Mach 1 TRUCKY 30, With eyelets, Tubeless ready / Hub: Husqvarna DA210R, 6-hole, 12x148 mm, thru axle
Tires
Schwalbe Super Moto-X, Performance, Reflex, 62-584, 27.5, 2.4
Brakes
Brakes
Front: Tektro HD-T390, 2-piston, Hydraulic disc brake, Rear: Tektro HD-T390, 2-piston, Hydraulic disc brake
Cockpit
Stem
Husqvarna 31,8, Ahead, adjustable
Handlebar
Husqvarna Ergo 31.8 mm, 640 mm, Sweep: 35 °, Rise: 20 mm
Grips
Husqvarna Ergo, Lock-on grips
Headset
Husqvarna ZS44/ZS56
Seat
Saddle
Husqvarna Ergo
Seatpost
Husqvarna, 31.6 mm, 350 mm, Patent
Motor & Battery
Motor
Yamaha PW-ST, 250 W, 70 Nm
Battery
Simplo, 630 Wh, 36 V
Charger
Simplo rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.499 mm | 1.494 mm | 1.508 mm | 1.505 mm |
| Front Center | 681 mm | 674 mm | 680 mm | 691 mm |
| Rake | 44 mm | 43 mm | 44 mm | 45 mm |
| Trail | 80 mm | 74 mm | 73 mm | 72 mm |
| Stack | 622 mm | 626 mm | 635 mm | 644 mm |
| Reach | 415 mm | 419 mm | 421 mm | 428 mm |
| Top Tube Length | 605 mm | 610 mm | 615 mm | 625 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 415 mm | 500 mm | 550 mm | 600 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 140 mm | 140 mm | 150 mm | 160 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1134 mm | 1127 mm | 1133 mm | 1144 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
