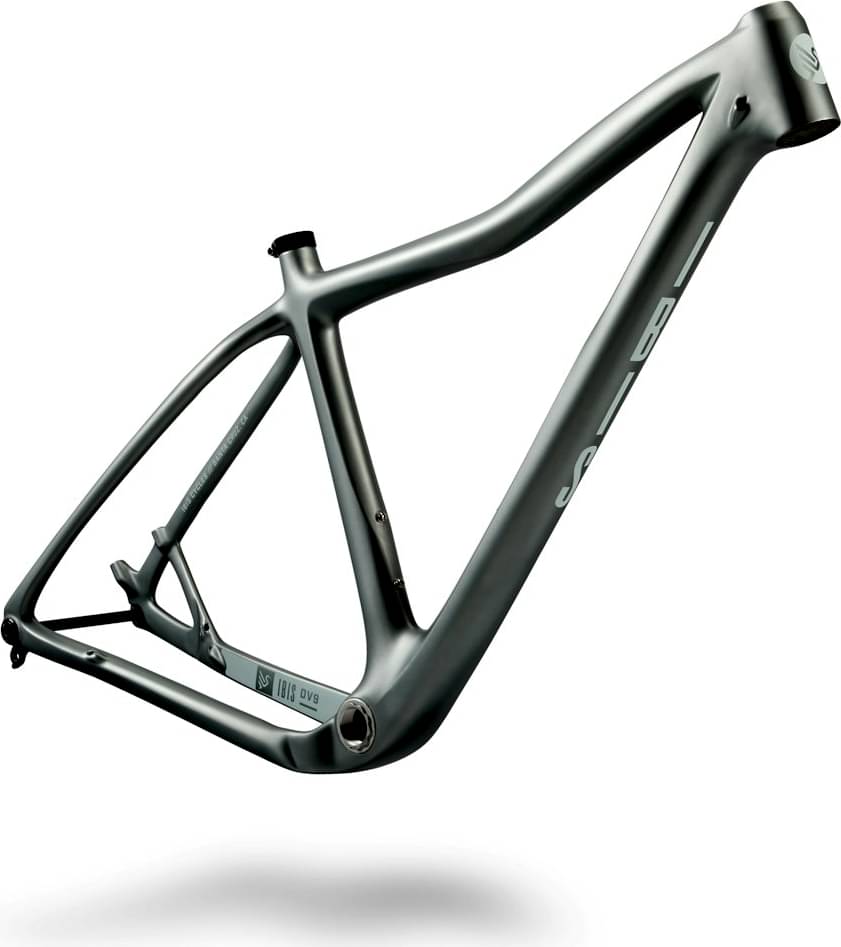

Ibis DV9 Frameset 2025
2025 Mountain
Estimate price |
1,499$
Weight | 1.31 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Travel Front 120mm -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Drivetrain
Bottom Bracket
73mm English threaded
Brakes
Brakes
Rear: 160mm Post mount / 203mm max
Seat
Seatpost
31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.522 mm | 1.43 mm | 1.351 mm | 1.288 mm |
| Bottom Bracket Height | 308 mm | 308 mm | 308 mm | 308 mm |
| Front Center | 683 mm | 728 mm | 769 mm | 820 mm |
| Rake | 34 mm | 44 mm | 44 mm | 44 mm |
| Trail | 114 mm | 114 mm | 114 mm | 114 mm |
| Stack | 615 mm | 622 mm | 635 mm | 658 mm |
| Reach | 404 mm | 435 mm | 470 mm | 511 mm |
| Top Tube Length | 580 mm | 608 mm | 640 mm | 675 mm |
| Seat Tube Angle | 74 ° | 74.5 ° | 75 ° | 76 ° |
| Seat Tube Length | 356 mm | 406 mm | 457 mm | 508 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 85 mm | 95 mm | 110 mm | 135 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1100 mm | 1145 mm | 1186 mm | 1237 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 693 mm | 714 mm | 762 mm | 776 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
