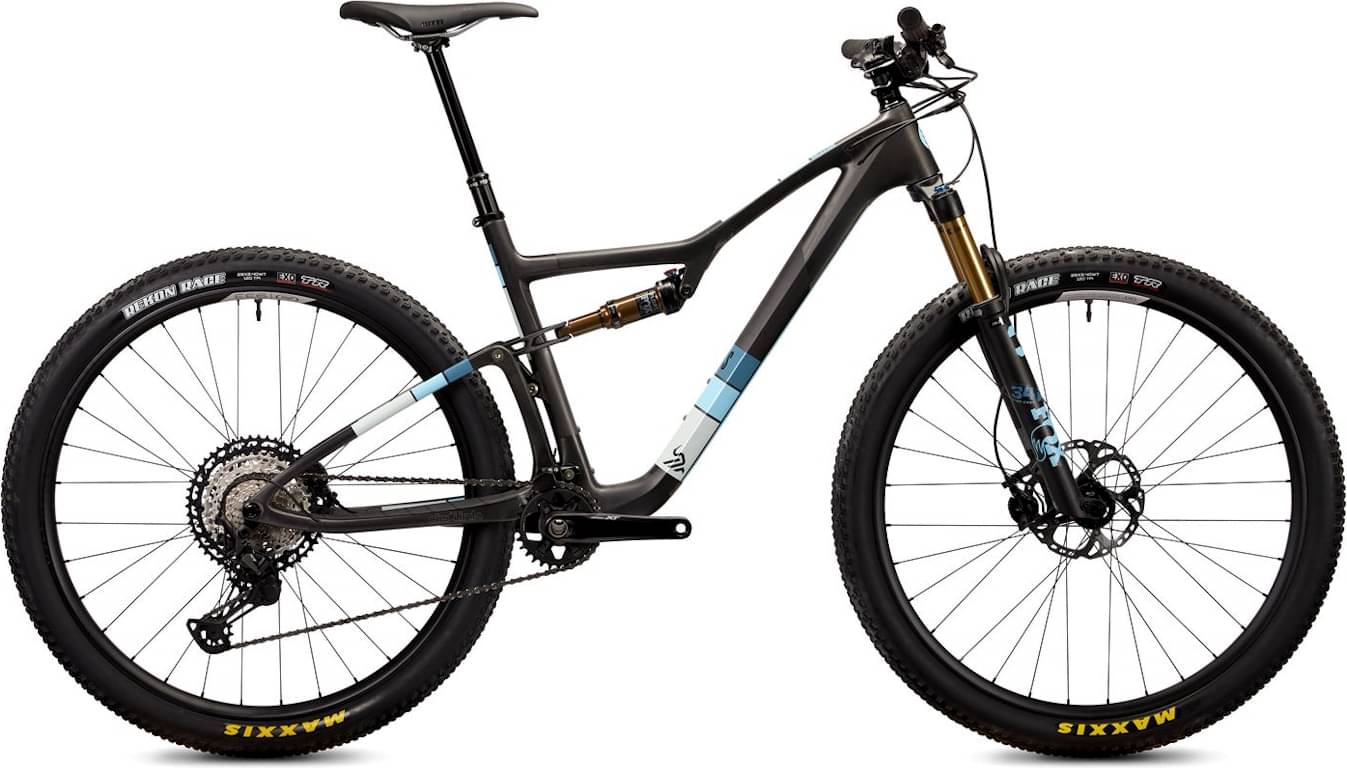

Ibis Exie USA XX SL Transmission 2024
2024 Mountain
Estimate price |
12,299$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 120mm -
Travel Rear 100mm -
Fork Fox Factory Float 34
-
Groupset XX SL Eagle Transmission, XX Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
Fox Factory Series, 34 SC Grip SL, 120mm, 44mm offset, 29", 110x15mm
Rear Shock
Fox Float DPS Remote w/ adjust, 190 x 45, light rebound and compression
Drivetrain
Rear Derailleur
SRAM XX SL Eagle Transmission AXS
Shift Levers
SRAM XX Transmission AXS Controller
Cassette
SRAM XX SL XS-1299 Transmission 10-52
Crank
SRAM XX SL Transmission, 32t Alloy Ring
Bottom Bracket
Threaded (73mm English threaded)
Chain
SRAM XX SL Transmission - 116 Links for 30T and 32T; Setup Key B
Wheels
Rims
Ibis S28 Carbon Rims / 29" / Industry 9 Hydra Hubs
Tires
Maxxis Rekon Race 29" x 2.4" Exo/TR WT
Brakes
Brakes
Shimano XTR M9100 2 piston
Cockpit
Stem
Industry NineS/M: 40mm, L/XL: 50mm
Handlebar
Ibis Hi Fi, 31.8mm, 800mm
Grips
Lizard Skin Charger
Headset
IS 41/28.6 upper, IS 52/40 lower
Seat
Saddle
WTB Silverado, 142mm
Seatpost
SRAM Reverb AXS DropperS: 125mm, M: 150mm, L/XL: 170mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.409 mm | 1.349 mm | 1.268 mm | 1.214 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm |
| Front Center | 694 mm | 724 mm | 768 mm | 819 mm |
| Rake | 44 mm | 44 mm | 43 mm | 43 mm |
| Trail | 110 mm | 110 mm | 110 mm | 110 mm |
| Stack | 582 mm | 592 mm | 606 mm | 630 mm |
| Reach | 413 mm | 439 mm | 478 mm | 519 mm |
| Top Tube Length | 584 mm | 613 mm | 644 mm | 675 mm |
| Seat Tube Angle | 73.8 ° | 73.8 ° | 74.8 ° | 75.9 ° |
| Seat Tube Length | 356 mm | 406 mm | 457 mm | 508 mm |
| Head Tube Angle | 67.2 ° | 67.2 ° | 67.2 ° | 67.2 ° |
| Head Tube Length | 85 mm | 95 mm | 110 mm | 135 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1128 mm | 1158 mm | 1202 mm | 1253 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm |
| Standover Height | 722 mm | 727 mm | 748 mm | 754 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
