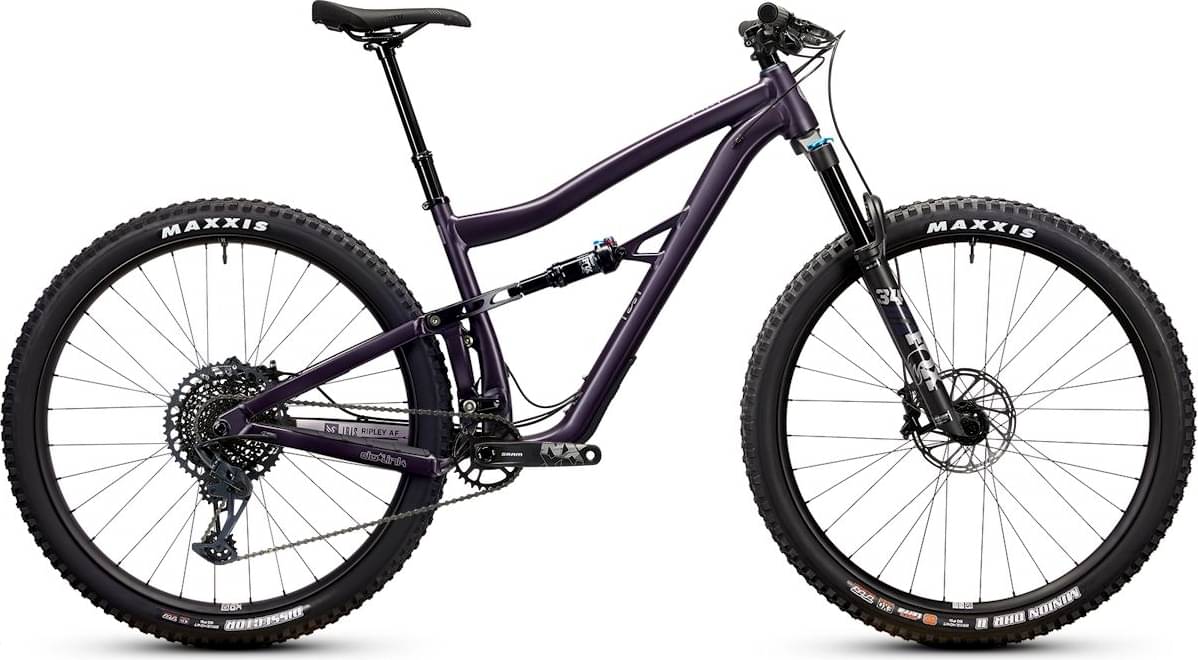

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Performance Float 34
-
Groupset GX Eagle, NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes SRAM Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
Fox Performance Series, Float 34, 130mm, 44mm offset, 29”, 110x15mm
Rear Shock
Fox Performance Series Float DPS with EVOL, 190mm x 45mm
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM NX Eagle
Cassette
SRAM GX, XG 1275, 10-52
Crank
SRAM NX Eagle DUB Wide, 30T
Bottom Bracket
Threaded BB (73mm BSA)
Chain
SRAM NX Eagle
Wheels
Rims
Blackbird Send Alloy (Send I front, Send II rear) / 29" / Ibis Hubs
Tires
Maxxis DHR2 29" x 2.4" Exo TR / Maxxis Dissector 29" x 2.4" Exo TR (rear)
Brakes
Brakes
SRAM G2
Cockpit
Stem
Ibis 31.8mmS–M: 40mm, L–XL: 50mm
Handlebar
Ibis Aluminum, 780mm
Grips
Lizard Skins Strata Single Clamp
Headset
ZS44 upper / ZS56 lower
Seat
Saddle
WTB Silverado Fusion CrMo 142
Seatpost
KS Rage-i Dropper 31.6mmS: 125mm, M: 150mm, L/XL: 170mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.409 mm | 1.362 mm | 1.309 mm | 1.262 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 728 mm | 759 mm | 788 mm | 817 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 120 mm | 120 mm | 120 mm | 120 mm |
| Stack | 599 mm | 613 mm | 622 mm | 631 mm |
| Reach | 425 mm | 450 mm | 475 mm | 500 mm |
| Top Tube Length | 574 mm | 603 mm | 630 mm | 658 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 368 mm | 381 mm | 418 mm | 482 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 90 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1157 mm | 1188 mm | 1217 mm | 1246 mm |
| Bottom Bracket Drop | 39 mm | 39 mm | 39 mm | 39 mm |
| Standover Height | 676 mm | 703 mm | 722 mm | 759 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
