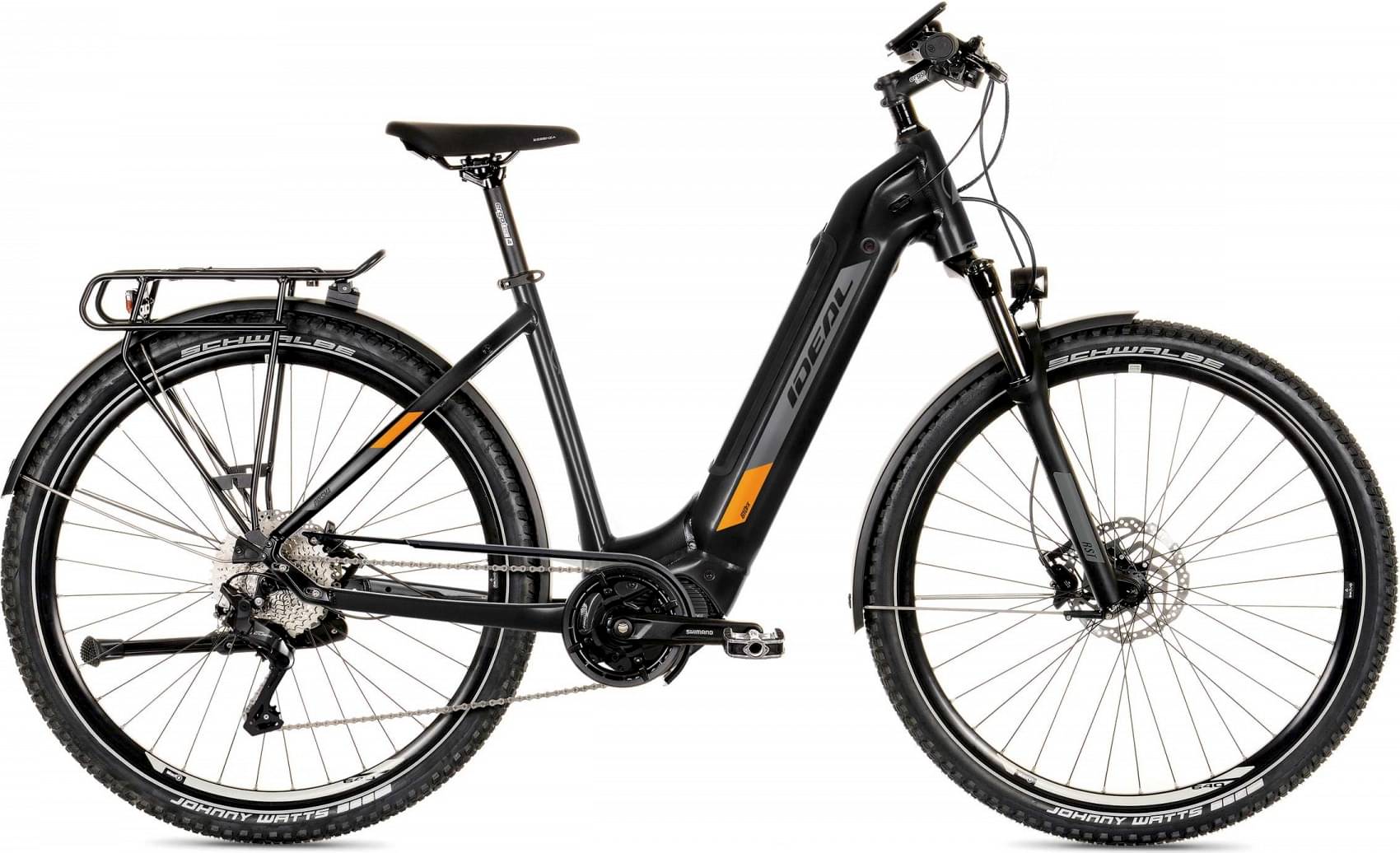

ideal 29″ PRISMA-610FX Air Trekking WAVE 2025
2025 E-bike
Estimate price |
5,406$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork RST BLADE -
Groupset CUES -
Suspension Hardtail -
Motor Shimano 600W 85Nm mid-drive -
Battery Shimano STEPS BT-EN806, 630Wh, fully integrated -
Drivetrain 1 × 10 -
Brakes Shimano Deore Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eAdventure 29, AL6061-T4 / T6, Shimano STEPS, hydroforming, internal brake & gear cables, Fully-integrated battery
Suspension Fork
RST BLADE TNL, 100mm, 34mm, Boost, Air, Lock Out
Drivetrain
Rear Derailleur
Shimano CUES RD-U6000 Shadow Plus
Shift Levers
Shimano STEPS SW-EN600-L / Shimano CUES SL-U6000-10
Cassette
Shimano CS-LG400-10, 11-48T
Crank
Shimano STEPS FC-EN600 / CR-ET600 SCG, 38T
Bottom Bracket
STEPS, press-fit
Chain
Shimano CN-LG500-10
Wheels
Front Hub
Shimano HB-MT410-B
Rear Hub
Shimano FH-QC400
Rims
Mach1 CROSS-R 29, 27C-622
Tires
Schwalbe Johnny Watts Performance 60-622
Brakes
Brakes
Shimano BR-MT410 / BL-MT401, disc 180/180 mm
Cockpit
Stem
Ergotec Crab 2 Ahead, 31.8 mm, 70/90 mm, safety level 4
Handlebar
Ergotec Low Riser, 720mm, safety level 4
Grips
Herrmans Lockable Grip Line
Seat
Saddle
Selle Royal Premium Essenza
Seatpost
Ergotec Atar, 30.9mm, 250/350mm safety level 4
Motor & Battery
Motor
Shimano STEPS DU-EP600 mid-motor, 85Nm
Battery
Shimano STEPS BT-EN806, 630Wh, fully integrated
Fit data
Geometry
