Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Groupset Tourney, Altus -
Suspension Rigid -
Drivetrain 3 × 8 -
Brakes Rim

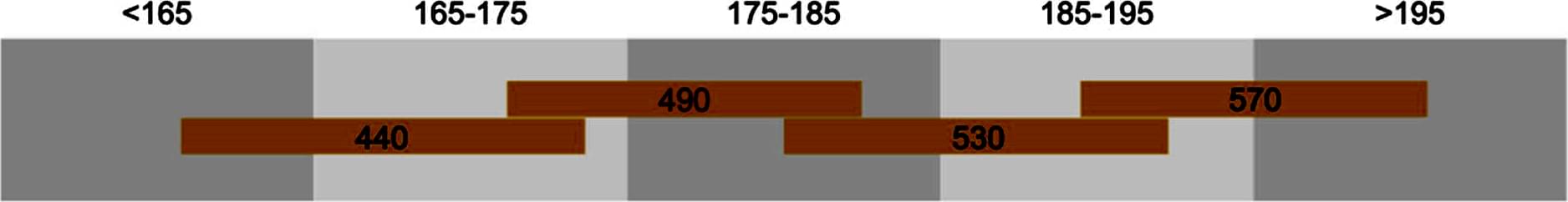

Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Hardtail Urban/Fitness, AL6061-T4/T6, hydroforming, tapered head tube, internal cable routing
Suspension Fork
Alloy rigid with straight blades
Drivetrain
Rear Derailleur
Shimano Altus, RD-M310
Front Derailleur
Shimano FD-TY710
Shift Levers
Shimano ST-EF500
Cassette
Shimano CS-HG31-8, 11-32T
Crank
Shimano FC-TY301, 48-38-28T
Bottom Bracket
Shimano BB-UN100
Chain
KMC Z8
Wheels
Front Hub
Shimano HB-TX500
Rear Hub
Shimano FH-TX800-8
Rims
Mach-1 ER-10 622-19
Tires
Kenda K193 Kwest, reflective 28-622 (700x28C)
Brakes
Brakes
Saccon Alloy V-brakes
Cockpit
Stem
ID-Project alloy, 90mm extension, 15 degree angle
Handlebar
ID-Project flat bar butted, 600mm, 5 degree backsweep
Seat
Saddle
Selle Royal RVS Lancia
Seatpost
ID-Project, size 27.2mm, length 350mm, offset 24mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Top Tube Length | 547.4 mm | 557.7 mm | 575.2 mm | 596.4 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 485 mm | 530 mm | 570 mm |
| Head Tube Angle | 71 ° | 71 ° | 72 ° | 72 ° |
| Head Tube Length | 150 mm | 165 mm | 190 mm | 225 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1064 mm | 1072 mm | 1082 mm | 1102 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
