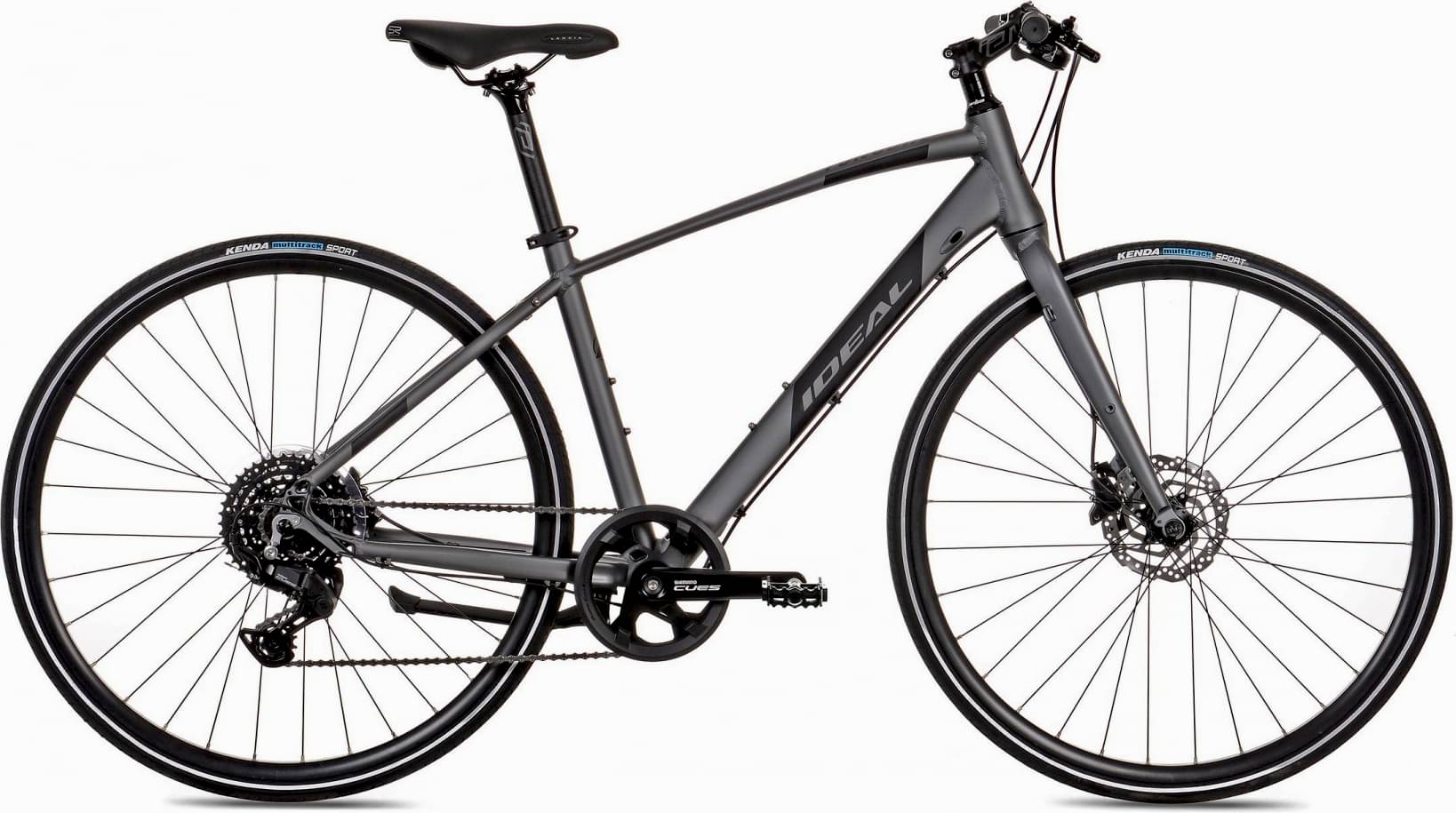

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset CUES -
Suspension Rigid -
Brakes Hydraulic Disc

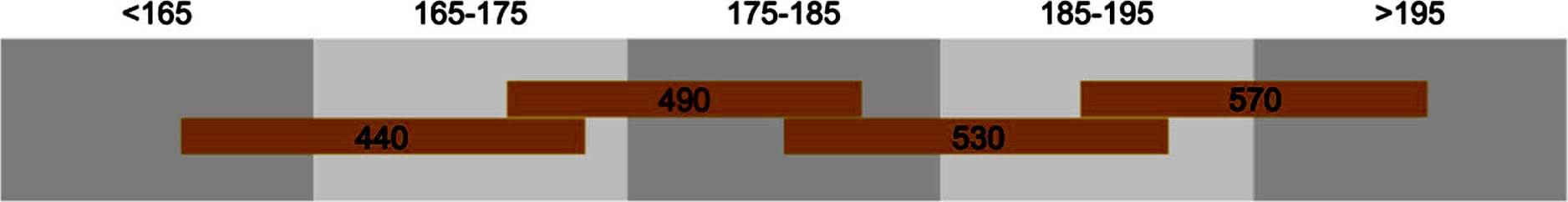

Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Hardtail Urban/Fitness, AL6061-T4/T6, hydroforming, tapered head tube, internal cable routing
Suspension Fork
Aluminium with straight rigid blades
Drivetrain
Rear Derailleur
Shimano CUES RD-U4000
Shift Levers
Shimano CUES SL-U4000-9R
Cassette
Shimano CUES CS-LG300-9, 11-41T
Crank
Shimano CUES FC-U4000-1, 42T
Bottom Bracket
Shimano BB-UN101
Chain
Shimano CN-LG500
Wheels
Front Hub
Shimano HB-TX505B
Rear Hub
Shimano FH-TX500-8
Rims
Cross X-6, 622-21
Tires
Kenda K193 Kwest, reflective 28-622 (700x28C)
Brakes
Brakes
Shimano BR-MT200 / BL-MT201 Hydraulic disc brakes, 180/160 mm
Cockpit
Stem
id-Project aluminium, 25.4 mm
Handlebar
id-Project aluminium flat bar butted, 600 mm
Seat
Saddle
Sell ??Royal RVS Lancia
Seatpost
id-Project aluminium, 30.9 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Top Tube Length | 547.4 mm | 557.7 mm | 575.2 mm | 596.4 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 485 mm | 530 mm | 570 mm |
| Head Tube Angle | 71 ° | 71 ° | 72 ° | 72 ° |
| Head Tube Length | 150 mm | 165 mm | 190 mm | 225 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1064 mm | 1072 mm | 1082 mm | 1102 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
