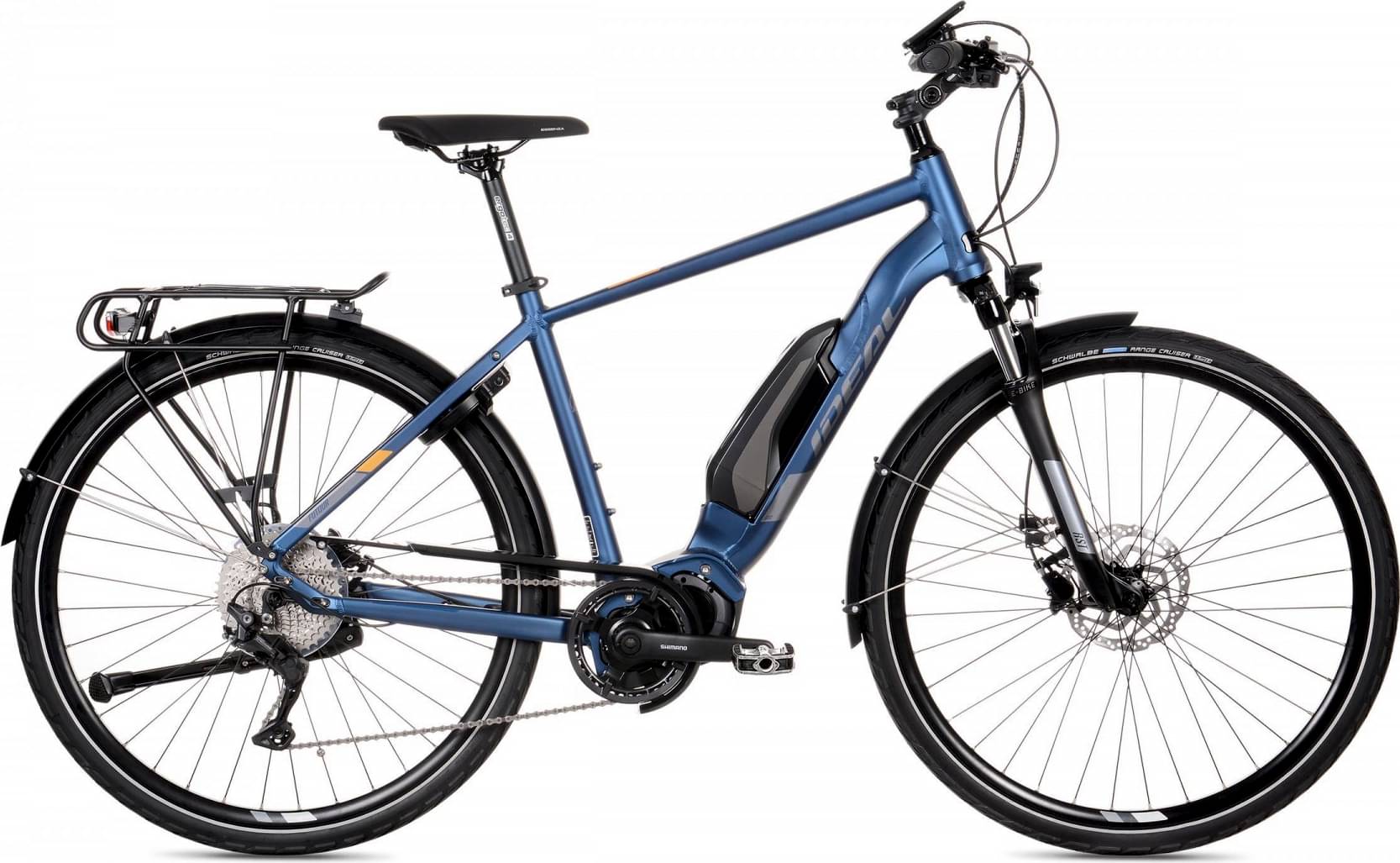

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork RST VOLANT -
Groupset Deore -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano STEPS battery (down tube) BT-E8010, 36V, 14.0Ah, 504Wh -
Drivetrain 1 × 10 -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
e-TREKKING Semi-Integrated, AL6061-T4/T6, Shimano STEPS, hydroforming
Suspension Fork
RST Volant-T, Hydraulic Lock Out, 60 mm, adjustable preoload
Drivetrain
Rear Derailleur
Shimano Deore RD-M5120 SGS
Shift Levers
Shimano STEPS SW-E7000-L/ Shimano Deore SL-T6000-R
Cassette
Shimano CS-M4100-10, 11-42T
Crank
Shimano STEPS FC-E6100, 38T
Bottom Bracket
STEPS, press-fit
Chain
Shimano CN-HG6090-10
Wheels
Front Hub
Shimano HB-M505
Rear Hub
Shimano FH-M505-10
Rims
Cross X-6, 622-21
Tires
Schwalbe 47-622 (28x1.75) Range Cruiser K-Guard, TwinSkin
Brakes
Brakes
Shimano BR-MT400/BL-MT400, Hydraulic Disc Breaks 180/180 mm
Cockpit
Stem
Ergotec Octopus 2 Ahead, verstellbar, 31.8 mm, 75/105 mm (Safety Level 4)
Handlebar
Ergotec Low Riser, 700 mm (Safety Level 4)
Grips
Herrmans Airo Comfort
Seat
Saddle
Selle Royal Premium, Moderate VLS, New Essenza
Seatpost
Ergotec Atar, 31.6 mm (Safety Level 4)
Motor & Battery
Motor
Shimano STEPS DU-E6100, 60Nm, sportive
Battery
Shimano STEPS battery (down tube) BT-E8010, 36V, 14.0Ah, 504Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm | 58cm |
|---|---|---|---|---|
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm | 276 mm |
| Front Center | 651 mm | 661 mm | 672 mm | 677 mm |
| Top Tube Length | 580 mm | 590 mm | 600 mm | 605 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 500 mm | 540 mm | 580 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 160 mm | 170 mm | 180 mm | 190 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1119 mm | 1129 mm | 1140 mm | 1145 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 | 700 |
