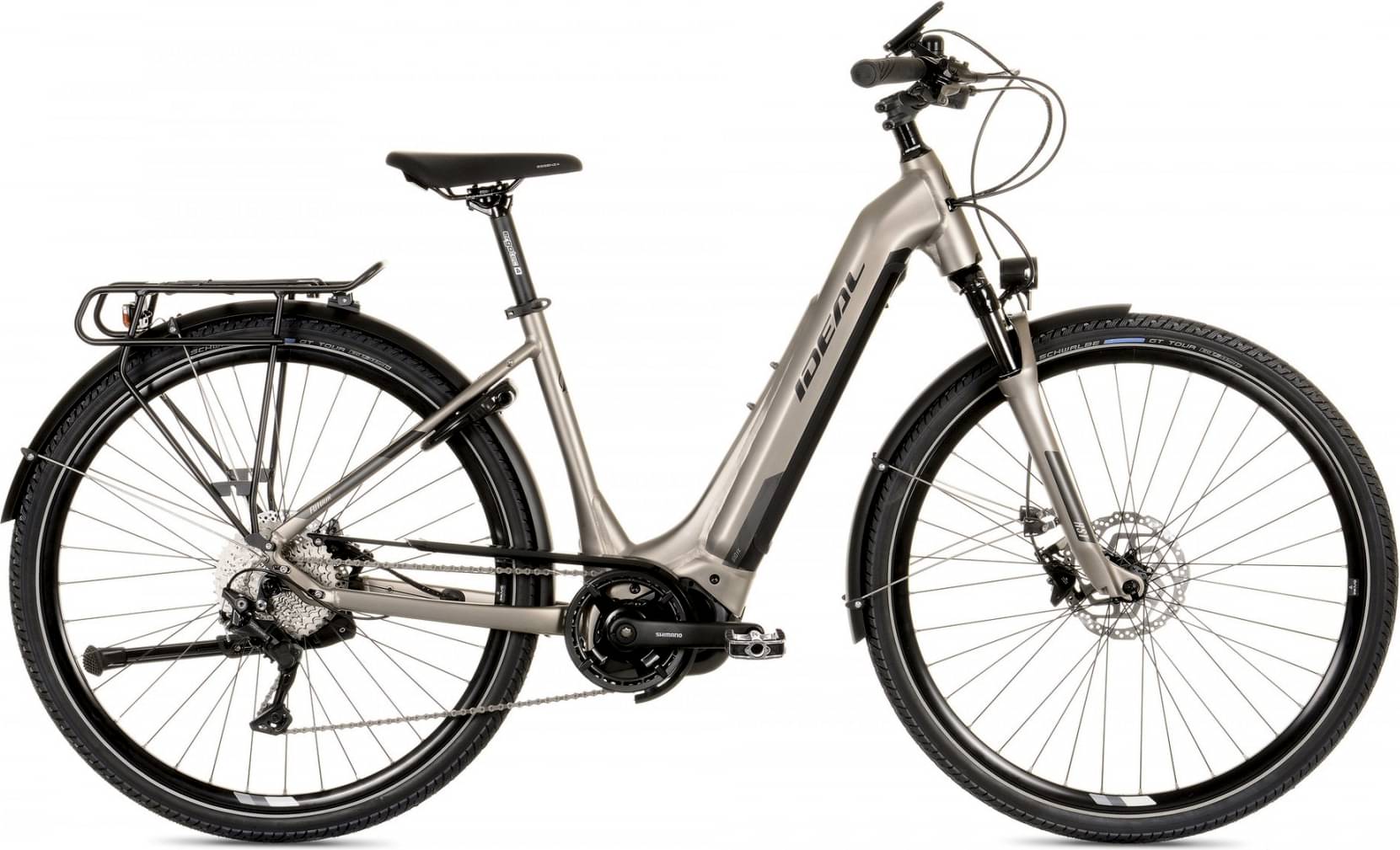

ideal FUTOUR E610FX WAVE 2025
2025 E-bike
Estimate price |
3,792$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork RST -
Groupset Deore -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano STEPS (down tube) BT-E8036, 36V, 14.0Ah, 630Wh -
Drivetrain 1 × 10 -
Brakes Shimano Deore Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eTouring, AL6061-T4 / T6, Shimano STEPS, hydroforming, internal brake & gear cables, built-in battery
Suspension Fork
RST Viva air-TNL, 60 mm, mechanical lock, adjustable preload
Drivetrain
Rear Derailleur
Shimano Deore RD-M5120 SGS
Shift Levers
Shimano STEPS SW-E7000 switch // Shimano Deore SL-M4100-R
Cassette
Shimano CS-M4100-10, 11-42T
Crank
Shimano STEPS FC-E6100, 38T
Bottom Bracket
STEPS, press-fit
Chain
Shimano CN-HG6090-10
Wheels
Front Hub
Shimano HB-M3050
Rear Hub
Shimano FH-M3050
Rims
Mach1 640 Disc, 622-21
Tires
Schwalbe 50-622 (29x2.00) Marathon GT Tour Perf, DualGuard, TwinSkin
Brakes
Brakes
Shimano BR-MT410 / BL-MT401 hydraulic disc brakes, 180/180 mm
Cockpit
Stem
Ergotec Octopus Ahead aluminum, adjustable, 31.8 mm, safety level 4
Handlebar
Ergotec aluminum, 620 mm, safety level 4
Grips
Herrmans Lockable Grip Line
Seat
Saddle
Selle Royal Premium, Moderate VLS, New Essenza
Seatpost
Ergotec Atar aluminum, size 30.9 mm, safety level 4
Motor & Battery
Motor
Shimano STEPS center drive unit DU-E6100, 36V, 250W, 60Nm
Battery
Shimano STEPS (down tube) BT-E8036, 36V, 14.0Ah, 630Wh
Fit data
Geometry
