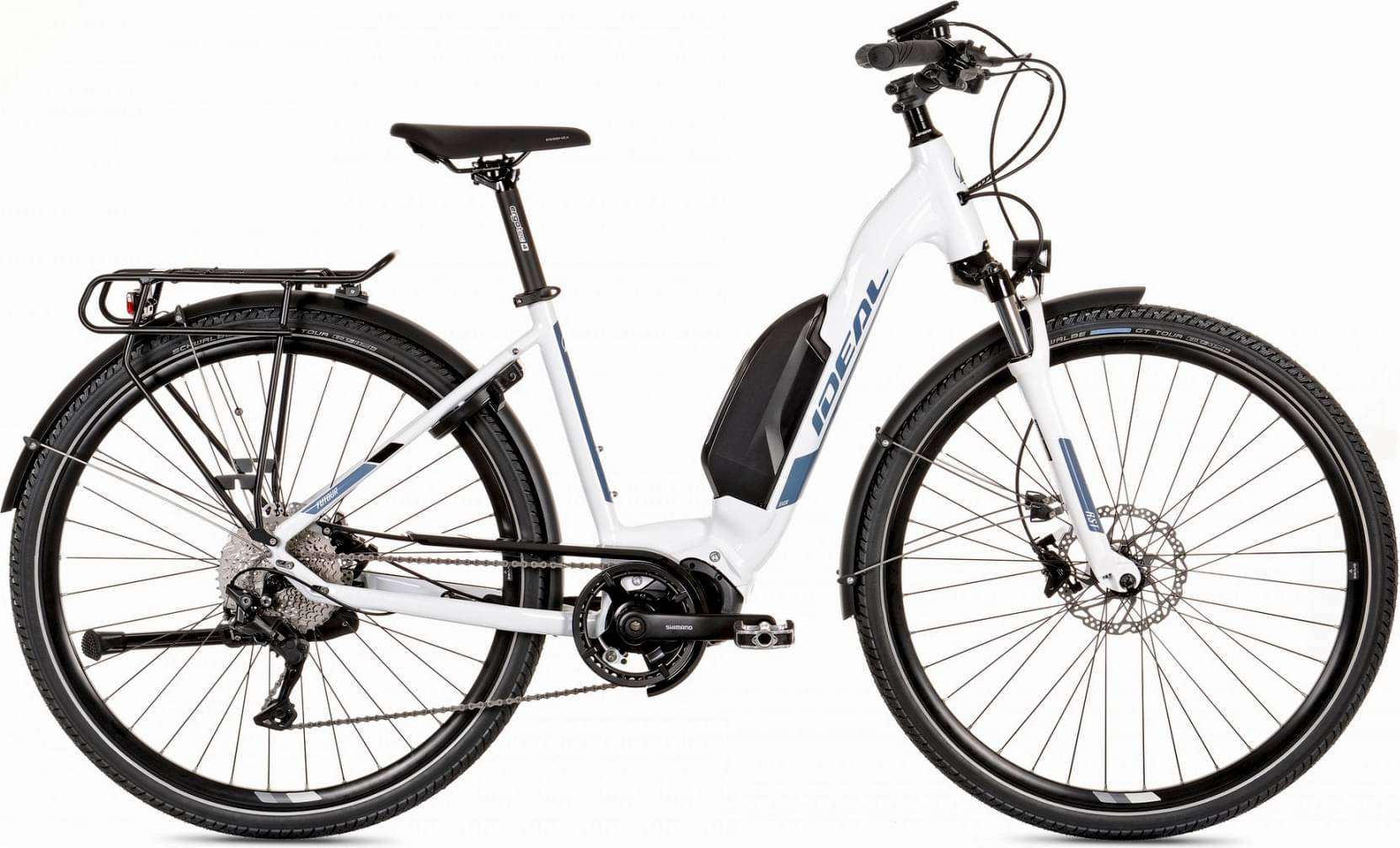

ideal FUTOUR E610X WAVE 2025
2025 E-bike
Estimate price |
3,997$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork RST VITA -
Groupset Deore -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano STEPS battery (down tube) BT-E8016, 36V, 17.5Ah, 630Wh -
Drivetrain 1 × 10 -
Brakes Shimano Deore Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
e-TREKKING Semi-Integrated, AL6061-T4/T6, Shimano STEPS, hydroforming
Suspension Fork
RST Vita-TNL, Hydraulic Lock Out, 60 mm, adjustable preoload
Drivetrain
Rear Derailleur
Shimano Deore RD-M5120 SGS Shadow plus
Shift Levers
Shimano STEPS SW-E7000-L/ Shimano Deore SL-T4100-L
Cassette
Shimano CS-M4100-10, 11-42T
Crank
Shimano STEPS FC-E6100/ SM-CRE61 SCG, 38T, 170/175
Bottom Bracket
STEPS, press-fit
Chain
Shimano CN-HG6090-10
Wheels
Front Hub
Shimano HB-M3050
Rear Hub
Shimano FH-M3050
Rims
Cross X-6, 622-21
Tires
Schwalbe Energizer Plus Tour, GreenGuard, TwinSkin, Reflex, 50-622, A/V Valve
Brakes
Brakes
Shimano BR-MT410/BL-MT410, Hydraulic Disc Breaks 180/180 mm
Cockpit
Stem
Ergotec Octopus 2 Ahead, verstellbar, 31.8 mm, 75/105 mm (Safety Level 4)
Handlebar
Ergotec Low Riser, 700 mm (Safety Level 4)
Seat
Saddle
Selle Royal Premium, Moderate VLS, New Essenza
Seatpost
Ergotec Atar, 31.6 mm (Safety Level 4)
Motor & Battery
Motor
Shimano STEPS DU-E6100/ 60Nm, sportive
Battery
Shimano STEPS battery (down tube) BT-E8016, 36V, 17.5Ah, 630Wh
Fit data
Geometry
