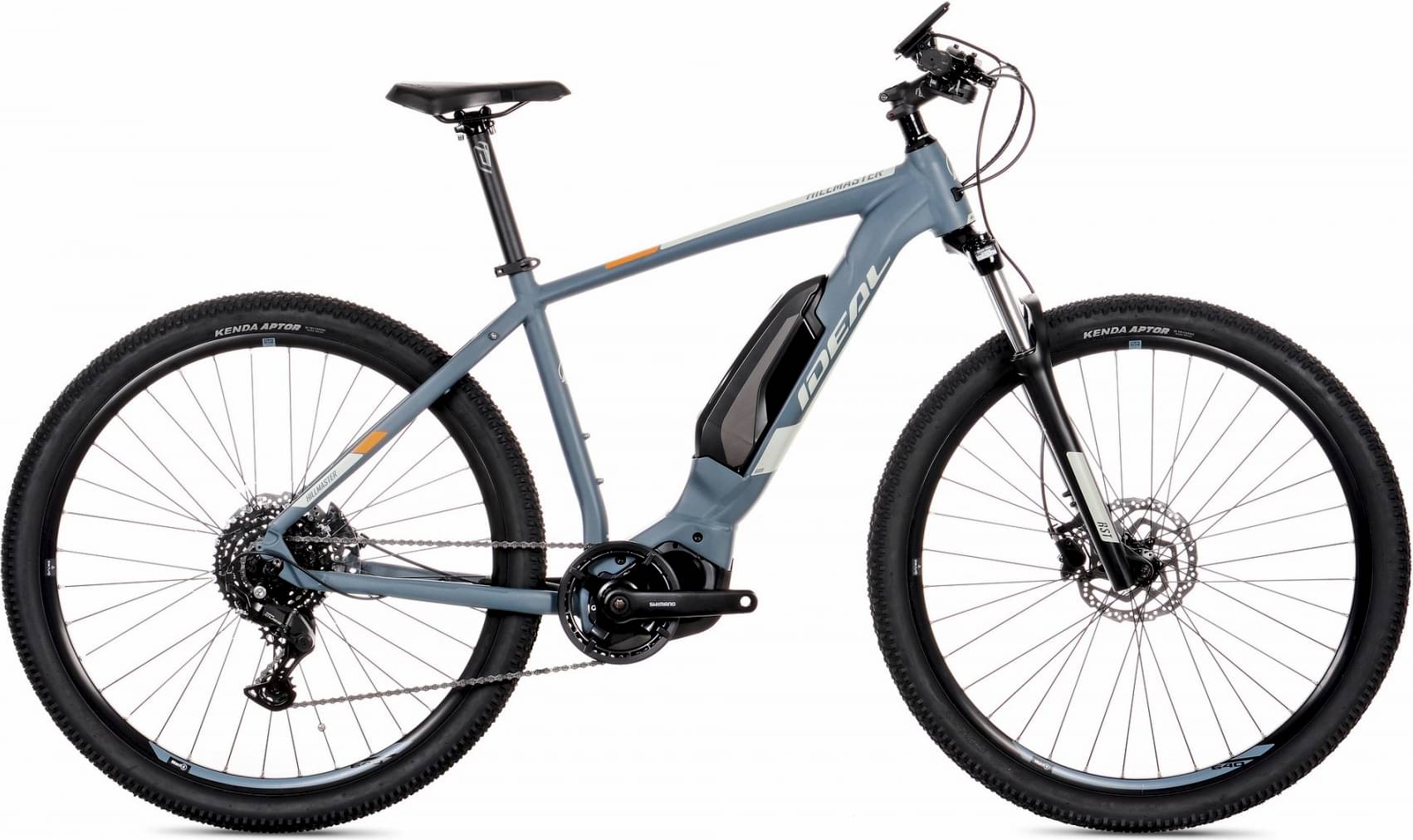

ideal HILLMASTER E609 2024
2024 E-bike
Estimate price |
3,250$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork RST BLAZE
-
Groupset CUES, Acera -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano STEPS (down tube) BT-E8010, 36V, 14Ah, 504Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eHardtail 29,AL6061-T4/T6, Shimano STEPS, hydroforming, internal brake&gear cables
Suspension Fork
RST Blaze-MLC, 100 mm, lockout, adjustable preload
Drivetrain
Rear Derailleur
Shimano Cues RD-U4000-GS
Shift Levers
Shimano STEPS SW-E7000 unit / gear lever switch // Shimano Acera SL-M3000
Cassette
Shimano CS-LG300-9, CUES, 9-SPEED, 11-41T
Crank
Shimano STEPS FC-E6100, 38T
Bottom Bracket
STEPS, press-fit
Chain
Shimano CN-E6070-9
Wheels
Front Hub
Shimano HB-TX505
Rear Hub
Shimano FH-TX505-8
Rims
Mach1, 622-21
Tires
Kenda 60-622 (29x2.35), K1153 30TPI
Brakes
Brakes
Shimano BR-MT200 / BL-MT201 hydraulic disc brakes 180/180 mm
Cockpit
Stem
id-Project aluminum, 31.8 mm
Handlebar
id-Project riser bar aluminum, 720 mm
Seat
Saddle
Selle Italia X-BASE Boost
Seatpost
Id-Project, 31.6 mm
Motor & Battery
Motor
Shimano STEPS DU-E6100, 36V, 250W, 60Nm, sportiv
Battery
Shimano STEPS (down tube) BT-E8010, 36V, 14Ah, 504Wh
Fit data
Geometry
