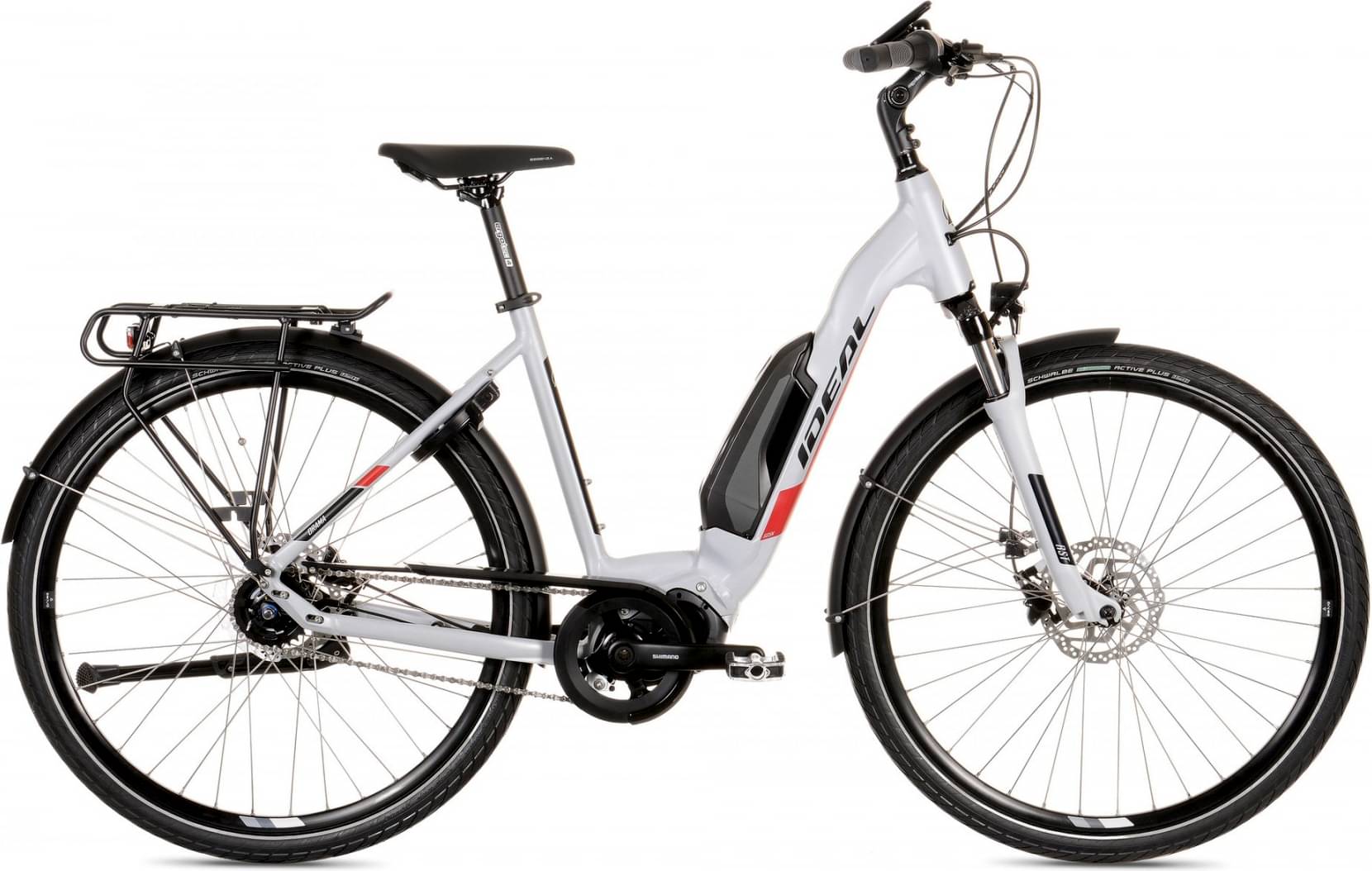

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 60mm -
Fork RST VOLANT
-
Groupset Nexus -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano BT-E8010, 504Wh (14Ah) -
Drivetrain Internally Geared Hub -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
e-CITY Semi-Integrated, AL6061-T4/T6
Suspension Fork
RST Volant-T, 60 mm, adjustable preload
Drivetrain
Shift Levers
Shimano STEPS (SW-E7000-L) / Shimano Nexus (SL-C7000-5)
Cassette
Shimano, 27T (CS-C7000)
Crank
Shimano STEPS FC-E6100/ SM-CRE61, 38T
Bottom Bracket
STEPS, press-fit
Chain
Shimano (CN-HG71)
Wheels
Front Hub
Shimano (HB-TX500-QR)
Rear Hub
Shimano Nexus-5 (SG-C7000-5D)
Rims
Mach1 Traxx 640 Disc, 21C-622
Tires
Schwalbe Energizer Active Plus, PunctureGuard, TwinSkin, 50-622 (28x2.00)
Brakes
Brakes
Shimano BR-MT200/BL-MT201, 180/180 mm
Cockpit
Stem
Ergotec Octopus Ahead 50, 31.8 mm, 90 mm
Handlebar
Ergotec Ladytown, 620 mm
Seat
Saddle
Selle Royal Premium, New Essenza VLS, Moderate
Seatpost
Ergotec Atar, 31.6 mm
Motor & Battery
Motor
Shimano DU-E6100 STEPS, 60Nm, sportive
Battery
Shimano BT-E8010, 504Wh (14Ah)
Fit data
Geometry
