ideal PRISMA E609 WAVE 2024

2024 E-bike
Estimate price | 3,103$
E-bike
Open compare Use advisor

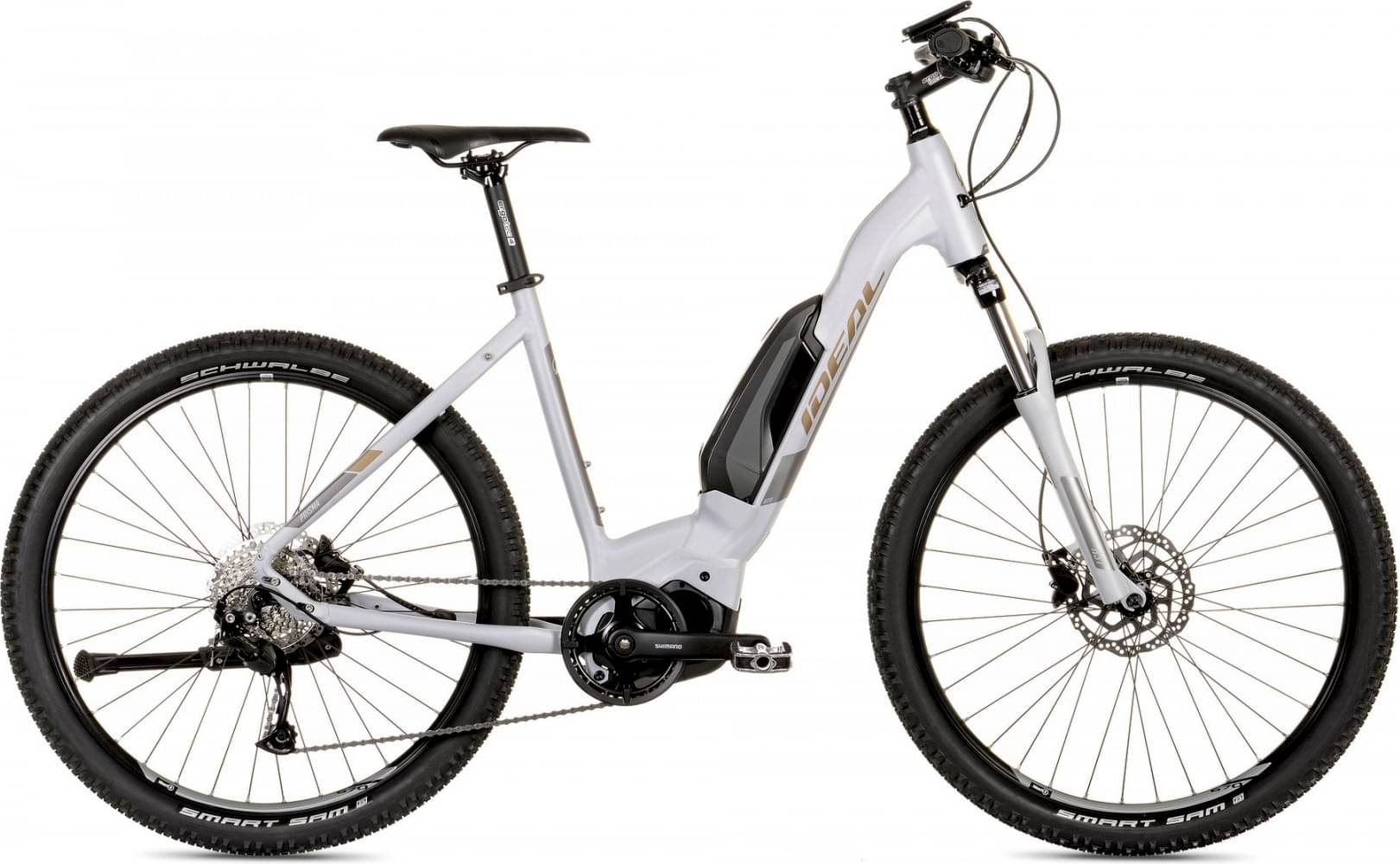

Ideal Prisma E609 Wave 2024

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Aluminum
  • Fork RST BLAZE
  • Groupset Alivio, Acera
  • Suspension Hardtail
  • Motor Shimano 250W 60Nm mid-drive
  • Battery Shimano STEPS (down tube) BT-E8010, 36V, 14Ah, 504Wh
  • Drivetrain 1 × 9
  • Brakes Hydraulic Disc

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

eAdventure 27.5, AL6061-T4 / T6, Shimano STEPS, hydroforming, internal brake & gear cables, semi-integrated battery

Suspension Fork

RST Blaze-MLC, 100 mm, lockout, adjustable preload

Drivetrain

Rear Derailleur

Shimano Alivio RD-M3100 SGS

Shift Levers

Shimano STEPS SW-E7000-L / Shimano Acera SL-M3000-R

Cassette

Shimano CS-HG201-9, 11-36T

Crank

Shimano STEPS FC-E6100, 38T

Bottom Bracket

STEPS, press-fit

Chain

Shimano CN-E6070-9

Wheels

Front Hub

Shimano HB-TX505

Rear Hub

Shimano FH-TX-505-8

Rims

Mach1 670, 584-21

Tires

Schwalbe 60-584 (27.5x2.35), Smart Sam K-Guard

Brakes

Brakes

Shimano BR-MT200 / BL-MT201 hydraulic disc brakes 180/180 mm

Cockpit

Stem

Ergotec Crab 2 aluminum, 31.8 mm, safety level 4

Handlebar

Ergotec Low Riser aluminum bar, 700 mm, safety level 4

Seat

Saddle

Selle Italia X-Base

Seatpost

Ergotec Atar aluminum, 31.6 mm, safety level 4

Motor & Battery

Motor

Shimano STEPS DU-E6100, 36V, 250W, 60Nm, sport

Battery

Shimano STEPS (down tube) BT-E8010, 36V, 14Ah, 504Wh
