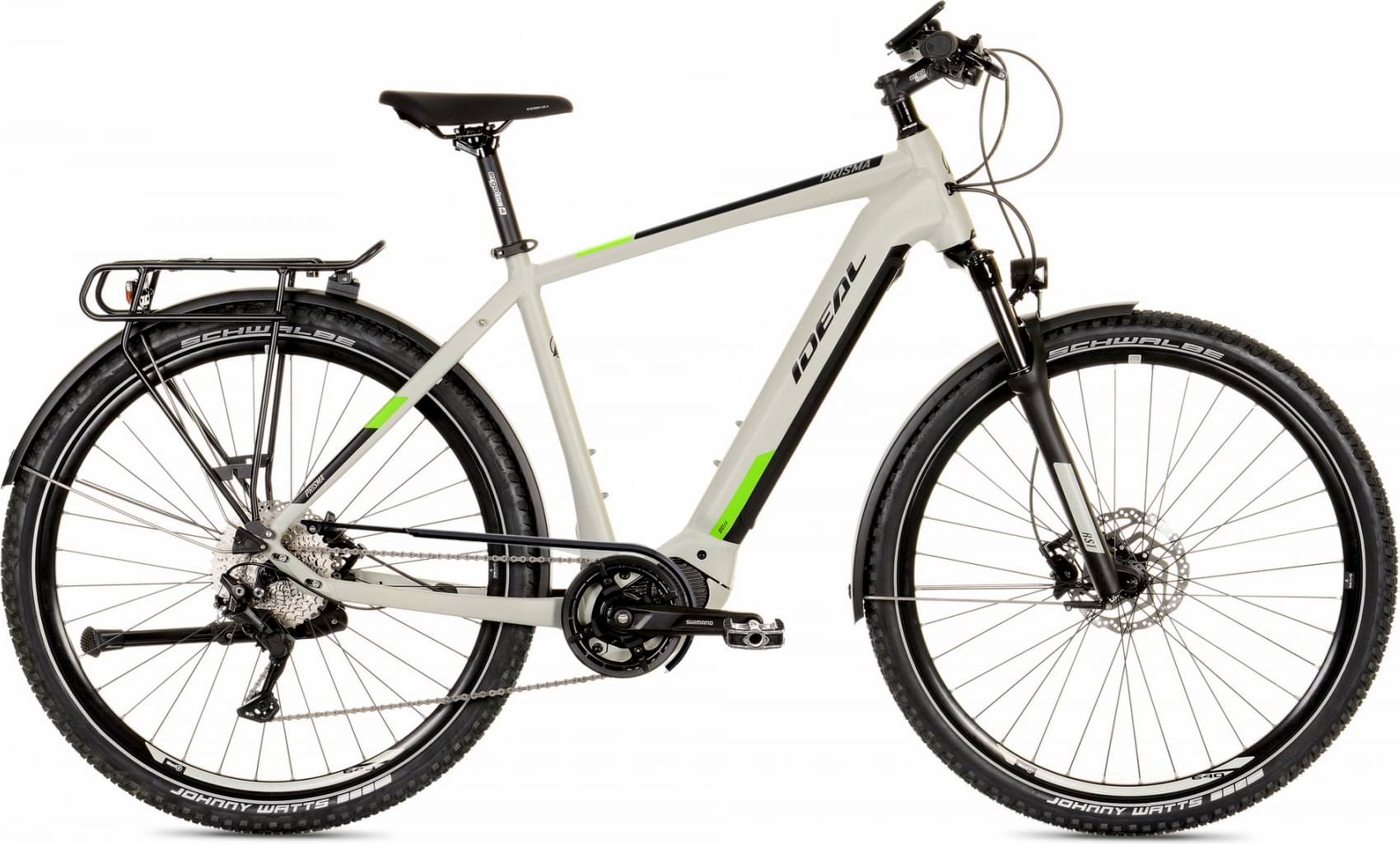

ideal PRISMA E810FX 29 2024
2024 E-bike
Estimate price |
5,418$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork RST AERIAL -
Groupset Deore -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano STEPS battery (down tube) BT-E8036, 36V, 14Ah, 630Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eAdventure 29, AL6061-T4 / T6, Shimano STEPS, hydroforming, internal brake & gear cables, fully integrated battery
Suspension Fork
RST AERIAL TNL, 100 mm, 32 mm, Air, Lock Out
Drivetrain
Rear Derailleur
Shimano Deore RD-M5120 SGS Shadow Plus
Shift Levers
Shimano STEPS SW-E7000-L switch // Shimano Deore SL-M4100-R
Cassette
Shimano CS-M4100-10, 11-42T
Crank
Shimano STEPS FC-EM600/SM-CRE70 w/o CG, 38Z, 170/175 mm
Bottom Bracket
STEPS, press-fit
Chain
Shimano CN-E6090-10
Wheels
Front Hub
Shimano HB-M3050
Rear Hub
Shimano FH-M3050
Rims
Mach1 CROSS-R 27, 27C-622
Tires
Schwalbe Johnny Watts Performance, RaceGuard, Folding, Reflex, 60-622, (29x2.35)
Brakes
Brakes
Shimano BR-MT410/ BL-MT401, Disc 180/180 mm, Rotor-Sensor
Cockpit
Stem
Ergotec Crab 2 Ahead, 31.8 mm, 70/90 mm (Safety Level 4)
Handlebar
Ergotec Low Riser, 720 mm (Safety Level 5)
Grips
Herrmans Lockable Grip Line
Seat
Saddle
Selle Royal Premium Essenza H
Seatpost
Ergotec Atar, 30.9 mm, 250/ 350 mm (Safety Level 4)
Motor & Battery
Motor
Shimano STEPS centre drive unit DU-EP800, 36V, 250W, 85Nm, setting ID-ADV
Battery
Shimano STEPS battery (down tube) BT-E8036, 36V, 14Ah, 630Wh
Fit data
Geometry
