ideal PRISMA E810FX WAVE 29 2024

2024 E-bike
Estimate price | 5,418$
E-bike
Open compare Use advisor

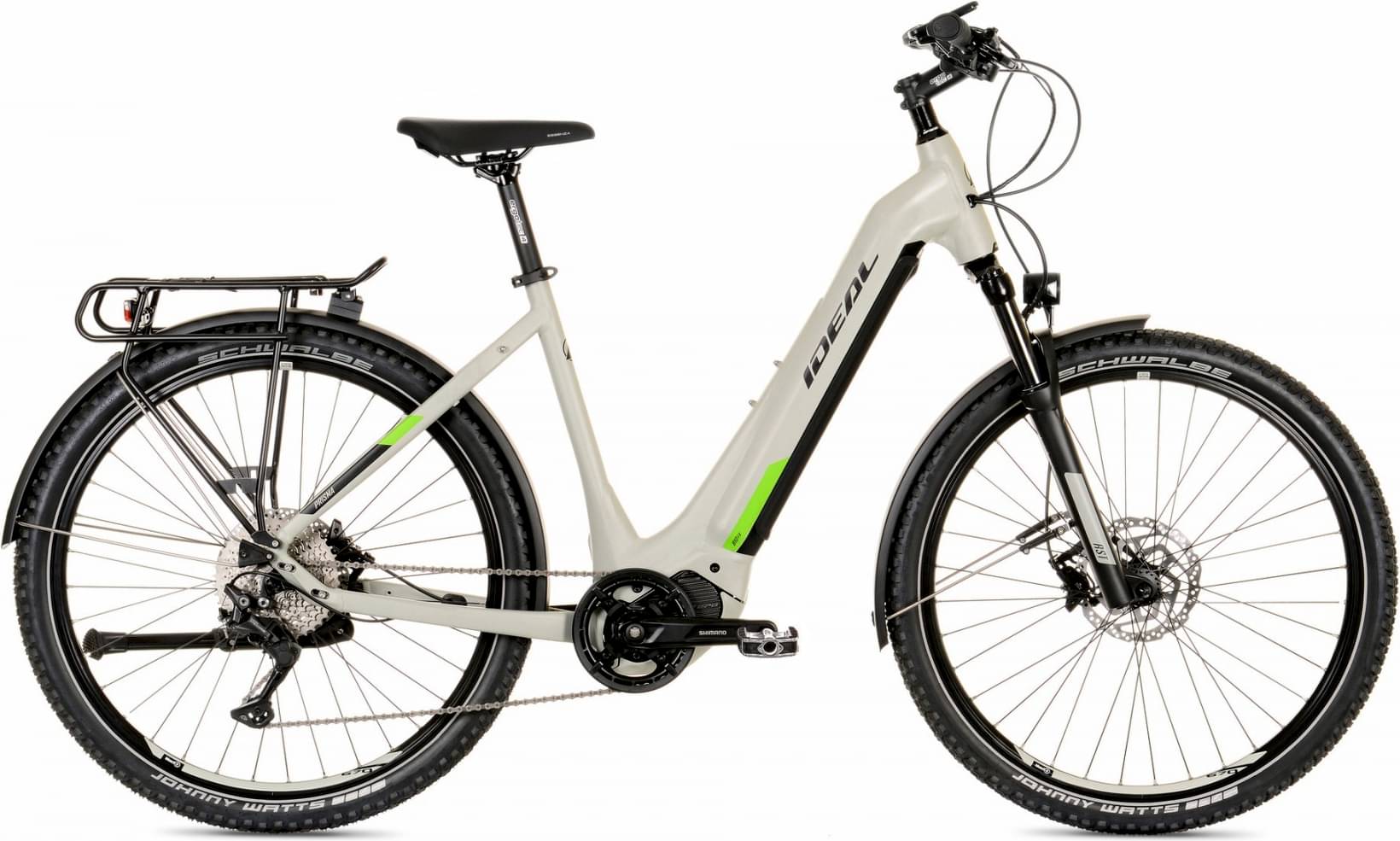

Ideal Prisma E810fx Wave 29 2024

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Aluminum
  • Fork RST AERIAL
  • Groupset Deore
  • Suspension Hardtail
  • Motor Shimano 250W 85Nm mid-drive
  • Battery Shimano STEPS battery (down tube) BT-E8036, 36V, 14Ah, 630Wh
  • Drivetrain 1 × 10
  • Brakes Hydraulic Disc

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

eAdventure 29, AL6061-T4 / T6, Shimano STEPS, hydroforming, internal brake & gear cables, fully integrated battery

Suspension Fork

RST AERIAL TNL, 100 mm, 32 mm, Air, Lock Out

Drivetrain

Rear Derailleur

Shimano Deore RD-M5120 SGS Shadow Plus

Shift Levers

Shimano STEPS SW-E7000-L switch // Shimano Deore SL-M4100-R

Cassette

Shimano CS-M4100-10, 11-42T

Crank

Shimano STEPS FC-EM600, 38T

Bottom Bracket

STEPS, press-fit

Chain

Shimano CN-E6090-10

Wheels

Front Hub

Shimano HB-M3050

Rear Hub

Shimano FH-M3050

Rims

Mach1 670, 584-21

Tires

Schwalbe 60-622 (29x2.35), Johnny Watts

Brakes

Brakes

Shimano BR-MT410 / BL-MT401 hydraulic disc brakes 180/180 mm Sensor Rotor

Cockpit

Stem

Ergotec Crab 2 aluminum, 31.8 mm, safety level 4

Handlebar

Ergotec Low Riser aluminum bar, 720 mm, safety level 4

Seat

Saddle

Selle Royal Premium, New Essenza, H / D Moderate

Seatpost

Ergotec Atar aluminum, 30.9 mm, safety level 4

Motor & Battery

Motor

Shimano STEPS center drive unit DU-EP800, 36V, 250W, 85Nm, sports

Battery

Shimano STEPS battery (down tube) BT-E8036, 36V, 14Ah, 630Wh
