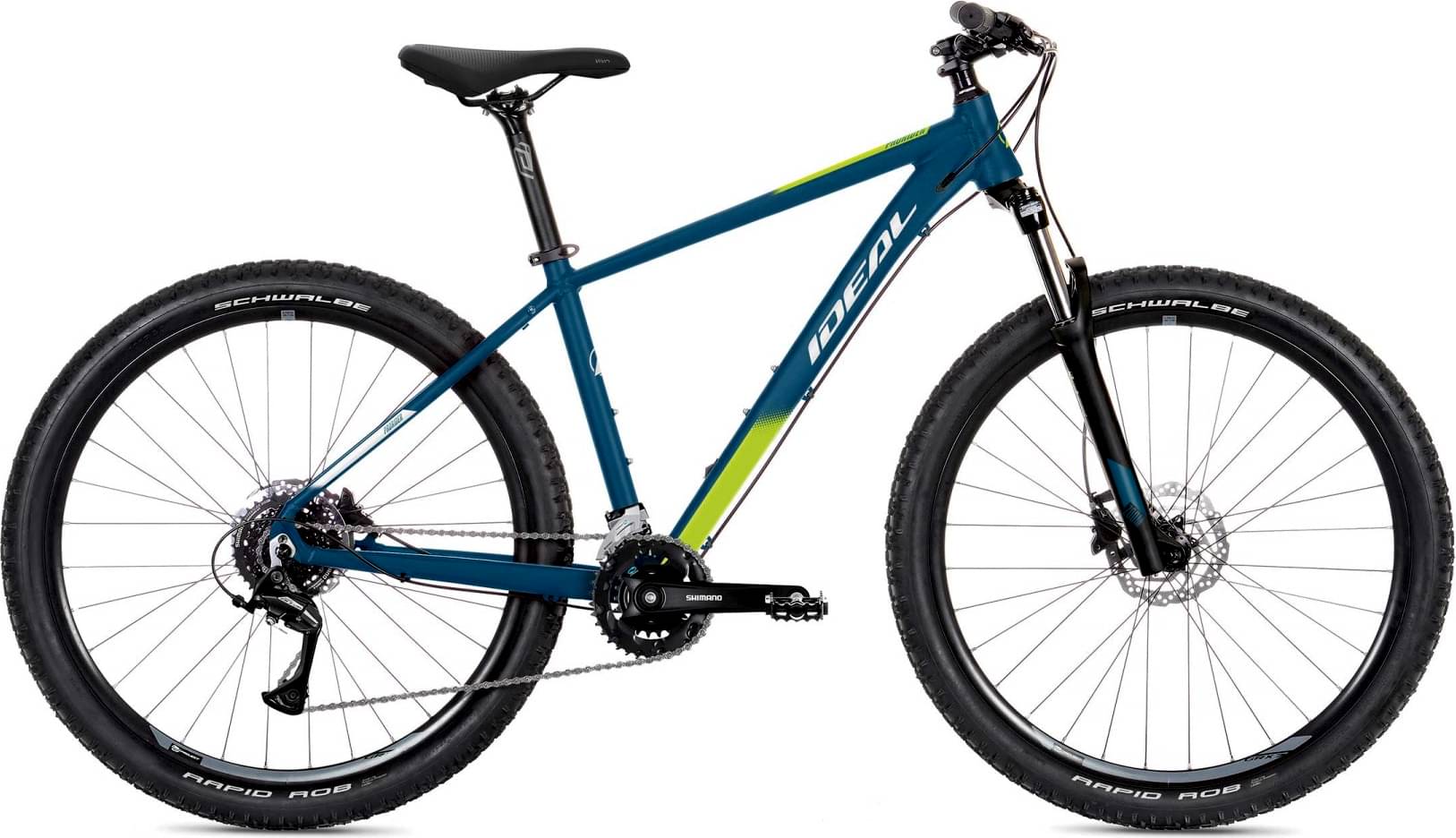

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Zoom
-
Groupset Acera, Altus -
Suspension Hardtail -
Drivetrain 2 × 8 -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Hardtail, AL6061-T4/T6, hydroforming,tapered head tube, internal cable routing
Suspension Fork
ZOOM 565D, 100 mm, 25.4 mm, Lock Out
Drivetrain
Rear Derailleur
Shimano Acera RD-M3020
Front Derailleur
Shimano Altus FD-M315-TS
Shift Levers
Shimano ST-EF505
Cassette
Shimano CS-HG400-8, 11-40Z
Crank
Shimano, FC-M315-2, 36-22Z
Bottom Bracket
Shimano BB-UN101
Chain
KMC Z8.3
Wheels
Front Hub
Shimano HB-QC300
Rear Hub
Shimano FH-QC300
Rims
Mach1 KARMA, 21-584
Tires
Schwalbe Rapid Rob, K-Guard, 57-584
Brakes
Brakes
Shimano BR-MT200 / ST-EF505, Disc 160/160 mm
Cockpit
Stem
ID-Project ASDC1, 31.8 mm, 60/75 mm
Handlebar
ID-Project Riser Bar HB-RB11L, 720 mm
Grips
Herrmans Grind
Seat
Saddle
Selle Royal Vivo Sport
Seatpost
ID-Project SPDC2, 30.9 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 360 | 400 | 44cm | 48cm | 52cm |
|---|---|---|---|---|---|
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm | 305 mm | 305 mm |
| Front Center | 656 mm | 656 mm | 656 mm | 676 mm | 697 mm |
| Top Tube Length | 580 mm | 580 mm | 580 mm | 600 mm | 620 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 360 mm | 400 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 110 mm | 110 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1101 mm | 1101 mm | 1101 mm | 1121 mm | 1142 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
