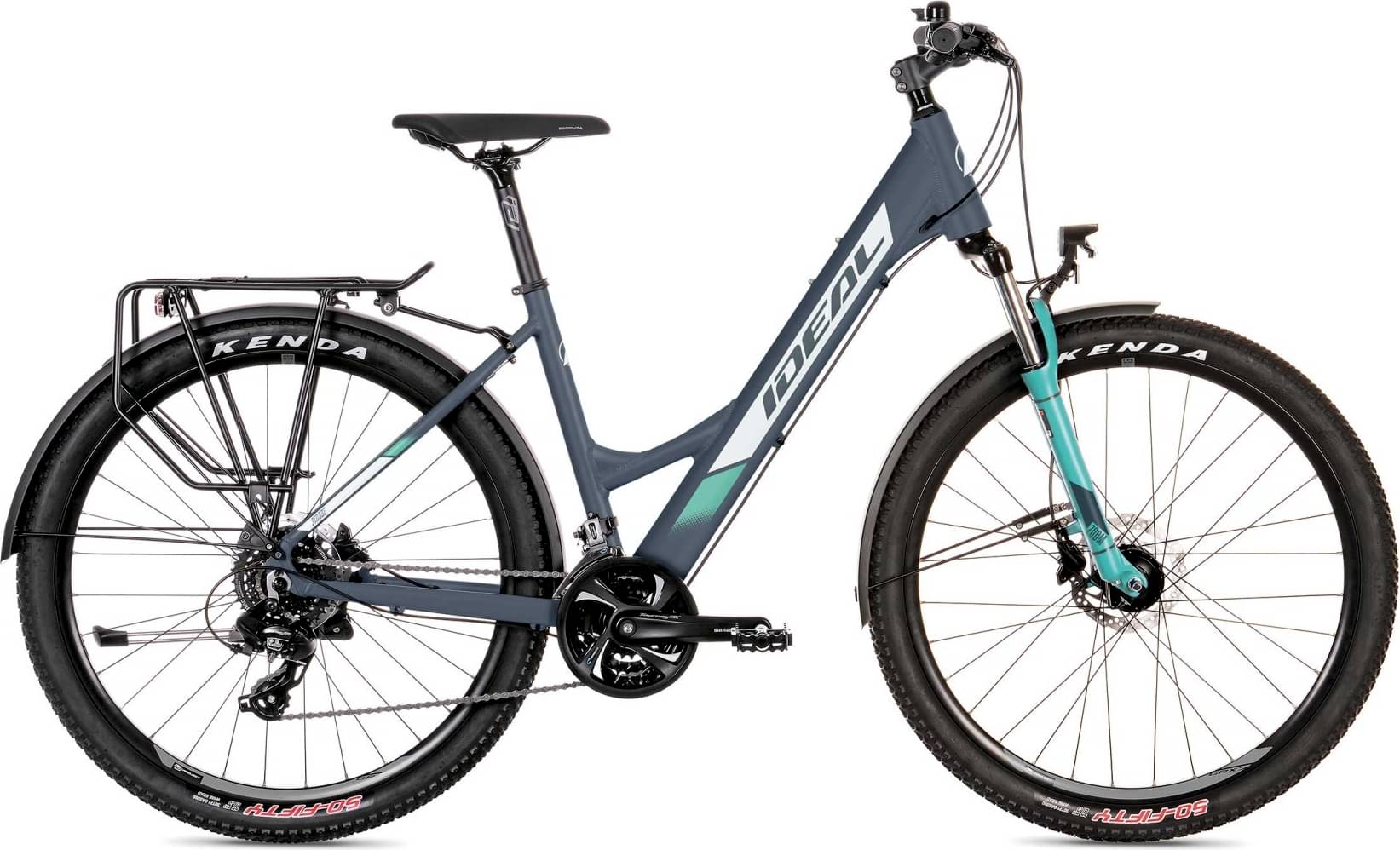

ideal STROBE Suv WAVE 27.5/ 29 2025
2025 Mountain
Estimate price |
947$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 80mm -
Fork Zoom
-
Groupset Tourney -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Shimano Deore Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Hardtail, AL6061-T4/T6, hydroforming, tapered head tube, internal cable routing
Suspension Fork
ZOOM 565D, 80 mm, 25.4 mm
Drivetrain
Rear Derailleur
Shimano RD-TX800
Front Derailleur
Shimano FD-TY710-2
Shift Levers
Shimano ST-EF505
Cassette
Shimano CS-HG31, 11-34T
Crank
Shimano FC-TX301, 42-34-24Z
Bottom Bracket
Shimano BB-UN101
Chain
KMC Z8.3
Wheels
Front Hub
Shimano DH-3D37, Hub dynamo
Rear Hub
Shimano FH-QC300
Rims
Mach1 KARMA, 27.5: 21-584 - 29: 21-622
Tires
Kenda K1104A 50-Fifty, 27.5: 54-584 - 29: 54-622
Brakes
Brakes
Shimano BR-MT200 / BL-M505 hydraulic disc brakes, 160/160mm
Cockpit
Stem
ID-Project TDS-C41-5/8, 25.4 mm, 75/90 mm
Handlebar
ID-Project Riser Bar MTB-152-TP, 640 mm
Seat
Saddle
Selle Royal Premium Essenza
Seatpost
ID-Project SPDC2, 30.9 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm |
|---|---|---|---|
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm |
| Front Center | 656 mm | 676 mm | 697 mm |
| Top Tube Length | 580 mm | 600 mm | 620 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1101 mm | 1121 mm | 1142 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm |
| Wheels | 27" | 27" | 27" |
