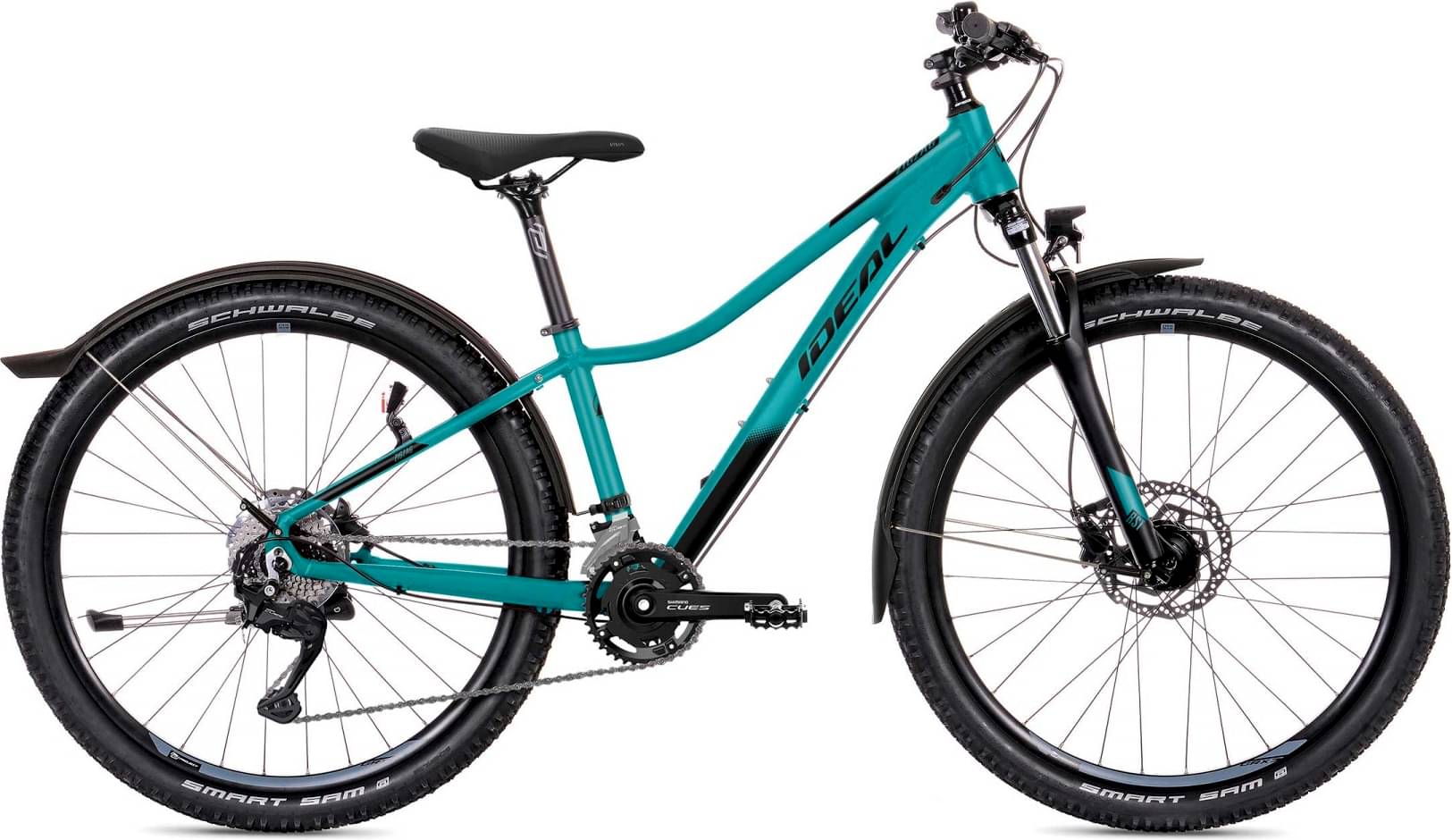

ideal ZIGZAG suv Cues 27.5 UNI 2025
2025 Mountain
Estimate price |
1,083$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork RST BLAZE
-
Groupset CUES -
Suspension Hardtail -
Drivetrain 2 × 9 -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ADVENTURE, AL6061-T4/T6, hydroformed tubing, tapered head tube
Suspension Fork
RST BLAZE MLC, 100 mm, 30 mm, Coil, Lock Out
Drivetrain
Rear Derailleur
Shimano Cues RD-U3020-SGS 9-SPEED
Front Derailleur
Shimano CUES FD-U4000-L
Shift Levers
Shimano CUES SL-U4000-9
Cassette
Shimano CS-LG300-9, 11-36Z
Crank
Shimano CUES FC-U4000-2, 36-22Z
Bottom Bracket
Shimano BB-UN101
Chain
Shimano CN-LG500
Wheels
Front Hub
Shimano DH-3D37, Hub Dynamo
Rear Hub
Shimano FH-QC300
Rims
Mach1 KARMA, 21-622
Tires
Schwalbe Smart Sam, K-Guard, 57-622
Brakes
Brakes
Shimano BR-MT200 / BL-MT201 hydraulic disc brakes, 180/160 mm
Cockpit
Stem
ID-Project ASDC1, 31.8 mm, 60/75 mm
Handlebar
ID-Project Riser Bar HB-RB11L, 720 mm
Grips
Herrmans Grind
Seat
Saddle
Selle Royal Premium Essenza
Seatpost
ID-Project SPDC2, 30.9 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 360 | 400 | 44cm | 48cm | 52cm |
|---|---|---|---|---|---|
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm | 305 mm | 305 mm |
| Front Center | 656 mm | 656 mm | 656 mm | 676 mm | 697 mm |
| Top Tube Length | 580 mm | 580 mm | 580 mm | 600 mm | 620 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 360 mm | 400 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 110 mm | 110 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1101 mm | 1101 mm | 1101 mm | 1121 mm | 1142 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
