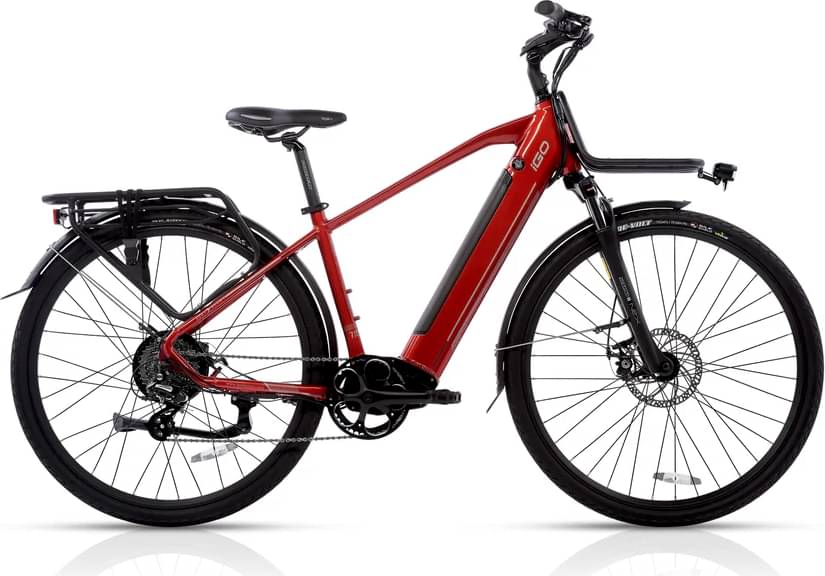

iGO Electric Core – Elite 3DHD 2024
2024 E-bike
Estimate price |
1,665$
Weight | 23.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour NEX -
Groupset Altus -
Suspension Hardtail -
Motor 500W hub-drive -
Battery 3000mAh Lithium-Ion removable battery -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Hydroformed 6061 Aluminum hybrid ERGOFIT frame with smooth welds. Fender/rack mounts, internal cable routing, Electronic Access Port. Removable integrated battery with security lock.
Suspension Fork
SUNTOUR NEX eBike Rated Suspension with lockout
Drivetrain
Rear Derailleur
SHIMANO Altus 8-speed
Shift Levers
SHIMANO rapidfire 8-speed shifter
Cassette
8-speed 11-34T
Crank
42T with Narrow Wide teeth
Chain
KMC X8 EPT
Wheels
Rims
iGO 700C Dual Wall Alloy
Tires
MAXXIS Overdrive 700x47C, 28"x1.75" with SilkShield bead-to-bead puncture protection, reflective strip
Brakes
Brakes
TEKTRO hydraulic disc
Brake Levers
TEKTRO HD-E350
Cockpit
Stem
PROMAX tooless adjustable threadless
Handlebar
Alloy ERGOFIT riser touring bar
Grips
VELO ergonomic grip
Seat
Saddle
SELLE ROYAL Nuvola - black
Seatpost
Alloy 30.4mm with quick release (350mm)
Motor & Battery
Motor
500W geared brushless hi-torque rear hub motor
Battery
3000mAh Lithium-Ion removable battery
Charger
110/220V Smart charger, LED status,CUL, 2A
