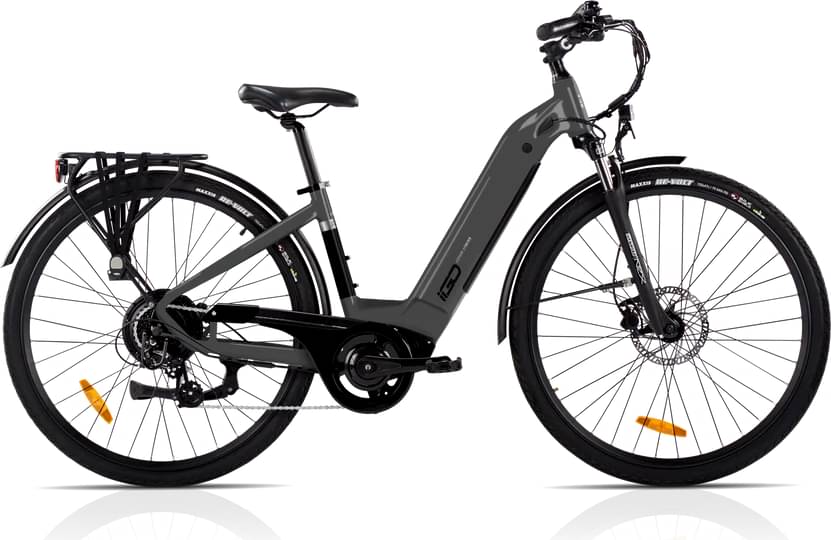

iGO Electric Discovery – Atwater 2024
2024 E-bike
Estimate price |
2,144$
Weight | 24.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Altus -
Suspension Hardtail -
Motor 500W hub-drive -
Battery SAMSUNG integrated removable lithium battery with security lock -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Hydroformed 6061 Aluminum 28” step through ERGOFIT frame with smooth welds. Fender/rack mounts, internal cable routing, Electronic Access Port. Removable integrated battery with security lock.
Suspension Fork
SUNTOUR NEX 700C suspension, 63mm travel, hydraulic lockout
Drivetrain
Rear Derailleur
SHIMANO ALTUS 8-speed
Front Derailleur
NA
Shift Levers
SHIMANO ALTUS 8-speed Rapidfire trigger shift
Cassette
8-speed 11-34T
Crank
PROWHEEL 42T
Chain
KMC Z8
Wheels
Rims
ALEX DP25 700C - black alloy
Tires
MAXXIS Re-Volt 700x47, 28"x1.75" with SilkShield bead-to-bead puncture protection
Brakes
Brakes
TEKTRO hydraulic disc
Brake Levers
TEKTRO with Sensor Control Design and reach adjustment
Cockpit
Stem
Toolless, multi adjustable
Handlebar
Alloy ERGOFIT touring bar
Grips
VELO double density, anatomic design, open end (135mm)
Seat
Saddle
VELO for iGO
Seatpost
Alloy 31.6mm with quick release
Motor & Battery
Motor
500W geared rear hub drive, 48V (750W US)
Battery
SAMSUNG integrated removable lithium battery with security lock
Charger
110/220V Smart charger, LED status, CUL, 2A
