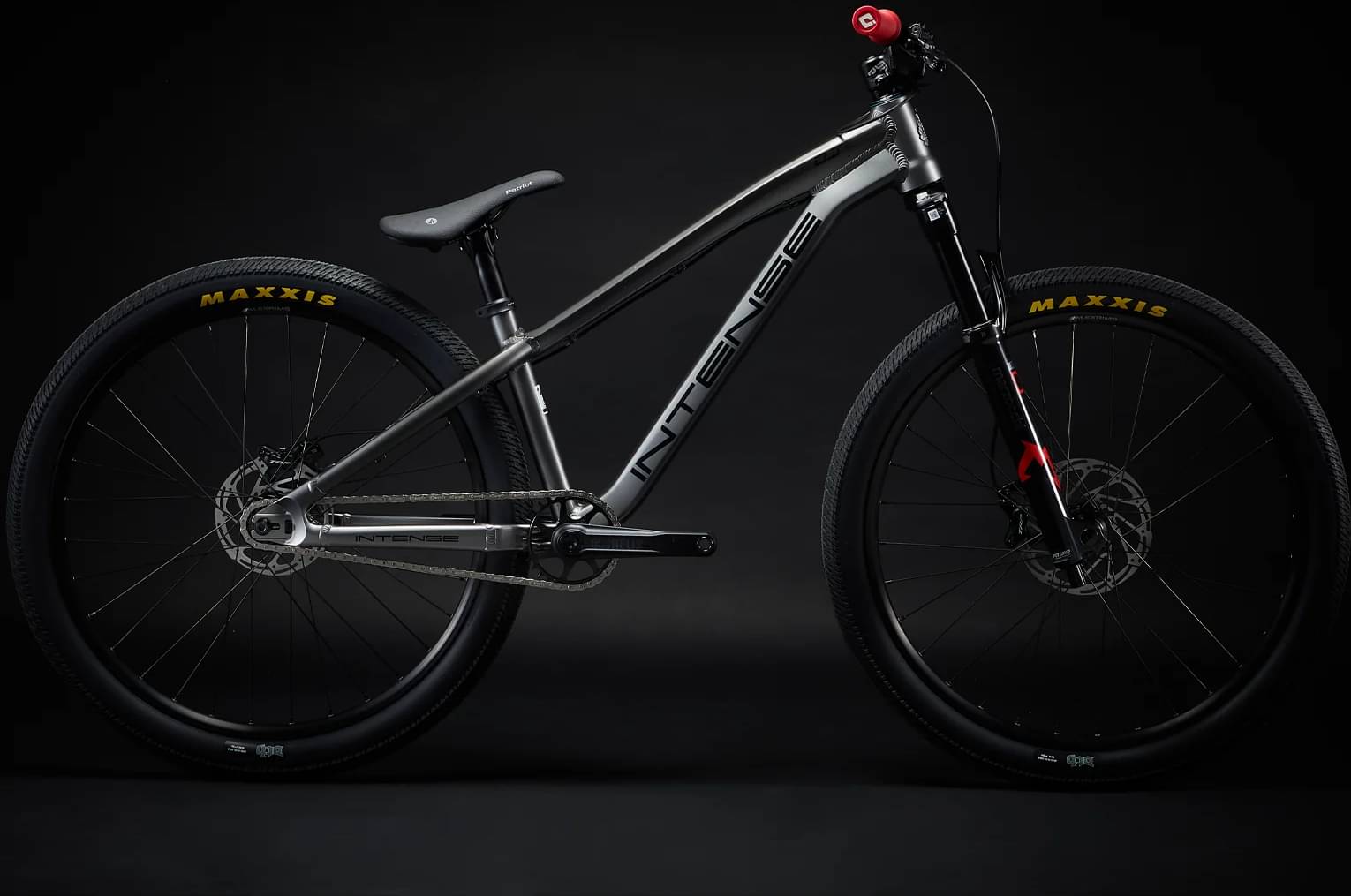

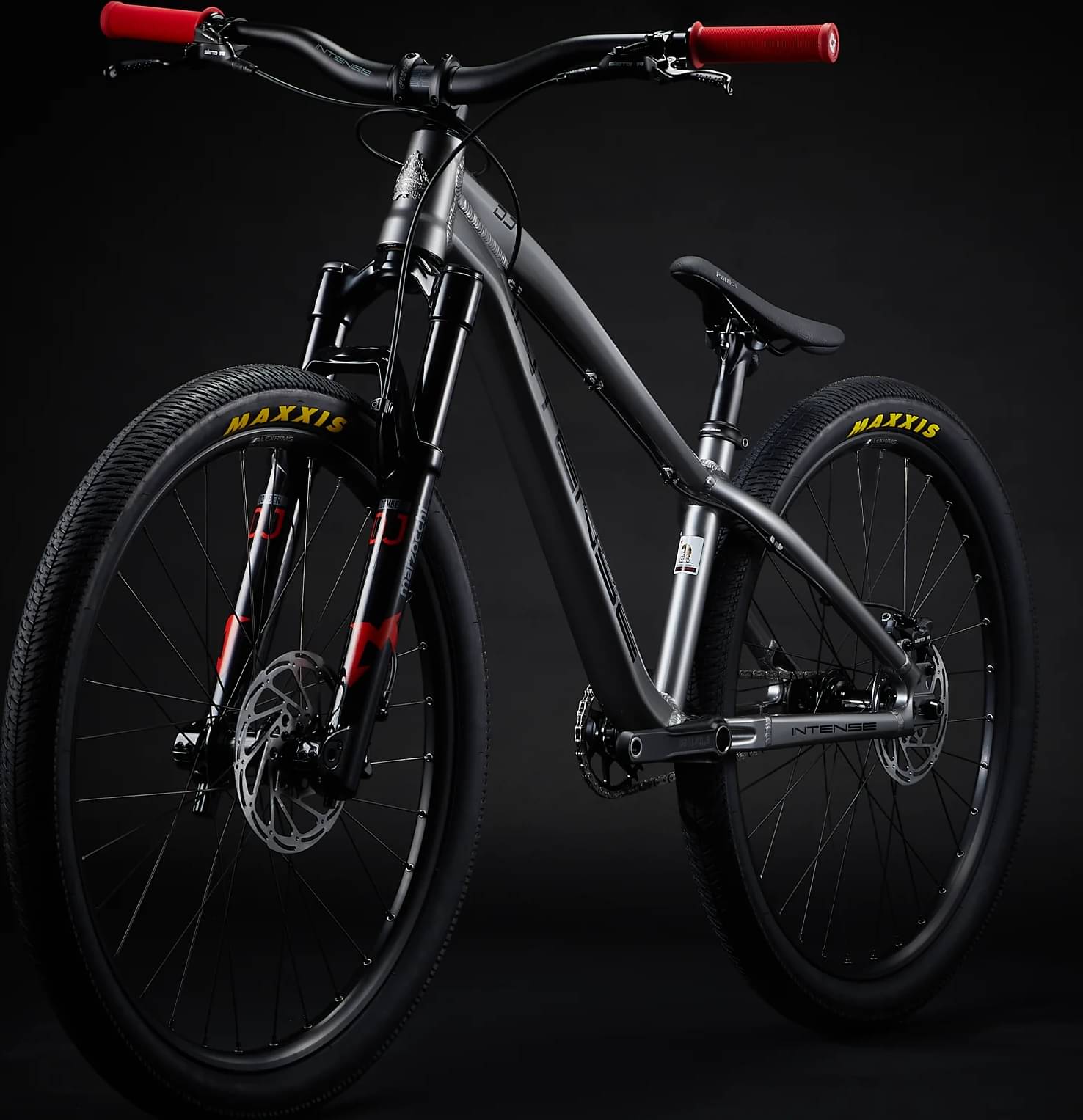

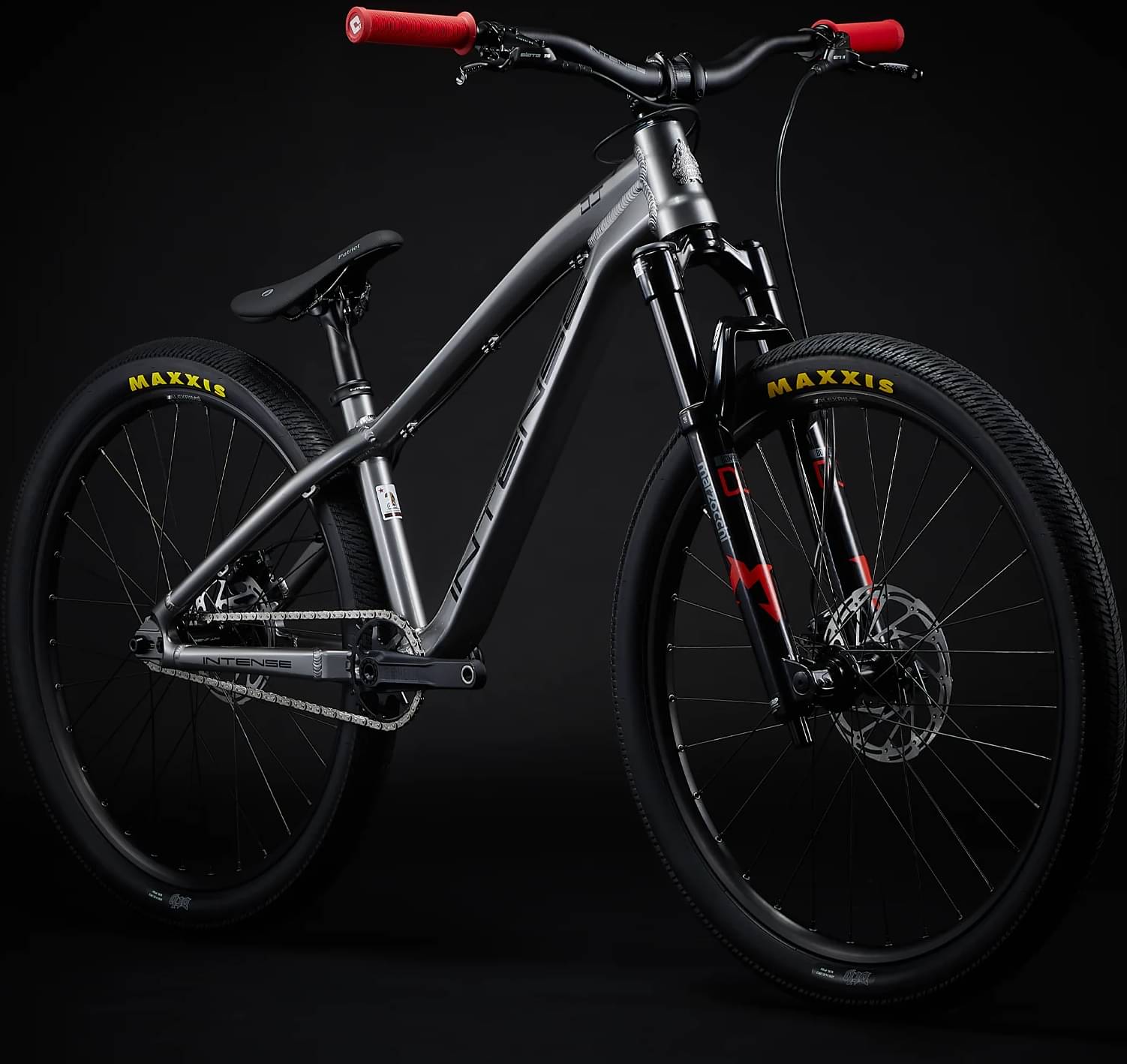

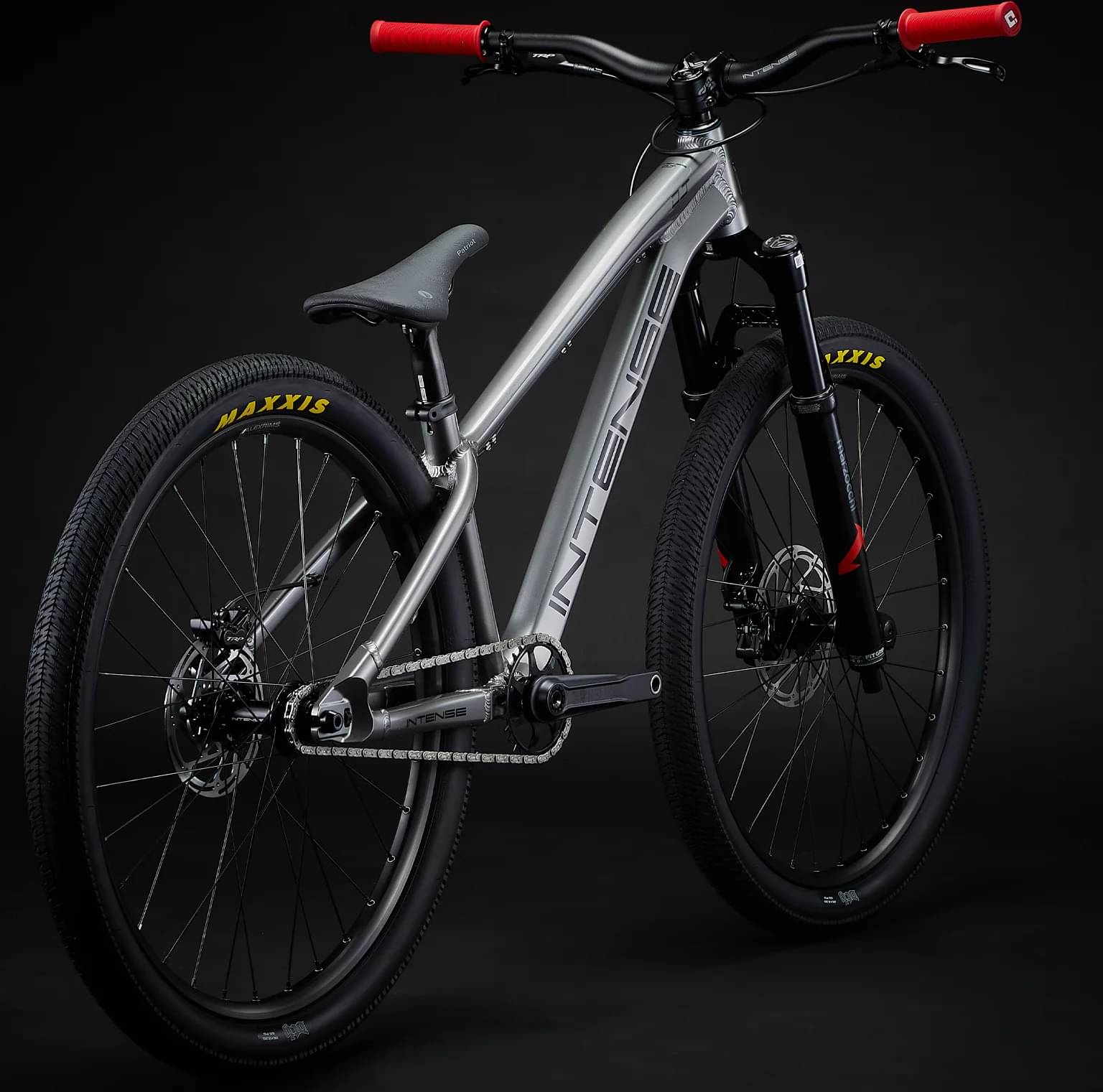

Intense DJ 2024
2024 Mountain
Estimate price |
1,999$
Weight | 11.79 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Marzocchi Bomber DJ
-
Groupset e*thirteen -
Suspension Hardtail -
Drivetrain Single Speed -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

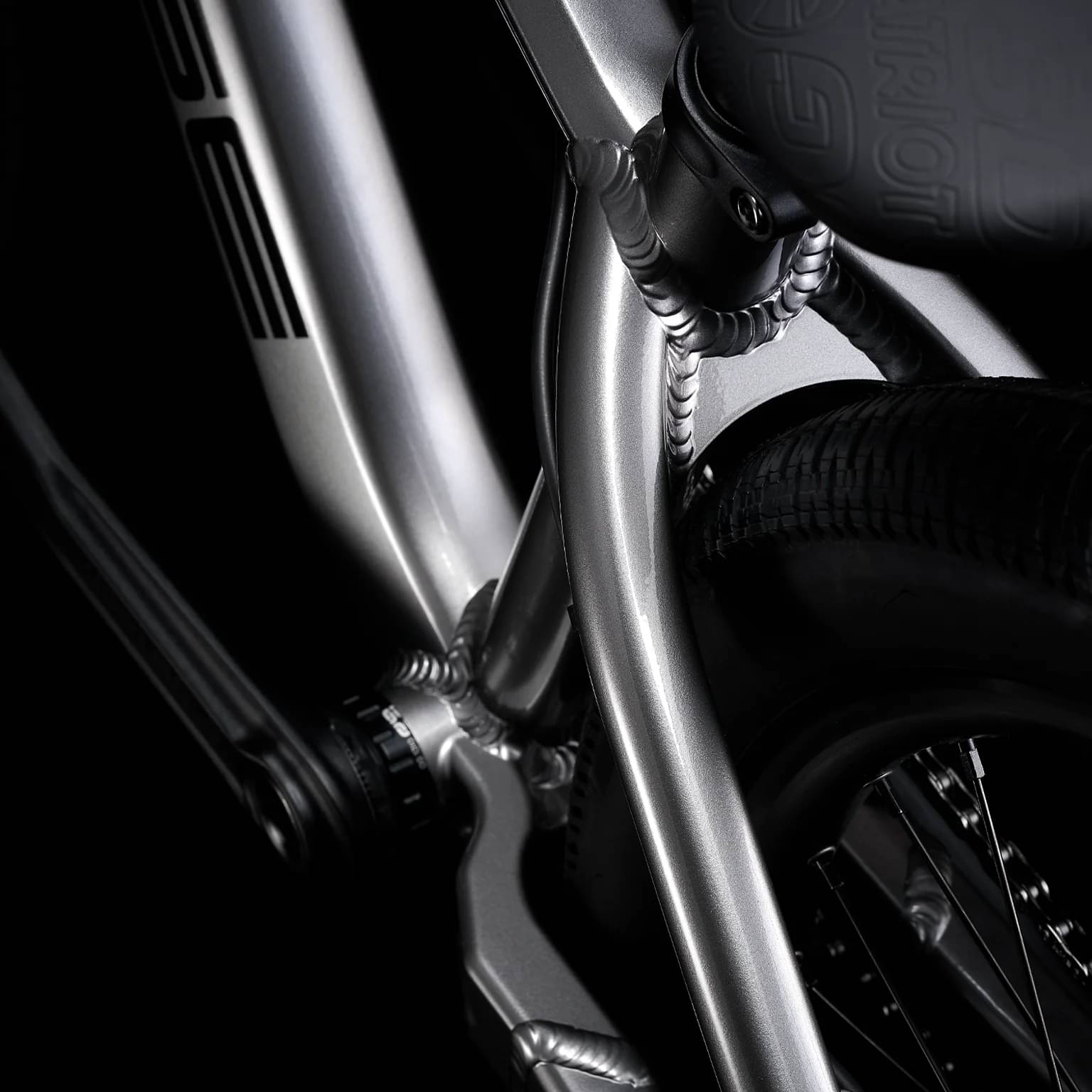

Alloy 6061, triple-butted (T4, T6), threaded BB, and adjustable horizontal dropouts (135mm hub spacing), extra loop for brake hose.
Suspension Fork

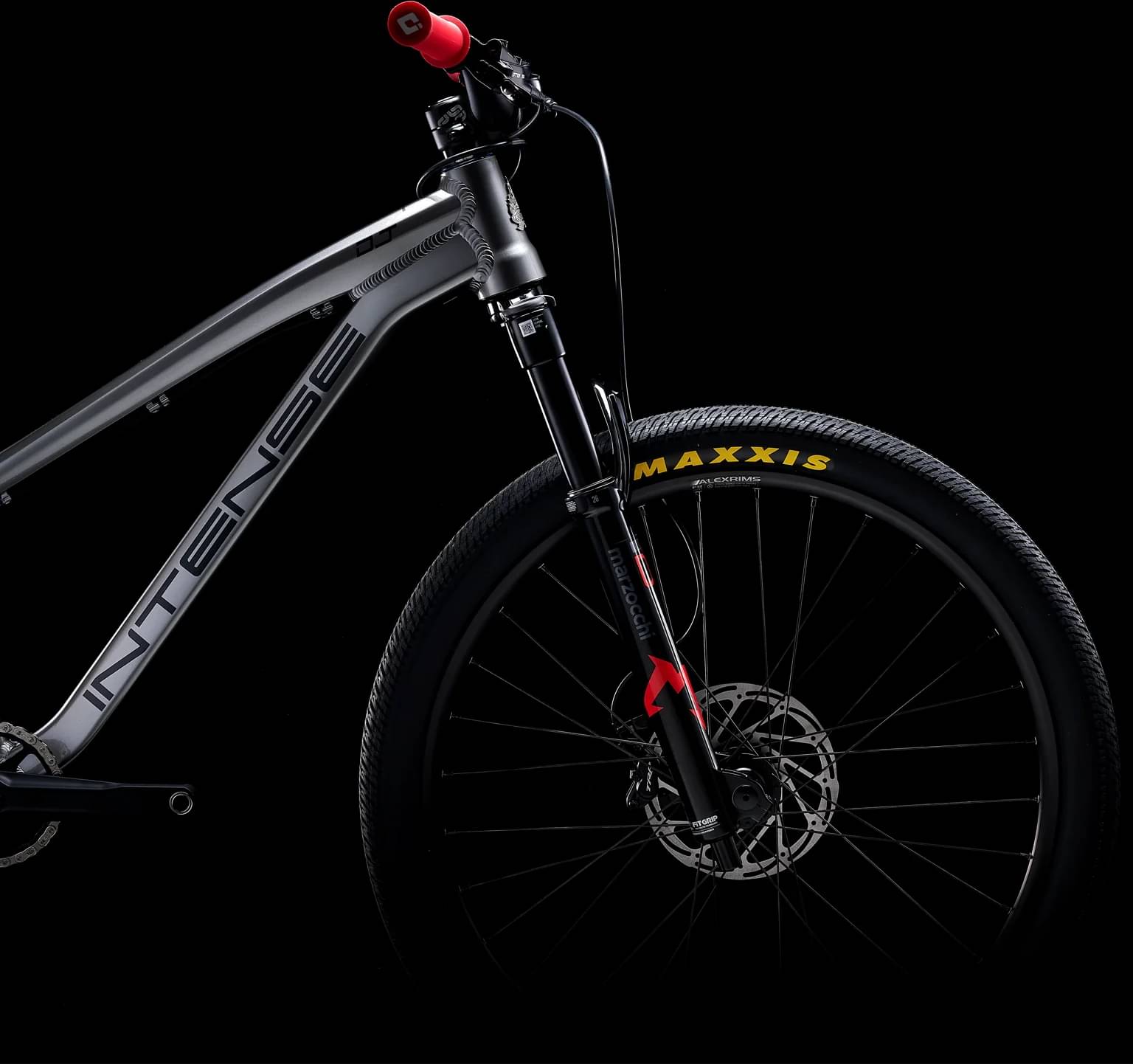

Marzocchi Bomber DJ, 26", 100mm, GRIP, 20x110mm Axle, 37mm Offset
Drivetrain
Cassette
KT 14t
Crank
e*thirteen Helix Base / 30t / 170mm
Bottom Bracket
e*thirteen BSA 73mm
Chain
KMC Z1
Wheels
Front Hub
INTENSE Alloy / 110x20mm Front / 135x10mm Rear
Rear Hub
INTENSE Alloy / 110x20mm Front / 135x10mm Rear
Rims
Alex FR30 26" x 30mm Rims / INTENSE Alloy Hubs
Spokes
DT-Swiss Champion 2.0mm
Tires
Maxxis DTH 26" x 2.30"
Brakes
Brakes

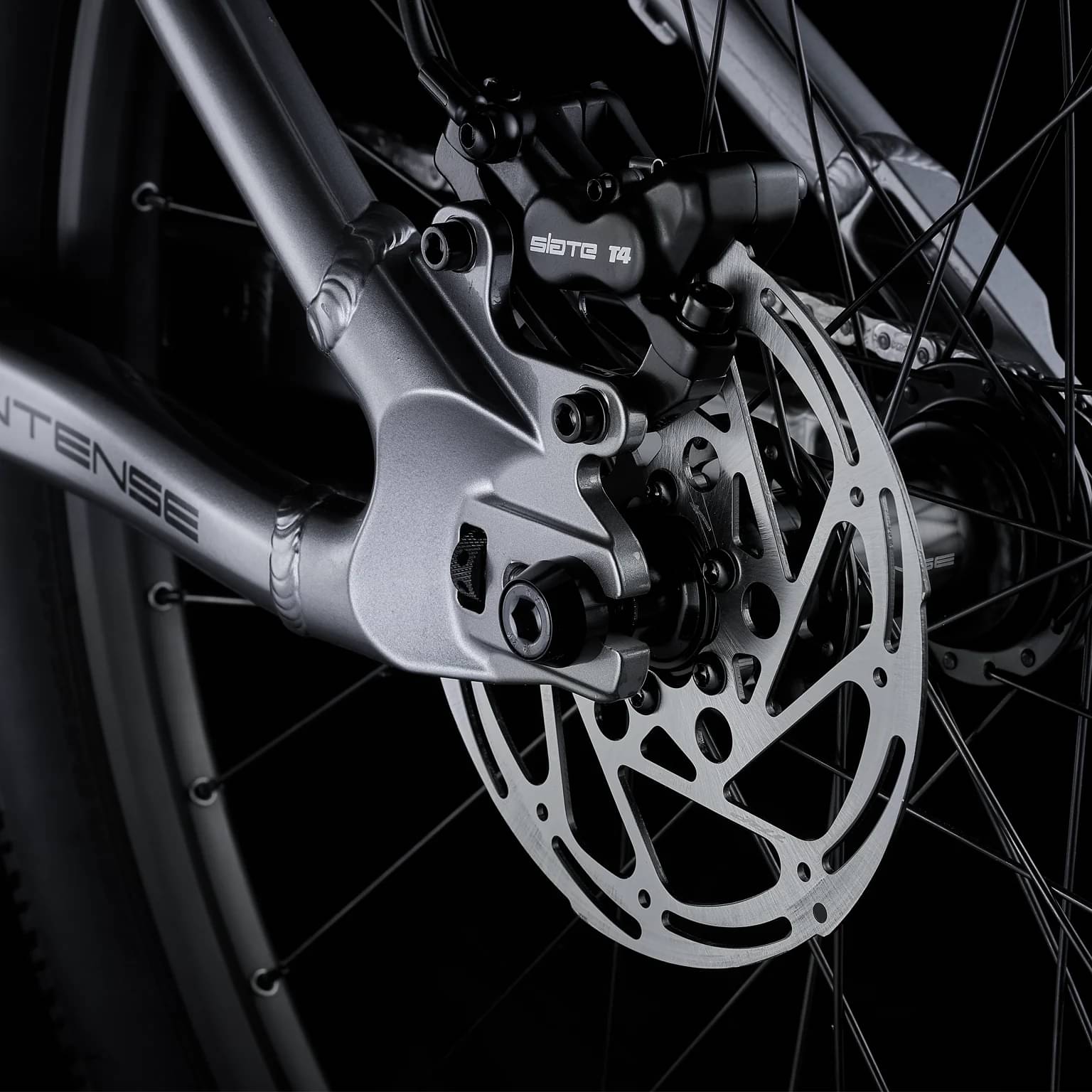

TRP Slate T4, HD-M806 / 180mm Front Rotor / 160mm Rear Rotor
Cockpit
Stem

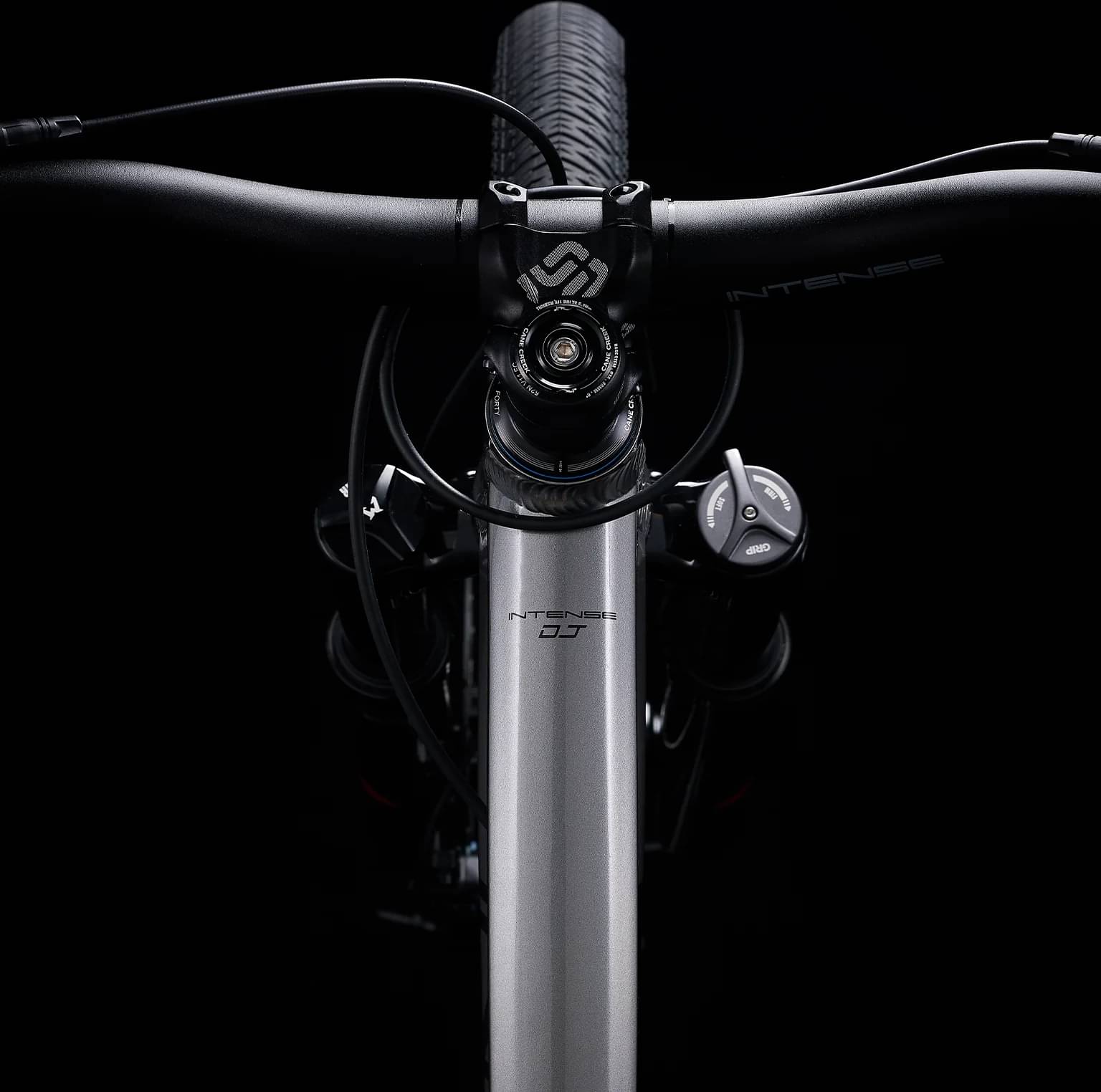

e*thirteen Base 35 / 40mm
Handlebar

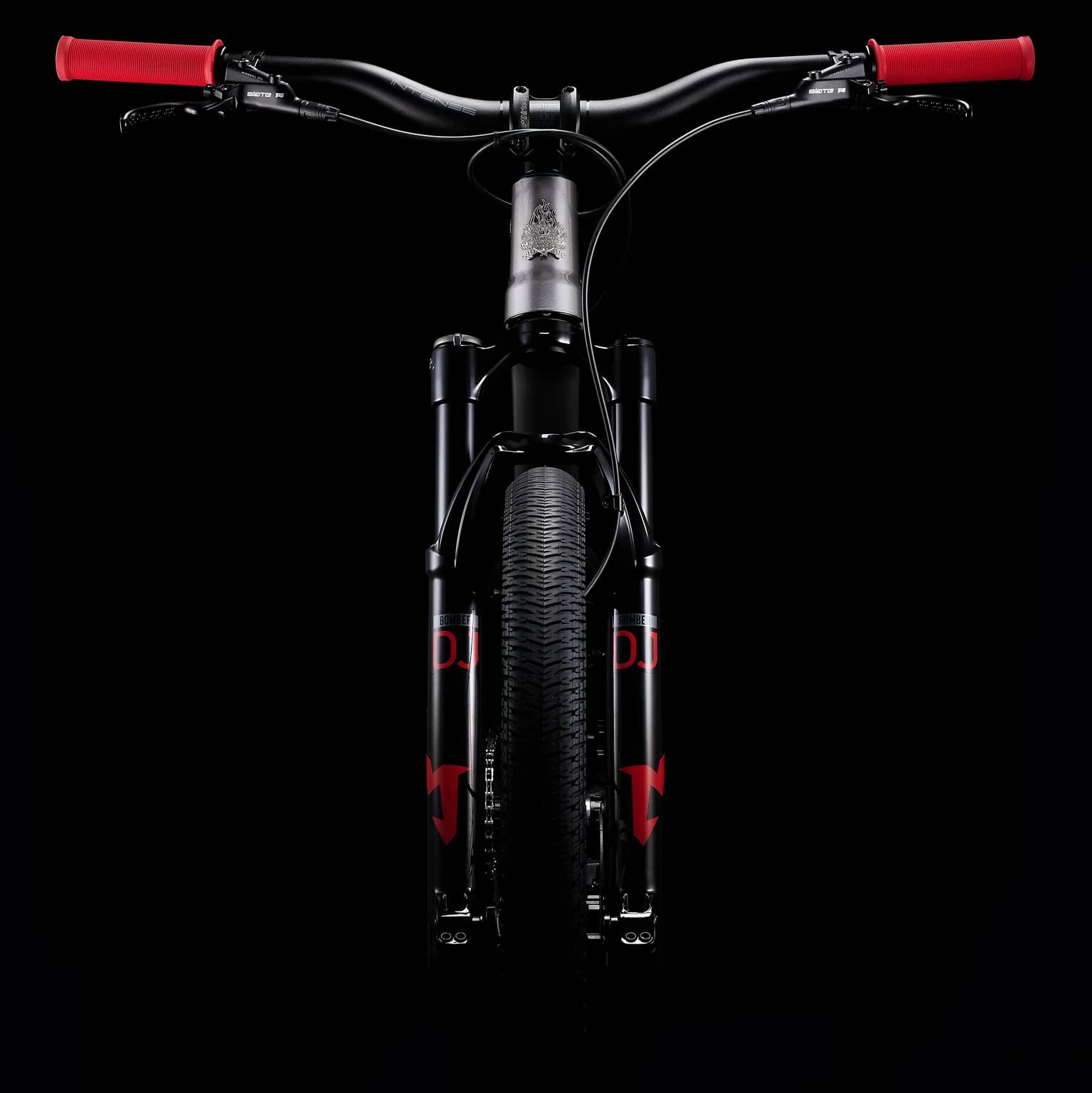

INTENSE DJ 35 Alloy / 760mm Length, 40mm Rise
Grips
ODI Longneck V2
Headset
Cane Creek 40 Series ZS44/ZS56.40
Seat
Saddle
SDG Patriot RL
Seatpost
INTENSE DJ 31.6mm x 250mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.481 mm | 1.39 mm | 1.308 mm |
| Bottom Bracket Height | 323 mm | 323 mm | 323 mm |
| Front Center | 632 mm | 657 mm | 682 mm |
| Rake | 38 mm | 38 mm | 38 mm |
| Trail | 94 mm | 94 mm | 94 mm |
| Stack | 560 mm | 560 mm | 560 mm |
| Reach | 378 mm | 403 mm | 428 mm |
| Top Tube Length | 560 mm | 585 mm | 610 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 315 mm | 315 mm | 315 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 115 mm | 115 mm | 115 mm |
| Chainstay Length | 385 mm | 385 mm | 385 mm |
| Wheelbase | 1016 mm | 1041 mm | 1066 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm |
| Front Travel | 100 mm | 100 mm | 100 mm |
| Wheels | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
