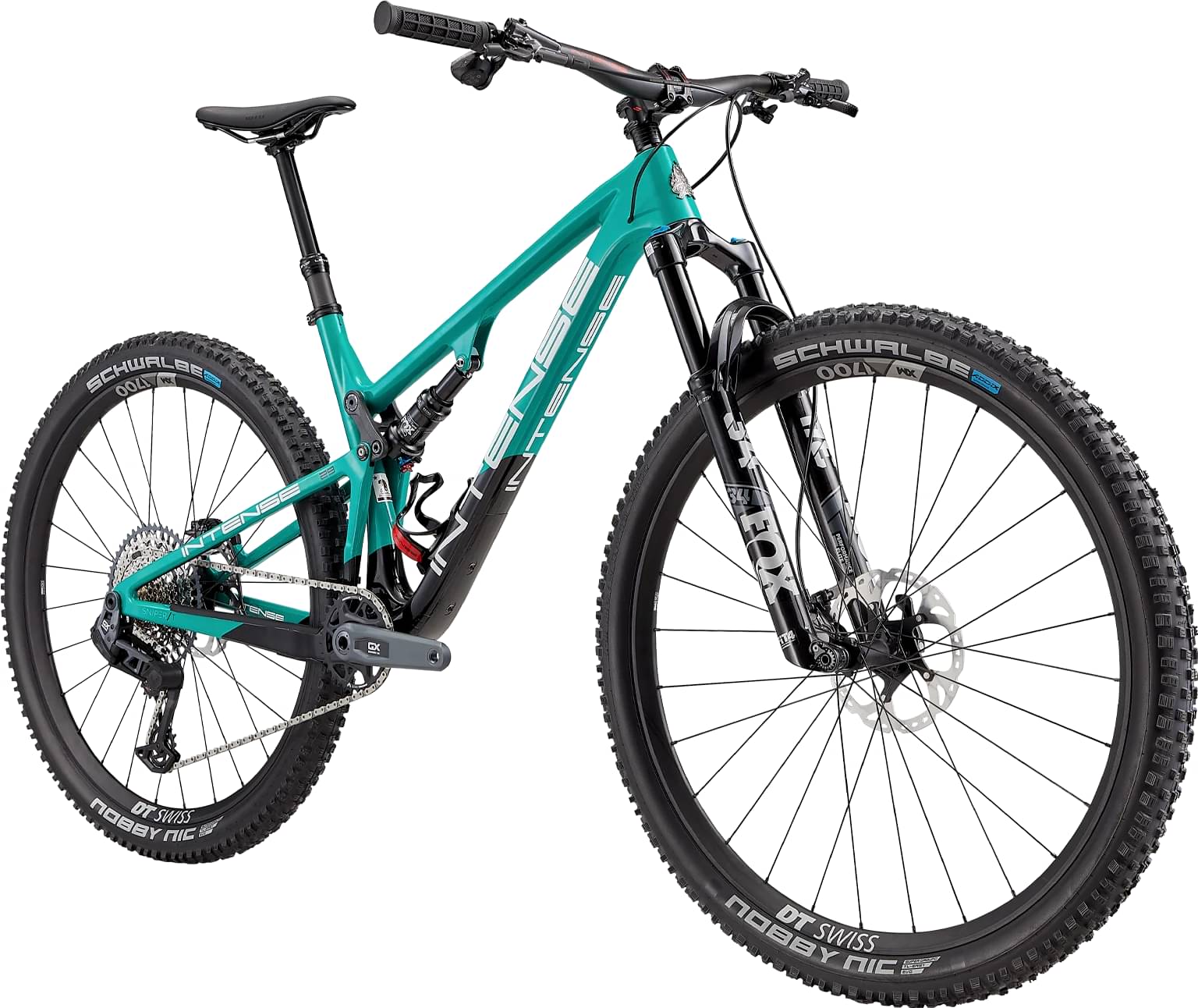

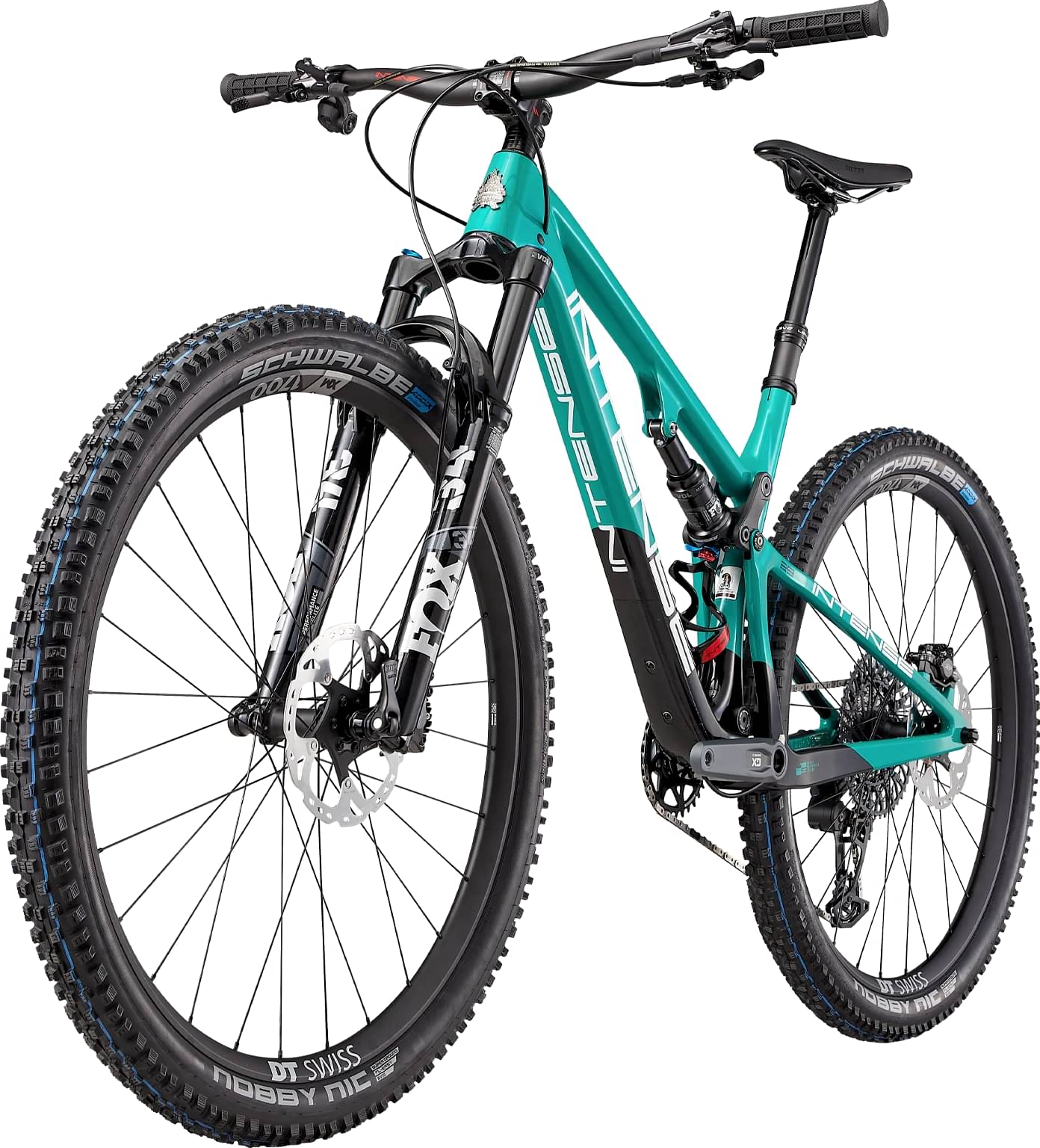

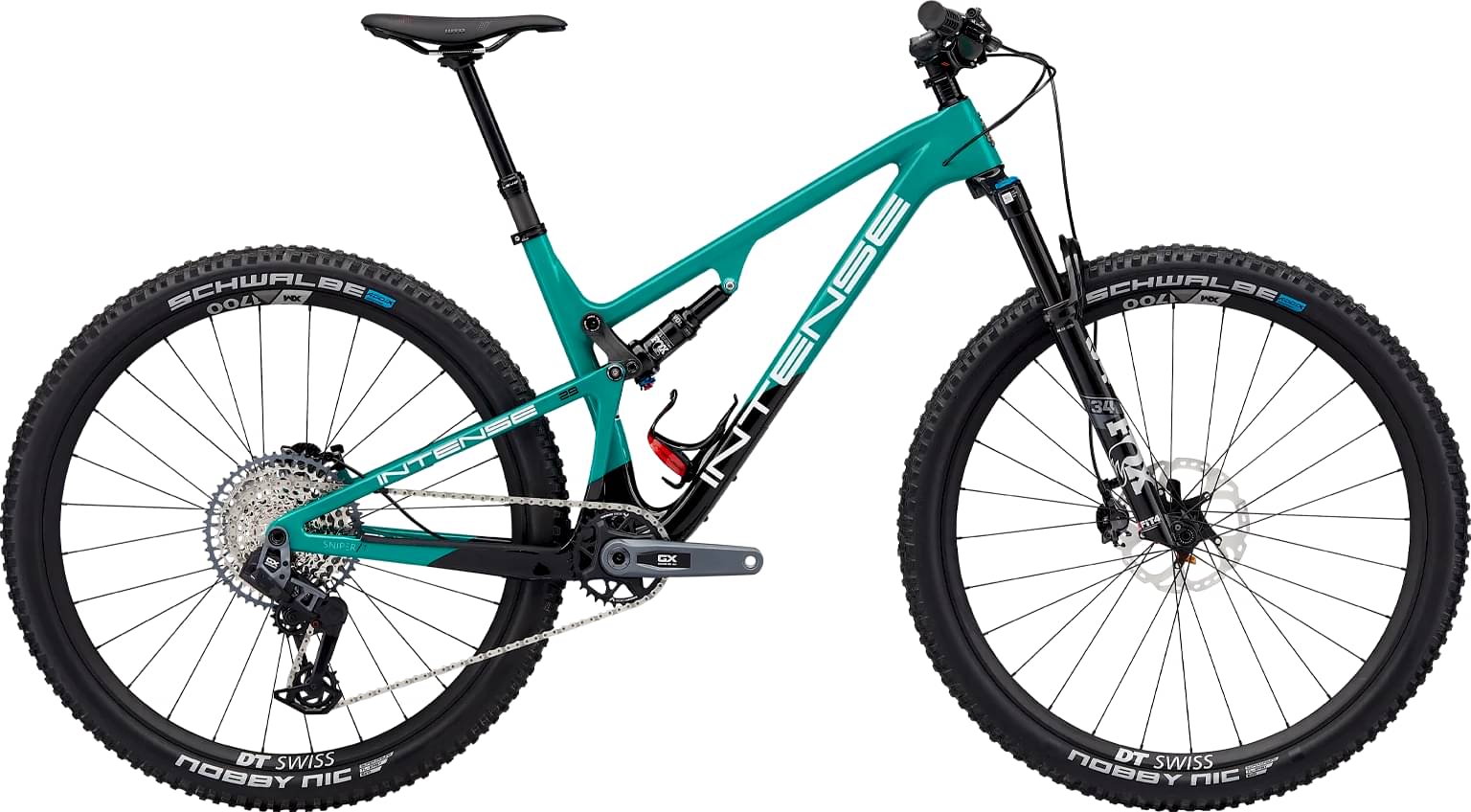

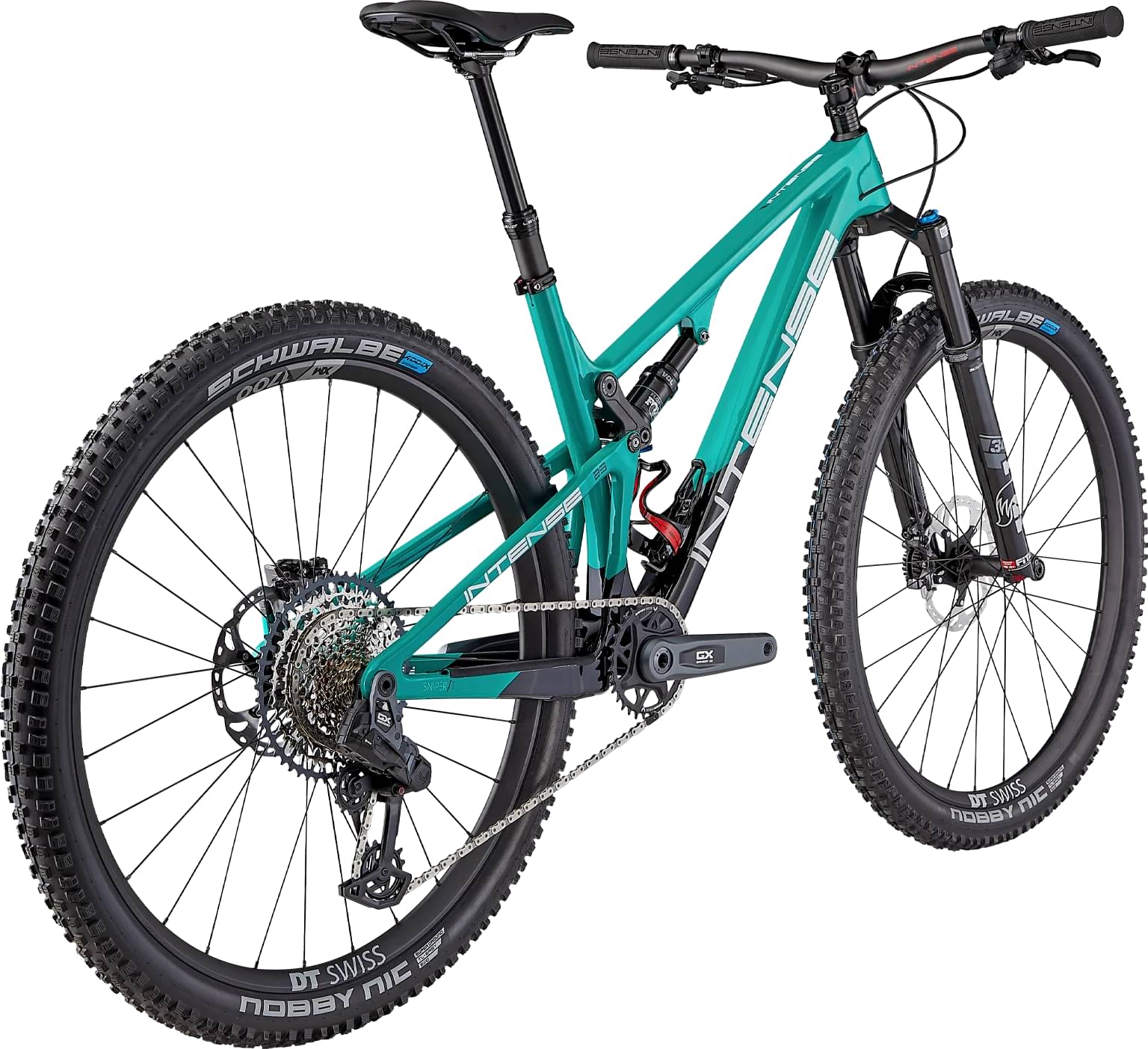

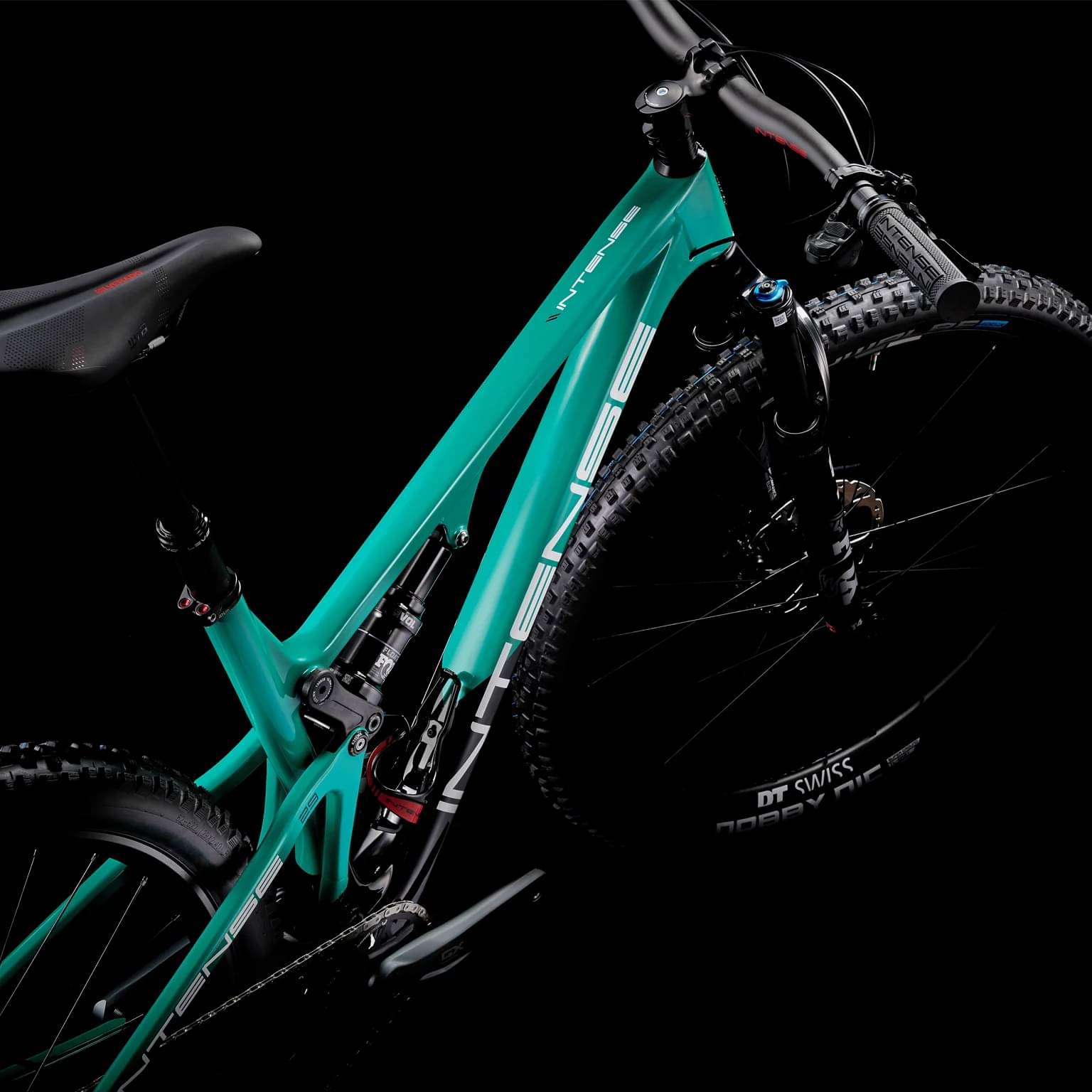

Intense SNIPER T PRO 2024
2024 Mountain
Estimate price |
6,499$
Weight | 12.87 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Performance Float 34
-
Groupset X01 Eagle AXS, GX Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Full carbon fiber front and rear triangle utilizing an optimized carbon layup for the XC category. Features fully guided internal cable routing, carbon top link, titanium hardware, and Press-Fit BB. Universal Derailleur Hanger (UDH), SRAM T-Type compatible.

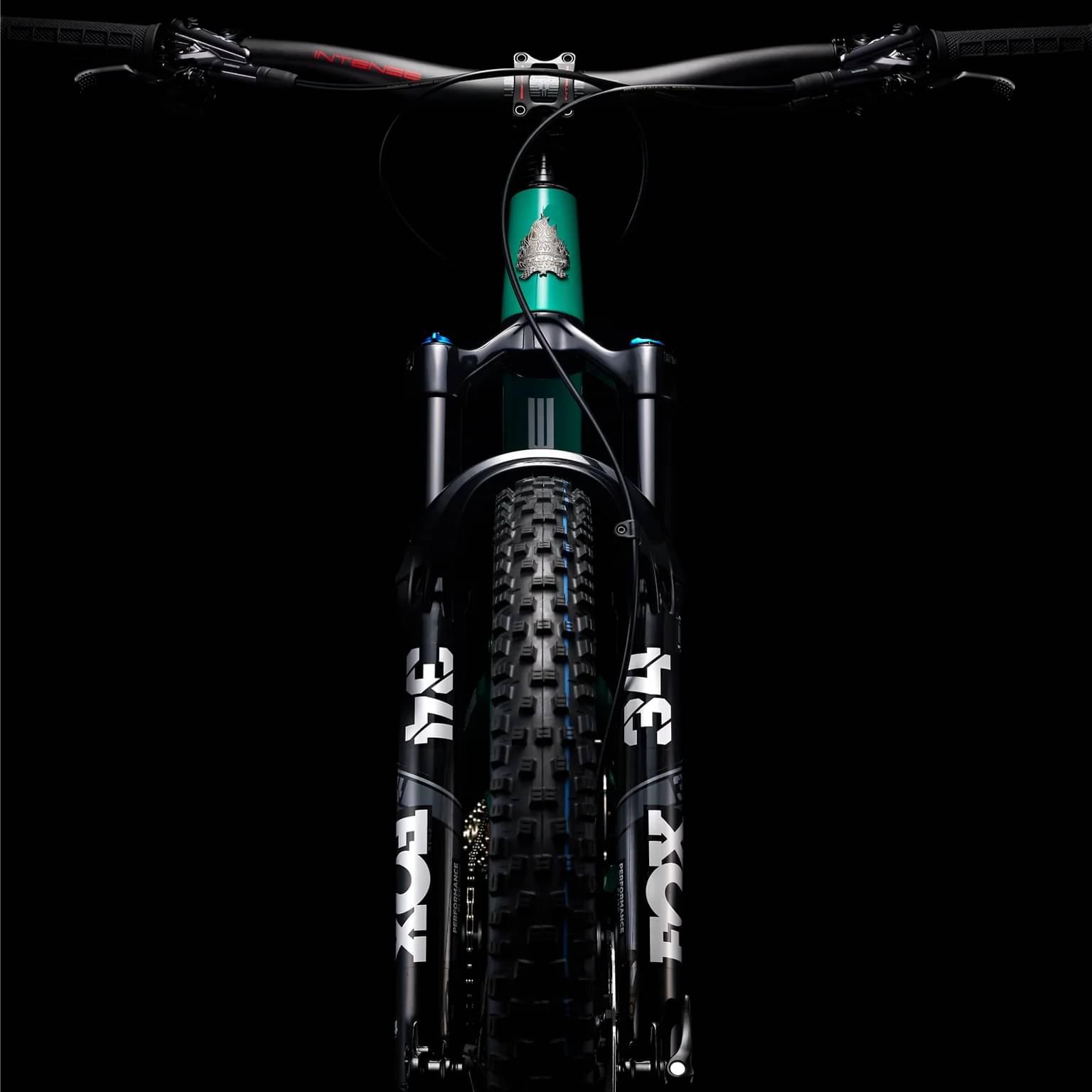

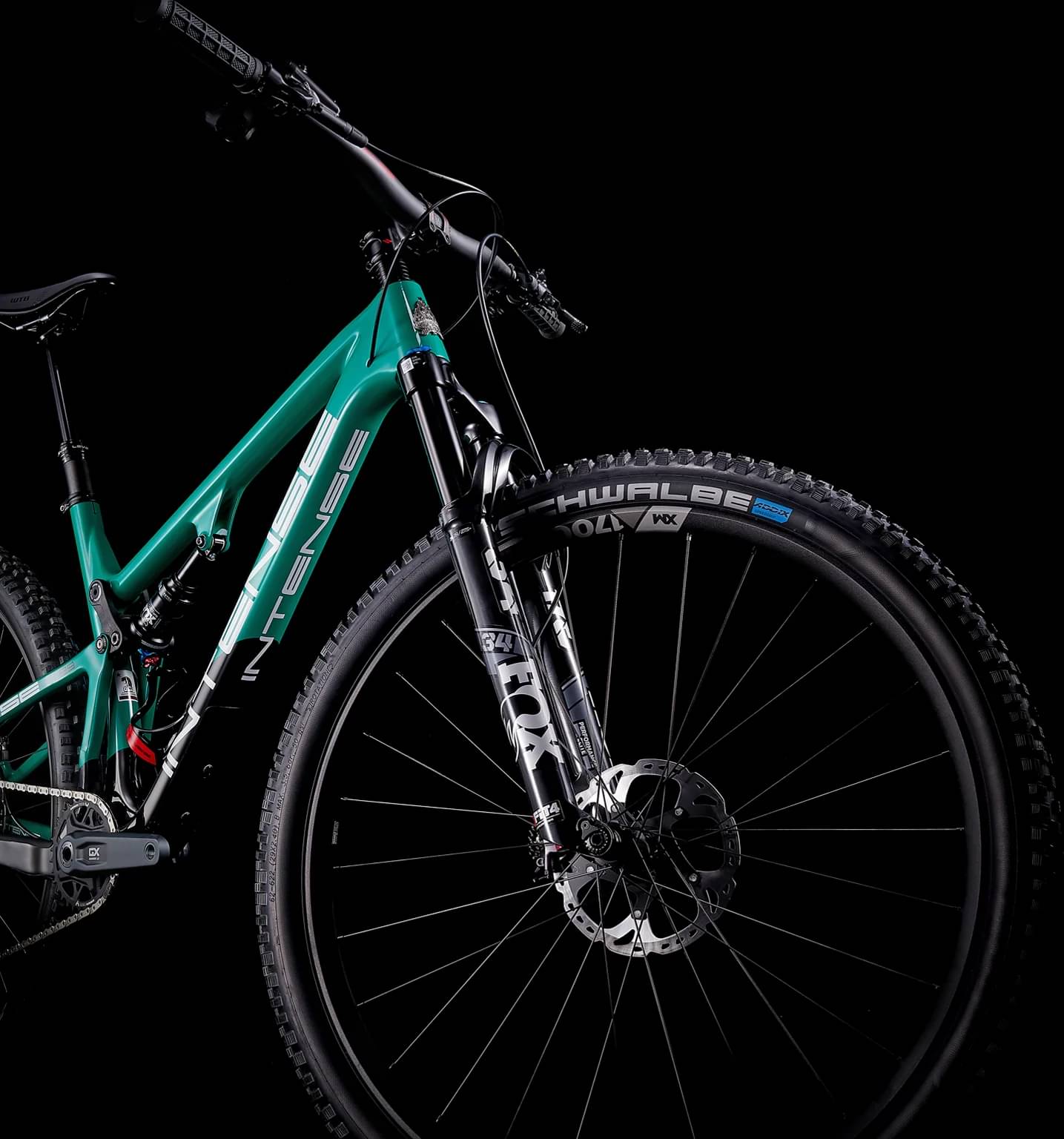

Suspension Fork
FOX 34 Float Performance, 29" 120mm, FIT4, QR15 Axle, 51mm Offset

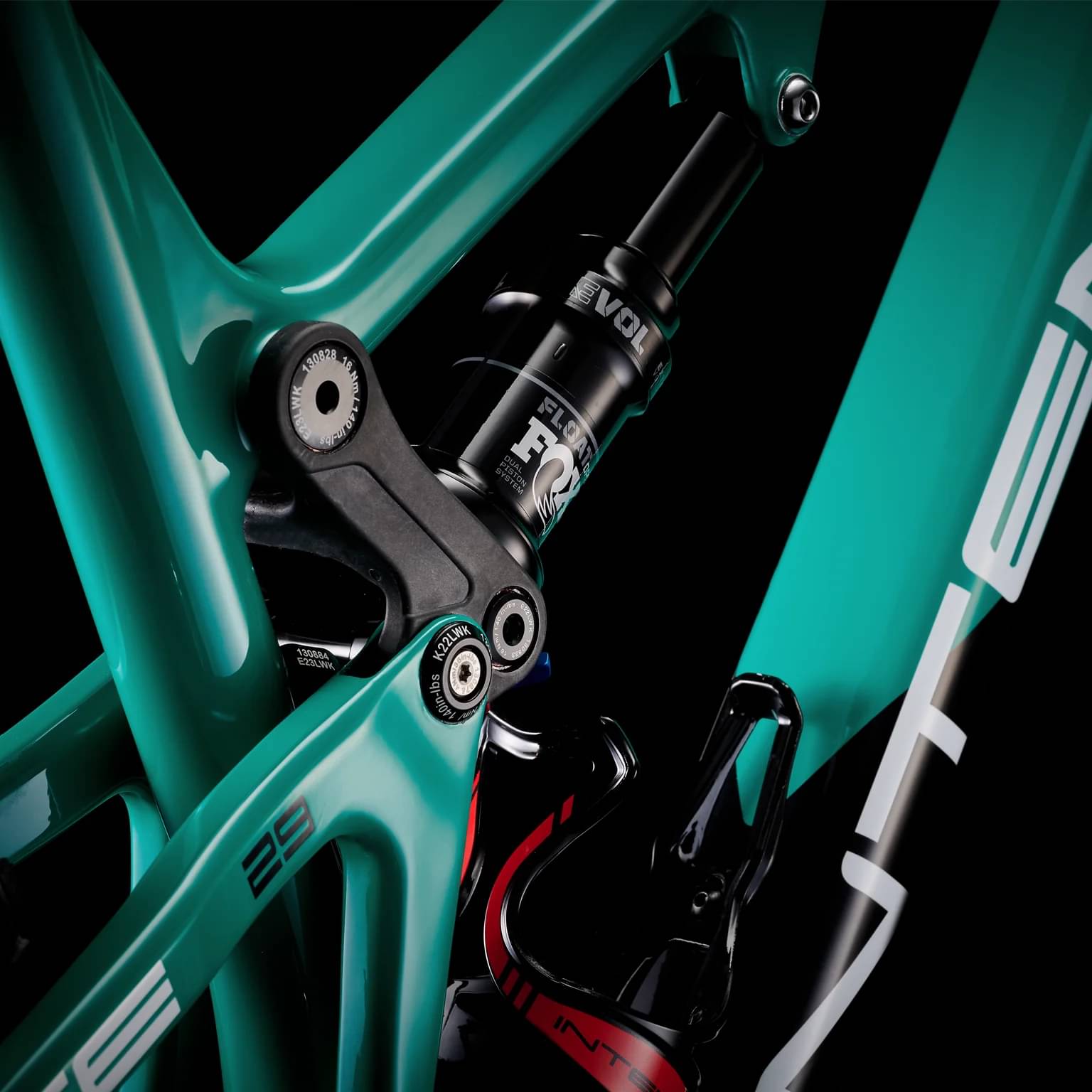

Rear Shock
FOX Float DPS Performance Elite, rebound adjustment, 3 position climb switch (Open, Trail, Closed), 165mm x 45mm.
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS Transmission 12-speed
Shift Levers
SRAM AXS POD 12-speed
Cassette
SRAM XS-1275 12-speed / 10-52t
Crank

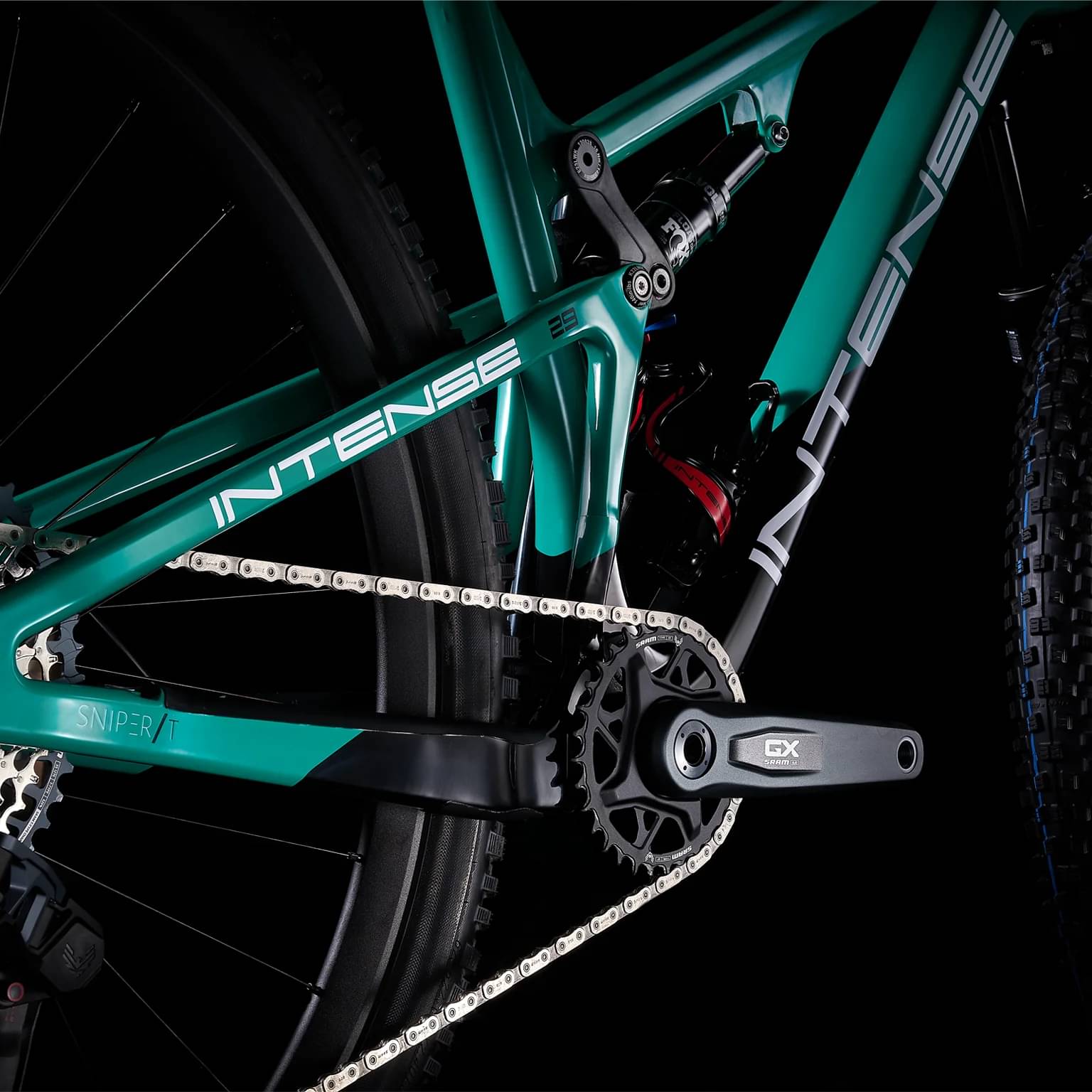

SRAM GX Eagle Transmission 12-speed BOOST / 30t / 170mm (SM,MD,LG) / 175mm (XL)
Bottom Bracket
SRAM DUB BB92
Chain
SRAM GX Eagle AXS Transmission 12-speed
Wheels
Front Hub
DT Swiss 350 / 110x15mm Front / 148x12mm XD Rear
Rear Hub
DT Swiss 350 / 110x15mm Front / 148x12mm XD Rear
Rims
DT Swiss XM 1700 29" / 30mm
Spokes
DT Swiss Champion
Tires
Schwalbe Nobby Nic 29" x 2.40 EVO
Brakes
Brakes
Shimano XT M-8100 / RT-86 180mm Rotors

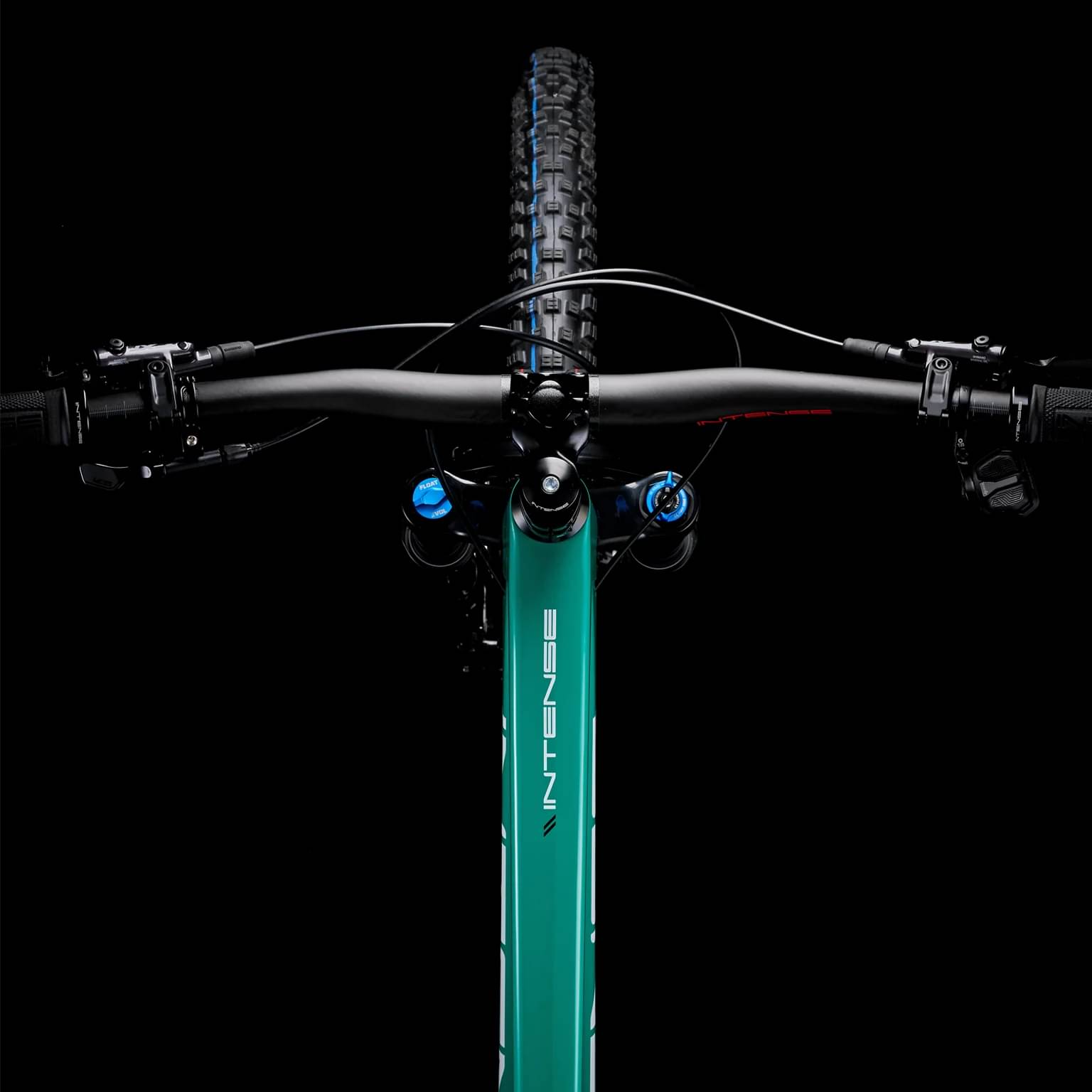

Cockpit
Stem
INTENSE Recon Elite / 50mm
Handlebar
INTENSE Recon Elite Carbon, 760mm (SM) / 780mm (MD,LG,XL)
Grips
INTENSE Lock-on
Headset
INTENSE Integrated IS41 / IS52.40
Seat
Saddle
WTB Silverado Sport Fusion
Seatpost
Kind Shock LEV Carbon Dropper 31.6mm / 125mm (SM) / 150MM (MD) / 175mm (LG,XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.422 mm | 1.354 mm | 1.305 mm | 1.265 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 706.4 mm | 732 mm | 759 mm | 785 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 106.7 mm | 106.5 mm | 106.3 mm | 106.1 mm |
| Stack | 580 mm | 585 mm | 594 mm | 603.5 mm |
| Reach | 408 mm | 432 mm | 455 mm | 477 mm |
| Top Tube Length | 589 mm | 615 mm | 640 mm | 665 mm |
| Seat Tube Angle | 72.6 ° | 72.6 ° | 72.6 ° | 72.6 ° |
| Seat Tube Length | 406 mm | 437 mm | 488 mm | 538 mm |
| Head Tube Angle | 66.2 ° | 66.2 ° | 66.2 ° | 66.2 ° |
| Head Tube Length | 90 mm | 95 mm | 105 mm | 115 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1145 mm | 1171 mm | 1198 mm | 1224 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm |
| Standover Height | 767 mm | 784 mm | 789 mm | 794 mm |
| Front Travel | 120 mm | 120 mm | 120 mm | 120 mm |
| Rear Travel | 120 mm | 120 mm | 120 mm | 120 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
