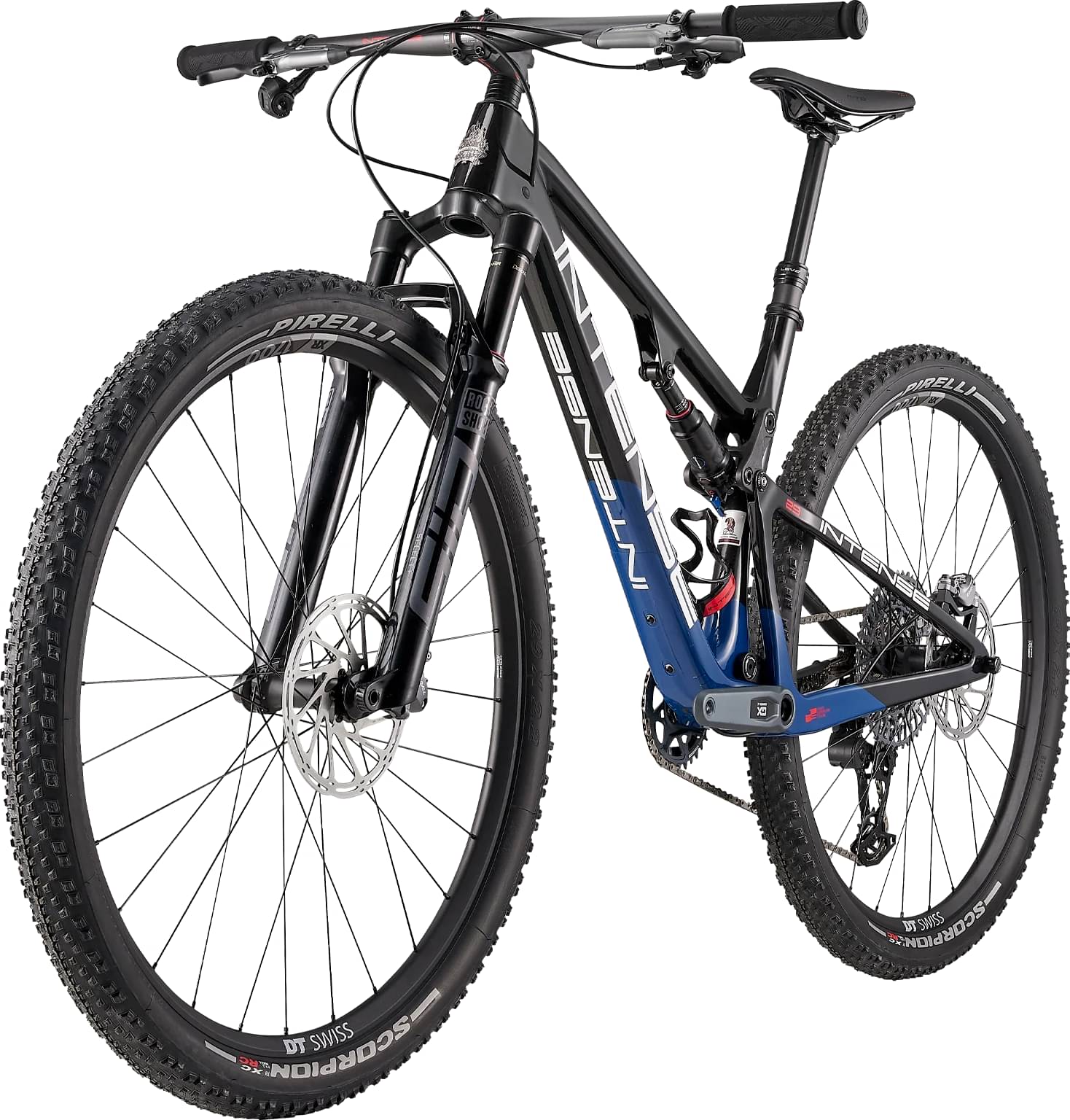

Intense SNIPER XC PRO 2024
2024 Mountain
Estimate price |
6,499$
Weight | 11.42 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Travel Rear 100mm -
Fork RockShox SID Select+
-
Groupset X01 Eagle AXS, GX Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Full carbon fiber front and rear triangle utilizing an optimized carbon layup for the XC category. Features fully guided internal cable routing, carbon top link, titanium hardware, and Press-Fit BB, Universal Derailleur Hanger (UDH), SRAM T-Type compatible.
Suspension Fork
RockShox SID Select+, 29", 100mm, 2 position, QR15 Axle, 44mm Offset

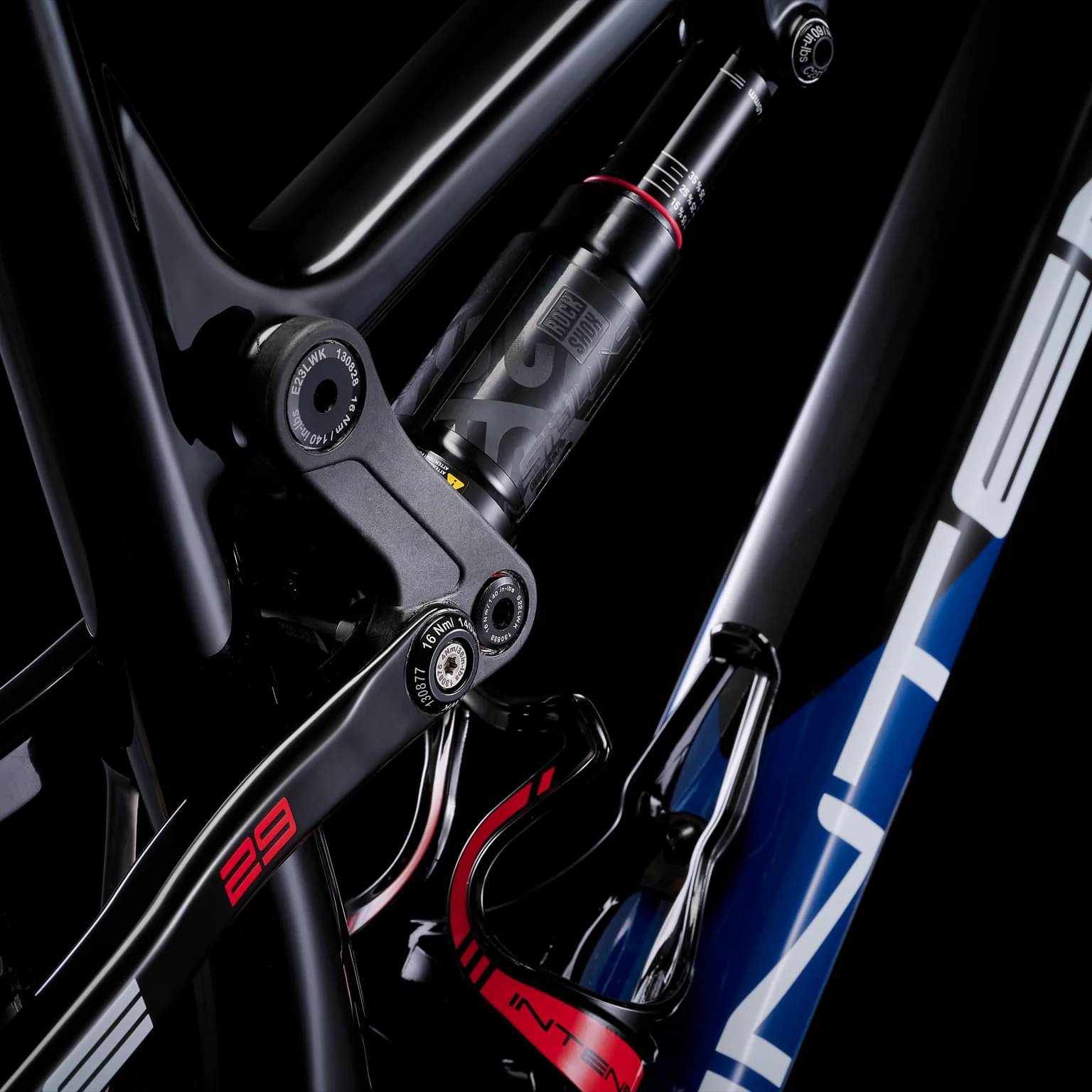

Rear Shock
RockShox SID Luxe Select+, rebound adjustment, 2 position, (Open, Closed). Shock Size/Stroke: 165mm x 40mm
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS Transmission 12-speed
Shift Levers
SRAM AXS POD 12-speed
Cassette
SRAM XS-1275 12-speed / 10-52t
Crank
SRAM GX Eagle Transmission 12-speed BOOST / 30t / 170mm (SM) / 175mm (MD,LG,XL)
Bottom Bracket
SRAM DUB BB92
Chain
SRAM GX Eagle AXS Transmission 12-speed
Wheels
Front Hub
DT Swiss 350 / 110x15mm Front / 148x12mm XD Rear
Rear Hub
DT Swiss 350 / 110x15mm Front / 148x12mm XD Rear
Rims
DT Swiss XR 1700 29" / 25mm
Spokes
DT Swiss Champion
Tires
Pirelli Scorpion XC 29" x 2.20"
Brakes
Brakes
SRAM Level Bronze Stealth / Centerline 180mm Rotors
Cockpit
Stem
INTENSE Recon Elite XC / 60mm (SM,MD) / 70mm (LG,XL)
Handlebar
INTENSE Recon Elite Carbon Flat, 760mm
Grips
INTENSE Nano Foam
Headset
INTENSE Integrated IS41 / IS52.40
Seat
Saddle
WTB Silverado Sport
Seatpost
Kind Shock LEV Carbon Dropper 31.6mm / 125mm (SM) / 150MM (MD) / 175mm (LG,XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.374 mm | 1.311 mm | 1.265 mm | 1.226 mm |
| Bottom Bracket Height | 333 mm | 333 mm | 333 mm | 333 mm |
| Front Center | 691 mm | 717 mm | 744 mm | 770 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 107.6 mm | 107.6 mm | 107.6 mm | 107.6 mm |
| Stack | 573 mm | 578 mm | 587 mm | 596 mm |
| Reach | 417 mm | 441 mm | 464 mm | 486 mm |
| Top Tube Length | 586 mm | 611 mm | 637 mm | 662 mm |
| Seat Tube Angle | 73.6 ° | 73.6 ° | 73.6 ° | 73.6 ° |
| Seat Tube Length | 406 mm | 437 mm | 488 mm | 538 mm |
| Head Tube Angle | 67.1 ° | 67.1 ° | 67.1 ° | 67.1 ° |
| Head Tube Length | 90 mm | 95 mm | 105 mm | 115 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1129 mm | 1155 mm | 1182 mm | 1208 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 758 mm | 774 mm | 779 mm | 784 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm |
| Rear Travel | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
