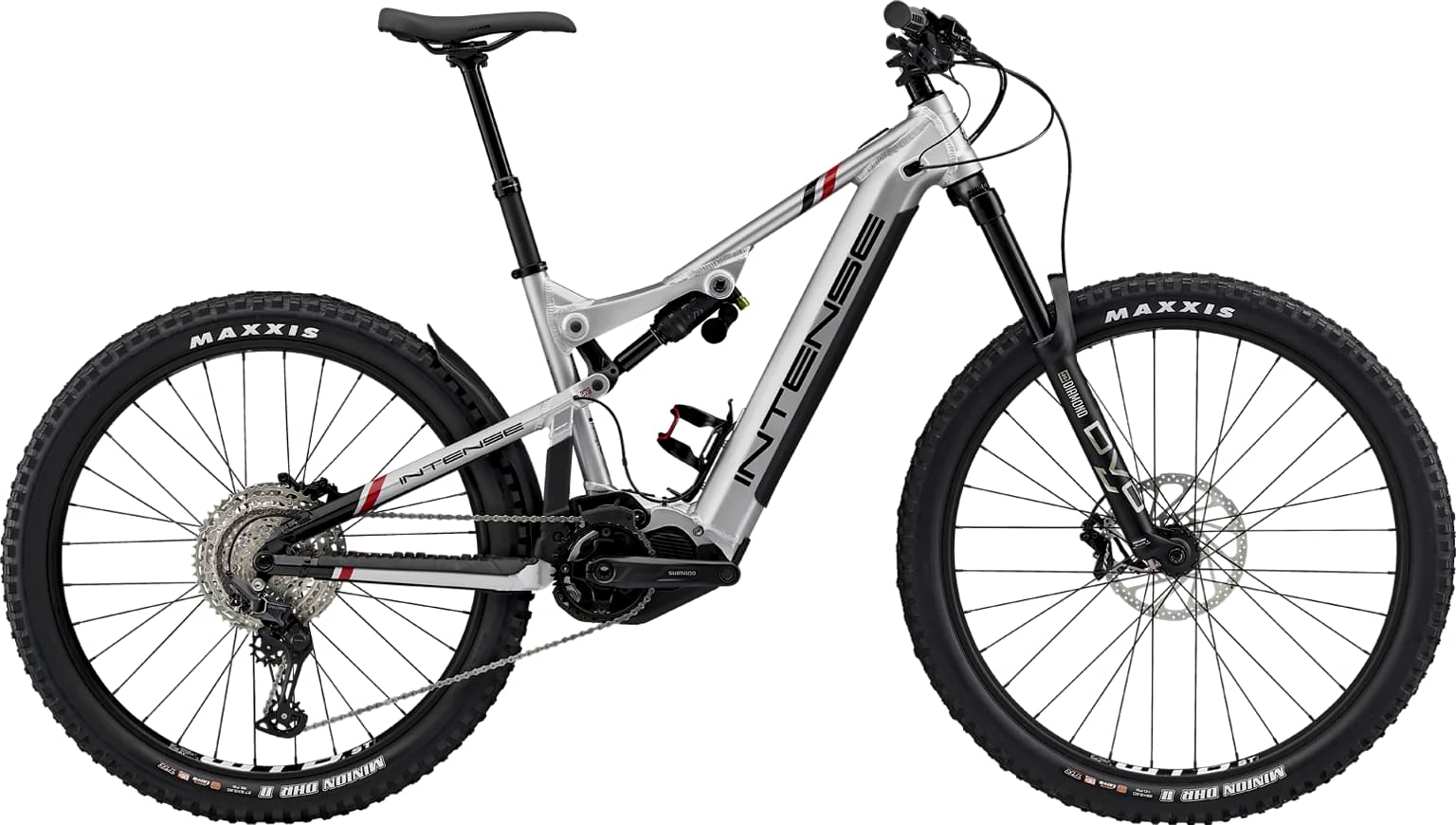

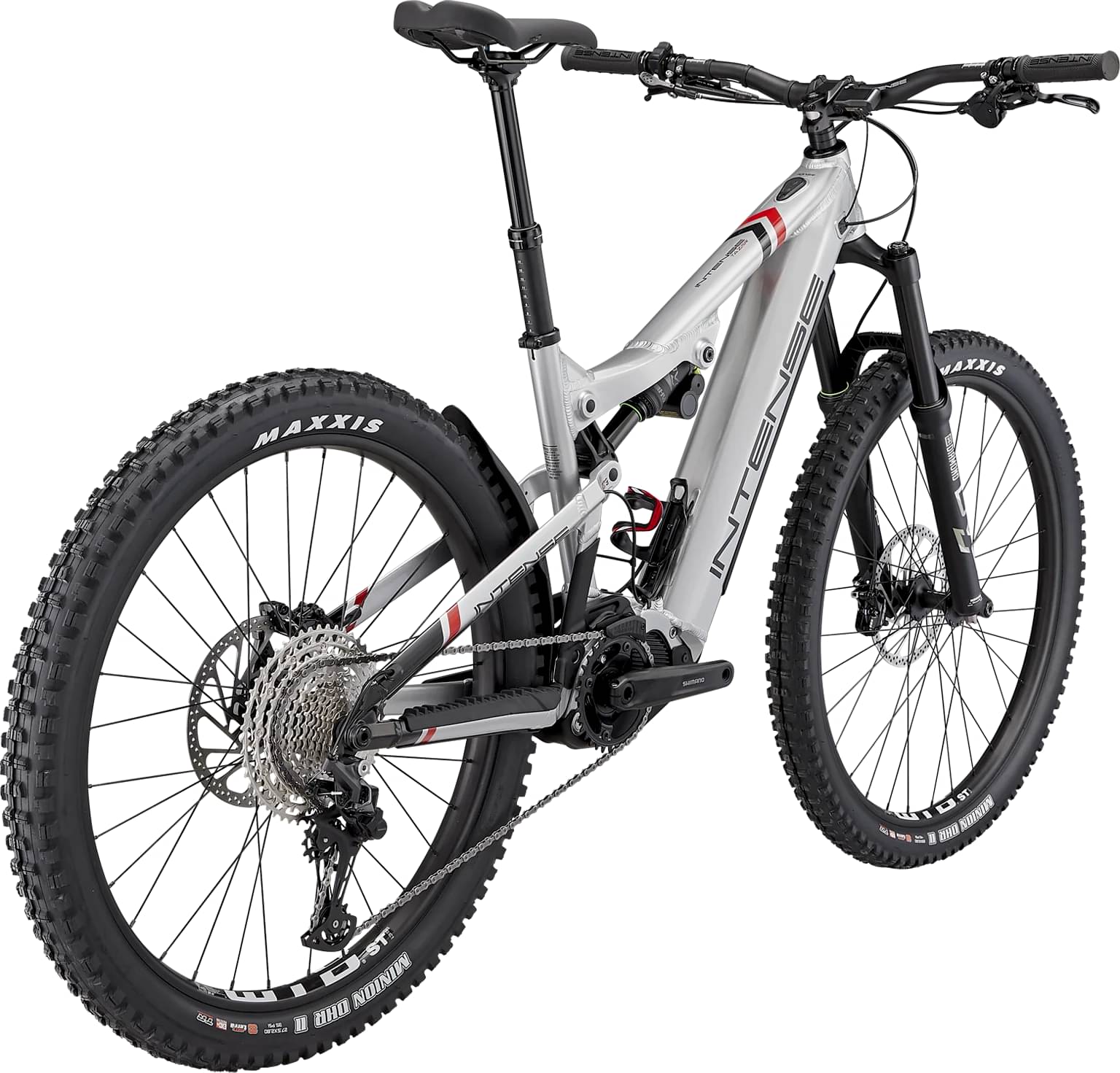

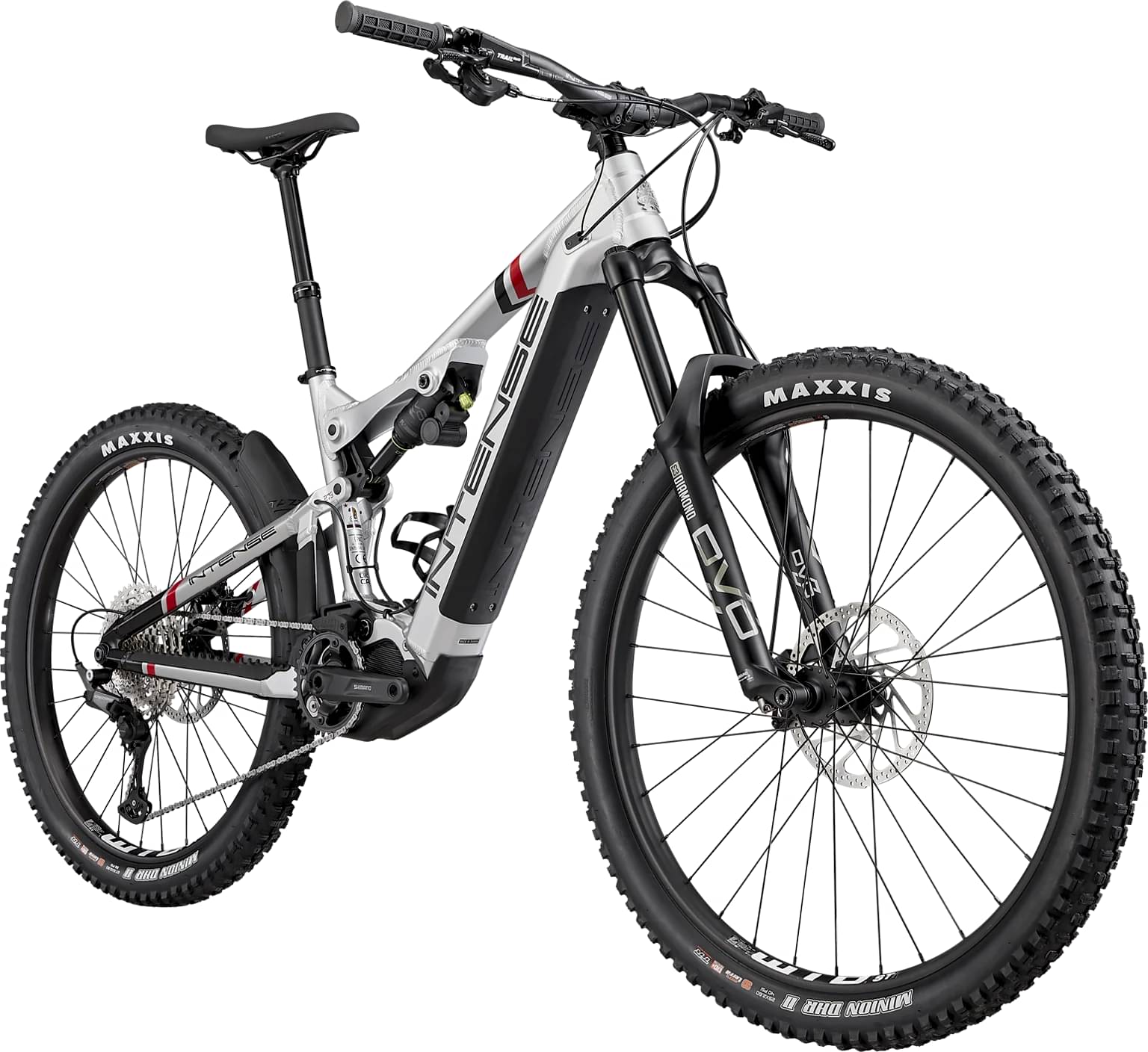

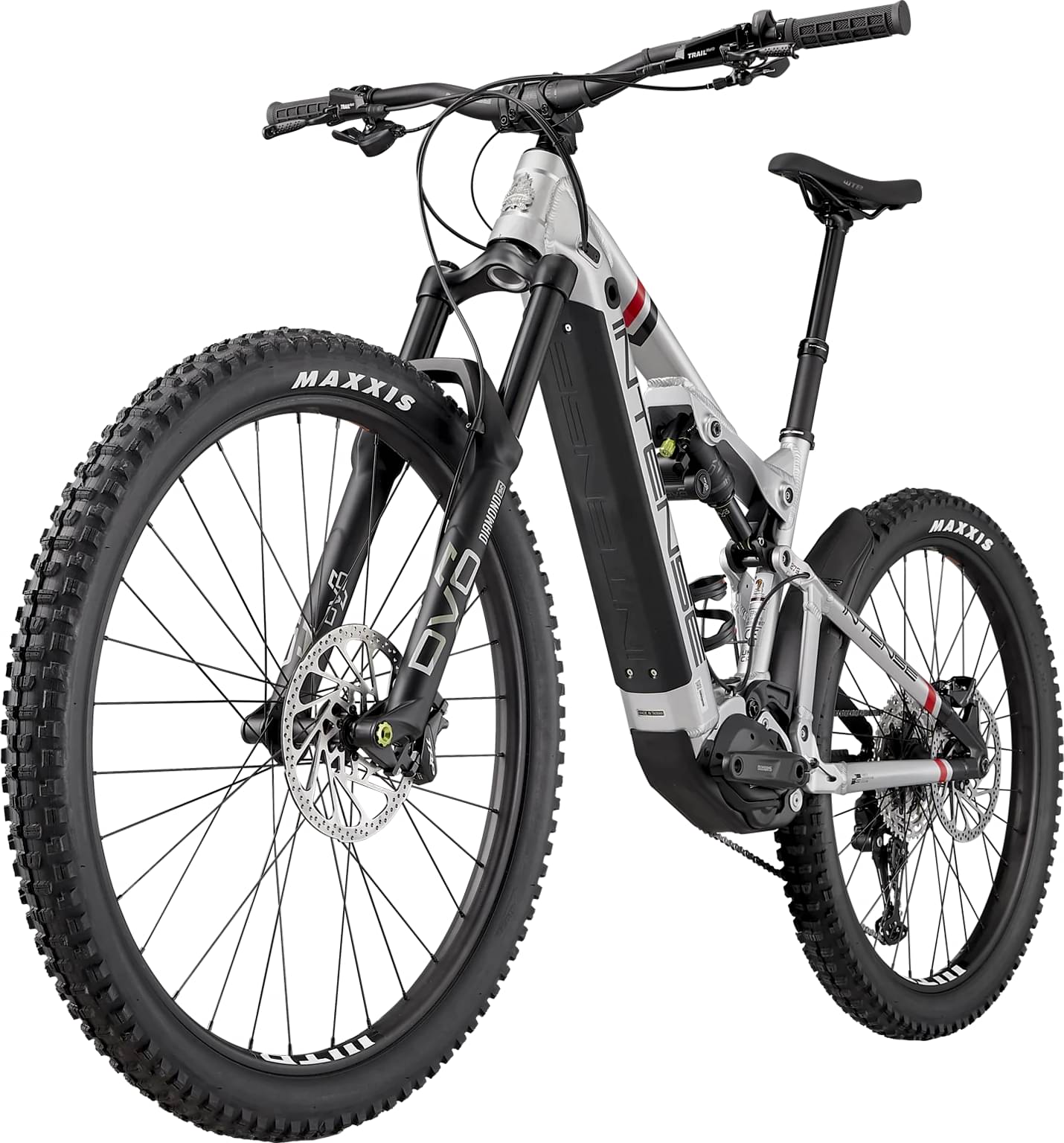

Intense TAZER ALLOY EXPERT 2024
2024 E-bike
Estimate price |
6,499$
Weight | 25.46 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Travel Rear 155mm -
Fork DVO Diamond
-
Groupset Deore -
Suspension Full -
Motor Shimano 600W 85Nm mid-drive -
Battery BT-EN805-L, for STEPS, 504Wh Battery lock w/ 2 keys -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

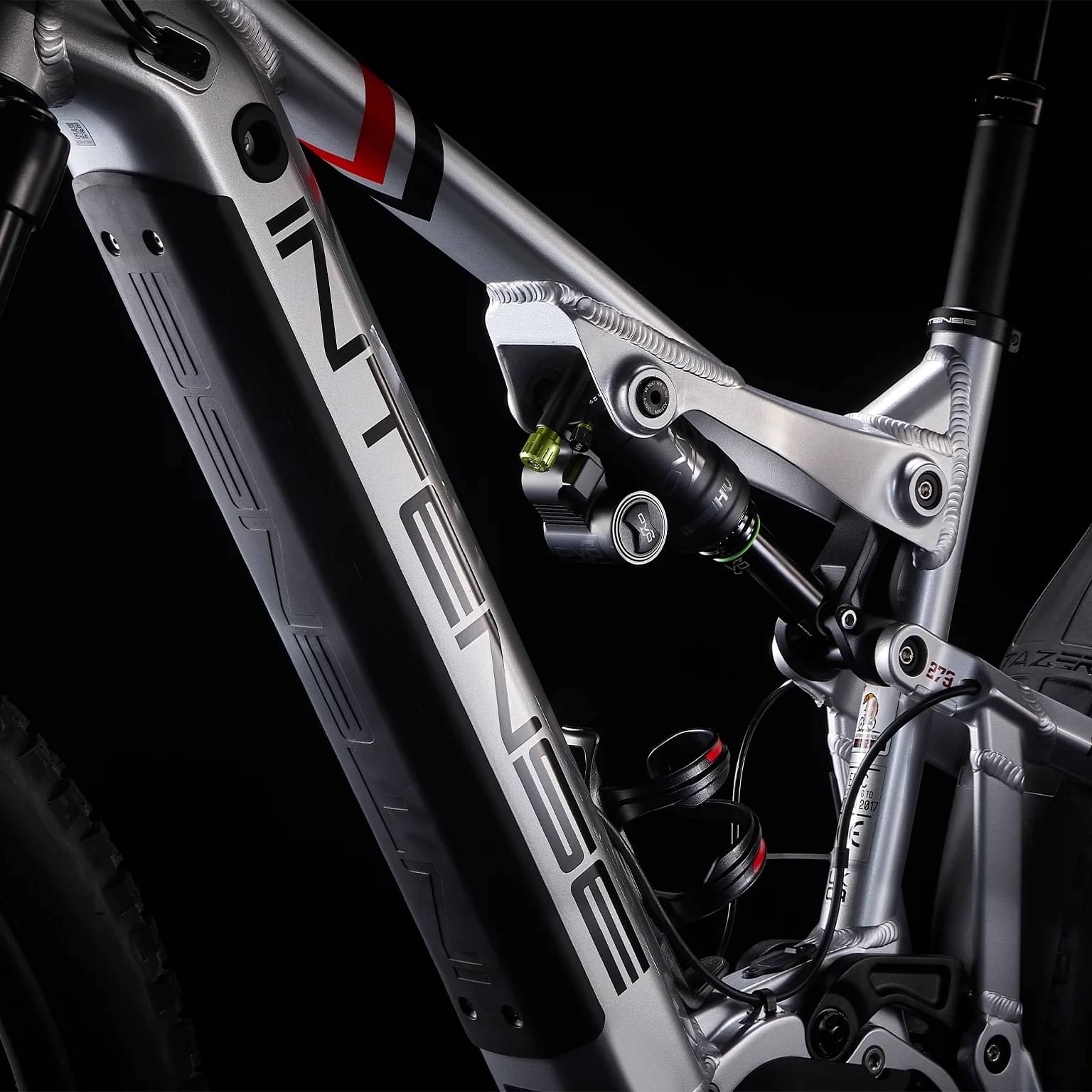

Tazer Performance Alloy Frame. Alloy top link, internal shift, dropper, post, brake, display unit routing, E*Spec Chainguide mount pattern, flak guard armor, integrated mud guard, 160mm front travel, 155mm rear travel, Universal Derailleur Hanger (UDH), SRAM T-Type compatibility.

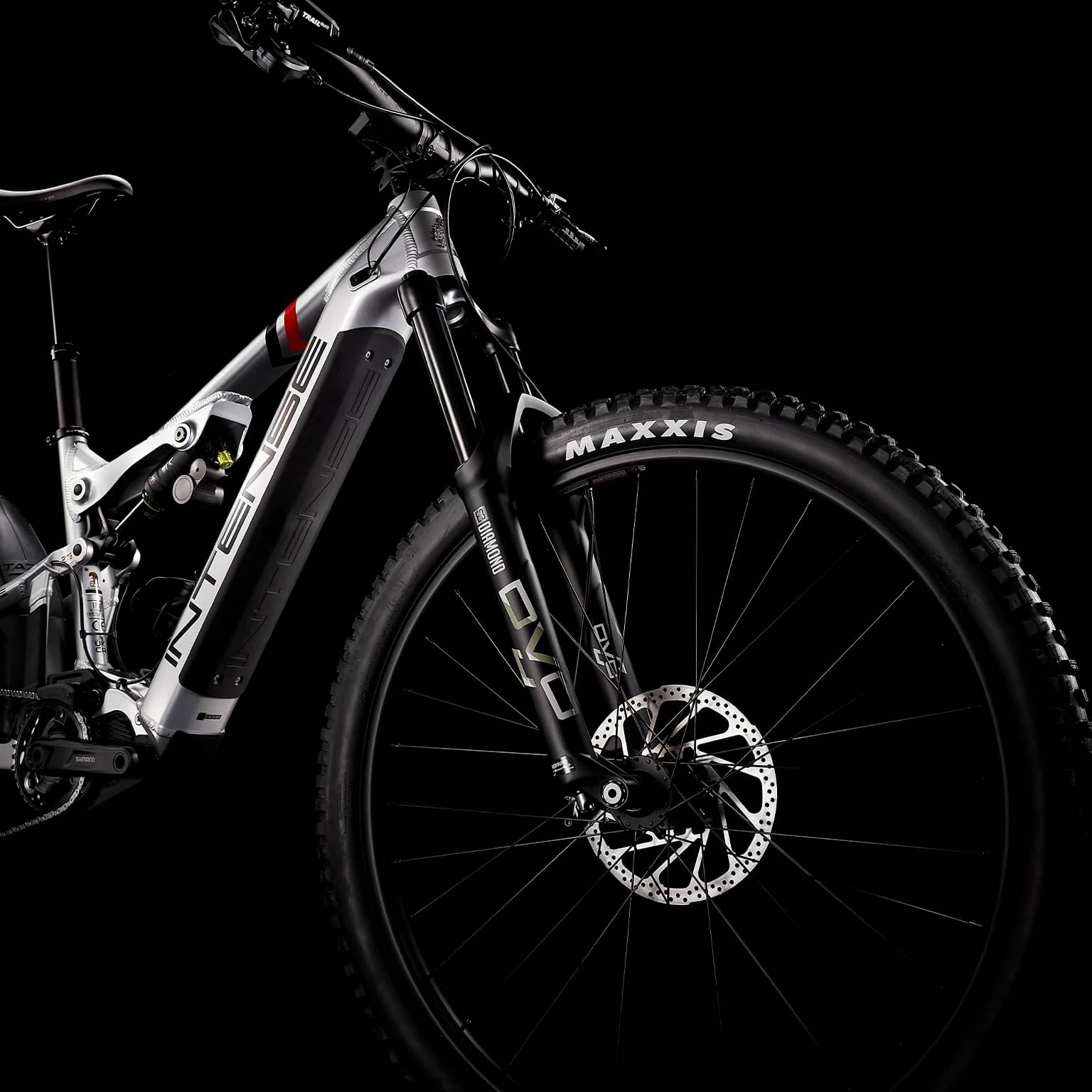

Suspension Fork
DVO Diamond E3, 29" 160mm, 44mm offset
Rear Shock
DVO Topaz E3 Air 185x55

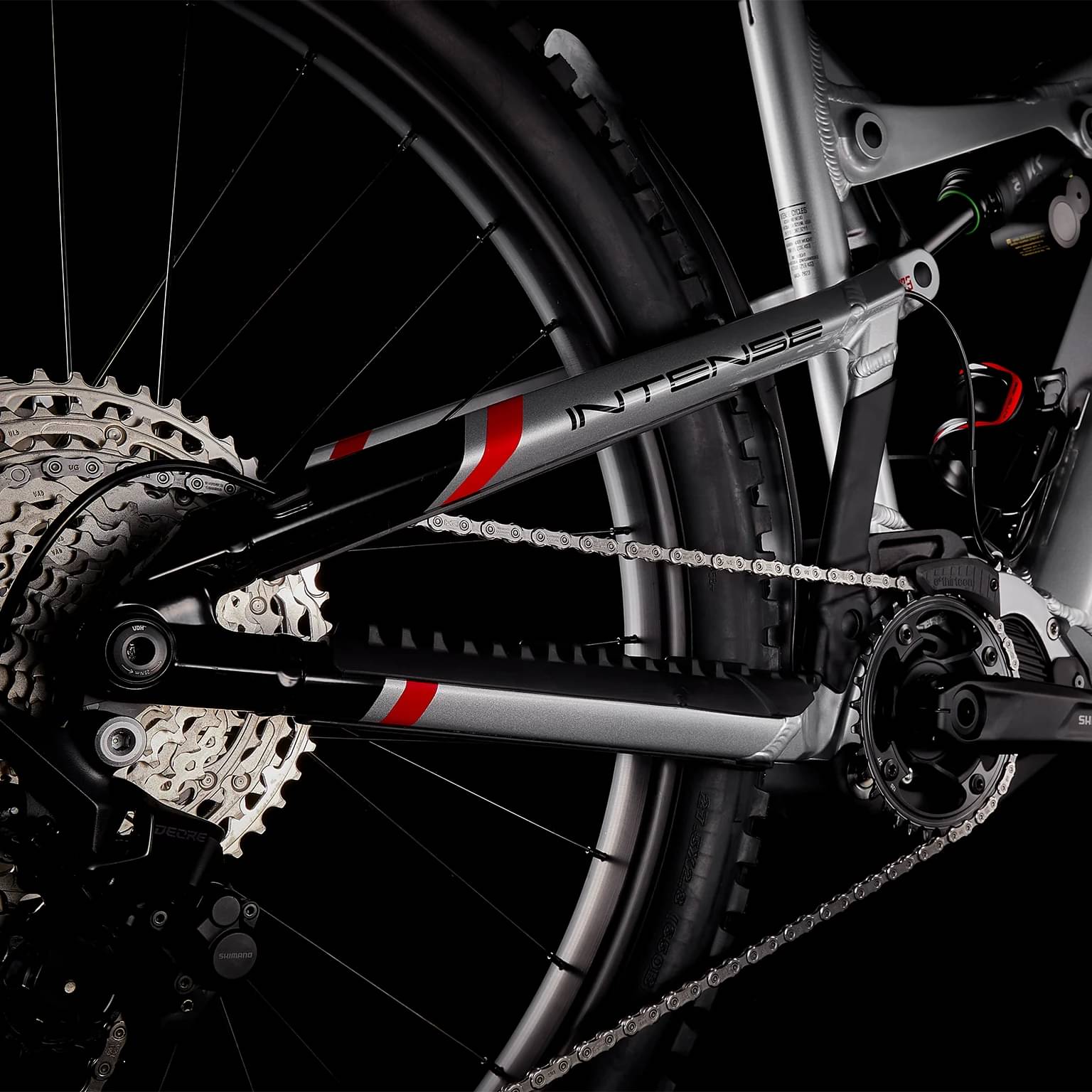

Drivetrain
Rear Derailleur
Shimano Deore RD-M6100 12-speed
Shift Levers
Shimano Deore SL-M6100 12-speed
Cassette
Shimano Deore CS-M6100 12-speed, 10-51T
Crank
Shimano FC-EM600, 34 tooth chainring, 165mm length
Chain
Shimano Deore CN-M6100 12-speed
Chain Guide
e*thirteen e*spec Plus
Wheels
Front Hub
INTENSE E-MTN Alloy Hubs
Rear Hub
INTENSE E-MTN Alloy Hubs
Rims
WTB ST I30 TCS 30mm, 110x15mm, 29" front / WTB ST I35 TCS 35mm, 148x12mm, 27.5" rear
Tires
MAXXIS Minion DHR II, 3C, Exo+, Tubeless-ready 29" x 2.60" front / 27.5" x 2.80" rear
Brakes
Brakes
TRP Trail EVO, HD-M843 / 203mm rotors

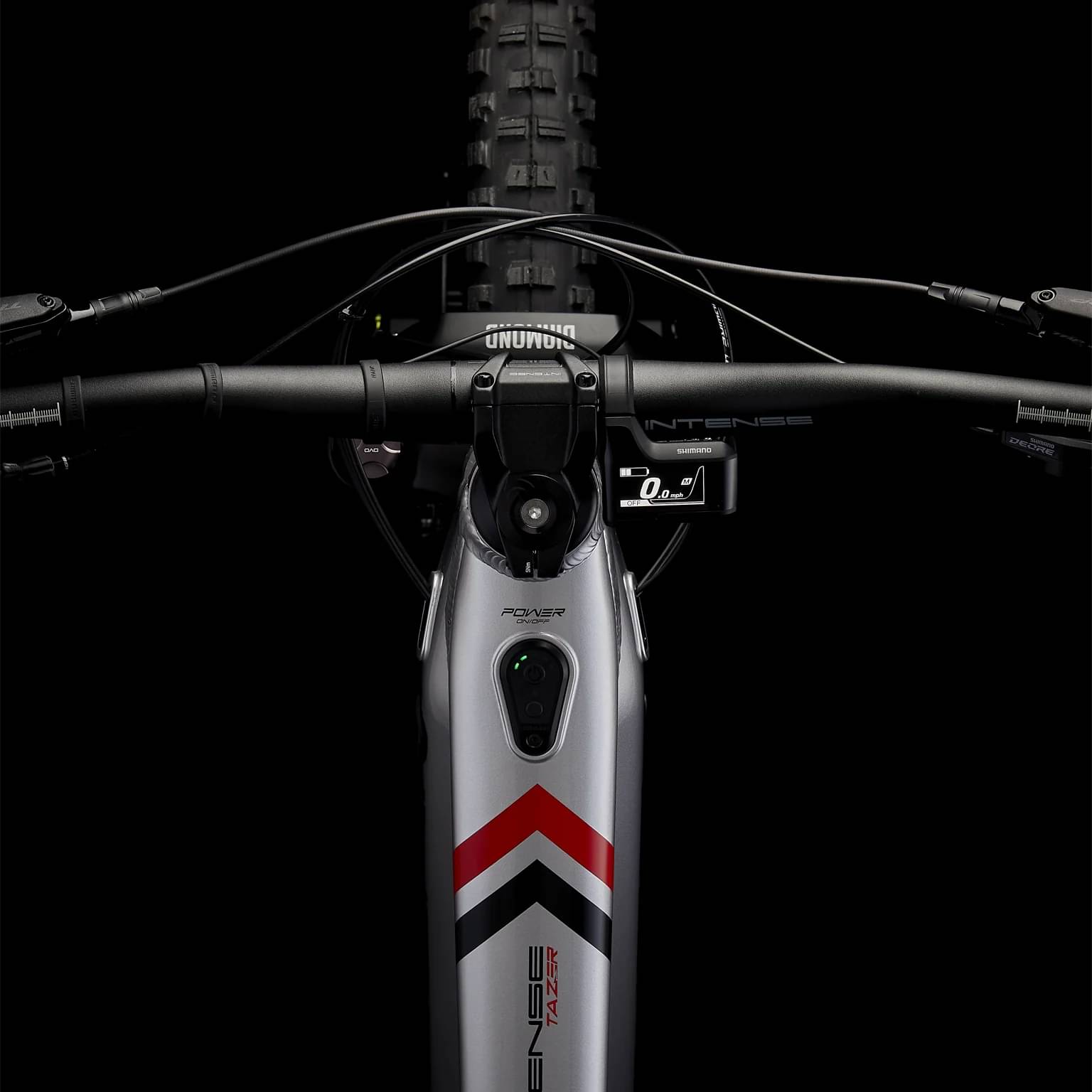

Cockpit
Stem
INTENSE Recon 35 / 45mm
Handlebar
INTENSE Recon Alloy 35 / 800mm length, 30mm rise
Grips
INTENSE Lock-On
Headset
INTENSE ZS49/ZS56
Seat
Saddle
WTB Volt
Seatpost
INTENSE Recon Dropper 31.6mm / 125mm (SM) / 150mm (MD, LG) / 170mm (XL)
Motor & Battery
Motor
Shimano EP600 STEPS Motor
Battery
BT-EN805-L, for STEPS, 504Wh Battery lock w/ 2 keys
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.475 mm | 1.423 mm | 1.366 mm | 1.284 mm |
| Bottom Bracket Height | 354 mm | 354 mm | 354 mm | 354 mm |
| Front Center | 746 mm | 777 mm | 806 mm | 836 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 128 mm | 128 mm | 128 mm | 128 mm |
| Stack | 615 mm | 629 mm | 638 mm | 638 mm |
| Reach | 417 mm | 442 mm | 467 mm | 497 mm |
| Top Tube Length | 579 mm | 608 mm | 636 mm | 666.3 mm |
| Seat Tube Angle | 75.2 ° | 75.2 ° | 75.2 ° | 75.2 ° |
| Seat Tube Length | 395 mm | 420 mm | 445 mm | 470 mm |
| Head Tube Angle | 64.8 ° | 64.8 ° | 64.8 ° | 64.8 ° |
| Head Tube Length | 100 mm | 115 mm | 125 mm | 125 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1196 mm | 1227 mm | 1256 mm | 1286 mm |
| Bottom Bracket Drop | 16 mm | 16 mm | 16 mm | 16 mm |
| Standover Height | 812 mm | 817 mm | 824 mm | 829 mm |
| Front Travel | 160 mm | 160 mm | 160 mm | 160 mm |
| Rear Travel | 155 mm | 155 mm | 155 mm | 155 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
