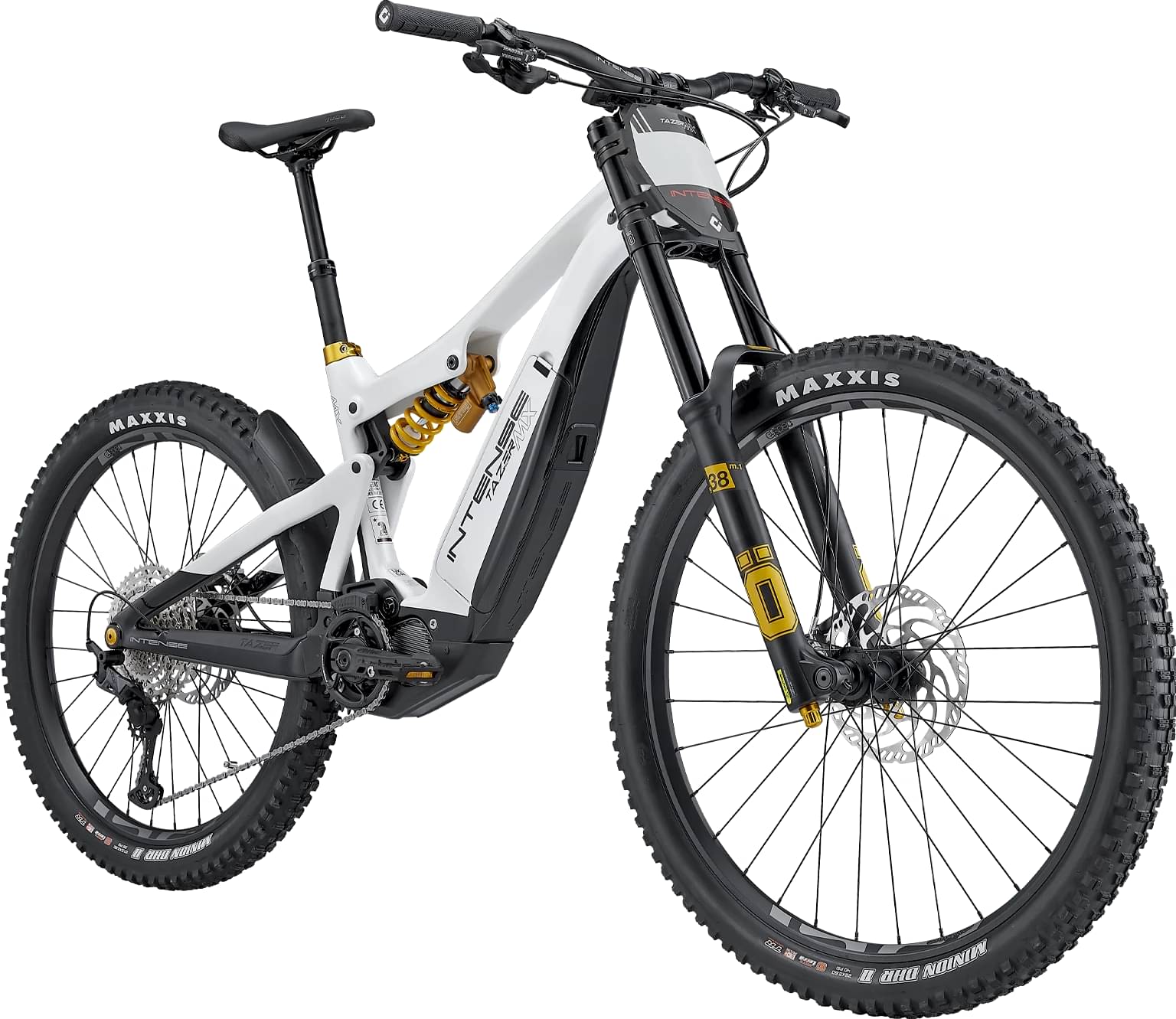

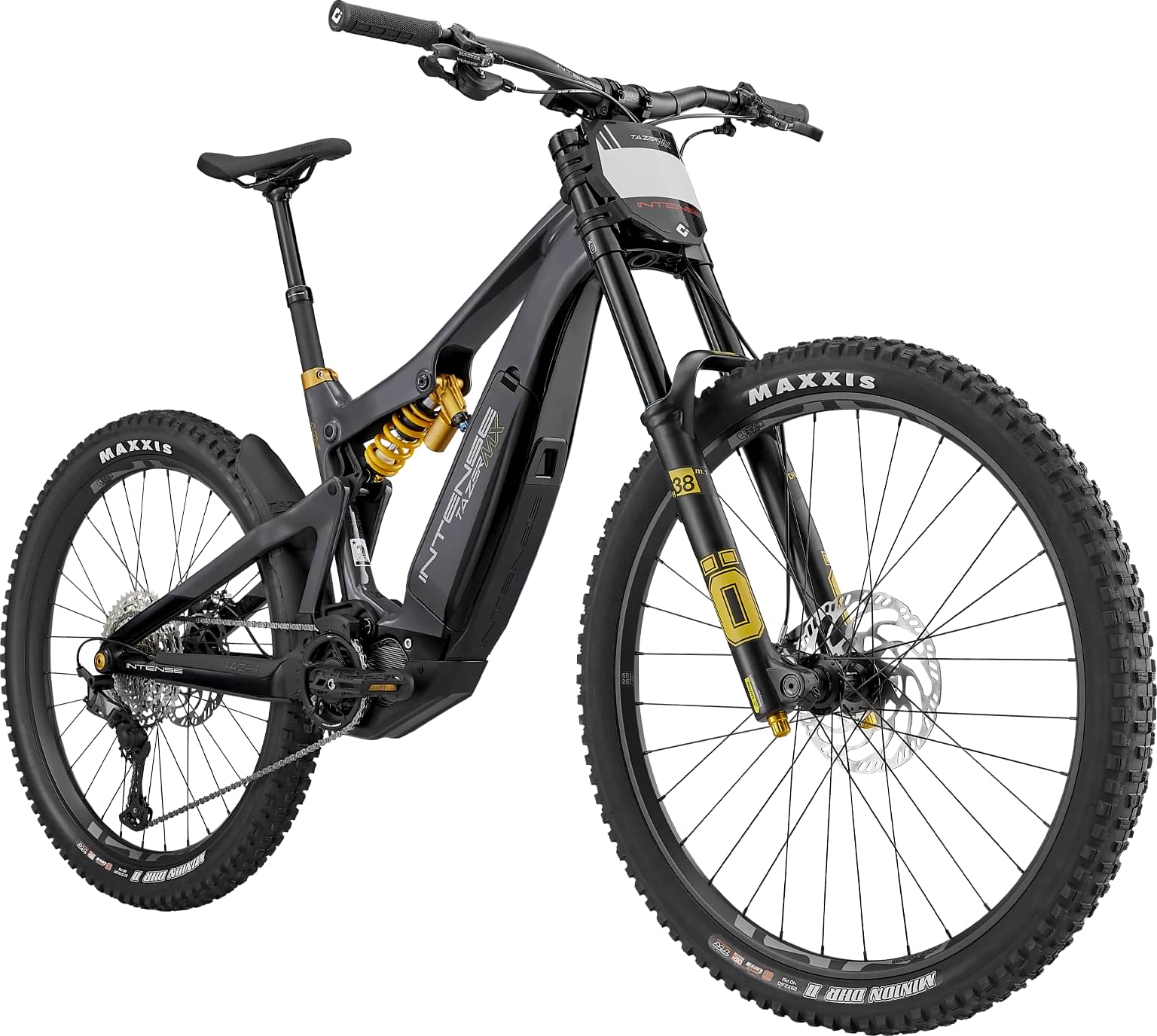

Intense TAZER MX CARBON PRO 2024
2024 E-bike
Estimate price |
4,999$
Weight | 23.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 155mm -
Fork Öhlins DH38
-
Groupset SLX -
Suspension Full -
Motor Shimano 500W 85Nm mid-drive -
Battery BT-E8010, for STEPS, 504Wh Battery lock w/ 2 keys -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Tazer optimized carbon 29" front and 27.5" rear triangle, Enduro link pivot system, downtube flak guard armor, internal derailleur, brake, droppper post, and display unit routing, ISCHG 05 mount, 155mm travel.
Suspension Fork
Öhlins DH38 Race Fork, Double Crown, 170mm travel, air spring system
Rear Shock
Öhlins TTX22M Coil, 155mm Travel (Spring 480 lbs (SM/MD), 548 lbs (LG/XL)
Drivetrain
Rear Derailleur
Shimano SLX, 12-speed
Shift Levers
Shimano SLX, 12-speed
Cassette
Shimano Deore 12-speed, 10-51T
Crank
e*thirteen e*spec 34t chainring 165mm length
Chain
Shimano Deore 12-speed
Chain Guide
e*thirteen e*spec Plus
Wheels
Front Hub
INTENSE E-MTN Alloy Hubs
Rear Hub
INTENSE E-MTN Alloy Hubs
Rims
e*thirteen e*spec 30mm alloy rim width x 29” front / 35mm alloy rim width x 27.5” rear
Tires
MAXXIS Minion DHR II Maxx Terra 3C ECO+, 29"x2.60" front, 27.5"x2.80" rear
Brakes
Brakes
Magura MT7 Pro with 203mm Storm HC rotors front/rear
Cockpit
Stem
INTENSE Direct Mount 35mm OD x 50mm Length
Handlebar
INTENSE Recon 35 OD x 800mm wide, 30mm rise
Grips
ODI Elite Flow
Headset
Cane Creek 40 Series, ZS49-ZS50/30
Seat
Saddle
SDG Bel-Air V3
Seatpost
INTENSE Recon Dropper, length125mm (SM/MD) / 150mm (LG/XL)
Motor & Battery
Motor
Shimano EP800 STEPS Motor
Battery
BT-E8010, for STEPS, 504Wh Battery lock w/ 2 keys
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM/MD | XL |
|---|---|---|
| Stack Reach Ratio | 1.384 mm | 1.251 mm |
| Bottom Bracket Height | 349.3 mm | 349.3 mm |
| Front Center | 785 mm | 844 mm |
| Rake | 37 mm | 37 mm |
| Trail | 138 mm | 138 mm |
| Stack | 623 mm | 632 mm |
| Reach | 450 mm | 505 mm |
| Top Tube Length | 605 mm | 663.5 mm |
| Seat Tube Angle | 74.8 ° | 74.8 ° |
| Seat Tube Length | 419 mm | 470 mm |
| Head Tube Angle | 64.4 ° | 64.4 ° |
| Head Tube Length | 115 mm | 125 mm |
| Chainstay Length | 450 mm | 450 mm |
| Wheelbase | 1235 mm | 1294 mm |
| Bottom Bracket Drop | 9 mm | 9 mm |
| Standover Height | 821 mm | 837 mm |
| Wheels | 29" | 29" |
