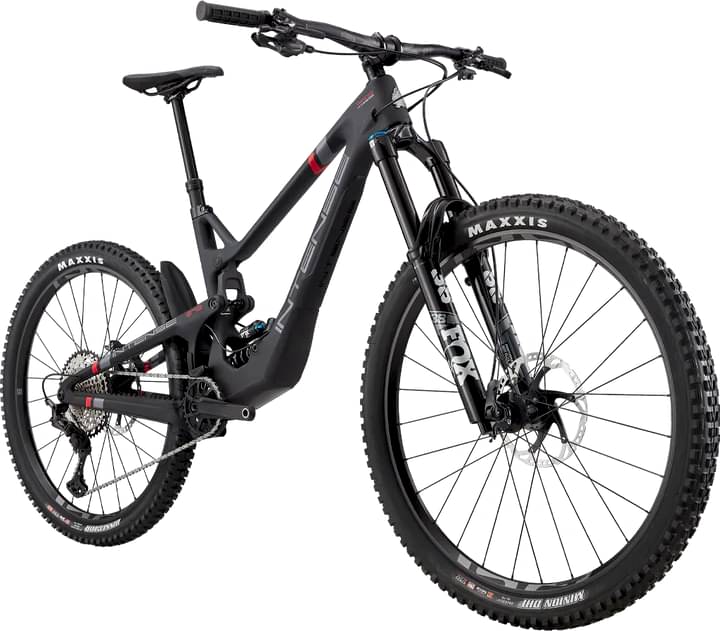

Intense TRACER 279 PRO 2024
2024 Mountain
Estimate price |
4,999$
Weight | 16.35 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 170mm -
Fork Fox Performance Elite Float 38
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Full carbon fiber front and rear triangle utilizing an optimized carbon layup for the ENDURO category. Features fully guided internal cable routing, carbon top link, titanium hardware, ISCG-05 tabs, threaded BB an updated molded frame protection and shuttle guard. Concentric bottom link with integrated flip chip to adjust GEO. Integrated CHAD Storage system with the 'tube bag' included. 170mm of rear wheel travel. Quick release rear axle (148mm boost hub spacing), Universal Derailleur Hanger (UDH), SRAM T-Type compatible.
Suspension Fork
FOX Performance Elite 38 Float, 170mm, Grip 2 Damper, High/Low Speed Compression, High/Low Speed Rebound, Air Bleed Valve
Rear Shock
FOX Performance Elite DHX2 coil, rebound adjustments, 2 position climb switch, Shock size/Stroke: 205mm x 65mm upper mounting hardware, Trunnion Lower Mounting Hardware: 8mm x 30mm
Drivetrain
Rear Derailleur
Shimano XT 12sp
Shift Levers
Shimano XT 12sp, I-Spec
Cassette
Shimano SLX 12 sp. 10-51t
Crank
e*Thirteen Helix Base 30t 170mm
Bottom Bracket
e*Thirteen
Chain
Shimano SLX 12sp
Chain Guide
e*Thirteen Vario Guide & Bash
Wheels
Rims
e* thirteen LG1 Enduro 30mm
Spokes
e*Thirteen
Tires
Front: Maxxis Minion DHF WT Maxx Terra 3C EXO+ TR 29" x 2.50" / Rear: Maxxis Minion DHR II WT Maxx Terra 3C EXO+ 27.5"x2.40"
Brakes
Brakes
Shimano XT BR-M8120
Brake Levers
Shimano XT BL-M8100
Cockpit
Stem
e*Thirteen Plus 35 40mm
Handlebar
e*Thirteen Race Carbon 35 800mm
Grips
INTENSE Lock-on
Headset
Cane Creek 40 ZS49-ZS56/40
Seat
Saddle
SDG Radar
Seatpost
e*Thirteen Infinite Dropper I-Spec 31.6mm, length 120mm SM / 150mm MD / 180mm Lg / 210mm XL
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.454 mm | 1.481 mm | 1.378 mm | 1.402 mm | 1.325 mm | 1.347 mm | 1.277 mm | 1.298 mm |
| Bottom Bracket Height | 349 mm | 342 mm | 349 mm | 342 mm | 349 mm | 342 mm | 349 mm | 342 mm |
| Front Center | 757 mm | 756 mm | 792 mm | 790 mm | 821 mm | 819 mm | 850 mm | 848 mm |
| Rake | 44 mm | 35 mm | 45 mm | 34 mm | 44 mm | 34 mm | 44 mm | 34 mm |
| Trail | 130 mm | 144 mm | 129 mm | 145 mm | 130 mm | 145 mm | 130 mm | 145 mm |
| Stack | 618 mm | 622 mm | 627 mm | 631 mm | 636 mm | 640 mm | 645 mm | 649 mm |
| Reach | 425 mm | 420 mm | 455 mm | 450 mm | 480 mm | 475 mm | 505 mm | 500 mm |
| Top Tube Length | 557 mm | 559 mm | 589 mm | 591 mm | 617 mm | 619 mm | 644 mm | 646 mm |
| Seat Tube Angle | 77.9 ° | 77.4 ° | 77.9 ° | 77.4 ° | 77.9 ° | 77.4 ° | 77.9 ° | 77.4 ° |
| Seat Tube Length | 385 mm | 385 mm | 418 mm | 418 mm | 440 mm | 440 mm | 465 mm | 465 mm |
| Head Tube Angle | 64.5 ° | 64 ° | 64.5 ° | 64 ° | 64.5 ° | 64 ° | 64.5 ° | 64 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm |
| Chainstay Length | 437 mm | 439 mm | 437 mm | 439 mm | 437 mm | 439 mm | 437 mm | 439 mm |
| Wheelbase | 1193 mm | 1195 mm | 1228 mm | 1229 mm | 1257 mm | 1258 mm | 1286 mm | 1287 mm |
| Bottom Bracket Drop | 25 mm | 12 mm | 25 mm | 12 mm | 25 mm | 12 mm | 25 mm | 12 mm |
| Standover Height | 803 mm | 802 mm | 807 mm | 802 mm | 807 mm | 802 mm | 807 mm | 802 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
