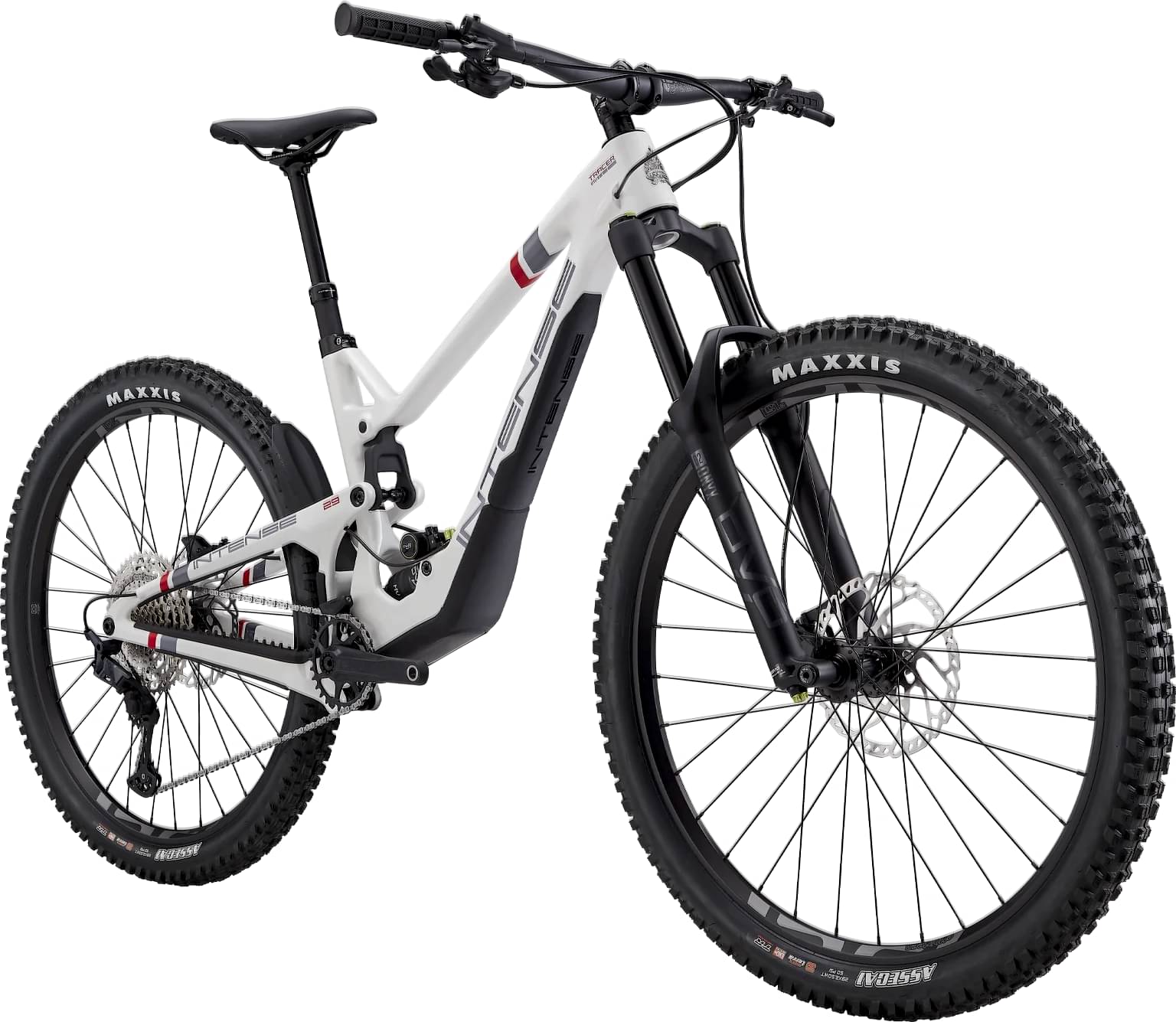

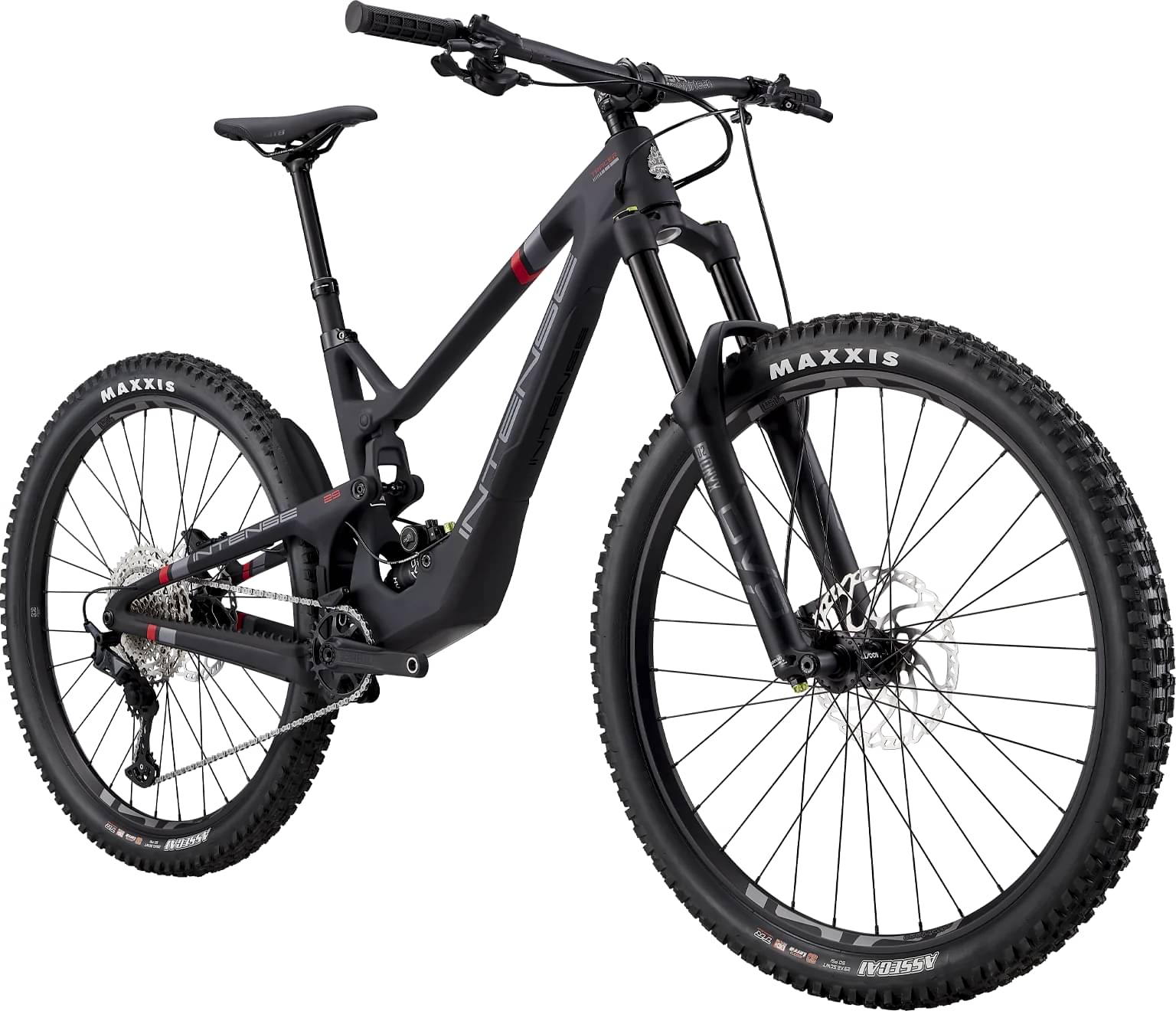

Intense TRACER 29 EXPERT 2024
2024 Mountain
Estimate price |
5,399$
Weight | 16.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 170mm -
Fork DVO Onyx SC
-
Groupset SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Full carbon fiber front and rear triangle utilizing an optimized carbon layup for the ENDURO category. Features fully guided internal cable routing, carbon top link, titanium hardware, ISCG-05 tabs, threaded BB an updated molded frame protection and shuttle guard. Concentric bottom link with integrated flip chip to adjust GEO. Integrated CHAD Storage system with the 'tube bag' included. 170mm of rear wheel travel. Quick release rear axle (148mm boost hub spacing), Universal Derailleur Hanger (UDH), SRAM T-Type compatible.
Suspension Fork
DVO Onyx SC D2 / 29" /170mm / QR15 Axle / 44mm Offset
Rear Shock
DVO Topaz T3 Air / 205mm x 65mm / T3 Compression Switch
Drivetrain
Rear Derailleur
Shimano SLX 12-speed
Shift Levers
Shimano SLX 12-speed
Cassette
Shimano Deore 12 / 10-51t
Crank
e*thirteen Helix Base 12-speed / 30t / 170mm / boost
Bottom Bracket
e*thirteen BSA 73mm
Chain
Shimano Deore 12-speed
Chain Guide
e*thirteen Vario Guide & Bash
Wheels
Front Hub
e*Thirteen LG1 Enduro 30mm Wheel Set
Rear Hub
e*Thirteen LG1 Enduro 30mm Wheel Set
Rims
e*thirteen LG1Enduro 29" / 30mm
Spokes
DT Champion 2.0mm
Tires
Maxxis Assegai 29" x 2.50" WT 3C/EXO+/TR
Brakes
Brakes
Shimano Deore M6120 / RT-66 203mm Rotors
Cockpit
Stem
e*thirteen Base 35 / 40mm
Handlebar
e*thirteen Base Alloy 35 / 800mm
Grips
INTENSE Lock-on
Headset
INTENSE ZS49/ZS56.40
Seat
Saddle
WTB Silverado Sport
Seatpost
INTENSE Recon Dropper 31.6mm / 150mm (MD) / 170mm (LG) / 200mm (XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.402 mm | 1.36 mm | 1.312 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm |
| Front Center | 792 mm | 822 mm | 851 mm |
| Rake | 45 mm | 47 mm | 46 mm |
| Trail | 133 mm | 130 mm | 131 mm |
| Stack | 631 mm | 642 mm | 652 mm |
| Reach | 450 mm | 472 mm | 497 mm |
| Top Tube Length | 591 mm | 620 mm | 647 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 418 mm | 440 mm | 465 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1237 mm | 1267 mm | 1296 mm |
| Bottom Bracket Drop | 33 mm | 33 mm | 33 mm |
| Standover Height | 796 mm | 799 mm | 803 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
