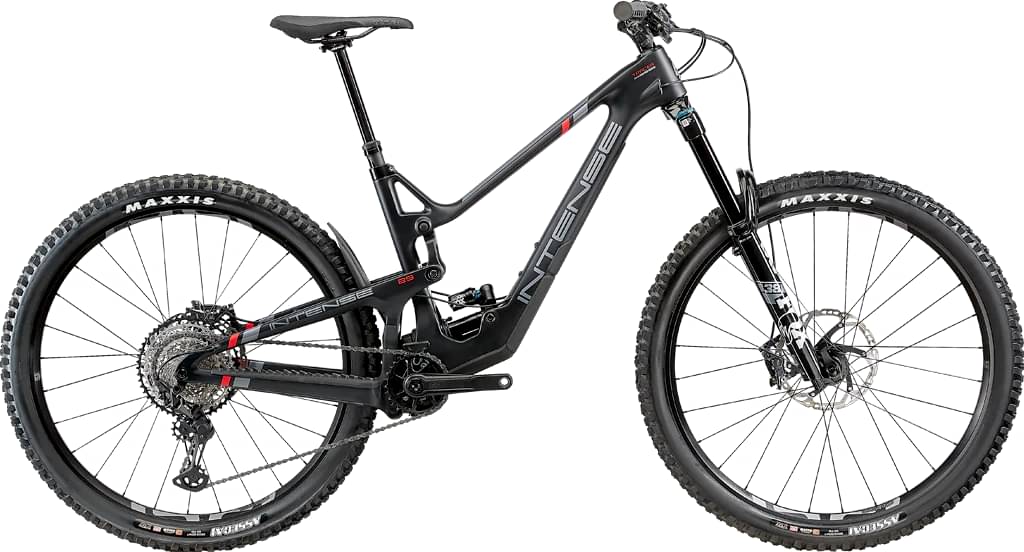

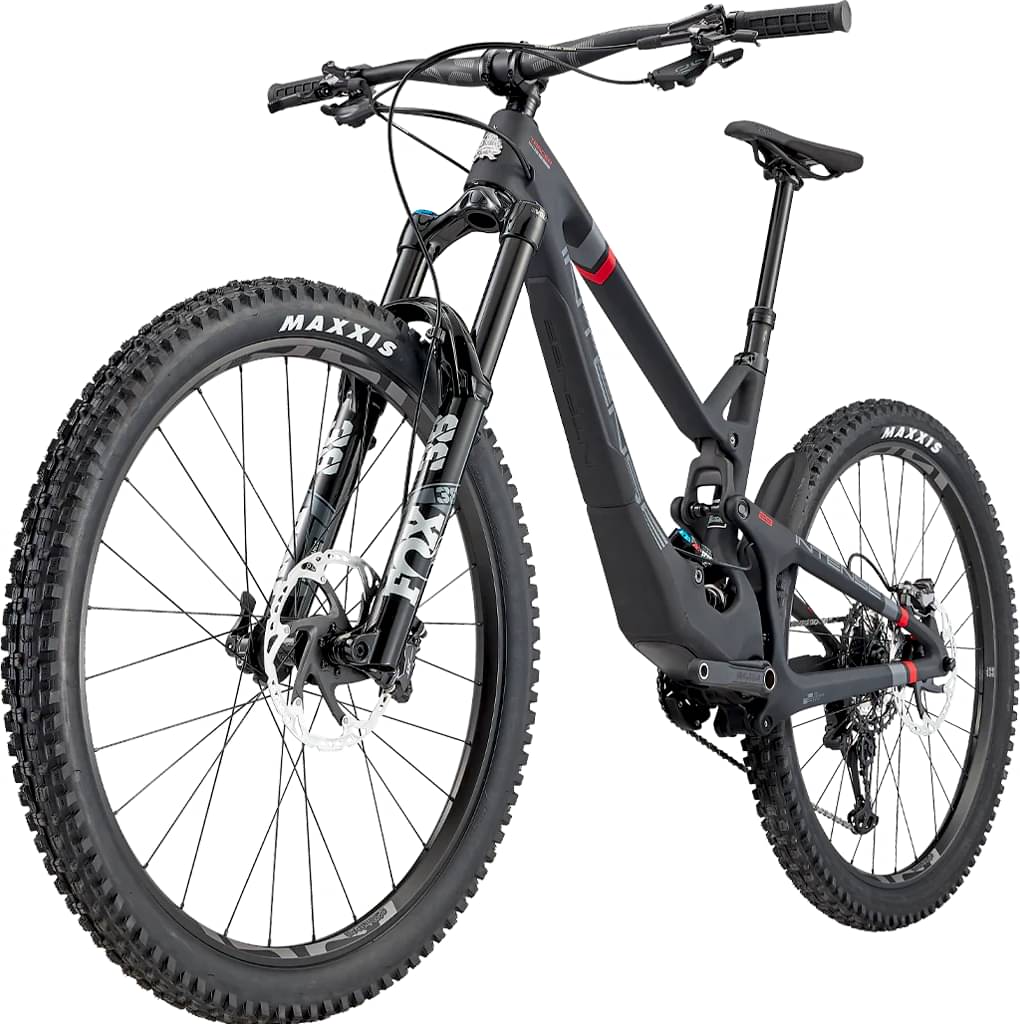

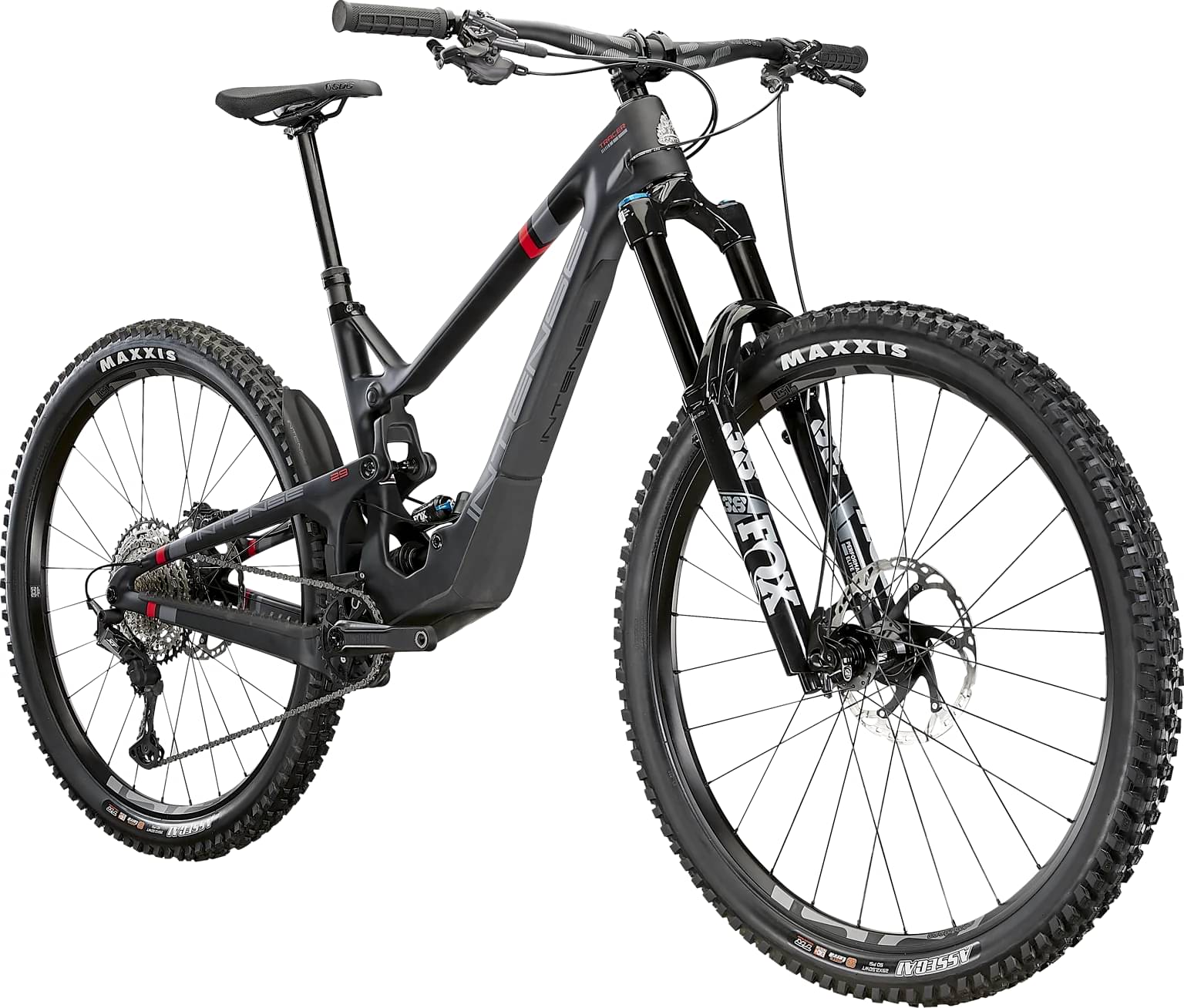

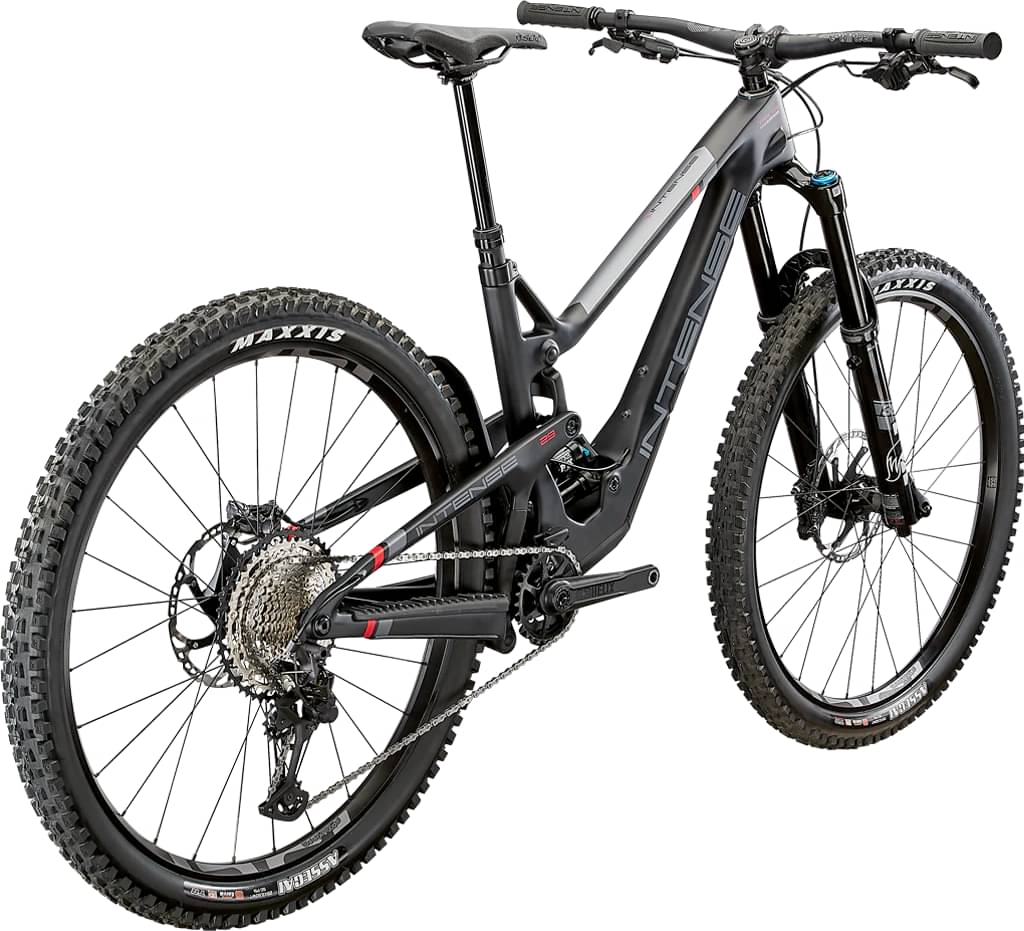

Intense TRACER 29 PRO 2024
2024 Mountain
Estimate price |
6,899$
Weight | 16.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 170mm -
Fork Fox Performance Elite Float 38
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

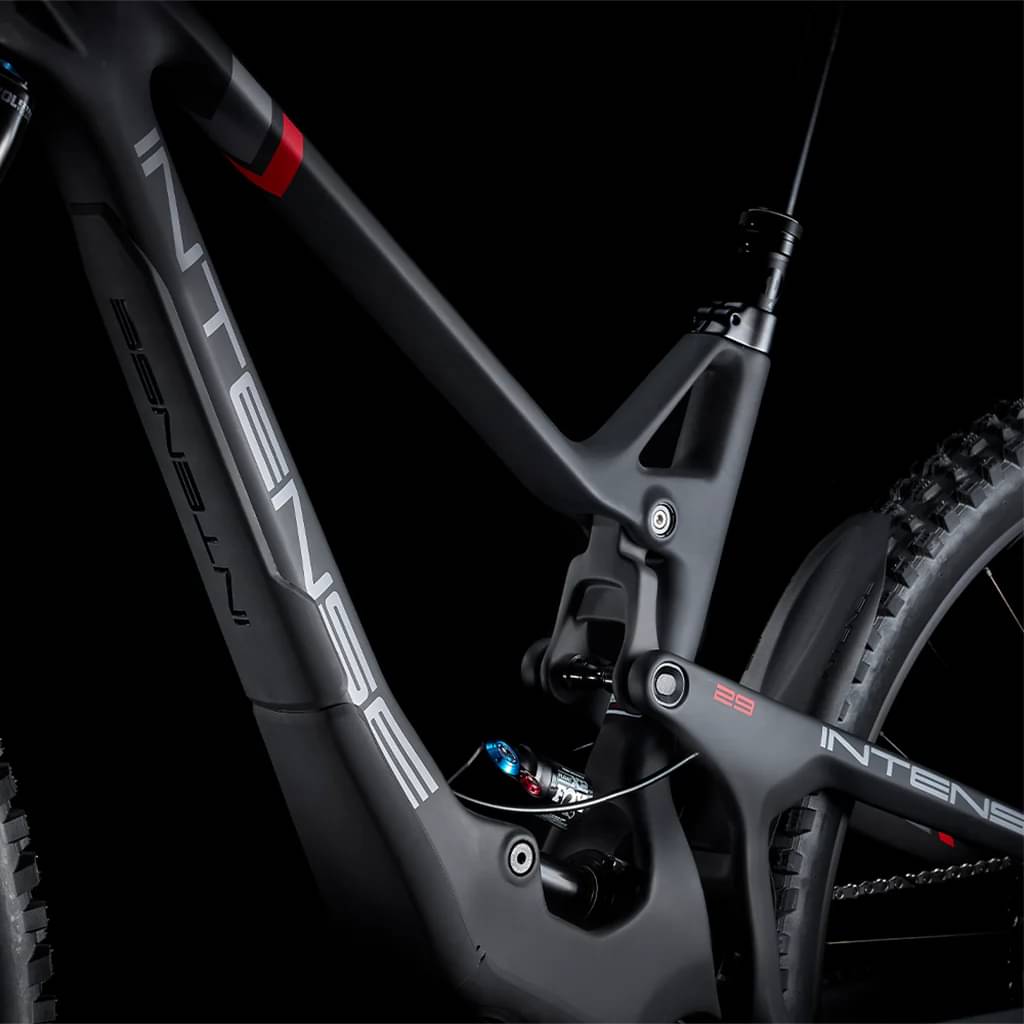

Frame
Frame
Full carbon fiber front and rear triangle utilizing an optimized carbon layup for the ENDURO category. Features fully guided internal cable routing, carbon top link, titanium hardware, ISCG-05 tabs, threaded BB an updated molded frame protection and shuttle guard. Concentric bottom link with integrated flip chip to adjust GEO. Integrated CHAD Storage system with the 'tube bag' included. 170mm of rear wheel travel. Quick release rear axle (148mm boost hub spacing), Universal Derailleur Hanger (UDH), SRAM T-Type compatible.

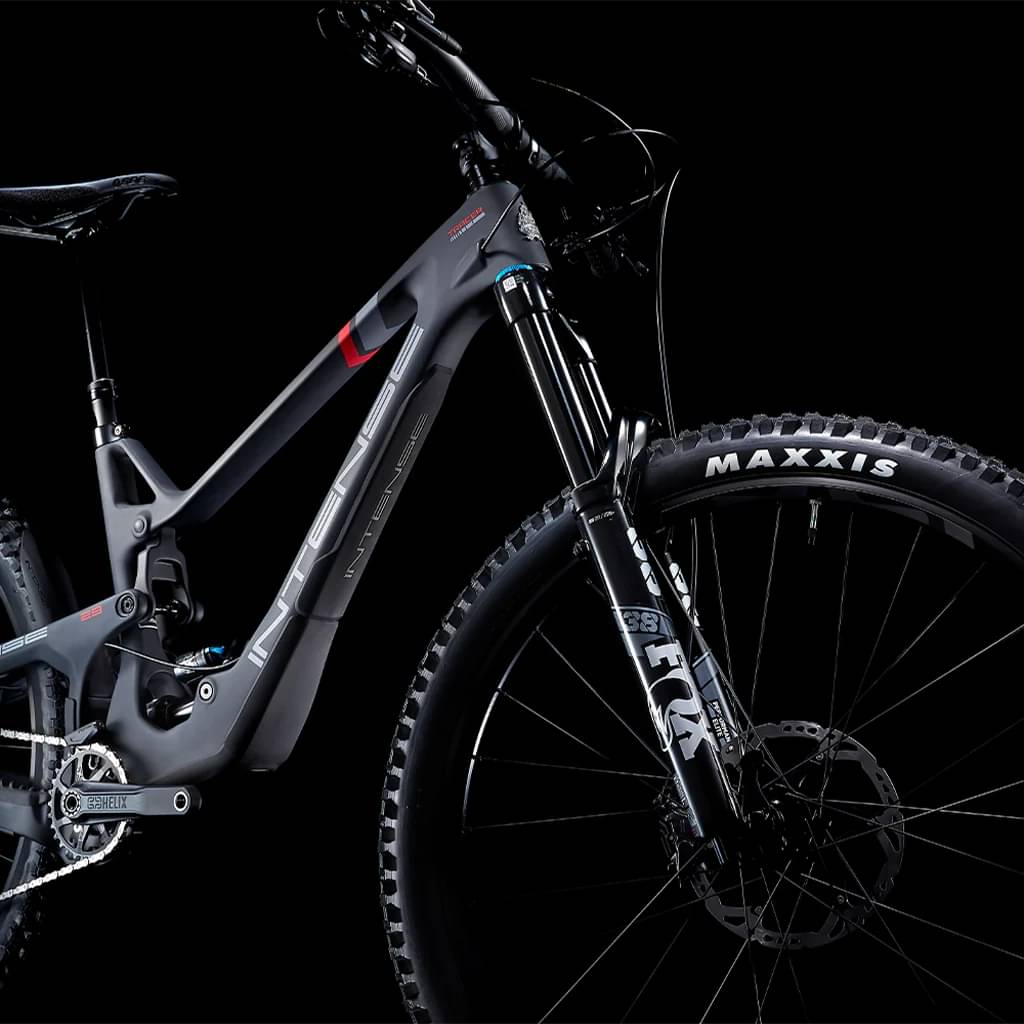

Suspension Fork
FOX Performance Elite 38 Float, 170mm, Grip 2 Damper, High/Low Speed Compression and Rebound Adjust, Air Bleed Valve
Rear Shock
FOX Performance Float X2 205 x 65mm, 2-position adjustment

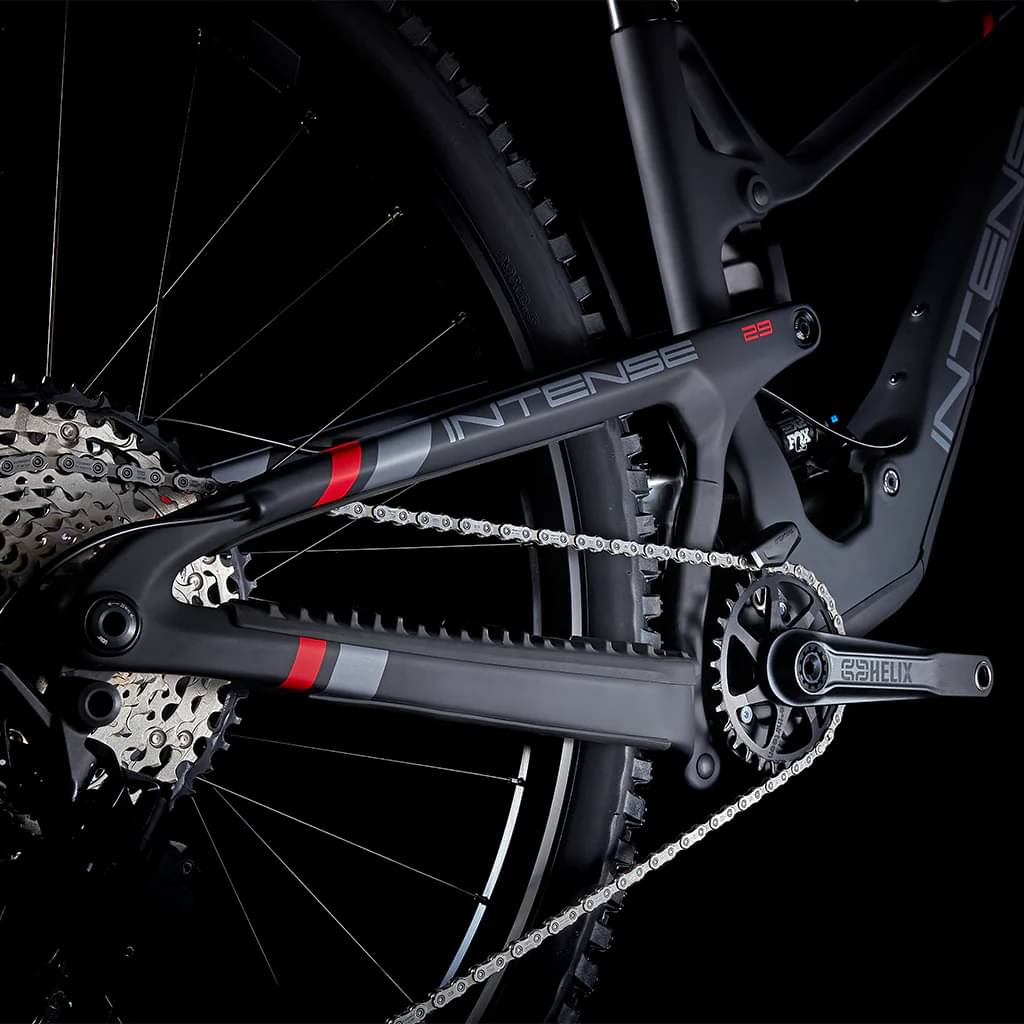

Drivetrain
Rear Derailleur
Shimano XT 12sp
Shift Levers
Shimano XT 12sp, I-Spec
Cassette
Shimano SLX 12sp. 10-51t
Crank
e*thirteen Helix Base 30t 170mm
Bottom Bracket
e*thirteen
Chain
Shimano SLX 12sp
Chain Guide
e*thirteen Vario Guide & Bash
Wheels
Rims
e*thirteen LG1 Enduro 30mm
Spokes
e*thirteen
Tires
Front/Rear: Maxxis Assegai WT Maxx Terra 3C EXO+ 29" x 2.50"
Brakes
Brakes
Shimano XT BR-M8120
Brake Levers
Shimano XT BL-M8100

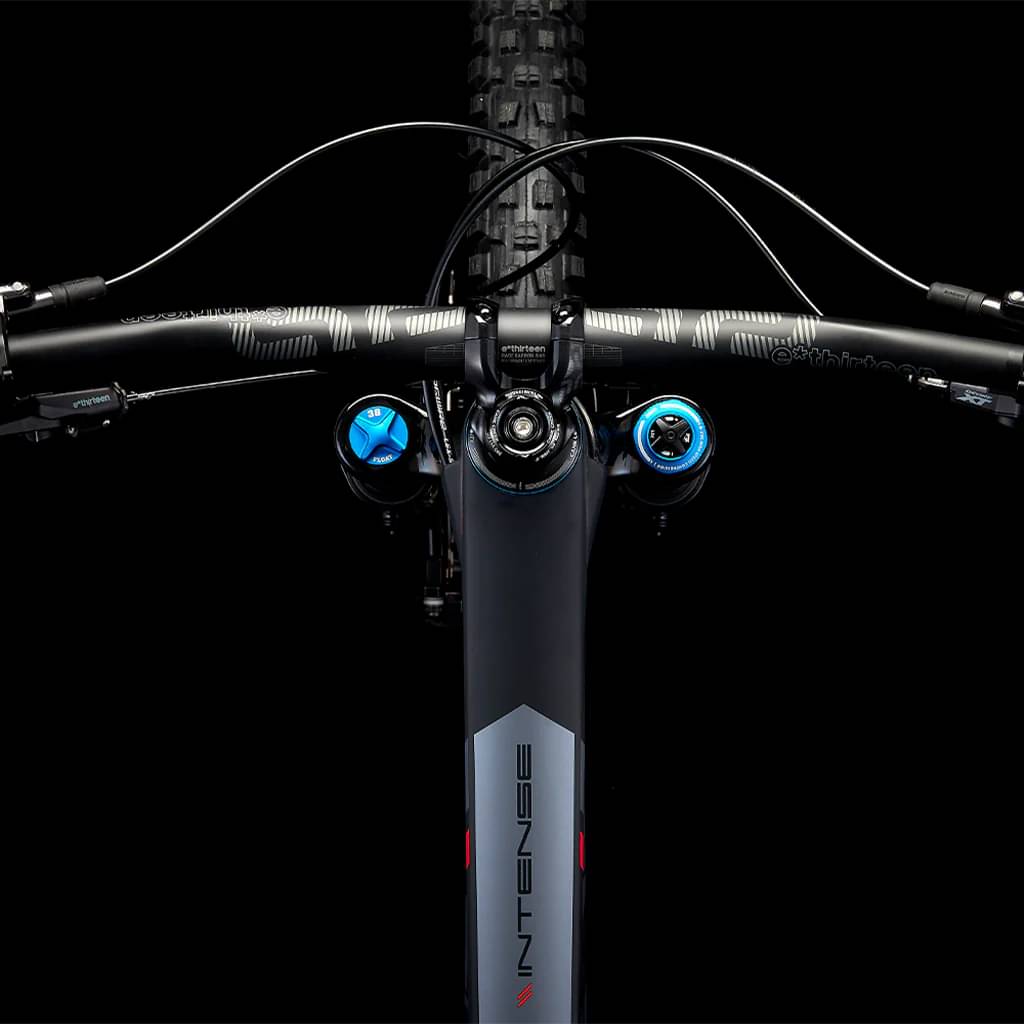

Cockpit
Stem
e*thirteen Plus 35 40mm
Handlebar
e*thirteen Race Carbon 35 800mm
Grips
INTENSE Lock-On

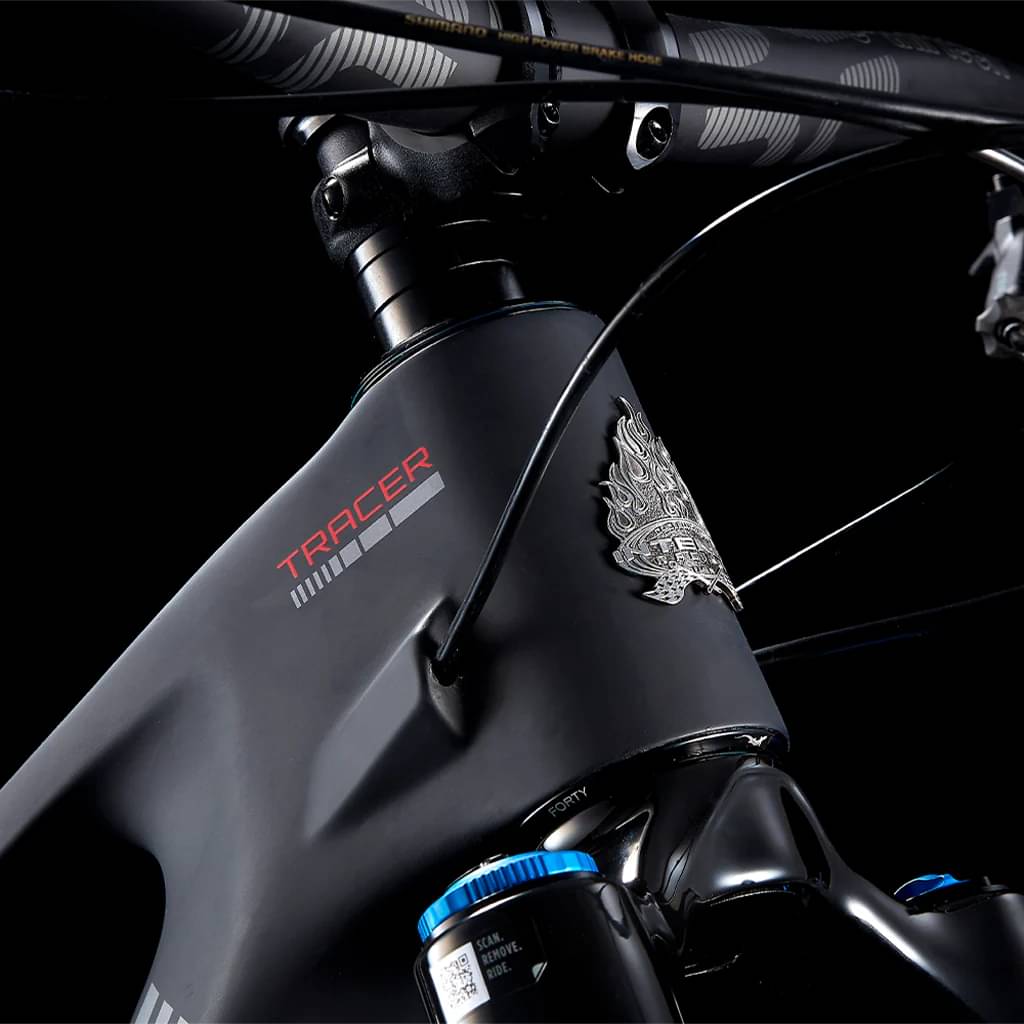

Headset
Cane Creek 40 ZS49-ZS56/40
Seat
Saddle
SDG Radar
Seatpost
e*thirteen Infinite Dropper I-Spec, 31.6mm, length 120mm SM / 150mm MD / 180mm Lg / 210mm XL
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 418mm High | 418mm Low | 440mm High | 440mm Low | 465mm High | 465mm Low |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.382 mm | 1.416 mm | 1.329 mm | 1.362 mm | 1.281 mm | 1.307 mm |
| Bottom Bracket Height | 351 mm | 341 mm | 351 mm | 342 mm | 351 mm | 341 mm |
| Front Center | 795 mm | 793 mm | 824 mm | 822 mm | 853 mm | 852 mm |
| Rake | 45 mm | 44 mm | 45 mm | 43 mm | 45 mm | 43 mm |
| Trail | 130 mm | 136 mm | 130 mm | 137 mm | 130 mm | 137 mm |
| Stack | 629 mm | 633 mm | 638 mm | 643 mm | 647 mm | 651 mm |
| Reach | 455 mm | 447 mm | 480 mm | 472 mm | 505 mm | 498 mm |
| Top Tube Length | 590 mm | 592 mm | 618 mm | 620 mm | 647 mm | 647 mm |
| Seat Tube Angle | 72.8 ° | 77 ° | 72.8 ° | 77 ° | 72.8 ° | 77 ° |
| Head Tube Angle | 64.4 ° | 63.7 ° | 64.4 ° | 63.7 ° | 64.4 ° | 63.7 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm |
| Chainstay Length | 445 mm | 447 mm | 445 mm | 447 mm | 445 mm | 447 mm |
| Wheelbase | 1239 mm | 1238 mm | 1268 mm | 1267 mm | 1297 mm | 1297 mm |
| Bottom Bracket Drop | 24 mm | 34 mm | 24 mm | 34 mm | 24 mm | 34 mm |
| Standover Height | 805 mm | 799 mm | 809 mm | 802 mm | 814 mm | 806 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
