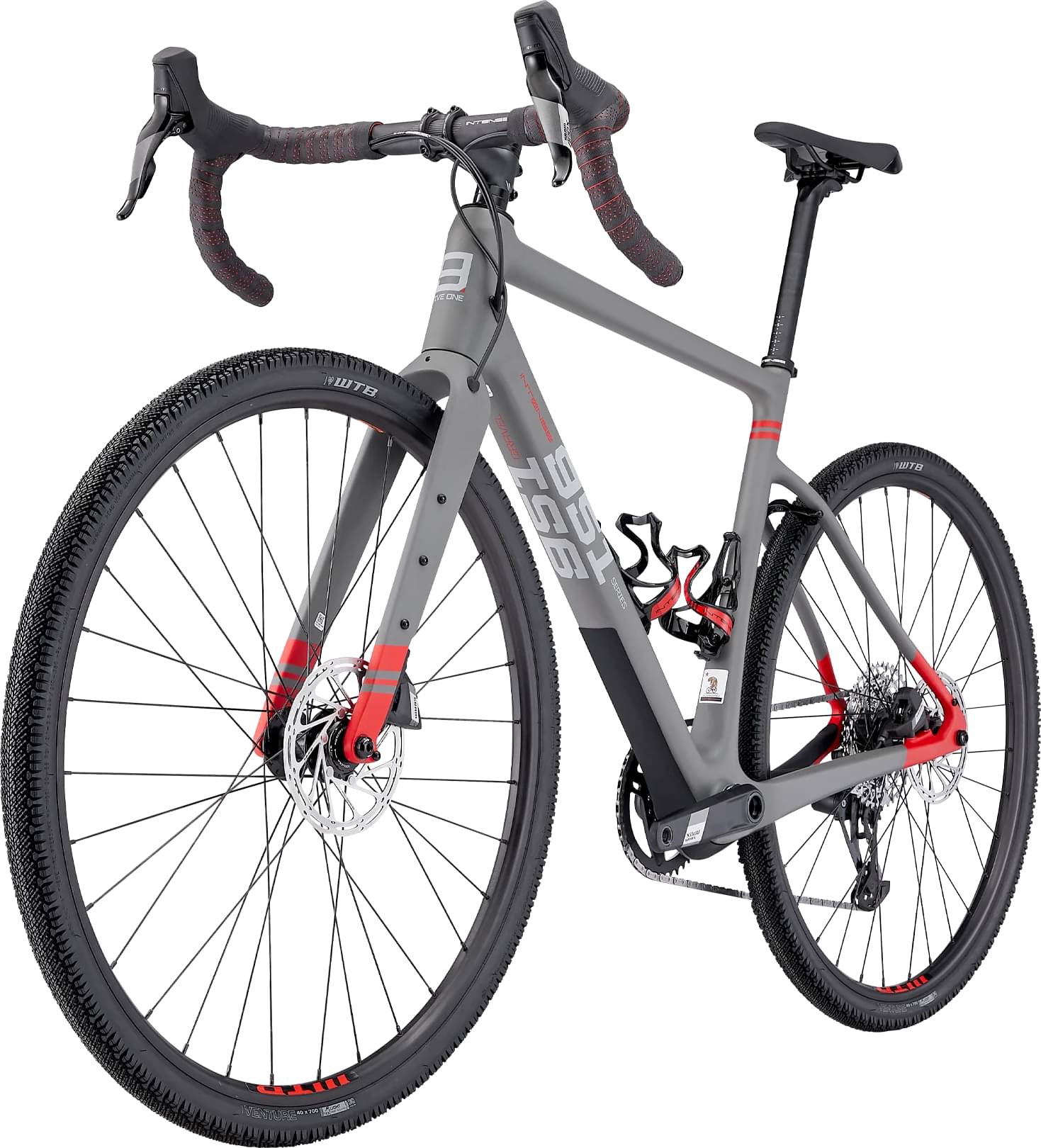

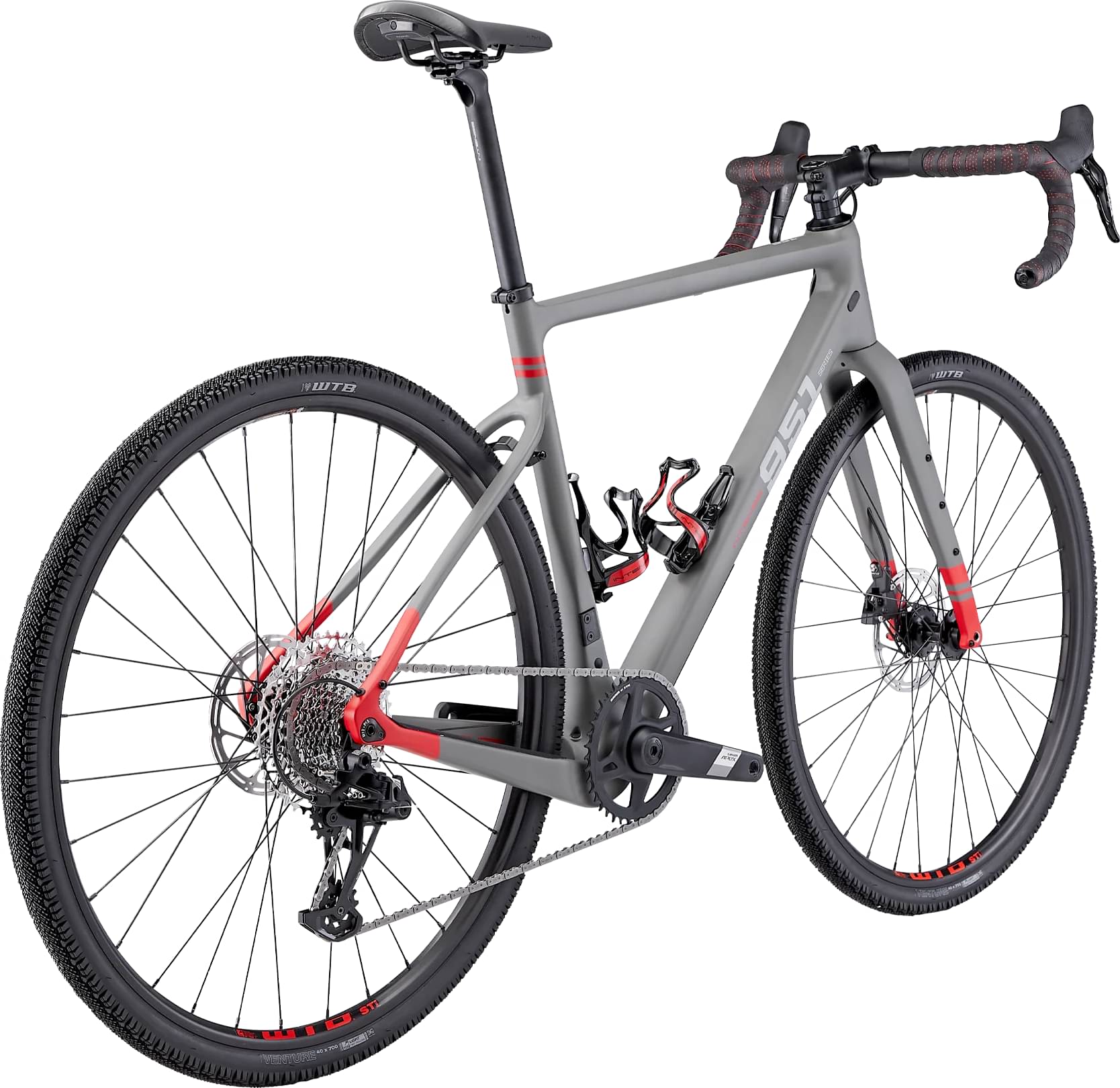

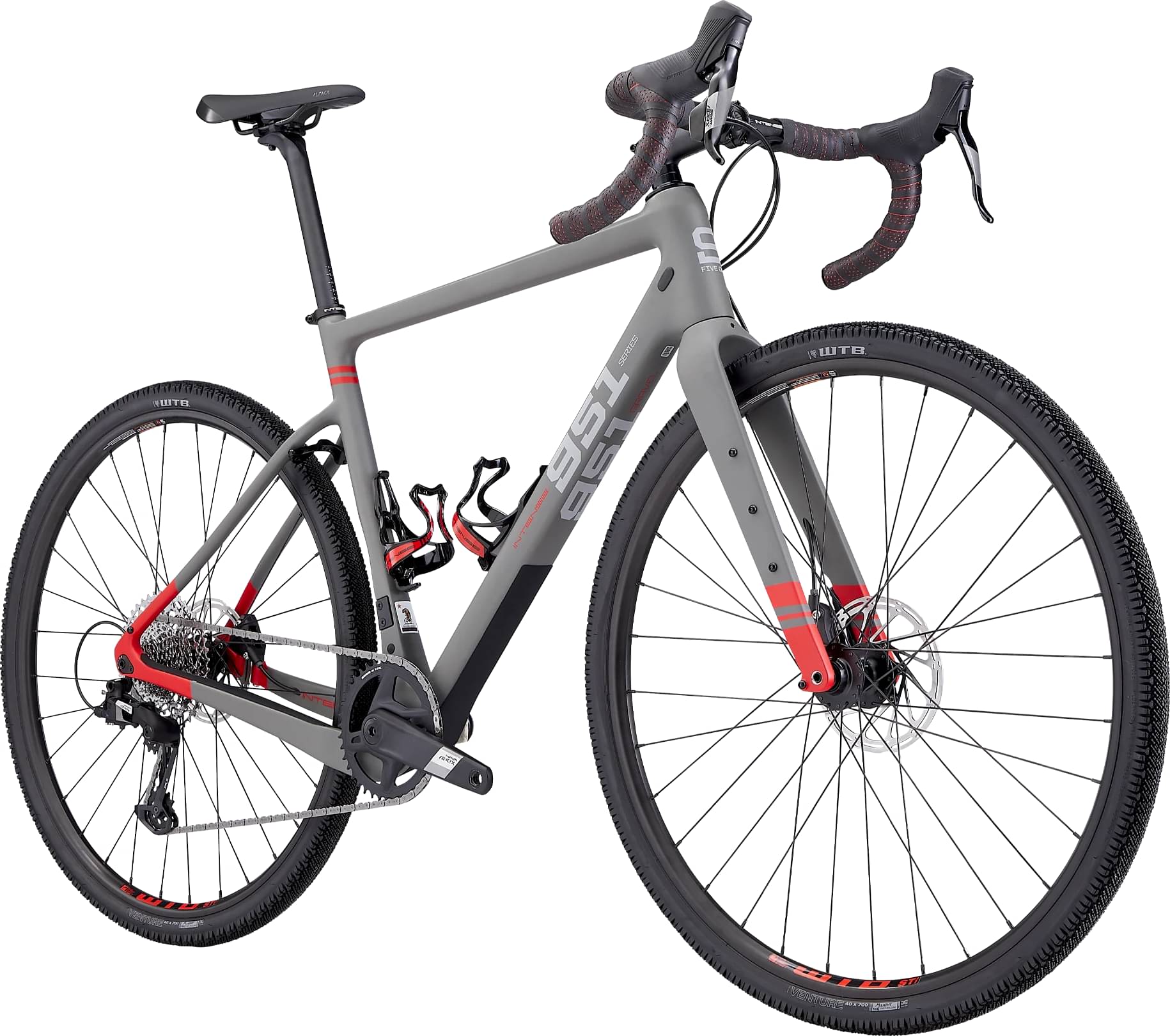

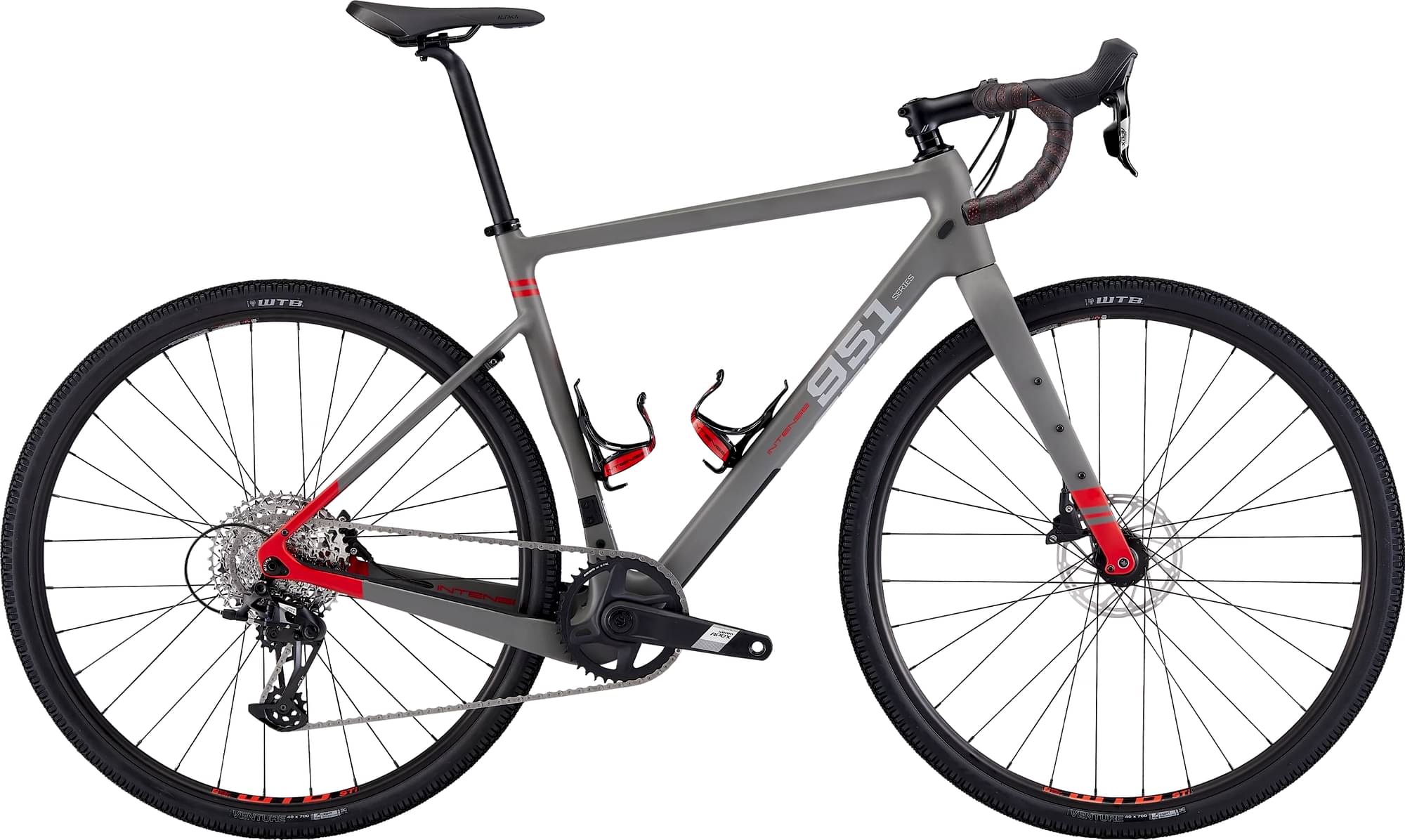

intense951 Intense 951 951 Series Gravel 1X 2024
2024 Road
Estimate price |
2,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Apex -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components

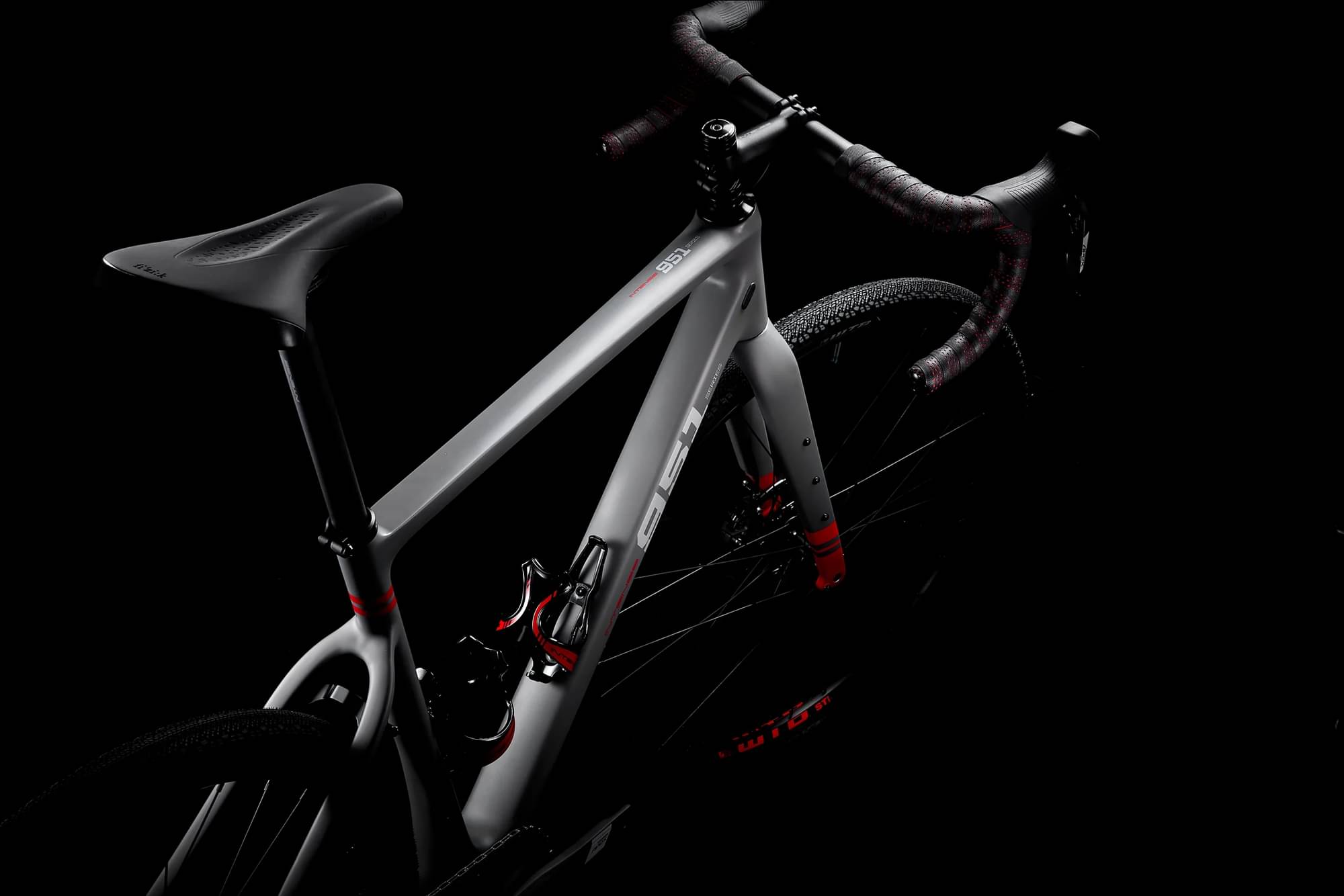

Frame

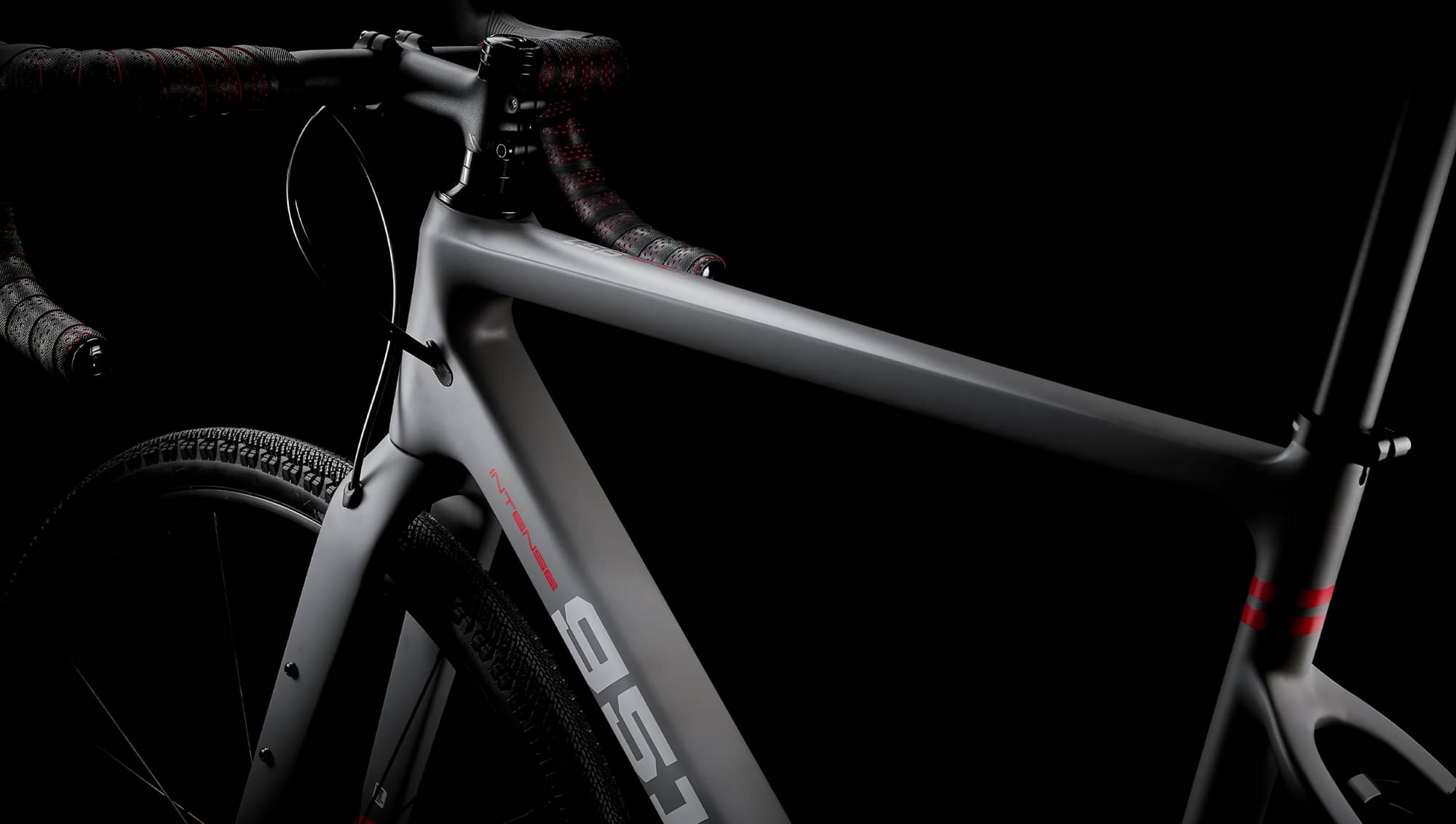

Frame
INTENSE 951 Gravel 700c full carbon front and rear triangle utilizing an optimized carbon layup for the Gravel category. Featuring fully guided internal cable routing and Press-Fit BB. 142mm hub spacing.
Suspension Fork
Carbon Fiber All Road/Gravel Specific Geometry
Drivetrain

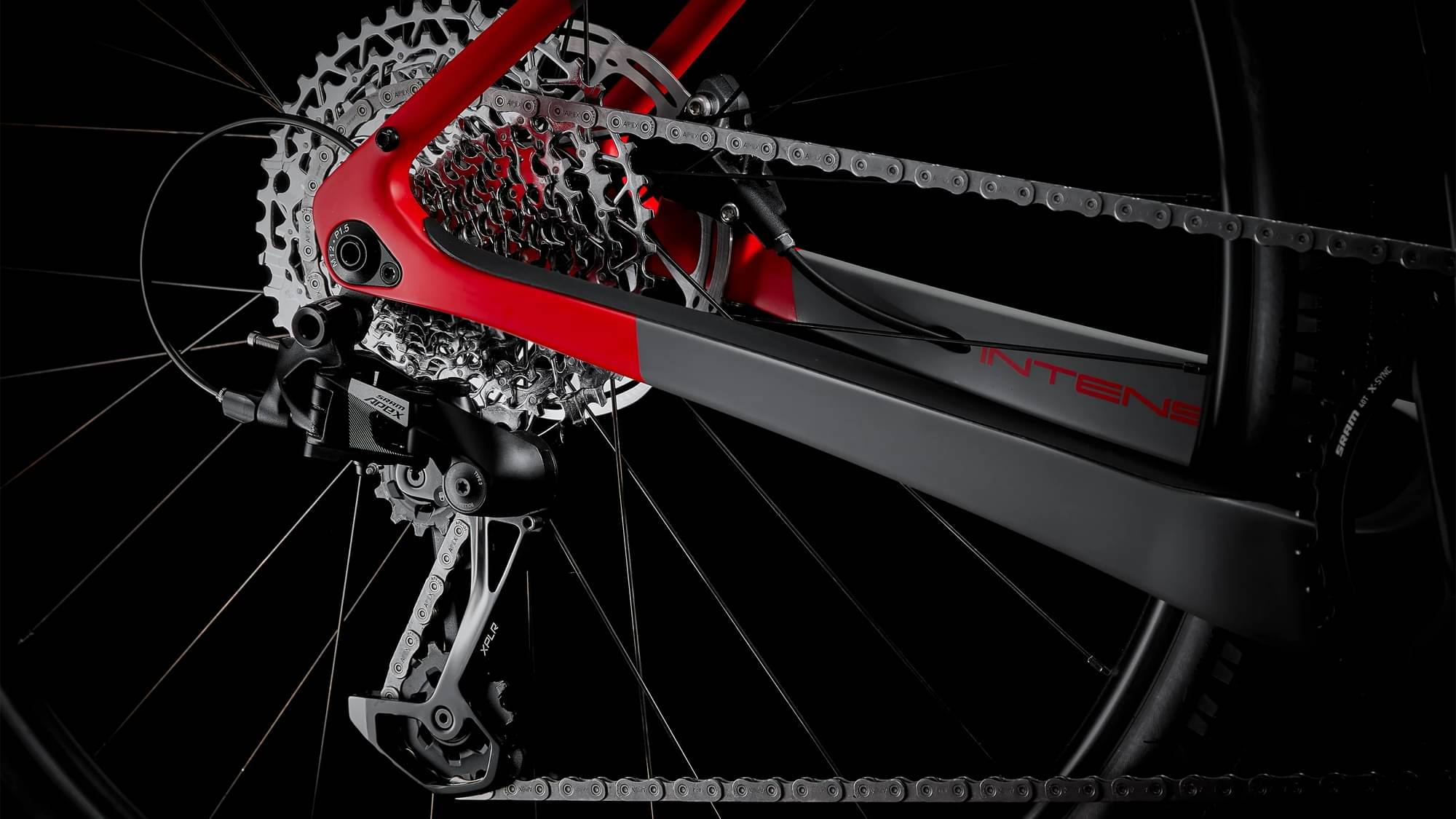

Rear Derailleur
SRAM Apex 12-speed rear

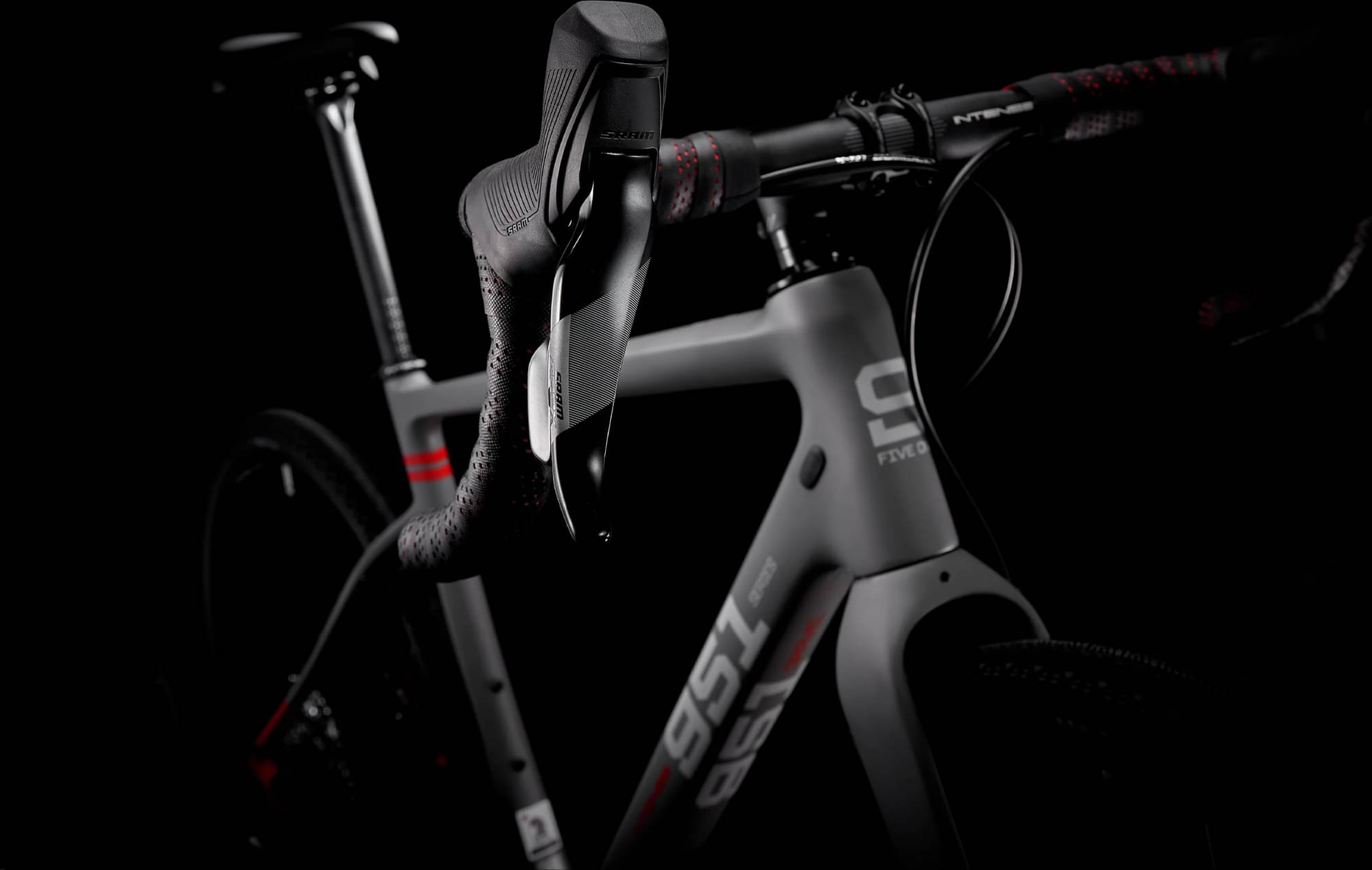

Shift Levers
SRAM Apex 12-speed
Cassette
SRAM XPLR PG-1231 12-speed, 11-44t

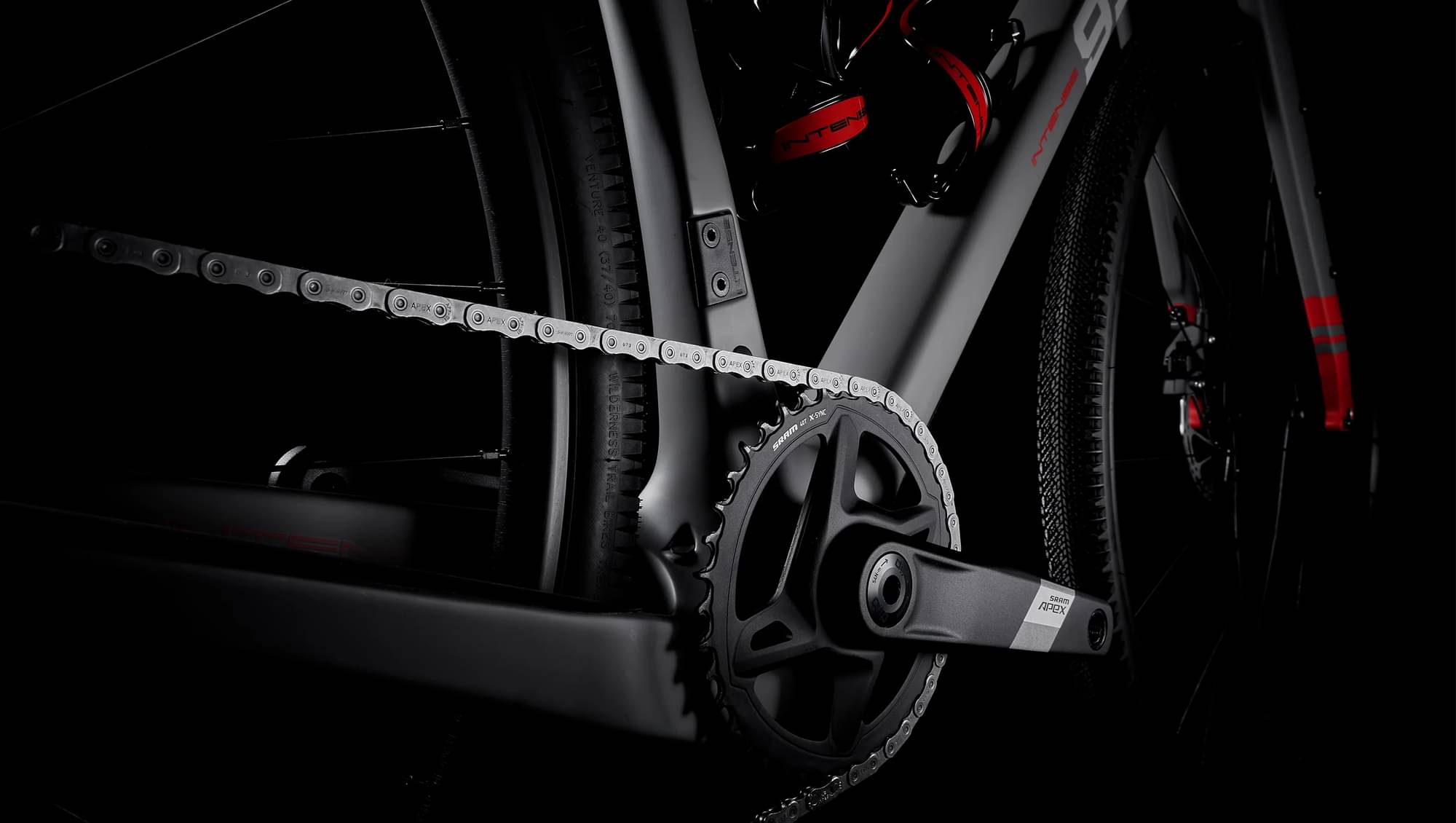

Crank
SRAM Apex 12-speed 40t, 170mm (SM), 172.5mm (MD), 175mm (LG/XL)
Bottom Bracket
SRAM DUB Press Fit
Chain
SRAM Apex 12-speed
Wheels
Front Hub
INTENSE Gravel Alloy, 100x12mm Front, 142x12mm HG Rear
Rear Hub
INTENSE Gravel Alloy, 100x12mm Front, 142x12mm HG Rear
Rims
WTB ST i23 TCS 2.0 700c
Spokes
DT Swiss Champion
Tires
WTB Venture 700 x 40, Dual DNA Compound, Tubeless-Ready
Brakes
Brakes
SRAM Apex
Cockpit

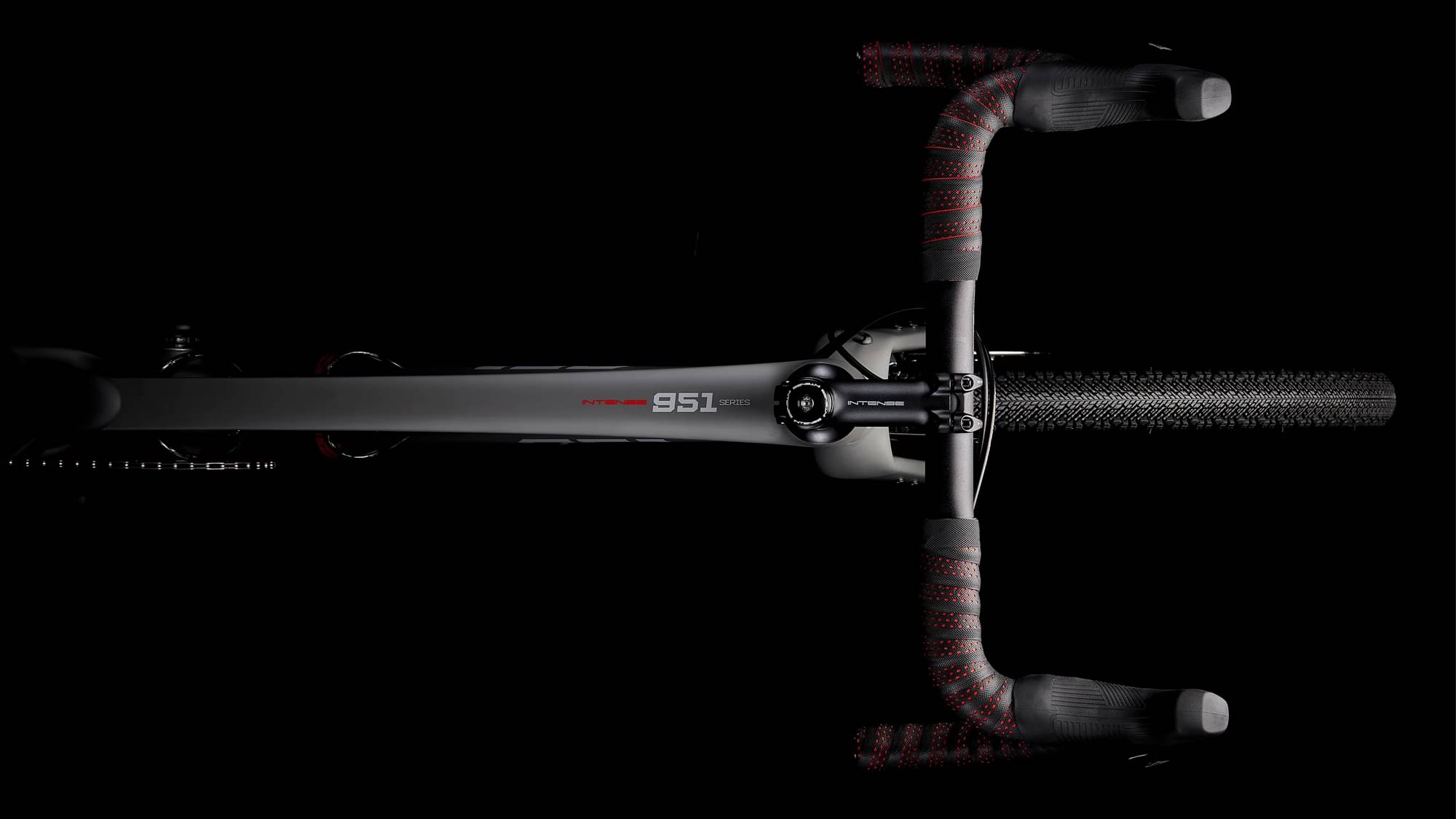

Stem
INTENSE Recon Gravel 31.8mm +/- 6° (SM 70mm, MD-LG 90mm, XL 100mm)

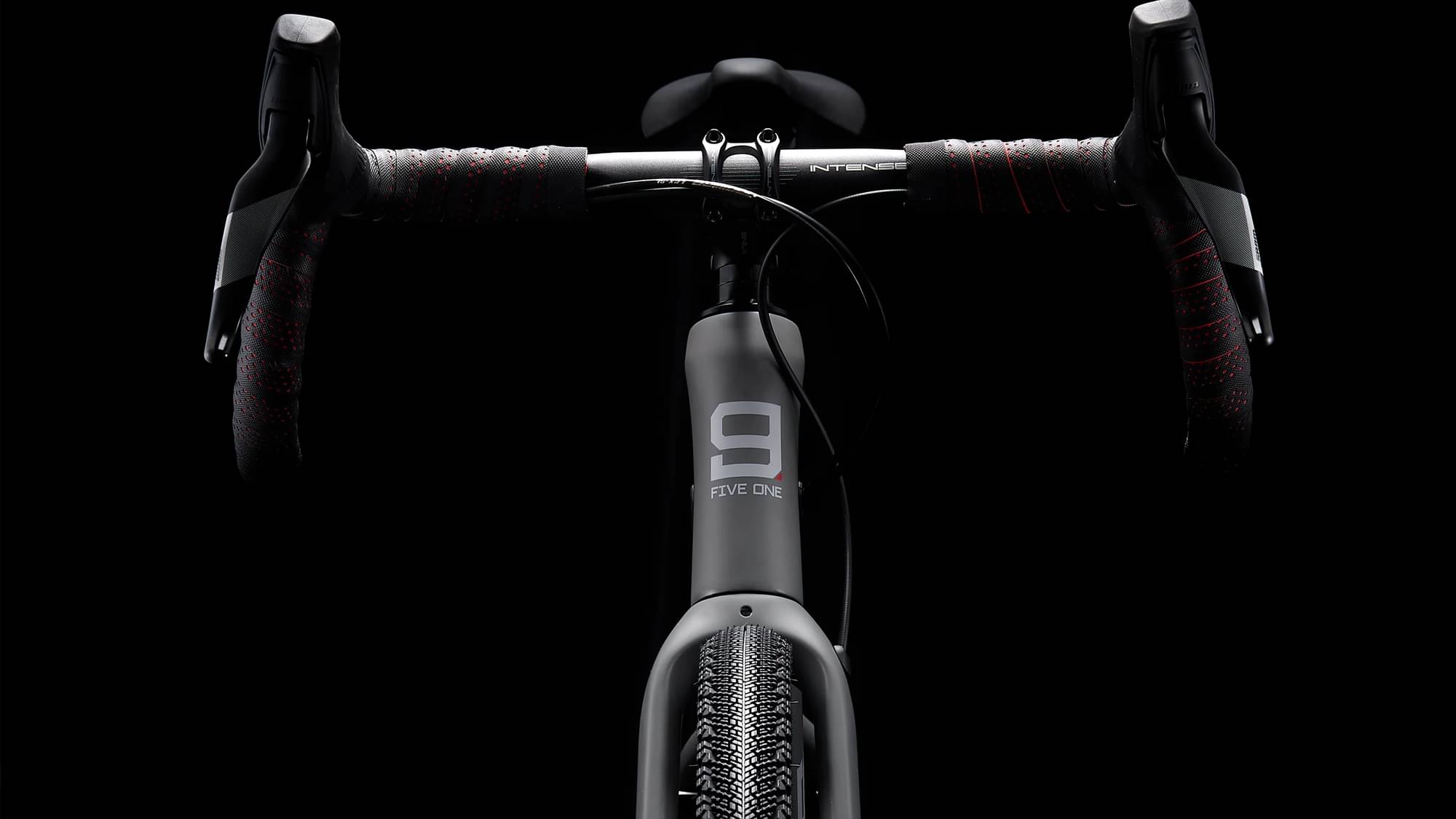

Handlebar
INTENSE Recon Gravel 31.8mm, 12° Flare (SM 400mm, MD-LG 420mm, XL 440mm)
Headset
INTENSE Integrated
Seat
Saddle
Fizik Terra Alpaca X5
Seatpost
INTENSE Recon Gravel 15mm offset (27.2mmx350mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.468 mm | 1.474 mm | 1.49 mm | 1.502 mm |
| Bottom Bracket Height | 291 mm | 291 mm | 291 mm | 291 mm |
| Front Center | 612 mm | 625 mm | 628 mm | 641 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 76 mm | 75 mm | 65 mm | 61 mm |
| Stack | 558 mm | 575 mm | 596 mm | 619 mm |
| Reach | 380 mm | 390 mm | 400 mm | 412 mm |
| Top Tube Length | 545 mm | 560 mm | 577 mm | 595 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 75 ° |
| Seat Tube Length | 220 mm | 240 mm | 260 mm | 280 mm |
| Head Tube Angle | 70.3 ° | 70.5 ° | 72 ° | 72.5 ° |
| Head Tube Length | 135 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1037 mm | 1050 mm | 1053 mm | 1067 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 792 mm | 810 mm | 831 mm | 851 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm | 187 cm |
