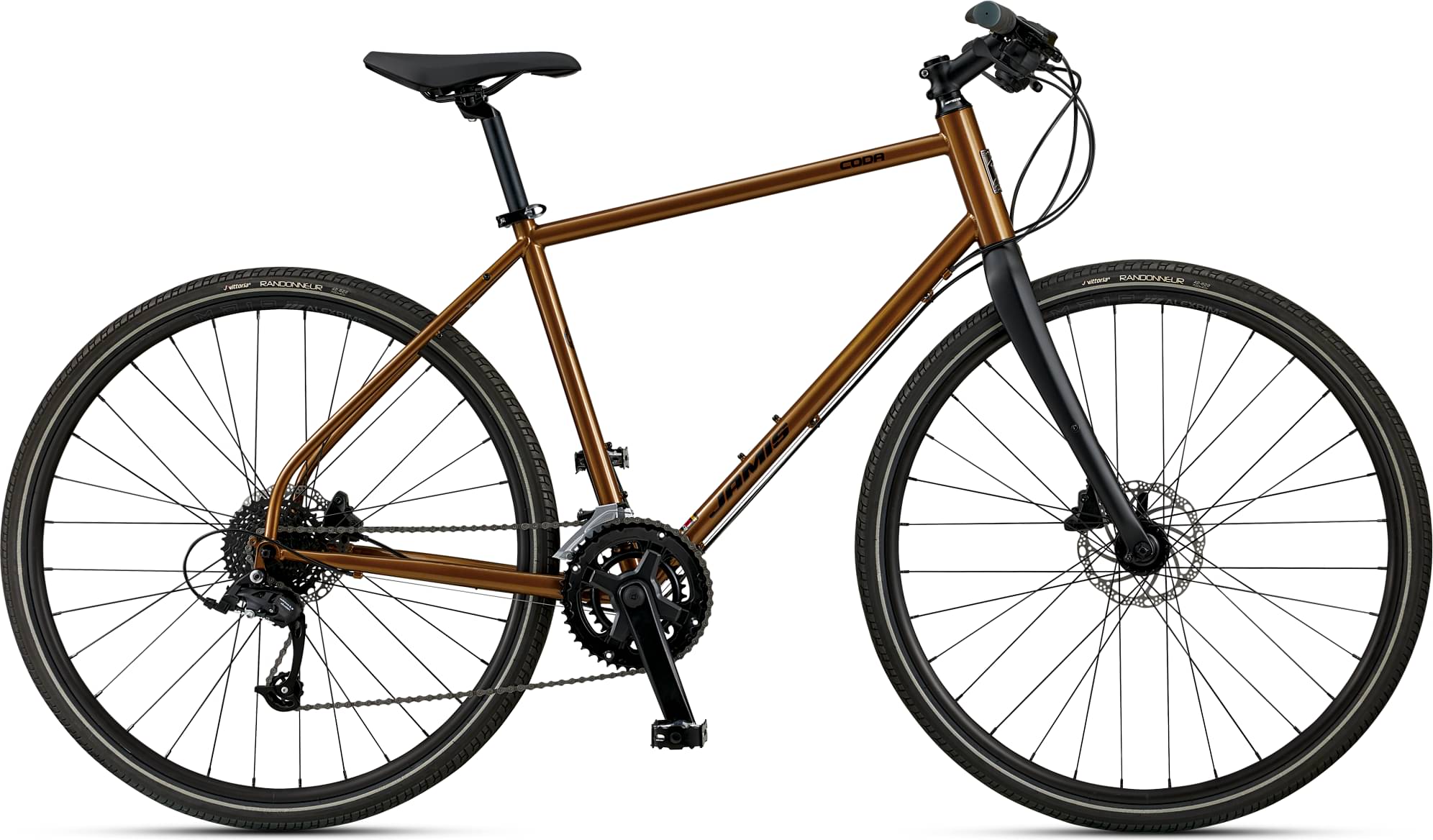

Jamis CODA S1 LTD 2024
2024 Urban
Estimate price |
1,049$
Weight | 12.02 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Steel -
Groupset microSHIFT Marvo -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Size Specific Design Reynolds 520 double-butted chromoly main tubes, 48mm extended head tube with reinforced collars, double tapered cromo stays with flat mount disc brake, kickstand mount, forged dropouts and fender/rack eyelets
Suspension Fork
Jamis full carbon composite with carbon steerer, Flat mount disc brake, low-rider carrier mounts and carbon drop out with stainless steel tabs and fender eyelets
Drivetrain
Rear Derailleur
Shimano Acera RD-T3000 front and microShift RD-M46L rear derailleur
Shift Levers
microShift Marvo SL-M859, 18-speed
Cassette
Sunrace CSM90, 9-speed, 11-34T
Crank
ProWheel TG-CY10 2-PC crank, 46/30, 170mm (15-19”), 175mm (21-23”)
Bottom Bracket
FSA sealed cartridge, 68 x 110.5mm
Chain
KMC Z9
Pedals
Full alloy platform, toe clip attachable
Wheels
Rims
Alex TD-26 double wall disc specific alloy rims, 32H, Joytec hubs with QR and 14g stainless steel spokes
Tires
Vittoria Randonneur with reflective sidewalls, 700 x 40c
Brakes
Brakes
Tektro HD-M280/281 hydraulic Flat Mount disc brakes with 160mm rotors and Tektro brake levers. 15-17? M281 (83mm reach); 19-23? M280 (88mm reach)
Cockpit
Stem
Jamis Road 3D forged alloy, 25.4 x 17? x 90mm (15-17”), 110mm (19-23”)
Handlebar
Jamis Flat bar, 6061 T-6 aluminum, 25.4 x 10? sweep x 600mm (15-17?) 620mm (19-23?)
Grips
New Anatomic double density kraton grip with end plug
Headset
Threadless internal, 1 1/8”
Seat
Saddle
Selle Royal Vivo ERGO
Seatpost
Jamis alloy micro-adjust, 27.2 x 350mm alloy clamp with QR seatpin
