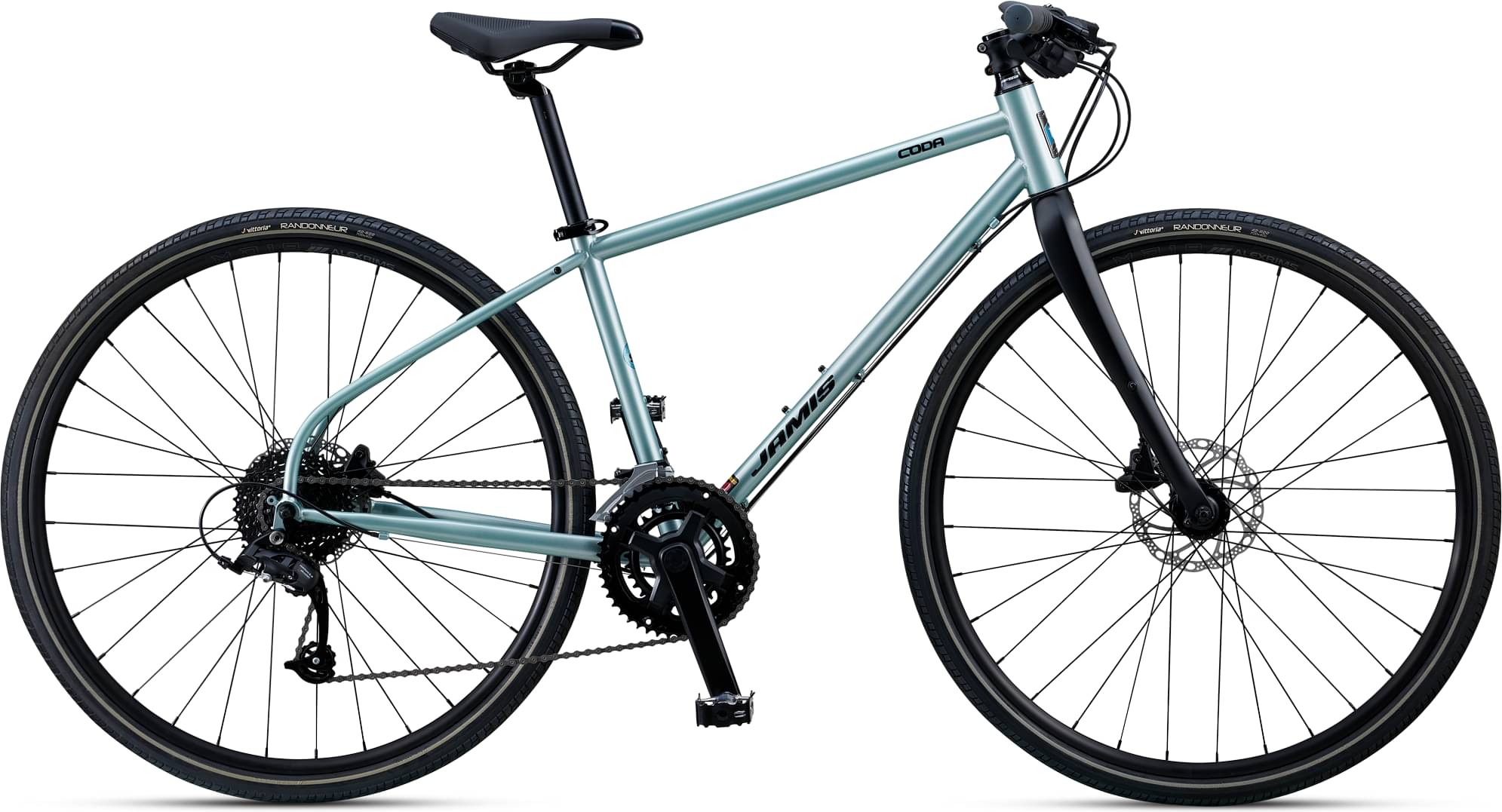

Jamis CODA S1 LTD Designed for Women 2025
2025 Urban
Estimate price |
1,099$
Weight | 11.91 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Steel -
Groupset microSHIFT Marvo -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Tektro Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Size Specific Design Reynolds 520 double-butted chromoly main tubes, 48mm extended head tube with reinforced collars, double tapered cromo stays with flat mount disc brake, kickstand mount, forged dropouts and fender/rack eyelets
Suspension Fork
Jamis full carbon composite with carbon steerer, Flat mount disc brake, low-rider carrier mounts and carbon drop out with stainless steel tabs and fender eyelets
Drivetrain
Rear Derailleur
Shimano Acera RD-T3000 front and microShift RD-M46L rear derailleur
Shift Levers
microShift Marvo SL-M859, 18-speed
Cassette
Sunrace CSM90, 9-speed, 11-34T
Crank
ProWheel TG-CY10 2-PC crank, 46/30, 170mm
Bottom Bracket
FSA sealed cartridge, 68 x 110.5mm
Chain
KMC Z9
Pedals
Full alloy platform, toe clip attachable
Wheels
Rims
Alex MD19 double wall disc specific tubeless compatible alloy rims, 32H, Formula hubs with WR and 14g stainless steel spokes
Tires
Vittoria Randonneur with reflective sidewalls, 700 x 40c
Brakes
Brakes
Tektro HD-M280/281 hydraulic Flat Mount disc brakes with 160mm rotors and Tektro brake levers. 15-17? M281 (83mm reach); 19-23? M280 (88mm reach)
Cockpit
Stem
Jamis Road 3D forged alloy, 25.4 x 17? x 90mm (15-17”), 110mm (19-23”)
Handlebar
Jamis Flat bar, 6061 T-6 aluminum, 25.4 x 10? sweep x 600mm (15-17?) 620mm (19-23?)
Grips
New Anatomic double density kraton grip with end plug
Headset
Threadless internal, 1 1/8”
Seat
Saddle
Selle Royal Vivo ERGO
Seatpost
Jamis alloy micro-adjust, 27.2 x 350mm alloy clamp with QR seatpin
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 14" | 14" | 16" | 16" | 18" | 18" | 14" | 16" | 18" |
|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.437 mm | 1.437 mm | 1.46 mm | 1.46 mm | 1.479 mm | 1.479 mm | 1.343 mm | 1.348 mm | 1.479 mm |
| Front Center | 583 mm | 590 mm | 596 mm | 598 mm | 605 mm | 607 mm | 617 mm | 628 mm | 640 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 75 mm | 68 mm | 69 mm | 67 mm | 69 mm | 67 mm | 67 mm | 67 mm | 33 mm |
| Stack | 533 mm | 533 mm | 546 mm | 546 mm | 559 mm | 559 mm | 533 mm | 546 mm | 559 mm |
| Reach | 371 mm | 371 mm | 374 mm | 374 mm | 378 mm | 378 mm | 397 mm | 405 mm | 378 mm |
| Top Tube Length | 534 mm | 534 mm | 541 mm | 541 mm | 549 mm | 549 mm | 564 mm | 572 mm | 583 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 356 mm | 356 mm | 406 mm | 406 mm | 457 mm | 457 mm | 356 mm | 406 mm | 457 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 109 mm | 99 mm | 123 mm | 113 mm | 136 mm | 126 mm | 104 mm | 118 mm | 131 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm | 430 mm | 430 mm | 435 mm |
| Wheelbase | 1011 mm | 1018 mm | 1024 mm | 1026 mm | 1033 mm | 1035 mm | 1040 mm | 1052 mm | 1069 mm |
| Bottom Bracket Drop | 57 mm | 57 mm | 57 mm | 57 mm | 57 mm | 57 mm | 57 mm | 57 mm | 57 mm |
| Standover Height | 705 mm | 705 mm | 730 mm | 730 mm | 757 mm | 757 mm | 622 mm | 637 mm | 641 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
