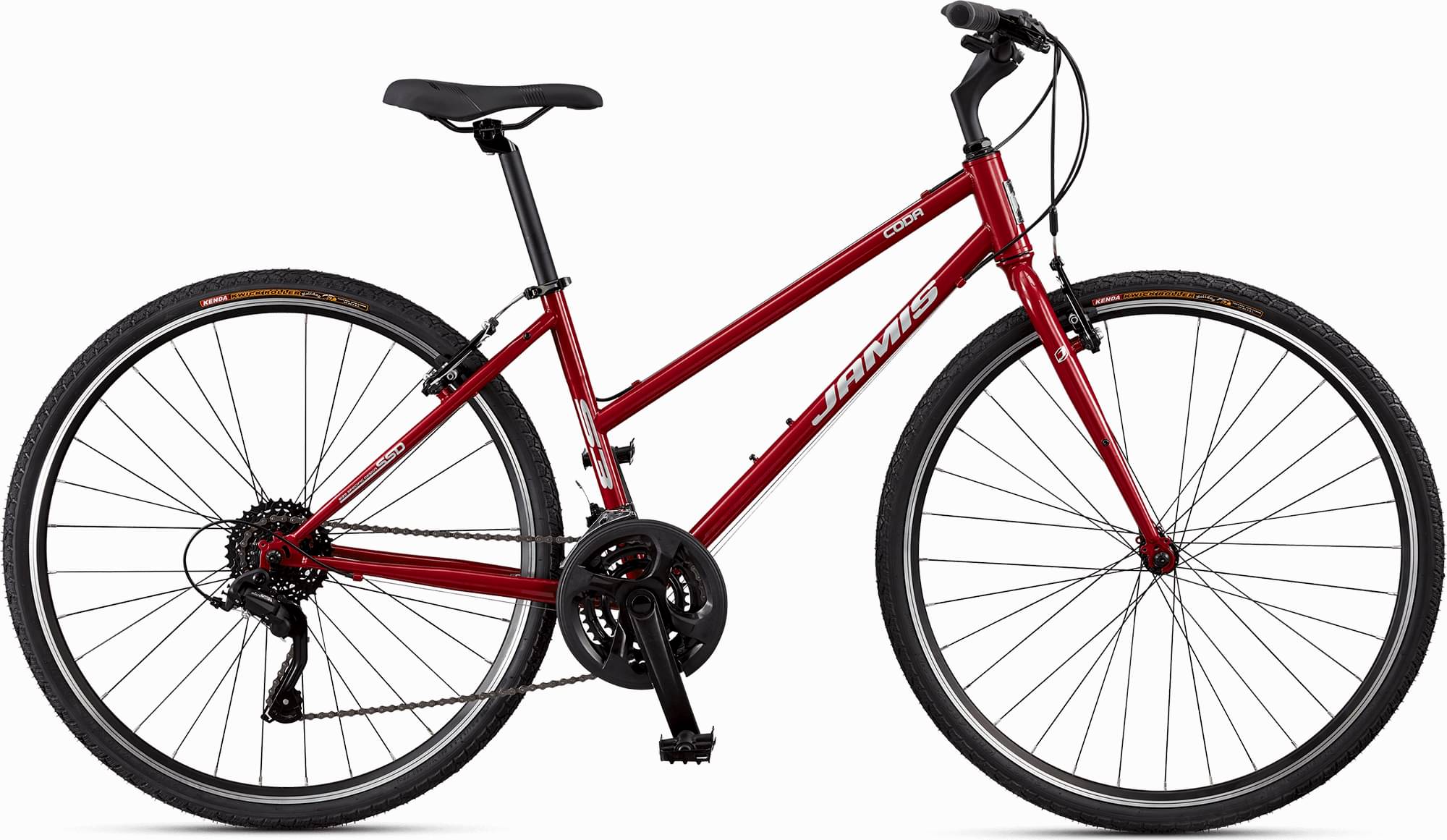

Jamis CODA S3 Step-Over Frame 2025
2025 Urban
Estimate price |
569$
Weight | 12.25 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Steel -
Groupset Tourney -
Suspension Rigid -
Drivetrain 3 × 7 -
Brakes Promax Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Size Specific Design Double-butted chromoly frame, 48mm extended head tube with reinforced collars, double tapered cromo stays, kickstand mount, forged dropouts and fender/ rack eyelets
Suspension Fork
Steel tapered straight blade unicrown with bulge butted steerer and 50mmm crown, low-rider carry mounts and forged dropouts with 2 fender eyelets
Drivetrain
Rear Derailleur
Shimano Tourney TY300
Front Derailleur
TY510
Shift Levers
Shimano EZ-Fire Plus ST-EF500 shifters, 21-speed
Cassette
Shimano HG200 7-speed, 12-32T
Crank
Forged alloy, 48/38/28T, 170mm with chain guard
Bottom Bracket
VP sealed cartridge, 68 x 122.5mm
Chain
KMC Z51
Pedals
Platform style, steel cage/resin body, toe clip attachable
Wheels
Rims
Double wall alloy rims, 32H, alloy hubs with QR and 14g spokes
Tires
Kenda Eurotrek K-197, 700 x 40c
Brakes
Brakes
Promax TX-121 alloy linear-pull brakes with front power modulator and Shimano brake levers
Cockpit
Stem
Jamis alloy hi-rise, quill type, 25.4 x 80mm extension x 35 ? x 150mm (14-15”), 180mm (18”)
Handlebar
Jamis Riser bar, aluminum 25.4 x 10 ? sweep x 40mm rise x 600mm
Grips
Anatomic double density kraton
Headset
Threaded internal, 1 1/8”
Seat
Saddle
NEW Jamis Touring Women’s with SL cover
Seatpost
Jamis alloy micro-adjust, 27.2 x 350mm alloy clamp
