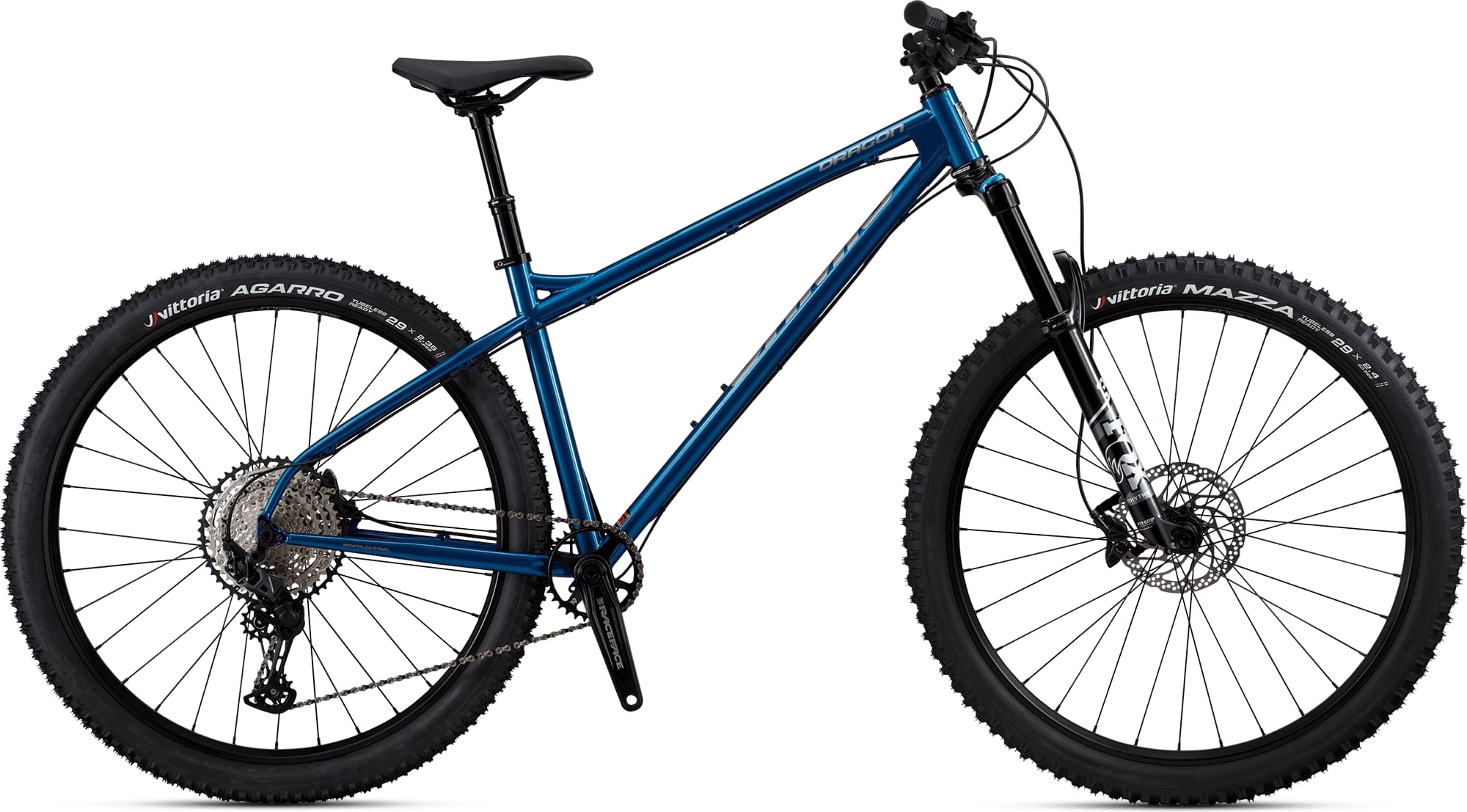

Jamis DRAGON 29 2023
2023 Mountain
Estimate price |
2,499$
Weight | 14.51 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Travel Front 140mm -
Fork Fox Rhythm Float 34
-
Groupset SLX, Race Face -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Reynolds 520 steel, 44mm head tube, 31.6 I.D. seat tube, internal dropper post routing, ISCG05, 12x148mm thru-axle dropouts
Suspension Fork
Fox 34 Rhythm Series Float 29” w/ sweep adjust compression & lock-out,15x110mm axle, air spring compression, rebound adjust, tapered alloy steerer, 140mm travel, 51mm rake.
Drivetrain
Rear Derailleur
Shimano SLX, 12-speed
Shift Levers
Shimano SLX, 1×12-speed
Cassette
Shimano M7100, 12-speed, 10-51T
Crank
Race Face Ride, 32T
Bottom Bracket
Race Face BSA
Chain
KMC X12, 12-speed
Pedals
N/A
Wheels
Rims
Stan’s No Tubes Flow D 29” rims, Shimano MT410 15x110mm front & 12x148mm rear hubs, stainless spokes
Tires
WTB Vigilante 29 x 2.5” Front & Trail Boss 29 x 2.4” Rear, TCS Tubeless
Brakes
Brakes
Shimano MT420 4-piston hydraulic disc, 180mm RT30 rotors
Cockpit
Stem
Race Face Ride, 50mm
Handlebar
Race Face Ride, 35 x 760mm
Grips
Jamis Lock-On
Headset
FSA Orbit, Alloy cups
Seat
Saddle
WTB Volt
Seatpost
KS Rage Dropper, Southpaw remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.38 mm | 1.33 mm | 1.29 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 765 mm | 791 mm | 810 mm | 846 mm |
| Rake | 51 mm | 50 mm | 43 mm | 51 mm |
| Trail | 118 mm | 119 mm | 127 mm | 118 mm |
| Stack | 629 mm | 638 mm | 646 mm | 656 mm |
| Reach | 438 mm | 461 mm | 484 mm | 507 mm |
| Top Tube Length | 595 mm | 620 mm | 646 mm | 671 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1191 mm | 1218 mm | 1237 mm | 1273 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 773 mm | 786 mm | 790 mm | 794 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
DRAGON 29 is a Jamis Dragon model. Jamis released 4 bikes variations of this model so far.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Jamis DRAGON 29 price was 2499$. Comparing the average cost of a Trail bike to this one, you will see that DRAGON 29 price is 10.52% smaller.
Average weight for Trail bikes
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 14.51 kg (31.99 lbs), the DRAGON 29 model is considerably heavier than average. In short, the average Trail bike weight is 11.79% lower than this one.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
DRAGON 29 components
Fork
Jamis DRAGON 29 2023 bike is equipped with the Fox Rhythm Float 34 fork, and has 140mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
When it comes to the fork, this bike has an aluminum one, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
As for the wheels, Jamis DRAGON 29 2023, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Jamis DRAGON 29 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
The Jamis model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
