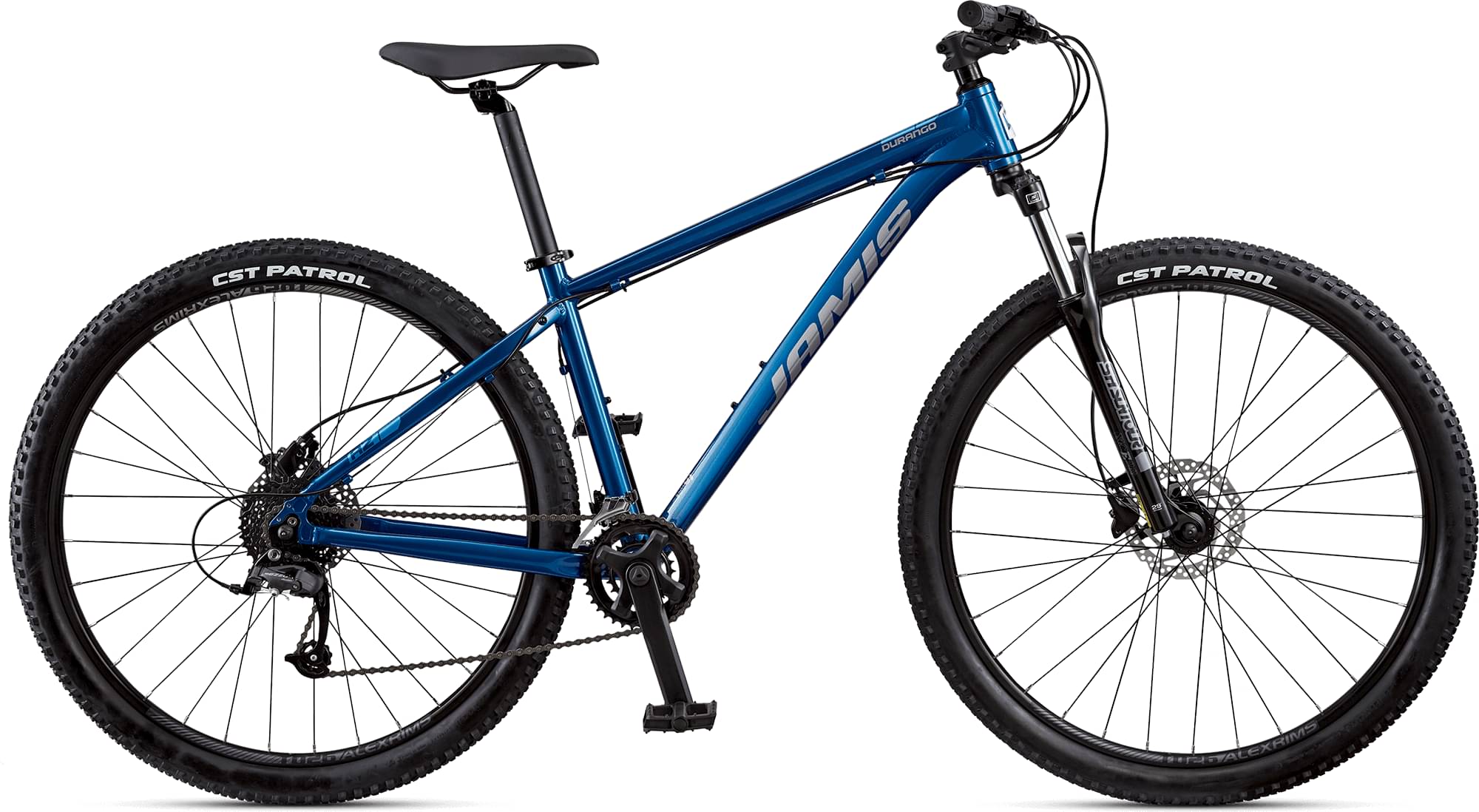

Jamis DURANGO A2 2025
2025 Mountain
Estimate price |
729$
Weight | 14.74 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCE
-
Groupset Tourney, Altus -
Suspension Hardtail -
Drivetrain 2 × 8 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminum main tubes, over-sized seat tube, zero-stack head tube, over-sized stays, replaceable derailleur hanger
Suspension Fork
SR Suntour XCE 28 29”, coil spring, external preload adjustor, 28mm stanchions, aluminum lowers, 100mm travel
Drivetrain
Rear Derailleur
Shimano Tourney
Front Derailleur
Altus
Shift Levers
Shimano EF505, 2×8-speed
Cassette
Shimano HG31, 8-speed, 11-32T
Crank
Forged Alloy, 36/22T
Bottom Bracket
Sealed cartridge
Chain
KMC Z8.3, 8-speed
Pedals
MTB platform, hi-impact resin
Wheels
Rims
Alex TD26 29” double wall rims, 32H, alloy disc hubs, 14G black electroplated spokes
Tires
CST Patrol, 29 x 2.25”
Brakes
Brakes
Shimano MT200 hydraulic disc, Shimano RT26 160mm rotors
Cockpit
Stem
Jamis XC alloy threadless, 31.8 x 3 ? rise x 60mm
Handlebar
Jamis XC alloy riser, 31.8 x 20mm rise x 740mm
Grips
Kraton
Headset
Zero-stack internal cup, 8mm cone spacer
Seat
Saddle
Jamis ATB Sport
Seatpost
Jamis alloy micro-adjust, 31.6 x 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 673 mm | 699 mm | 725 mm | 749 mm |
| Top Tube Length | 585 mm | 610 mm | 635 mm | 660 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 394 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1116 mm | 1142 mm | 1168 mm | 1193 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 749 mm | 779 mm | 815 mm | 845 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
