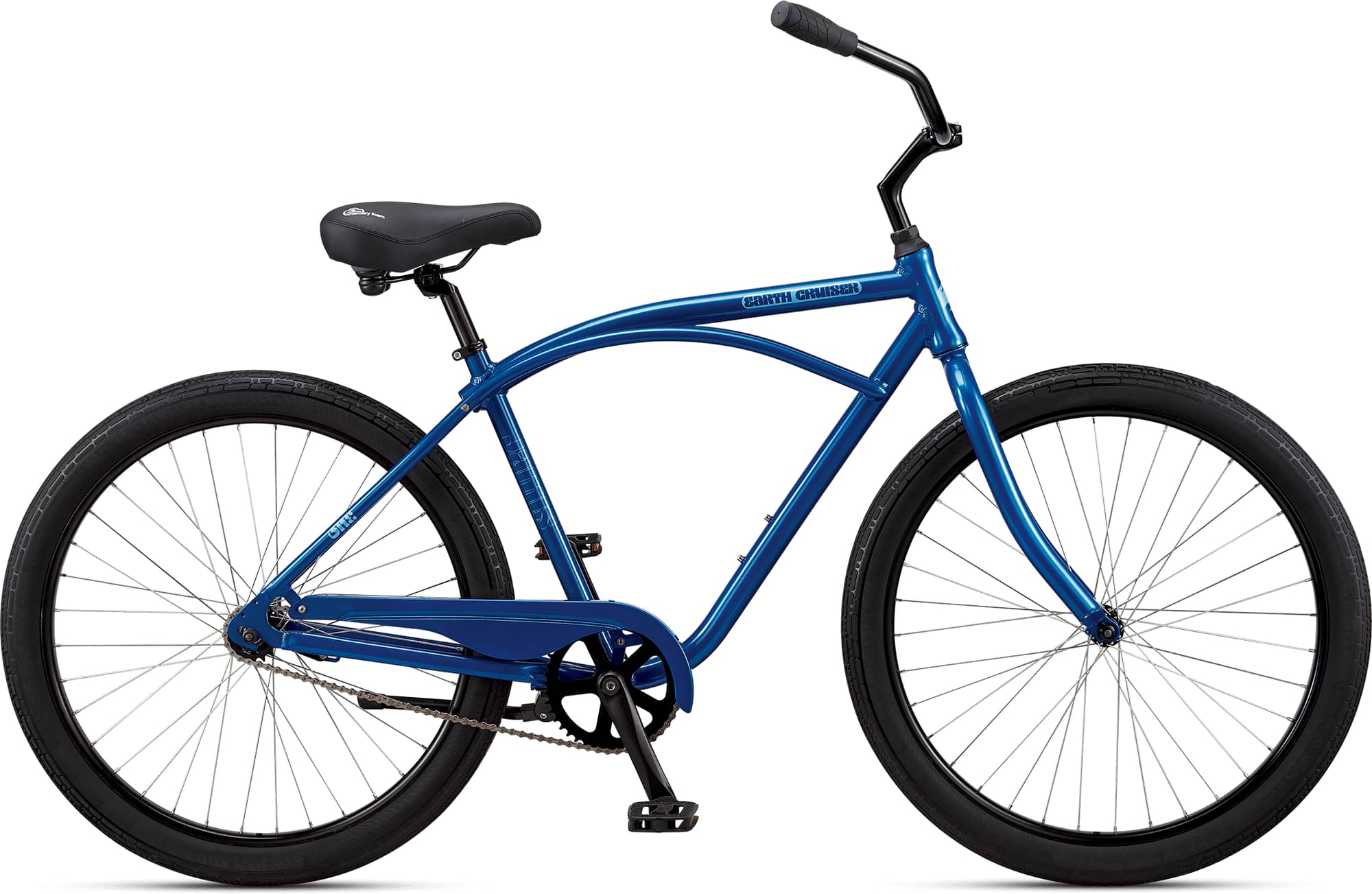

Jamis EARTH CRUISER 1 2024
2024 Urban
Estimate price |
499$
Weight | 13.27 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Suspension Rigid -
Drivetrain Single Speed -
Brakes Coaster
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
SM
158cm - 170cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Classic Cantilever design with 6061 aluminum tubing, includes kickstand and painted steel chainguard
Suspension Fork
Hi-tensile unicrown with radiused blades
Drivetrain
Rear Derailleur
N/A
Shift Levers
N/A
Cassette
18T
Crank
Forged alloy crank, 170mm, with 44T chainring
Bottom Bracket
Sealed cartridge, 68 x 122.5mm
Chain
KMC Z410NP, silver
Pedals
Cruiser platform with grip tape
Wheels
Rims
Alex Zuma 36H black anodized alloy rims with alloy nutted front hub and Hi-Stop CB rear, 14 gauge stainless steel spokes
Tires
CST Metropolitan Palm Bay, 26” x 2.35
Brakes
Brakes
Hi-Stop coaster brake
Cockpit
Stem
Alloy hi-rise, 180mm quill, 100mm extension, with removeable 2-bolt cap
Handlebar
Jamis Cruise-control comfort bar
Grips
Comfort style
Headset
Internal cup, threaded, 1 1/8”
Seat
Saddle
Earth Cruiser Comfort with memory foam padding, synthetic suede top, burnished sides and bumper springs
Seatpost
Alloy micro-adjust, 27.2 x 300mm, with 31.8mm alloy clamp and cromo seatpin
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | SM | LG |
|---|---|---|---|---|
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm |
| Top Tube Length | 605 mm | 626 mm | 626 mm | 666 mm |
| Seat Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 120 mm | 130 mm | 130 mm | 140 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1087 mm | 1107 mm | 1107 mm | 1147 mm |
| Standover Height | 516 mm | 776 mm | 528 mm | 820 mm |
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 158 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 170 cm | 187 cm |
