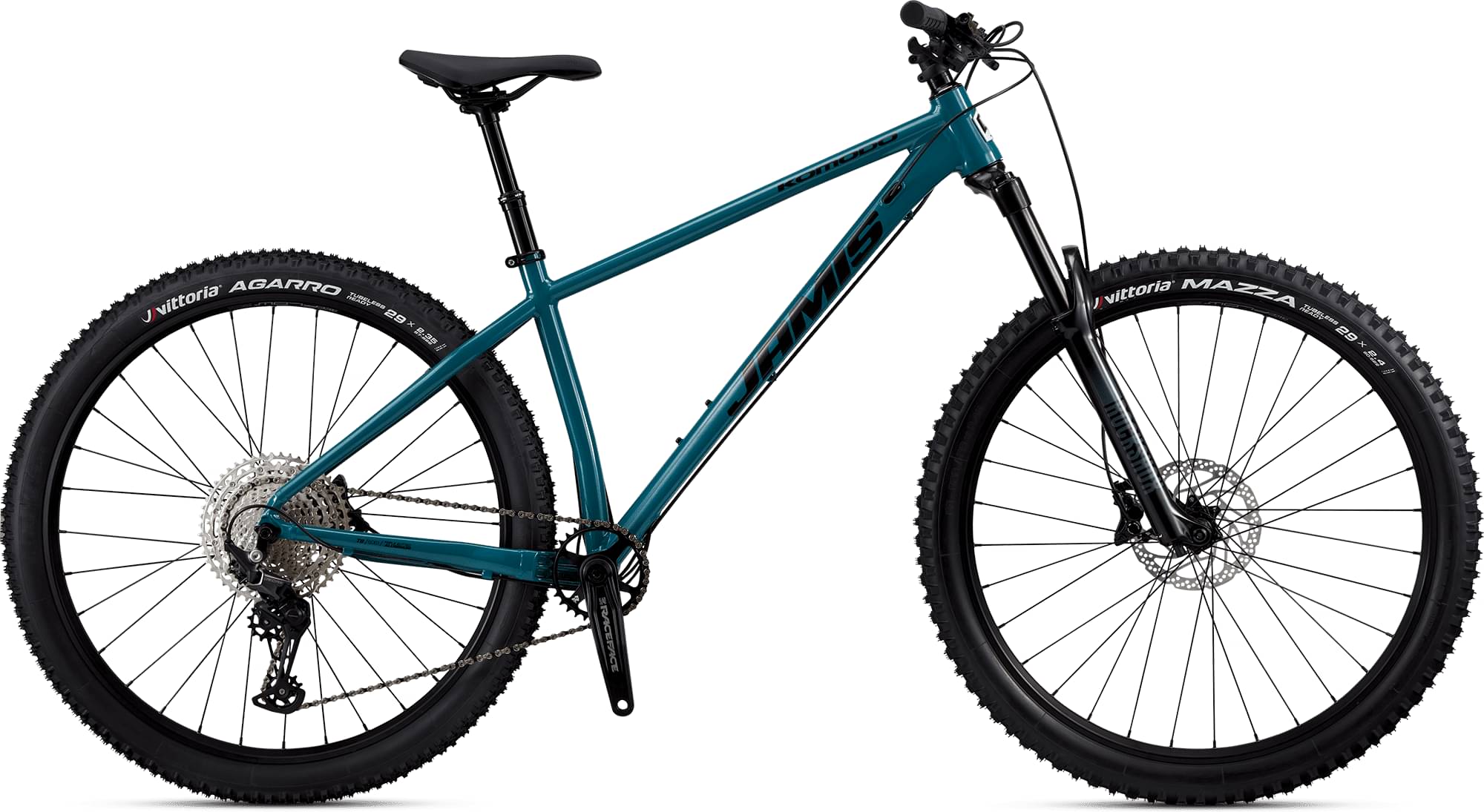

Jamis KOMODO 29 2025
2025 Mountain
Estimate price |
1,999$
Weight | 14.51 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Fork RockShox 35 Silver
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Triple-butted 6061 aluminum, 1.5 – 1 1/8” tapered head tube, post mount disc brakes, 12x148mm thru-axle drop-out, internal dropper post routing, replaceable derailleur hanger
Suspension Fork
Rock Shox 35 Silver TK 29”, Solo Air compression, Turn Key lockout, external rebound, 35mm steel stanchions, magnesium lowers, 15x110mm axle, 140mm travel, 51mm rake
Drivetrain
Rear Derailleur
Shimano Deore, 12-speed
Shift Levers
Shimano Deore, 1×12-speed
Cassette
Shimano M6100, 12-speed, 10-51T
Crank
Race Face Ride, 32T
Bottom Bracket
Race Face BSA
Chain
KMC X12, 12-speed
Pedals
N/A
Wheels
Rims
Stan’s No Tubes Flow D 29” rims, Shimano MT410 15x110mm front & 12x148mm rear hubs, stainless spokes
Tires
WTB Vigilante 29 x 2.5” Front & Trail Boss 29 x 2.4” Rear, TCS Tubeless
Brakes
Brakes
Shimano MT420 4-piston hydraulic disc, 180mm RT30 rotors
Cockpit
Stem
Race Face Ride, 50mm
Handlebar
Race Face Ride, 35 x 760mm
Grips
Jamis Lock-On
Headset
FSA Orbit 1.5 Zero-Stack internal cup, 8mm cone spacer
Seat
Saddle
WTB Volt
Seatpost
KS Rage Dropper, Southpaw remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.425 mm | 1.374 mm | 1.326 mm | 1.284 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 764 mm | 790 mm | 818 mm | 845 mm |
| Rake | 51 mm | 51 mm | 51 mm | 50 mm |
| Trail | 118 mm | 118 mm | 118 mm | 119 mm |
| Stack | 627 mm | 636 mm | 646 mm | 655 mm |
| Reach | 440 mm | 463 mm | 487 mm | 510 mm |
| Top Tube Length | 597 mm | 622 mm | 648 mm | 673 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1192 mm | 1219 mm | 1247 mm | 1274 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 744 mm | 779 mm | 805 mm | 831 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
