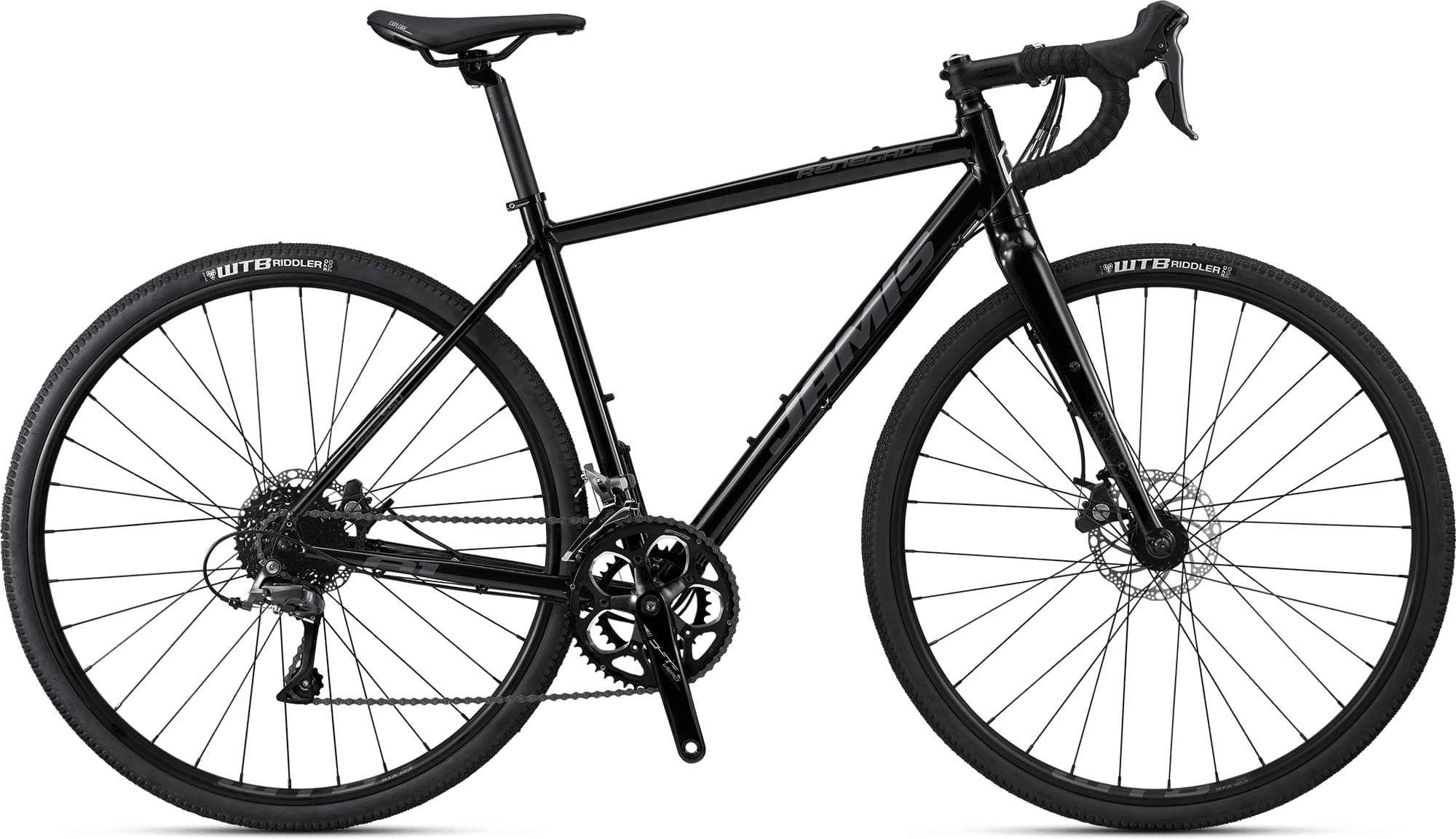

Jamis RENEGADE A1 2024
2024 Road
Estimate price |
1,099$
Weight | 10.89 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Claris -
Suspension Rigid -
Drivetrain 2 × 8 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
UPDATED Jamis Size Specific Design frame geometry, 6061 aluminum double-butted main frame, 1.5 – 1 1/8” tapered head tube, 31.8mm seat tube for 27.2 seat post, Flat Mount disc brake mounts, internal cable routing, replaceable derailleur hanger, 3 waterbottle mounts, TT mounts, rack and fender eyelets.
Suspension Fork
UPDATED Jamis Adventure 6061 aluminum, tapered aluminum steerer, integrated cable cradles with Flat Mount disc brake mounts, exposed fender, lowrider and 3 water bottle eyelets
Drivetrain
Rear Derailleur
Shimano Claris RD-R2000 GS
Front Derailleur
Claris FD-R2000
Shift Levers
Shimano Claris ST-R2000 Dual Control STI, 16-speed
Cassette
Shimano HG41 8-speed, 11-34T
Crank
FSA Vero, 50/34T, 165mm (44/48), 170mm (51) 172.5mm (54/56) 175mm (58/61)
Bottom Bracket
FSA sealed cartridge, 68 x 110.5mm
Chain
KMC Z8
Pedals
N/A
Wheels
Rims
WTB STX i23 TCS (UST Tubeless Compliant System) disc rims, 32H, Joytec alloy 6-bolt hubs and 14g stainless steel spokes
Tires
WTB Riddler Comp 700CX37C, 30tpi Casing, Wire Bead (48-61) WTB BYWAY 650CX40C, 30tpi Casing, Wire Bead (44)
Brakes
Brakes
Tektro C310 Flat Mount mechanical cable actuated disc brake with 160mm wave rotors and Shimano Claris ST- R2000 levers
Cockpit
Stem
Jamis Road 3D forged 6061 alloy, 7 ? x 70mm (44), 80mm (48/51), 90mm (54/56), 110mm (58/61)
Handlebar
Ritchey Baquiano Comp, 6061 aluminum, 73 reach, 118 ergonomic drop with 12ç flare, 31.8 x 400 (44) 420 (48-51) 440mm (54-56), 460mm (56-61)
Grips
Jamis suede tape with gel inserts
Headset
FSA Orbit C-40B Internal/External, 1.5 – 1 1/8”
Seat
Saddle
NEW Jamis Sport with SL top
Seatpost
Jamis Road, micro-adjust, 27.2 x 350mm cromo seat pin
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.464 mm | 1.47 mm | 1.508 mm | 1.545 mm | 1.571 mm | 1.59 mm |
| Bottom Bracket Height | 275 mm | 275 mm | 277 mm | 277 mm | 278 mm | 278 mm |
| Front Center | 581 mm | 593 mm | 607 mm | 626 mm | 636 mm | 651 mm |
| Rake | 53 mm | 53 mm | 53 mm | 53 mm | 50 mm | 50 mm |
| Trail | 60 mm | 64 mm | 69 mm | 69 mm | 62 mm | 61 mm |
| Stack | 527 mm | 544 mm | 573 mm | 601 mm | 627 mm | 647 mm |
| Reach | 360 mm | 370 mm | 380 mm | 389 mm | 399 mm | 407 mm |
| Top Tube Length | 522 mm | 537 mm | 556 mm | 574 mm | 591 mm | 606 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° | 72 ° | 72 ° |
| Head Tube Length | 80 mm | 96 mm | 126 mm | 156 mm | 181 mm | 201 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1000 mm | 1012 mm | 1027 mm | 1051 mm | 1061 mm | 1076 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 72 mm | 72 mm | 70 mm | 70 mm |
| Standover Height | 728 mm | 737 mm | 778 mm | 804 mm | 827 mm | 849 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
