Jamis RENEGADE C3 GRX 2024

2024 Road
Estimate price | 3,999$
Weight | 8.75 kg
Open compare Use advisor

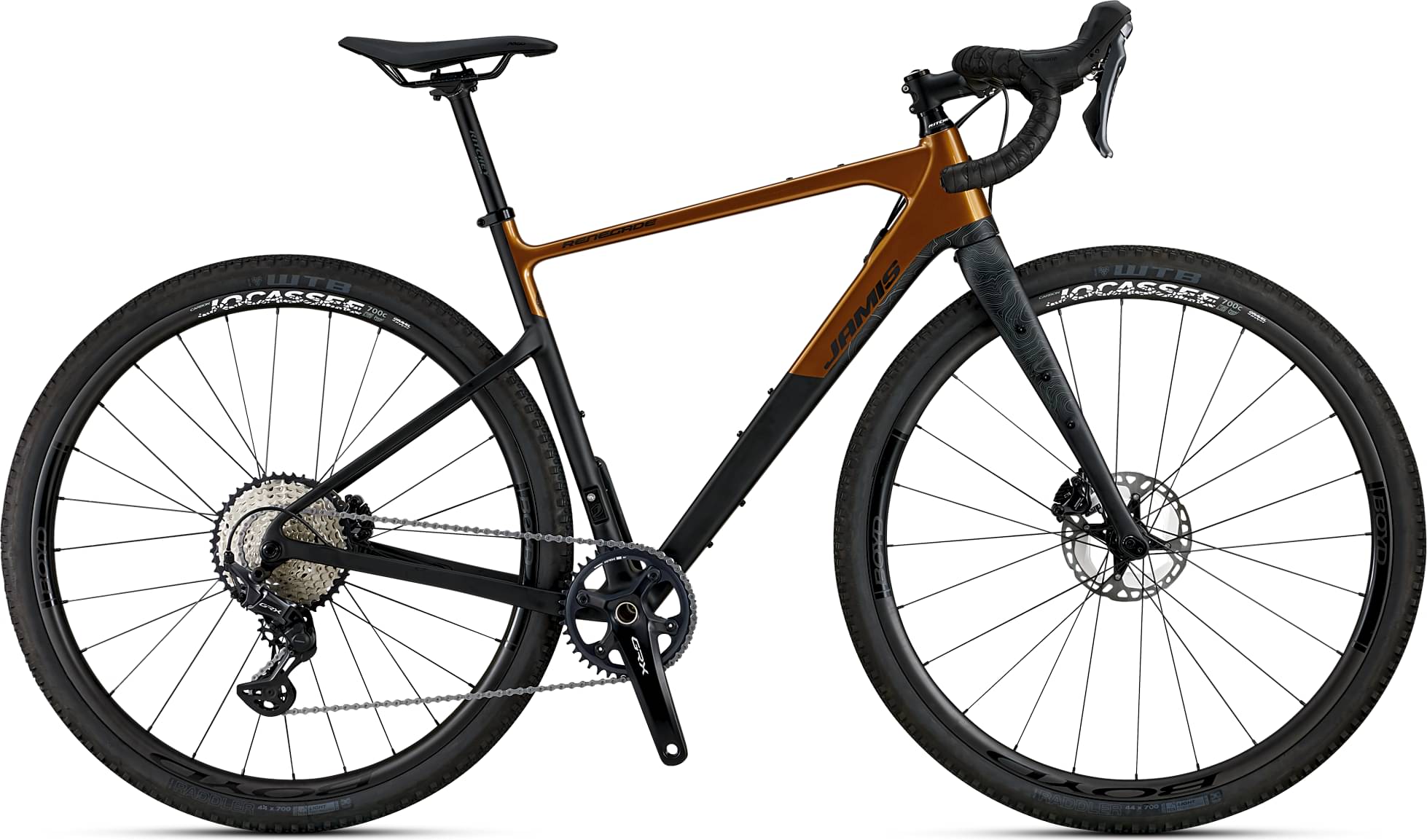

Jamis Renegade C3 Grx 2024

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Carbon
  • Groupset GRX 800
  • Suspension Rigid
  • Drivetrain 1 × 12
  • Brakes Hydraulic Disc

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

Renegade Omniad M30 monocoque carbon fiber frame, Near Net molding process, 12×142 thru-axle, SST tubing diameters, 1.5 – 1 1/8” head tube, EVO386 carbon BB shell, internal cable routing compatible for both Di2 wires or traditional cables and internal dropper post, flat mount disc brakes and exposed fender mount eyelets, carbon drop outs, FD mount and replaceable threaded UDH hanger and TA mount, clearance for 45-50c tires

Suspension Fork

Renegade monocoque carbon fiber fork, flip-chip with 50/55mm offset, 12mm thru-axle, carbon dropouts, tapered steerer with 1.5” hollow formed crown, flat mount disc brakes with internal cable routing, exposed fender mounts and water bottle eyelets

Drivetrain

Rear Derailleur

Shimano GRX RD-RX822 GS Shadow Plus rear

Shift Levers

Shimano GRX ST-RX820 Dual Control STI, 12-speed, right. GRX ST-RX820-LA Dropper Post Operation, left

Cassette

Shimano CS-M7100, 12-speed, 10-45T

Crank

Shimano GRX FC-RX820, 40T, 170mm (48/51), 172.5mm (54/56), 175mm (58/61)

Bottom Bracket

Enduro 386EVO PressFit for 24mm spindle

Chain

KMC X12 EPT Anti-Rust

Pedals

N/A

Wheels

Rims

Boyd Jocassee Carbon Tubeless wheelset, i26, 24/28H, Boyd Quest centerlock ABEC 3 cartridge sealed bearing hubs, Pillar Aero 20 wing bladed spokes, Microspline Driver, Wingnut tubeless valves, front 12mm/rear 12×142 thru-axles with Switch Lever. Max tire Pressure 65psi/4.4bar

Tires

WTB Raddler Tubeless, 700 x 44c, Dual DNA Compound, Aramid bead

Brakes

Brakes

Shimano GRX BR-RX820 flat mount hydraulic disc brakes with resin pads and Fin, Shimano RT-MT800 160mm rotors with GRX ST-RX820 Dual Control STI levers

Cockpit

Stem

Ritchey 4-AXIS 44 Stem 6°x60mm (48-51), 70mm (54-56), 80mm (58/61)

Handlebar

Ritchey Ergomax Comp, 6061 aluminum, 73 reach, 128 ergonomic drop with 12° flare, 31.8 x 420 (48-51) 440mm (54-56), 460mm (56-61)

Grips

Velo EVA gel with gel inserts

Headset

Ritchey Comp Drop-In, sealed bearing with nylon upper compression ring, 1.5 – 1 1/8”

Seat

Saddle

Fizik Terra Argo X7 Gravel Saddle with relief hole and S-Alloy rails

Seatpost

Ritchey Comp Carbon Zero, 27.2 x 400mm with Jamis 7075-AL CNC aluminum 1-bolt seat post clamp
