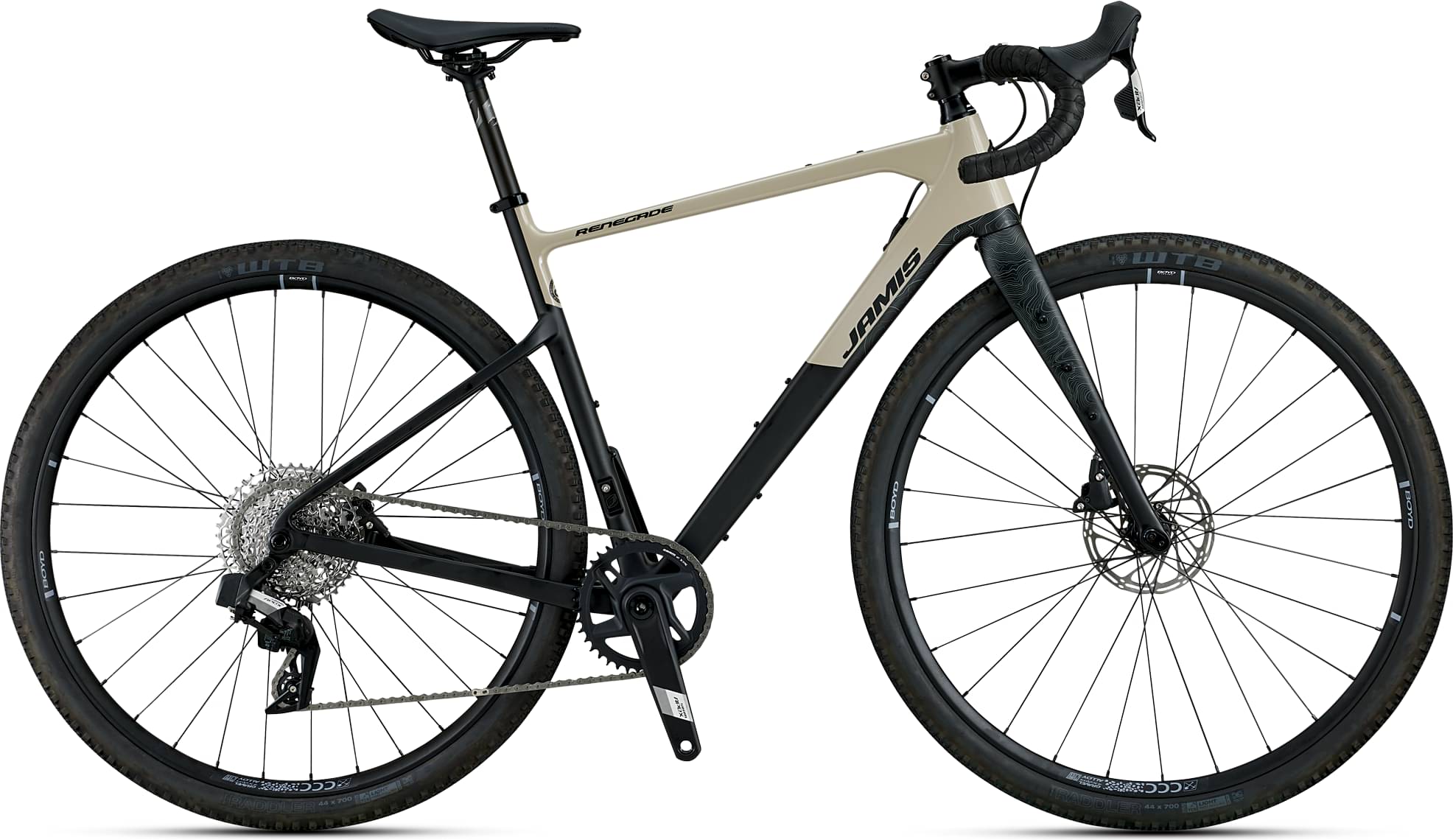

Jamis RENEGADE C4 APEX AXS 2025

2025 Road
Estimate price | 3,299$
Weight | 9.03 kg
Open compare Use advisor
Jamis Renegade C4 Apex Axs 2025

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Carbon
  • Groupset Apex XPLR AXS, Apex AXS
  • Suspension Rigid
  • Drivetrain 1 × 12 Electronic
  • Brakes SRAM Apex Hydraulic Disc

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

Renegade Dyad Plus T700/FRP monocoque carbon fiber frame, Near Net molding process, 12×142 thru-axle, SST tubing diameters, 1.5 – 1 1/8” head tube, EVO386 carbon BB shell, internal cable routing compatible for both Di2 wires or traditional cables and internal dropper post, flat mount disc brakes and exposed fender mount eyelets, carbon drop outs, FD mount and replaceable threaded UDH hanger and TA mount, clearance for 45-50c tires

Suspension Fork

Renegade monocoque carbon composite fiber fork, flip-chip with 50/55mm offset, 12mm thru-axle, carbon dropouts, tapered steerer with 1.5” hollow formed crown, flat mount disc brakes with internal cable routing, exposed fender mounts and water bottle eyelets

Drivetrain

Rear Derailleur

SRAM Apex XPLR eTap AXS

Shift Levers

SRAM Apex eTap AXS HRD, 12-speed

Cassette

SRAM PG 1231 XPLR 12-speed, 11-44T

Crank

SRAM Apex Wide 40T, 165mm (48), 170mm (51), 172.5mm (54/56), 175mm (58/61)

Bottom Bracket

SRAM DUB BB386

Chain

SRAM Apex

Pedals

N/A

Wheels

Rims

Boyd CCC Tubeless wheelset, i25, 28/32H, Boyd Quest centerlock ABEC 3 cartridge sealed bearing hubs, Pillar Wing 20 spokes, HG Driver, Wingnut tubeless valves, front 12mm/rear 12×142 thru-axles with Switch Lever. Min tire size 30mm, Max tire Pressure 70psi/4.8bar

Tires

WTB Raddler Tubeless, 700 x 44c, Dual DNA Compound, Aramid bead

Brakes

Brakes

SRAM Apex hydraulic disc brakes, Centerlock Centerline 160mm rotors with SRAM Apex eTap AXS HRD levers

Cockpit

Stem

Ritchey 4-AXIS Stem 6°x60mm (48-51), 70mm (54-56), 80mm (58/61)

Handlebar

Ritchey Baquiano Comp, 6061 aluminum, 73 reach, 118 ergonomic drop with 12° flare, 31.8 x 420 (48-51) 440mm (54-56), 460mm (56-61)

Headset

Ritchey Comp Drop-In, sealed bearing with nylon upper compression ring, 1.5 – 1 1/8”

Seat

Saddle

Selle Royal SRX Gravel Saddle with relief hole and MG rails

Seatpost

Jamis carbon fiber micro-adjust, 27.2 x 330mm, 0mm offset with Jamis 7075-AL CNC aluminum 1-bolt seat post clamp
