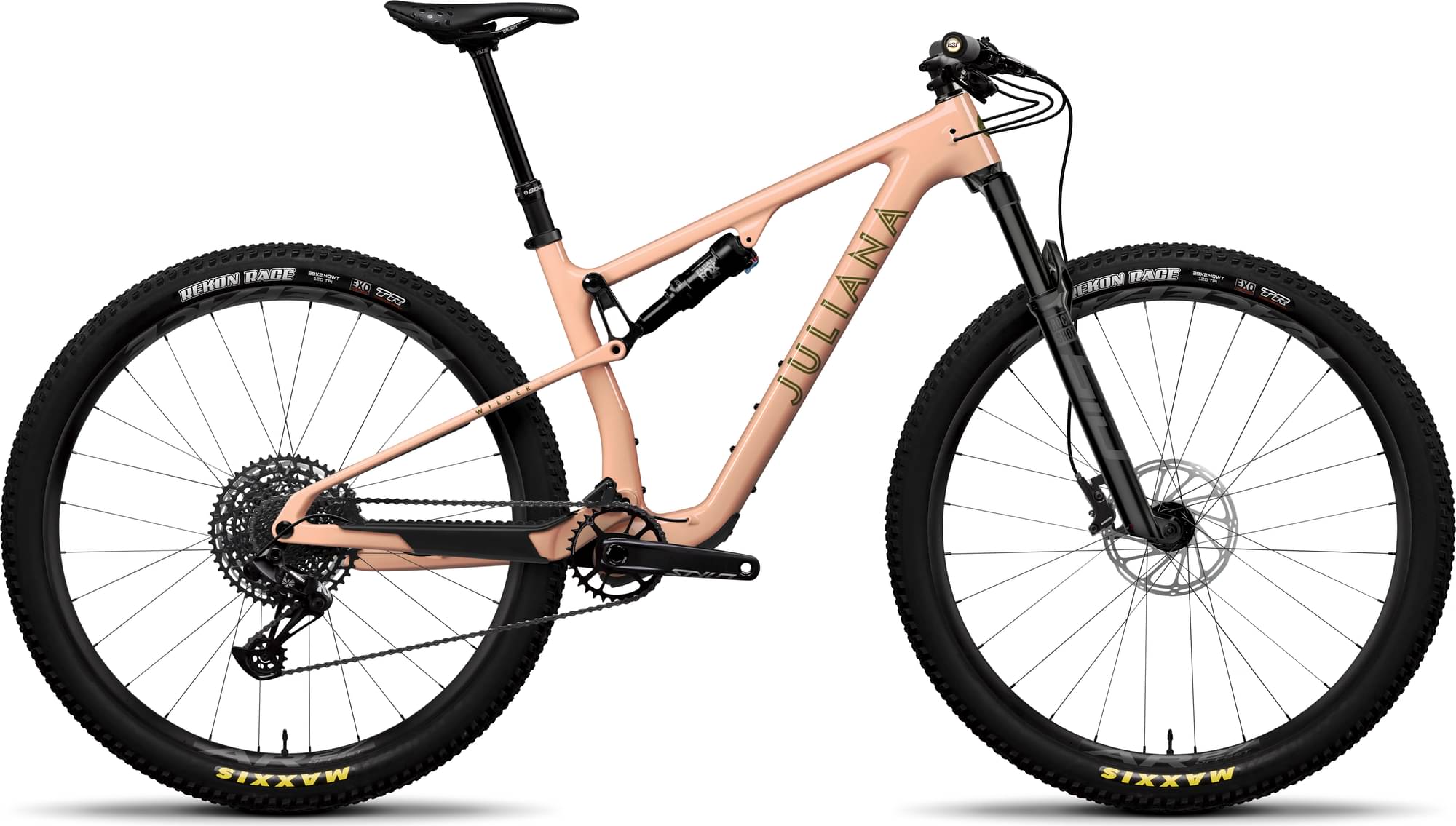

Juliana Wilder R Trail / Carbon C 2024
2024 Mountain
Estimate price |
6,231$
Weight | 12.95 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 120mm -
Travel Rear 115mm -
Fork RockShox SID
-
Groupset NX Eagle, Truvativ Stylo -
Suspension Full -
Drivetrain 1 × 12 -
Brakes SRAM Level T Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
RockShox Sid RL, 120mm
Rear Shock
FOX Float Performance, 190x45
Drivetrain
Rear Derailleur
SRAM NX Eagle, 12spd
Front Derailleur
No compatibility
Shift Levers
SRAM NX Eagle, 12spd
Cassette
SRAM PG1230, 12spd, 11-50t
Crank
SRAM Stylo 148 DUB 32t
Bottom Bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM NX Eagle, 12spd
Chain Guide
OneUp Chainguide
Wheels
Front Hub
Front: SRAM MTH 716, 15x110, Torque Cap, 6-Bolt 32h, Rear: SRAM MTH 746, 12x148, HG, 6-Bolt, 32h
Rear Hub
Front: SRAM MTH 716, 15x110, Torque Cap, 6-Bolt 32h, Rear: SRAM MTH 746, 12x148, HG, 6-Bolt, 32h
Rims
Front: RaceFace AR Offset 27 29", Rear: RaceFace AR Offset 27 29"
Tires
Front: Maxxis Rekon Race 29"x2.4"WT, EXO, Rear: Maxxis Rekon Race 29"x2.4"WT, EXO
Brakes
Brakes
SRAM Level T
Cockpit
Stem
RaceFace Ride, 60mm
Handlebar
RaceFace Ride
Headset
FSA IS-2/47/42 ACB or Cane Creek 10 IS Integrated
Seat
Saddle
Juliana Primiero Saddle or Juliana Segundo Saddle
Seatpost
SDG Tellis Dropper, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.425 mm | 1.364 mm | 1.326 mm |
| Bottom Bracket Height | 339.9 mm | 339.7 mm | 339.6 mm |
| Front Center | 695 mm | 723.7 mm | 747.4 mm |
| Rake | 46 mm | 45 mm | 45 mm |
| Trail | 108 mm | 109 mm | 109 mm |
| Stack | 587.4 mm | 597 mm | 606.5 mm |
| Reach | 412.3 mm | 437.8 mm | 457.5 mm |
| Top Tube Length | 568.4 mm | 597.3 mm | 621.4 mm |
| Seat Tube Angle | 75.1 ° | 75 ° | 74.9 ° |
| Seat Tube Length | 405 mm | 430 mm | 470 mm |
| Head Tube Angle | 67.1 ° | 67.1 ° | 67.1 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm |
| Chainstay Length | 430 mm | 433 mm | 435 mm |
| Wheelbase | 1125 mm | 1157 mm | 1183 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm |
| Standover Height | 743 mm | 746 mm | 745 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
