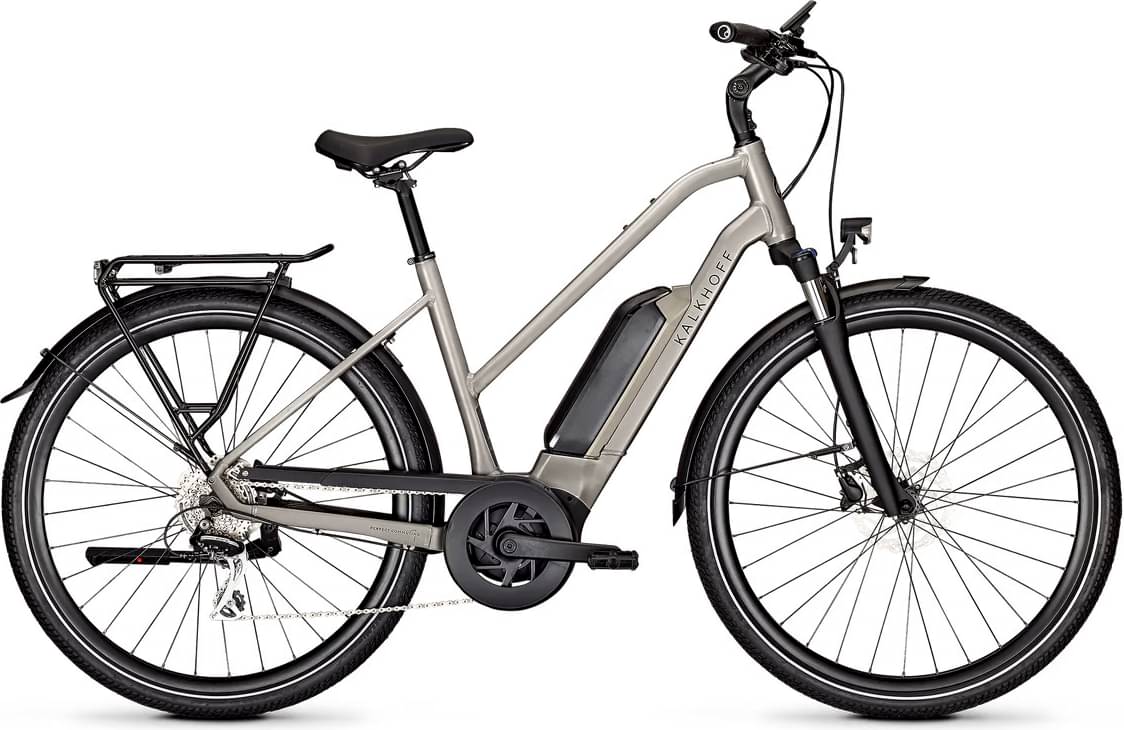

kalkhoff ENDEAVOUR 1 MOVE Trapez 2024
2024 E-bike
Estimate price |
3,440$
Weight | 25 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 45mm -
Fork Suntour NEX
-
Suspension Hardtail -
Motor Bosch 600W 63Nm mid-drive -
Battery Bosch PowerPack Li-Ion 36V / 15,1 Ah (545 Wh),Accu ontube 725W Bosch Bes3 -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Suntour NEX E25 HLO
Drivetrain
Shift Levers
Derailleur
Cassette
Shimano HG41
Crank
Aluminium
Chain
KMC X8
Pedals
Aluminium, mit rutschhemmender Beschichtung und Reflektor
Wheels
Rims
Hochprofil, Hohlkammer, geöst, Aluminium
Tires
CST Platinum, 50-622
Brakes
Brakes
Disc Brake
Cockpit
Stem
Aluminium, adjustable
Handlebar
Tour, Aluminium
Seat
Saddle
Selle Royal TCM
Seatpost
Concept EX, Aluminium
Motor & Battery
Motor
Bosch Performance Line Smart System
Battery
Bosch PowerPack Li-Ion 36V / 15,1 Ah (545 Wh),Accu ontube 725W Bosch Bes3
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | XS | XL | LG |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.663 mm | 1.684 mm | 1.61 mm | 1.679 mm | 1.592 mm |
| Stack | 657 mm | 667 mm | 677.8 mm | 685 mm | 718.2 mm |
| Reach | 395 mm | 396 mm | 421 mm | 408 mm | 451 mm |
| Top Tube Length | 596.7 mm | 600.5 mm | 615.4 mm | 618.3 mm | 651.6 mm |
| Seat Tube Angle | 73 ° | 73 ° | 79.9 ° | 73 ° | 79.9 ° |
| Head Tube Angle | 70.5 ° | 70.5 ° | 68 ° | 70.5 ° | 69.5 ° |
| Head Tube Length | 160 mm | 170 mm | 185 mm | 190 mm | 200 mm |
| Wheelbase | 1141 mm | 1141 mm | 1242 mm | 1164 mm | 1261 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 60 mm | 65 mm | 60 mm |
| Front Travel | 44 mm | 44 mm | 45 mm | 44 mm | 45 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
