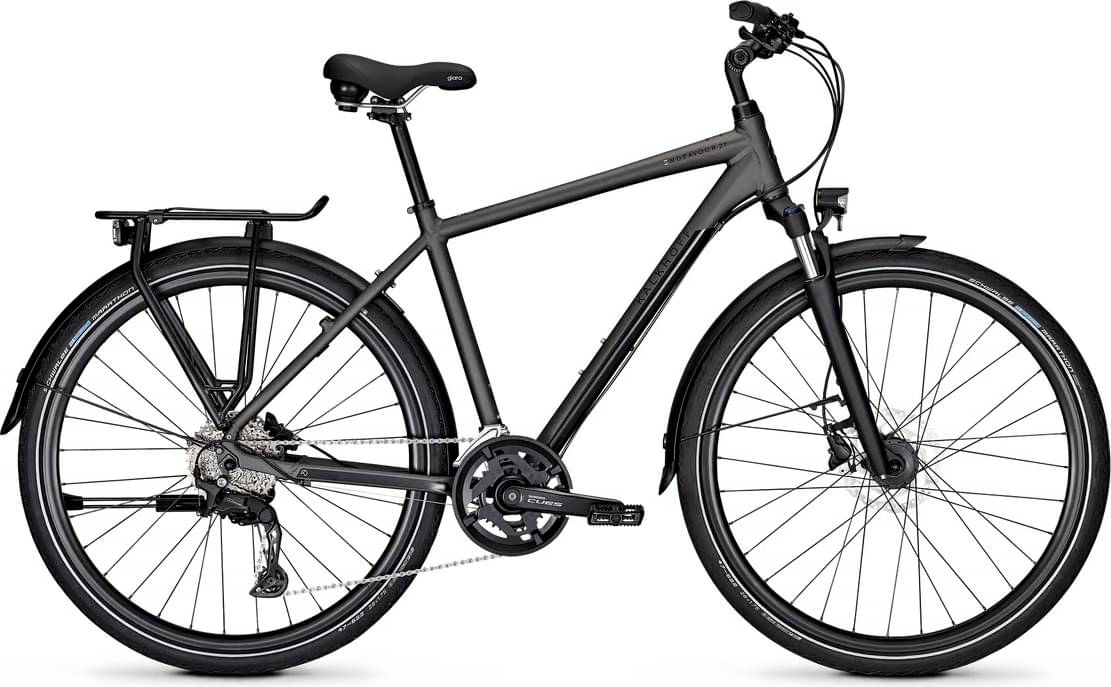

kalkhoff ENDEAVOUR XXL Diamond 2024
2024 Urban
Estimate price |
1,318$
Weight | 18 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 45mm -
Fork Suntour NEX
-
Groupset Alivio -
Suspension Hardtail -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
SR Suntour NEX, adjustable
Drivetrain
Shift Levers
Derailleur
Crank
Shimano Alivio
Chain
Shimano HG53
Wheels
Rims
Rodi Cyclone, Hochprofil, Hohlkammer, geöst
Tires
Schwalbe Marathon, 47-622
Brakes
Brakes
Disc Brake
Cockpit
Stem
alloy, adjustable
Handlebar
Aluminium, Comfort Riser
Seat
Saddle
Selle Royal Giara
Seatpost
Aluminium, XXL, rigid
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.708 mm | 1.682 mm | 1.621 mm | 1.58 mm | mm |
| Stack | 666 mm | 676 mm | 676 mm | 689 mm | mm |
| Reach | 390 mm | 402 mm | 417 mm | 436 mm | mm |
| Top Tube Length | 600 mm | 615 mm | 630 mm | 660 mm | mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72 ° | ° |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 71.5 ° | ° |
| Head Tube Length | 185 mm | 195 mm | 195 mm | 205 mm | mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | mm |
| Front Travel | 45 mm | 45 mm | 45 mm | 45 mm | mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
