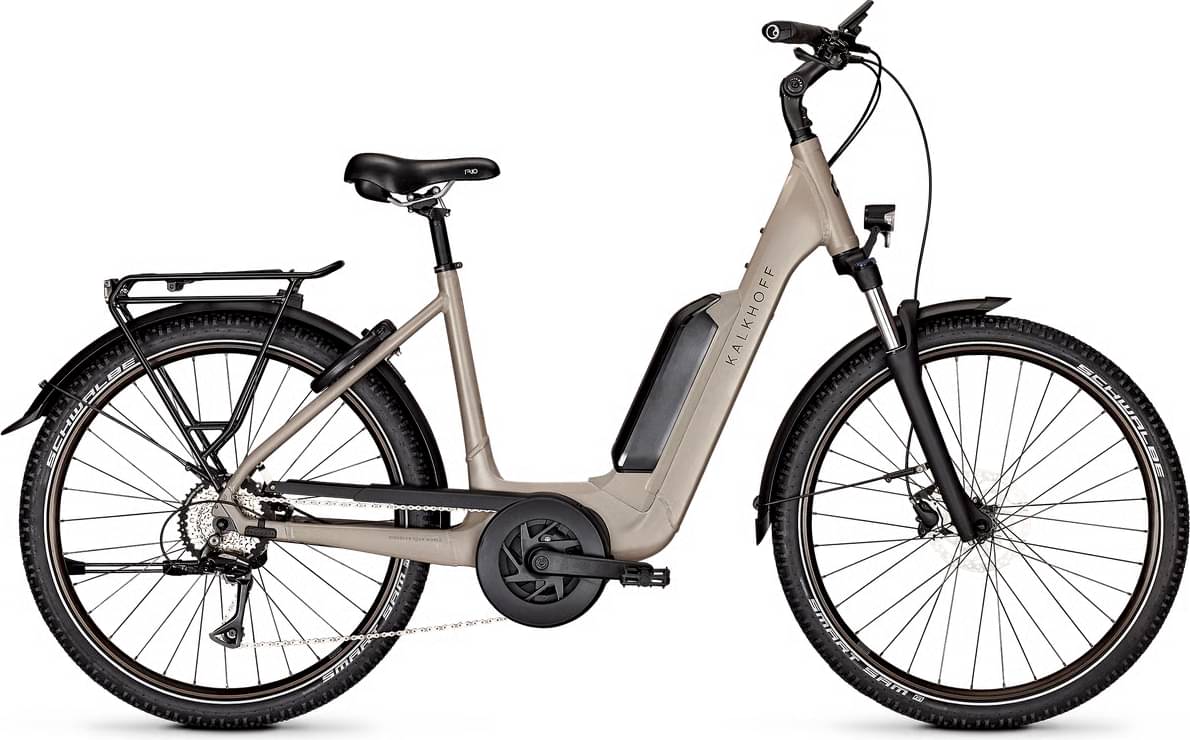

kalkhoff ENTICE 1 MOVE Wave 2024
2024 E-bike
Estimate price |
3,784$
Weight | 26 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 44mm -
Fork Suntour NVX
-
Suspension Hardtail -
Motor Bosch 600W 63Nm mid-drive -
Battery Accu ontube 725W Bosch Bes3,Bosch PowerPack Li-Ion 36V / 15,1 Ah (545 Wh) -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
SR Suntour NVX, adjustable
Drivetrain
Shift Levers
Derailleur
Cassette
Shimano HG400
Crank
Aluminium
Chain
KMC X8
Pedals
MTB, mit Reflektor
Wheels
Rims
Aluminium, Hohlkammer, geöst,Hohlkammer, geöst, Aluminium, 25 mm
Tires
Schwalbe Smart Sam, 54-584
Brakes
Brakes
Disc Brake
Cockpit
Stem
Aluminium, adjustable
Handlebar
Tour, Aluminium
Seat
Saddle
Selle Royal TCM
Seatpost
Patent, Aluminium
Motor & Battery
Motor
Bosch Performance Line Smart System
Battery
Accu ontube 725W Bosch Bes3,Bosch PowerPack Li-Ion 36V / 15,1 Ah (545 Wh)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | XS | XL | SM | LG |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.684 mm | 1.61 mm | 1.679 mm | 1.566 mm | 1.592 mm |
| Stack | 667 mm | 677.8 mm | 685 mm | 682.9 mm | 718.2 mm |
| Reach | 396 mm | 421 mm | 408 mm | 436 mm | 451 mm |
| Top Tube Length | 600.5 mm | 615.4 mm | 618.3 mm | 631.8 mm | 651.6 mm |
| Seat Tube Angle | 73 ° | 79.9 ° | 73 ° | 79.9 ° | 79.9 ° |
| Head Tube Angle | 70.5 ° | 68 ° | 70.5 ° | 69 ° | 69.5 ° |
| Head Tube Length | 170 mm | 185 mm | 190 mm | 185 mm | 200 mm |
| Wheelbase | 1145 mm | 1242 mm | 1164 mm | 1246 mm | 1261 mm |
| Bottom Bracket Drop | 65 mm | 60 mm | 65 mm | 60 mm | 60 mm |
| Front Travel | 44 mm | 45 mm | 44 mm | 45 mm | 45 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
