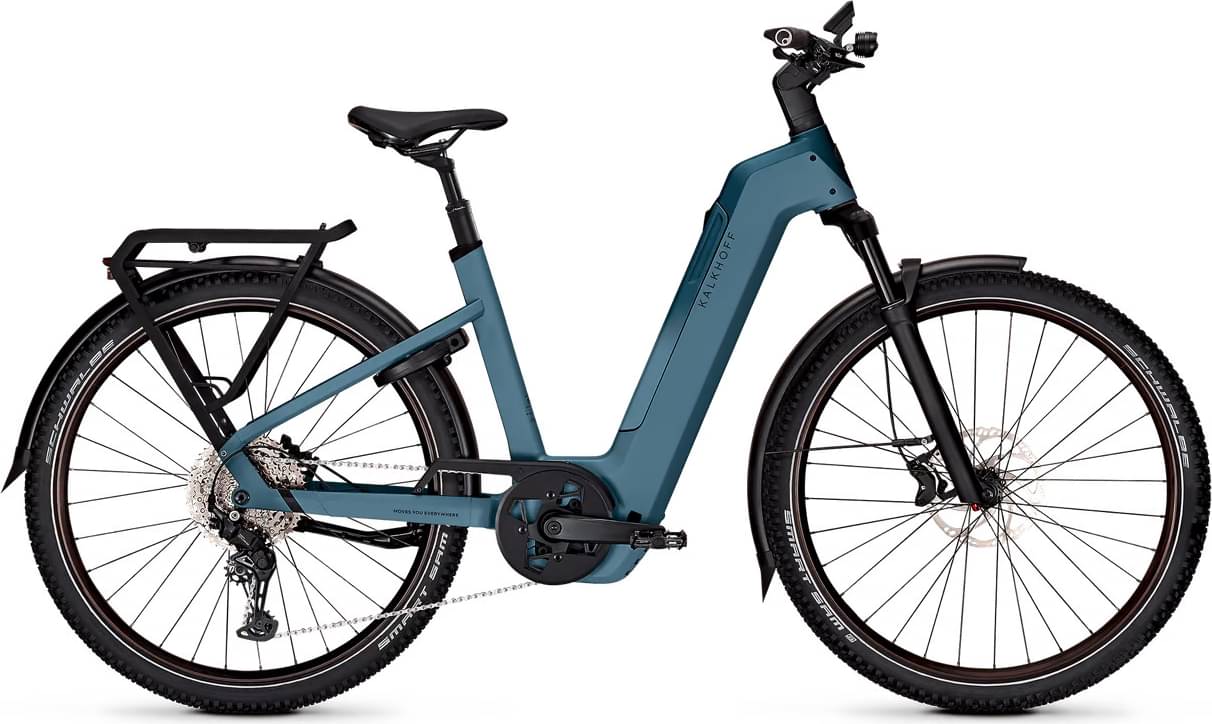

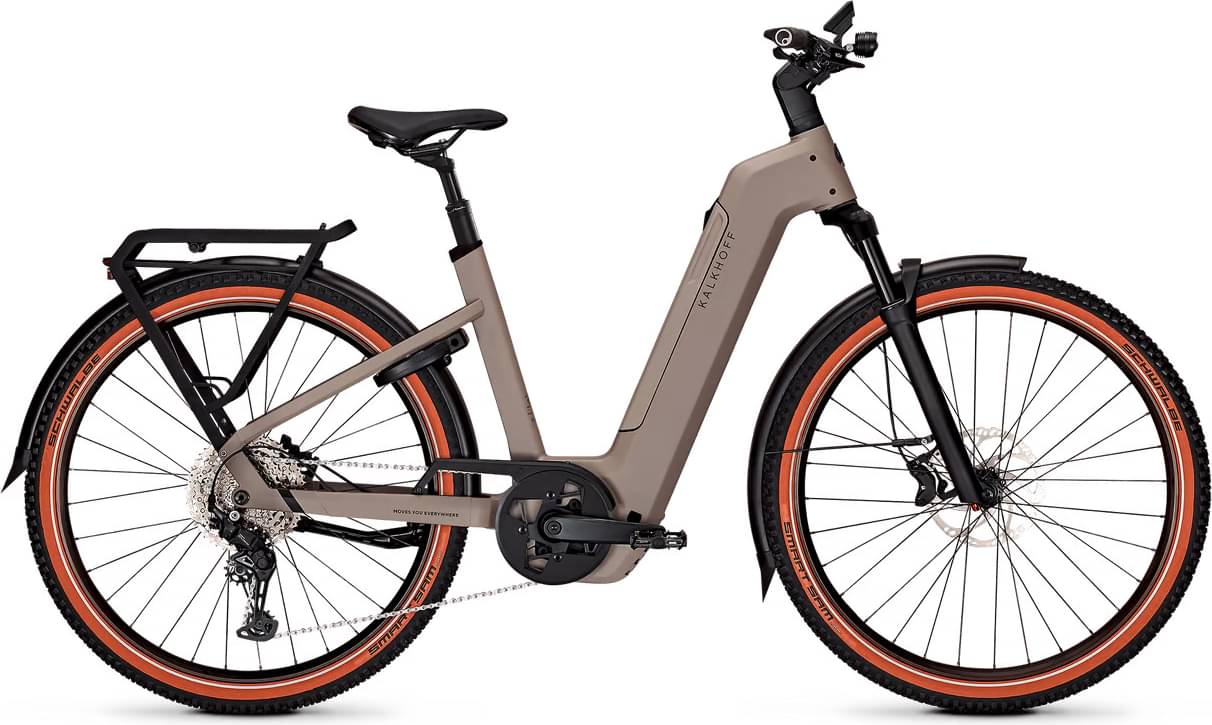

kalkhoff ENTICE 5+ ADVANCE Wave 2024
2024 E-bike
Estimate price |
5,963$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 51mm -
Fork Suntour MOBIE
-
Groupset CUES -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch PowerTube Li-Ion (800 Wh),Bosch PowerTube Li-Ion (600 Wh) -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
SR Suntour Mobie34, 110x15 mm thru axle
Drivetrain
Rear Derailleur
11-G Shimano Cues
Cassette
Shimano Cues Linkglide
Crank
Aluminium
Chain
Shimano CN-LG500
Pedals
MTB Flat, Aluminium, mit Reflektor
Wheels
Rims
Aluminium, Hohlkammer
Tires
Schwalbe Smart Sam Black Reflex 57-622,Schwalbe Smart Sam Bronze Reflex 57-622
Brakes
Brakes
hydraulic disc brake
Cockpit
Stem
Cockpit 2.0, adjustable, 65mm
Handlebar
Allroad Riser
Seat
Saddle
Selle Royal Vivo
Seatpost
Aluminium, gefedert
Motor & Battery
Motor
Bosch Performance Line CX Smart System
Battery
Bosch PowerTube Li-Ion (800 Wh),Bosch PowerTube Li-Ion (600 Wh)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.633 mm | 1.608 mm | 1.613 mm | 1.612 mm | 1.61 mm |
| Stack | 653 mm | 653 mm | 663 mm | 672 mm | 681 mm |
| Reach | 400 mm | 406 mm | 411 mm | 417 mm | 423 mm |
| Top Tube Length | 600 mm | 606 mm | 614 mm | 623 mm | 631 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 130 mm | 130 mm | 140 mm | 150 mm | 130 mm |
| Wheelbase | 1206 mm | 1212 mm | 1221 mm | 1231 mm | 1241 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Front Travel | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
